Does your project need better range than WiFi can offer? WiFi often falls short for many IoT devices. This guide helps you choose. We will look at both technologies side by side, helping you find the best LoRa module for your needs. You can then make a smart, informed decision with confidence.
You should opt for a LoRa module for its unmatched long-range and low-power features. I've seen in the field that WiFi is a distance killer and a power guzzler, which makes it impractical for many IoT scenarios. A LoRa module, in contrast, communicates over 15 km and operates on sub-gigahertz frequencies.
LoRa technology also lets devices last for years on a single battery, something I can personally vouch for from our long-term deployments. We at G-NiceRF have proven that our LoRa module with Arduino is a reliable and low cost LoRa module alternative to WiFi.
It's perfect for large, dense sensor networks that demand extreme efficiency. When you need to buy LoRa module components for a serious project, these are the factors that truly matter. The what is a LoRa module question is answered by its superior performance in tough conditions.
Let's explore the fundamentals of LoRa technology. You will see how its custom modulation achieves amazing distance and reliability.
This is the core technique that makes LoRa communication possible. It's a clever way to send signals that are very robust.
This technique captures signal information by creating a chirp signal. The radio frequency in the modulation increases or decreases linearly over a set time. This method allows the Semtech LoRa module to engrave signals onto radio waves, which is how we achieve such clear long-distance communication. The SX1278 LoRa module is a great example of this in action.
LoRa technology is famous for its strong anti-interference performance. Its spread spectrum technology is a huge leap compared to older GFSK and FSK modulations. Therefore, your SX1278 LoRa module Arduino setup tends to work perfectly, in fact, even in systems with many disruptive signals. I've deployed them in noisy industrial environments without a hitch.
Floor Very high sensitivity allows the LoRa module to capture signals that are extremely weak. Most LoRa devices can receive data that is well below the noise floor. For instance, the sensitivity of an LoRa1276 module can be as low as -139dBm.
This subsection will be about Spreading Factors. These configurations are used to optimize the communication range in relation to the data transfer speed.
The LoRa module operates on spanning factors from SF7 to SF12. The LoRa1276 C1 module can use a low factor like SF7, which results in higher data throughput. Conversely, a high factor like SF12 dramatically increases the range.
Different spreading factors are nearly orthogonal. This means signals using different SF settings do not interfere with each other. For example, an Adafruit LoRa module gateway can simultaneously receive multiple signals on the same channel.
With LoRa, you have a trade-off. A device can achieve longer ranges but with lower data rates. For example, to maximize the LoRa module range, the data rate might need to be set as low as 293 bps.
LoRaWAN uses Adaptive Data Rate as a core part of the system. ADR helps optimize the network's performance against the overall power usage of each device.
The network server automatically optimizes the data rate for every device. This improves the performance of the LoRa1276 C1 with no manual changes needed from you.
Devices are able to last over 10 years when optimally used in the field. ADR helps devices spare a significant amount of battery power, in particular when they are closer to a gateway.
The data rate changes based on connection conditions. A device’s data rate is increased when it is close to a gateway. This dynamic process makes sure the ebyte LoRa module is always operating optimally.
The communication bandwidth is a key factor. It directly affects the data rate and sensitivity of the module.
This section covers radio frequency rules. LoRa uses different unlicensed bands across the world.
Here, we will focus on the different ISM frequency bands. These are used for LoRa communications in various countries.
In this region, the most common band for LoRa is 868 MHz. The 868MHz LoRa module is part of the ISM Band and can be used for long distances. A LoRa module 868MHz transmitter is subject to local duty cycle regulations.
For communication within North America, the designated frequency is the 915 MHz band. This provides a powerful connection. We offer the LoRa module 915MHz, which is FCC certified and meets all local requirements for a 915 MHz LoRa module.
Asia primarily uses the 433MHz band. This frequency penetrates structures well, hence the 433MHz LoRa module works perfectly for many urban and indoor projects. Our LoRa module 433MHz is popular in this region.
This section analyzes the remarkable receiver sensitivity of a LoRa module and how it helps achieve its incredible range.
Reaching levels of -148dBm is achievable by many LoRa modules. This is some of the best receiver sensitivity on the market. This capability ensures the reliable reception of even the weakest signals.
This is one of the biggest advantages of LoRa devices, granting users up to a 175dB link budget. This, combined with high sensitivity, guarantees strong connections for your rak3172 LoRa module.
The 433 MHz LoRa module easily sends signals through hurdles like thick walls and floors. LoRa modules connect easily within these barriers, remaining fully functional. The LoRa module distance is impressive even indoors.
In this section, we look at how transmission power can be adjusted. This helps you optimize the LoRa module for either range or battery life.
Many modules support adjustable output power, with some like the LoRa module RA-02 reaching up to +22dBm. This power level is more than enough for achieving long-distance links.
The network can also adjust the power level automatically. This feature helps save as much battery as possible while maintaining a strong connection. It is key to achieving long, trouble-free performance.
At a +10dBm output, the transmit current is only around 18mA. This shows the module’s very low power consumption, making it ideal for battery-powered devices.
In this section, we will focus on LoRaWAN data packets. We will also cover the measures used to secure the transmitted data.
This part examines the data packet in the LoRaWAN system, including its buffer size and integrity checks.
LoRa modules typically have a 256-byte FIFO buffer. It temporarily holds incoming and outgoing data packets. It helps manage data flow on your Adafruit 32u4 LoRa module.
Each LoRa packet starts with a preamble and a header. The preamble lets the receiver sync with incoming data. The header contains important info about the sx1276 LoRa module payload, like its size and coding rate.
The data is protected with a cyclic redundancy check (CRC). The sender calculates a CRC value, and the receiver verifies it. This means your sx1272 LoRa module automatically filters out corrupted packets.
Here, you will see the varied ways to organize a LoRa network. Each one has distinct advantages for IoT systems.
Typically, LoRaWAN uses a star-of-stars topology. End devices talk to gateways in a star network. Then, the gateways send data to a central network server, which forms a second star. It's a key part of the LoRaWAN topology.
A LoRa module can also be used for simple point-to-point communication. This is handy for directly connecting two devices, and you often see it in basic remote control systems.
Many IoT applications use LoRa modules with a private protocol. This allows for custom features within the network. We can even help you define a private protocol for your specific needs.
LoRa network security relies on several built-in tools. These features guard your network against common IoT hacks.
LoRa modules use strong AES128 encryption. Data is encrypted from the end device all the way to the application server. This keeps communications from your Murata LoRa module private and secure.
All devices must use unique authentication keys. This ensures only permitted devices can access the network. This rule helps counter spoofing when using a rak811 LoRa module.
Each device is guaranteed end-to-end security. Your application data is encrypted from the sensor to the application server. Security is a top priority in all the solutions we deliver.
This section looks inside a LoRa module. We will consider the main chips and the interfaces used.
At the heart of LoRa technology, all powerful LoRa modules are driven by Semtech chips. They deliver high efficiency to meet market demands.
§SX1262 And SX1268: When it comes to efficiency, the SX1262 and SX1268 chips are hard to beat. A sx1262 LoRa module is perfect for battery-powered IoT devices thanks to its low power usage and high sensitivity. An llcc68 LoRa module also fits this category.
§SX1276 And SX1278: The SX1276 and SX1278 are some of the most popular LoRa transceivers. The LoRa module sx1276 and SX1278 are fairly priced and perform well, making them great for various IoT devices. The sx1276 LoRa module Arduino is a common choice for makers.
§Dual-Band LR1121: The LR1121 chip supports both sub-GHz and 2.4GHz bands, which is a key feature for global applications. We use these chips in our most adaptable LoRa devices.
This section describes the main physical connections for attaching a LoRa module to a microcontroller or other device. The LoRa module pinout is critical here.
§SPI For Transceivers: Most transceiver modules use an SPI interface. SPI allows for full-duplex communication. This lets you directly access the LoRa chip's registers through the stm32 LoRa module.
§UART Serial Communication: Many full-featured modules use a UART interface. The RYLR998 uart interface 868/915 MHz LoRa module is a great example that simplifies development. An st LoRa module often provides this option.
§Industrial RS232/RS485: For tough industrial cases, RS232 and RS485 interfaces are often used. They are chosen for their ability to handle long distances and provide maximum reliability.
Every LoRa module relies on a precise clock source for stable communication. We use high-quality crystal oscillators in all our modules.
§0.5ppm TCXO Stability: A Temperature-Compensated Crystal Oscillator (TCXO) with 0.5ppm stability provides a very accurate clock source, even when temperatures change.
§64KHz Wake-Up Crystal: A 64KHz crystal is highly useful for low-power jobs. It can wake up the microcontroller from a deep sleep mode, saving precious battery life for your reyax LoRa module.
§Low-Drift Thermal Characteristics: All components are chosen for their low thermal drift. This is important for keeping communication parameters stable across a wide temperature range.

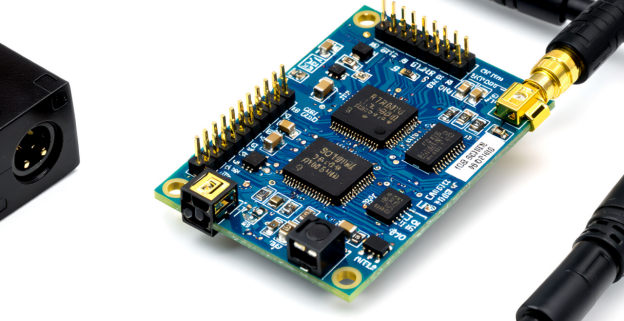

Our LoRa6500Pro is designed for the most demanding industrial jobs. It offers incredible power and advanced networking features.
This high power LoRa module is designed for applications needing maximum range and power. It saves you time and cost on deploying extra gateways.
This module sustains a powerful transmission of +37dBm. This is equivalent to a full 5W of output power. We designed it for applications needing the longest range and strongest signal penetration.
With such high power, you can achieve over 15 km in open areas. This extreme range is useful in agriculture or remote monitoring. Using a 1w LoRa module like this, you can cover large areas with minimal gateways.
With a voltage range of 9V to 30V, the module can operate with ease. This makes it simple to apply within various industrial power systems. Our design guarantees stable operation across a myriad of power supplies.
You can use this module to learn more about Mesh networking. This advanced capability lets the modules form a self-healing, wide-coverage network that is unconstrained by distance.
With Mesh capabilities, modules gain a self-driven routing ability. Each module becomes a potential router for others. Data packets find the most optimal route to their destination through the RYLR998 LoRa module.
With a Mesh network, coverage can be extended with an unlimited number of hops. Each module passes data to the next one, so distance is no longer a constraint. This is a powerful feature we have used to build large, seamless networks.
A network of multiple modules has no blind zones. This works well for large buildings or complex industrial areas. Reliable communication is possible everywhere with a LoRa module with antenna.
This section analyzes the design features that make our module sturdy enough for industrial use.
The module's sensitive electronics are protected with integrated ESD. This protection guards the module against electrostatic discharge. Because we pay great attention to design, you can count on its reliability for industrial automation.
These modules have been thoroughly tested across extreme temperature ranges. They will perform reliably whether in a frozen warehouse or a hot factory floor.
You are assured that our LoRa6500Pro module is certified. We make sure it is compliant with both RoHS and Reach standards for environmental safety.
The different interface levels are described here. They provide flexibility for connecting to various industrial systems.
This section will compare the communication range of LoRa and WiFi. You will appreciate how LoRa technology triumphs over what WiFi offers for IoT.
· 15-20km Rural: In our rural trials, our modules consistently achieved a range of 15 to 20 km. This is helpful in smart agriculture or environmental monitoring. A single gateway can cover a large expanse of land. A LoRa transmitter and receiver is a great value for your project.
· 2-5km Urban: Our studies show LoRa is best for urban settings, as it can reach 2 to 5 km even with large obstacles. The sub-gigahertz signal penetrates buildings much better than the 2.4 GHz WiFi signal. You can link sensors throughout a smart city and access them using a LoRa module for long range connectivity without needing many access points.
· Deep Penetration: We have deployed sensors in WiFi-inaccessible zones like basements and underground vaults. This is possible due to the excellent signal penetration of a long range LoRa module. These are ideal for smart metering and infrastructure monitoring. The value of a what is LoRa module becomes clear here.
· Single-Hop Wireless: Our networks are designed in a straightforward single-hop manner to improve reliability. End nodes communicate directly to one or more gateways. This approach helps maintain lower latency and reduces points of failure compared to multi-hop Mesh networks. This knowledge helps to explain how LoRa module works.
· Star-Of-Stars Topology: For most large-scale deployments, we encourage a star-of-stars topology for its scalability and robustness. End nodes form a star around gateways. The gateways then connect to the central network server, which is an essential part of the core LoRa topology.
Feature | LoRa Module | WiFi |
Range | 2-5 km (Urban), 15-20 km (Rural) | ~50-100 m |
Power Consumption | Very Low (e.g., 18mA Tx, 1.3µA Sleep) | High |
Data Rate | Low (0.3 kbps - 50 kbps) | High (Mbps - Gbps) |
Frequency Bands | Sub-GHz ISM (433/868/915 MHz) | 2.4 GHz / 5 GHz Bands |
Receiver Sensitivity | High (-139dBm to -148dBm) | Lower |
Network Topology | Star-of-Stars | Star |
Ideal Use Cases | Battery-powered IoT, Asset Tracking | High-Bandwidth LAN, Streaming |
LoRa Module vs. WiFi: Technical Comparison!
The key figures below make an incredibly compelling case as to why LoRa reigns supreme for battery-powered devices. The LoRa module power consumption is a major advantage.
· 1.3µA Sleep Current: Our specially designed firmware for the SX1278 LoRa module optimizes for a very low sleep current of 1.3µA. This allows the device to sleep while the Real-Time Clock operates, guaranteeing an extended battery lifespan for your IoT sensors.
· 10+ Year Battery: A single battery lasting over a decade is a feat we have achieved with some of our devices. This is possible due to the low power LoRa module design. This drastically decreases maintenance cost, making it a cheap LoRa module solution in the long run.
· Low 18mA Transmit: When sending signals at +10dBm, we have recorded the transmit current at a low 18mA. This is very efficient even when the device is active. This capacity is crucial for your Bluetooth LoRa module.
· Adaptive Power Level: Battery life is extended due to the automated adaptive power level feature. The system automatically adjusts the device's power based on its distance from the gateway. This makes your LoRa1276 C1 module even more efficient.
· 4.2mA FSK Receive: The current during FSK receiving mode is very low. 4.2mA is an extremely small draw and proves how your GPS LoRa module can remain powered with the highest efficiency.
Parameter | LoRa Module | WiFi (Typical) | Zigbee (Typical) | Bluetooth LE (Typical) | Condition |
Sleep Current | 1.3µA | ~1-2mA | ~1-3µA | ~1-2µA | Deep Sleep/RTC Active |
Transmit Current | 18mA | 150-300mA | ~30-40mA | ~15-20mA | @ +10dBm |
Receive Current | 4.2mA | 60-100mA | ~30-40mA | ~15-20mA | FSK Mode |
Battery Life | 10+ Years | Hours/Days | 1-5 Years | 1-5 Years | Low Duty Cycle |
Power Control | Adaptive | Adaptive | Adaptive | Adaptive | Network Managed |
Typical Range | 2-15km+ | <100m | <100m | <100m | Urban/Rural |
LoRa Module Power Consumption Comparison!
Choosing the right LoRa module for your project is critical for success. We have 5 tips to help you make the best choice.
· 915MHz North America: If your project is in North America, you must select a module for the 915 MHz ISM Band. This is a legal requirement. We offer an FCC certified LoRa module to help make your product market-ready. You know your LoRa module 915MHz is good to go.
· 868MHz Europe: For deployments in Europe, an 868MHz LoRa module is the correct choice. This band is open for IoT uses in this region. We offer CE-RED certified modules to guarantee your LoRa module 868 is fully compliant.
· +37dBm Output: For very long ranges, the +37dBm output of a high power LoRa module is recommended. Such a 5W power level is available on our LoRa6500Pro. For the toughest remote control applications, we recommend a 1w LoRa module like this one.
· FCC/CE-RED Certified: Using a certified LoRa module decreases your risk and accelerates your time to market. Regulatory testing can be complex and expensive if a module is not pre-certified. Microchip LoRa module options are also a smart decision.
· SPI/UART Interface: A LoRa module with an SPI or uart LoRa module interface is easiest to work with. To integrate with a LoRa module raspberry pi or LoRa1276 C1 with LoRa module, our engineers offer sample code and support, which makes the process simple.
In our experience, a 22dBm module can achieve 10 to 15 km in a line-of-sight environment. Antenna gain and terrain can influence the total distance. A LoRa range test is the most effective way to test it in the real world.
The LoRaWAN Class A device is the most battery-friendly class. We use it for most of our sensor modules. Devices send an uplink message, then open two short downlink windows to receive messages. This protocol design extends battery life for all LoRaWAN devices.
Yes, some advanced LoRa chips like the LR1121 support both 2.4 GHz LoRa module and sub-GHz bands. The dual-band modules we offer provide this flexibility. Sub-GHz provides maximum range, while 2.4GHz offers higher data rates.
Spreading Factor 12 (SF12) provides the greatest distance but the lowest LoRa data rate. Test results show this rate is around 293 bps. It is suited for static sensors that transmit small data packets infrequently while maximizing range on an rf LoRa network.
Yes, in Europe, the 868 MHz band is an unlicensed ISM Band. This is why we use it for our European clients. It means you can deploy your devices with a LoRa module 868 MHz without spectrum licensing fees, making it a low-cost solution.
LoRa clearly offers superior range and very low power for IoT projects where WiFi simply cannot compete. You now understand the key technical differences to select the best LoRa module with confidence. For your perfect solution, our team is here to help. You can learn more about our products at G-NiceRF.
