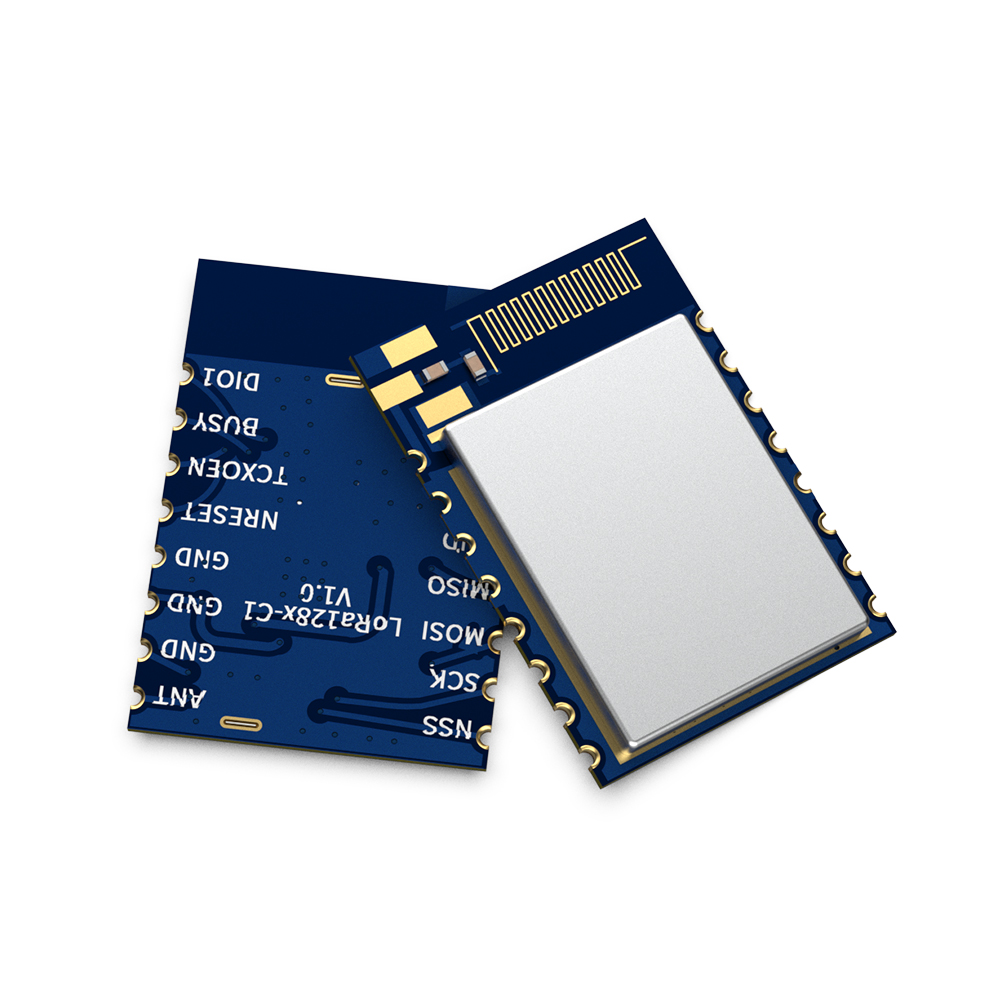

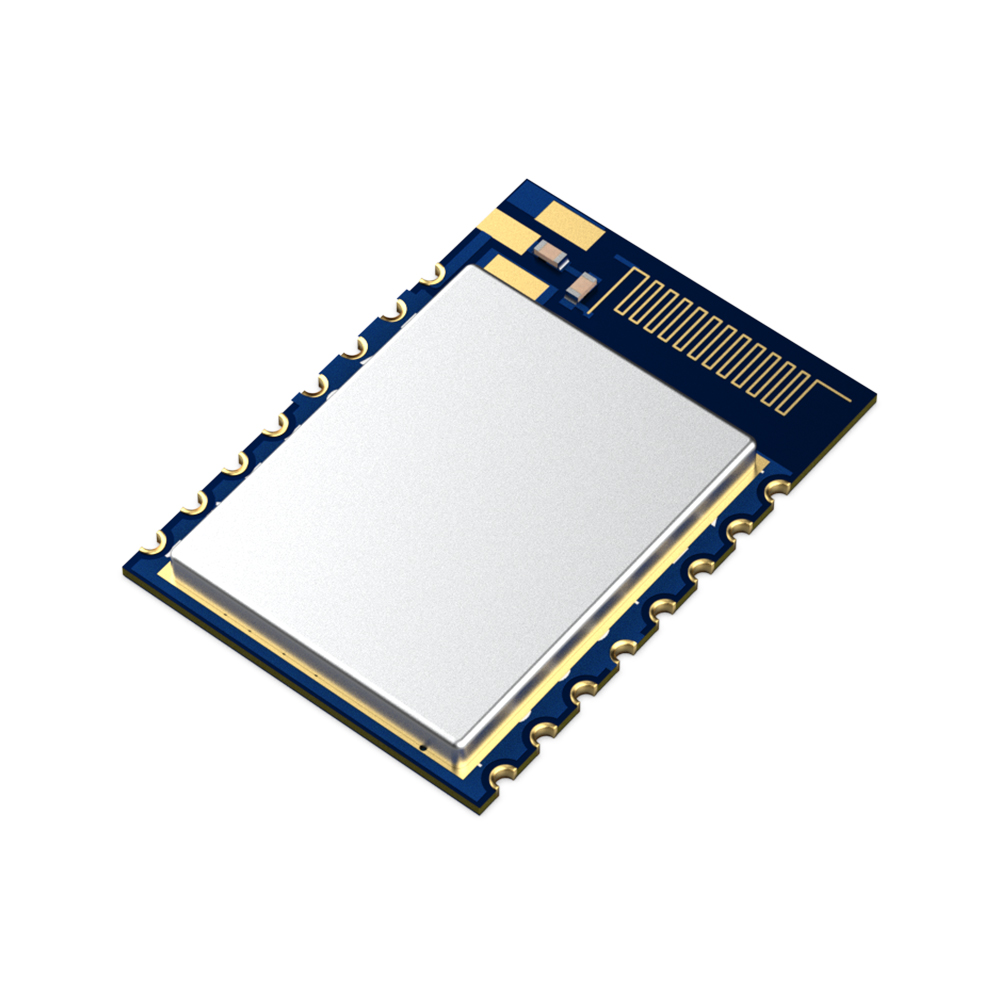

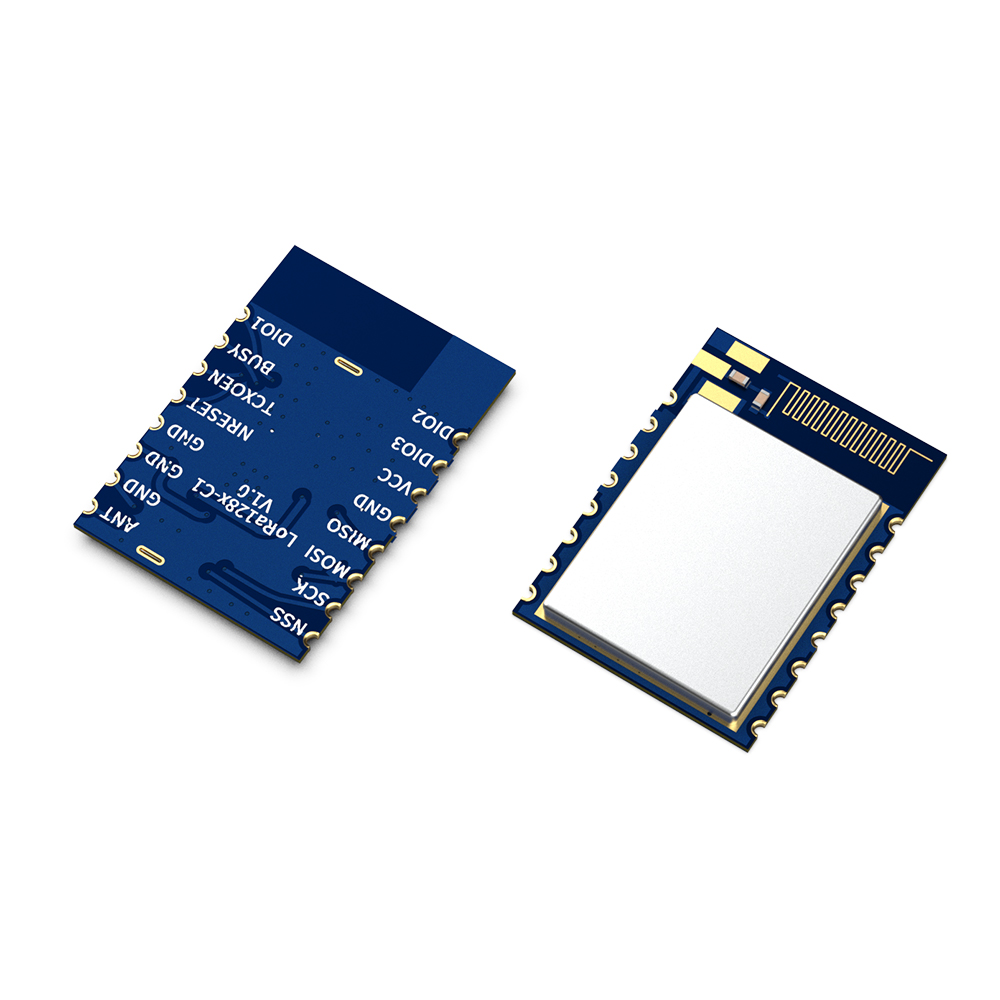

LoRa128X-C1 : 2.4GHz Long-Range LoRa Wireless Transceiver Module For Extended Connectivity

LoRa128X-C1 : 2.4GHz Long-Range LoRa Wireless Transceiver Module For Extended Connectivity

The LoRa128X-C1 series is strictly manufactured and tested using lead-free processes, complying with RoHS and Reach standards.

This series of modules is designed based on the SX1280/SX1281 RF chips from the original US manufacturer Semtech. It utilizes LoRa modulation, effectively addressing the limitation of short communication distances in common 2.4GHz modules. Additionally, the modules integrate "time of flight" functionality for wireless distance measurement applications.

With the high penetration capability of the 2.4GHz frequency band combined with LoRa modulation, these modules offer excellent reception sensitivity and resistance to environmental interference, making them suitable for scenarios requiring long-distance 2.4GHz transmission.

DOWNLOAD

LoRa128X-C1 2.4GHz Long Distance LoRa Wireless Transceiver Module V1.0.pdf

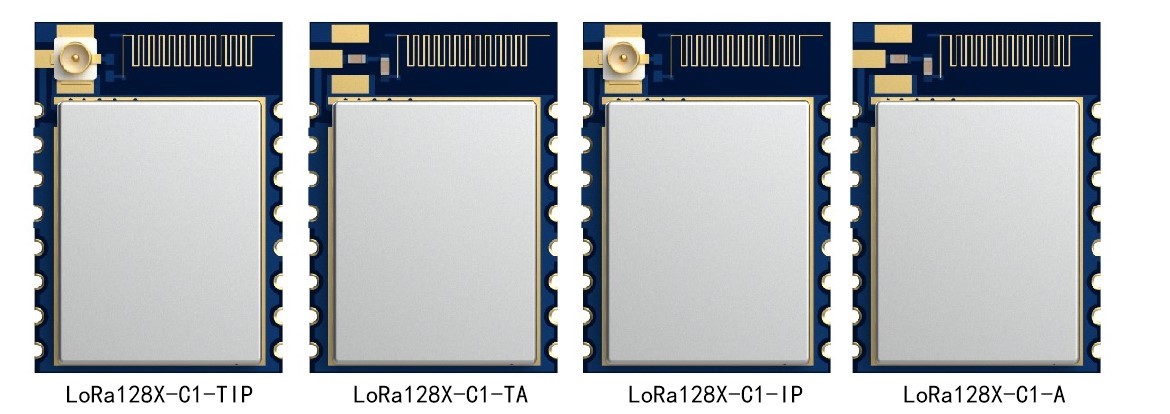

Module

LoRa128X-C1-TIP

LoRa128X-C1-TA

LoRa128X-C1-IP

LoRa128X-C1-A

Features

Equipped with IPEX Antenna Connector,

0.5ppm Industrial-Grade TCXO Temperature-Compensated Crystal Oscillator

Onboard

PCB Antenna,

0.5ppm Industrial-Grade TCXO Temperature-Compensated Crystal Oscillator

With IPEX Antenna Connector,

10ppm Industrial-Grade Crystal Oscillator

Onboard PCB Antenna,

10ppm Industrial-Grade Crystal Oscillator

★ The following parameters are obtained through testing with a 50-ohm coaxial cable connected to the instrument @VCC=3.3V.

Parameters	Min.	Typ.	Max.	Unit	Condition
Working Condition
Working voltage range	1.8	3.3	3.7	V
Temperature voltage	-40		85	℃
Current Consumption
RX current		< 11		mA	@LoRa128x-C1-IP/ LoRa128x-C1-A
RX current		< 13		mA	@LoRa128x-C1-TIP/ LoRa128x-C1-TA
TX current		50		mA	@VCC=3.3V,12.5dBm
Sleep current		< 1		uA
Frequency range
Frequency range	2400		2500	MHz
Data rate	0.476		202	Kbps	@LoRa
	260		1300	Kbps	@FLRC
	125		2000	Kbps	@FSK
Output power	-18		12.5	dBm	@VCC=3.3V
Receiving sensitivity		-132		dBm	LoRa@0.476Kbps

n Operating Frequency Range: 2400-2500 MHz

n LoRa FLRC FSK Modulation

n Data Transfer Rate: 0.476-202 Kbps @ LoRa

n Maximum Output Power: 12.5dBm

n Sensitivity: -132dBm @ LoRa

n High-Precision Crystal Oscillator (0.5ppm TCXO/10ppm)

n Packet Communication Mode (Receive/Transmit FiFo 256 bytes)

n Operating Voltage Range: 1.8-3.7 V

n Operating Temperature Range: -40~+85°C

Applications

n Wireless Remote Control

n Smart Home

n Toy Control

n Tire Pressure Monitoring

n Health Monitoring

n Tag Reader/Writer

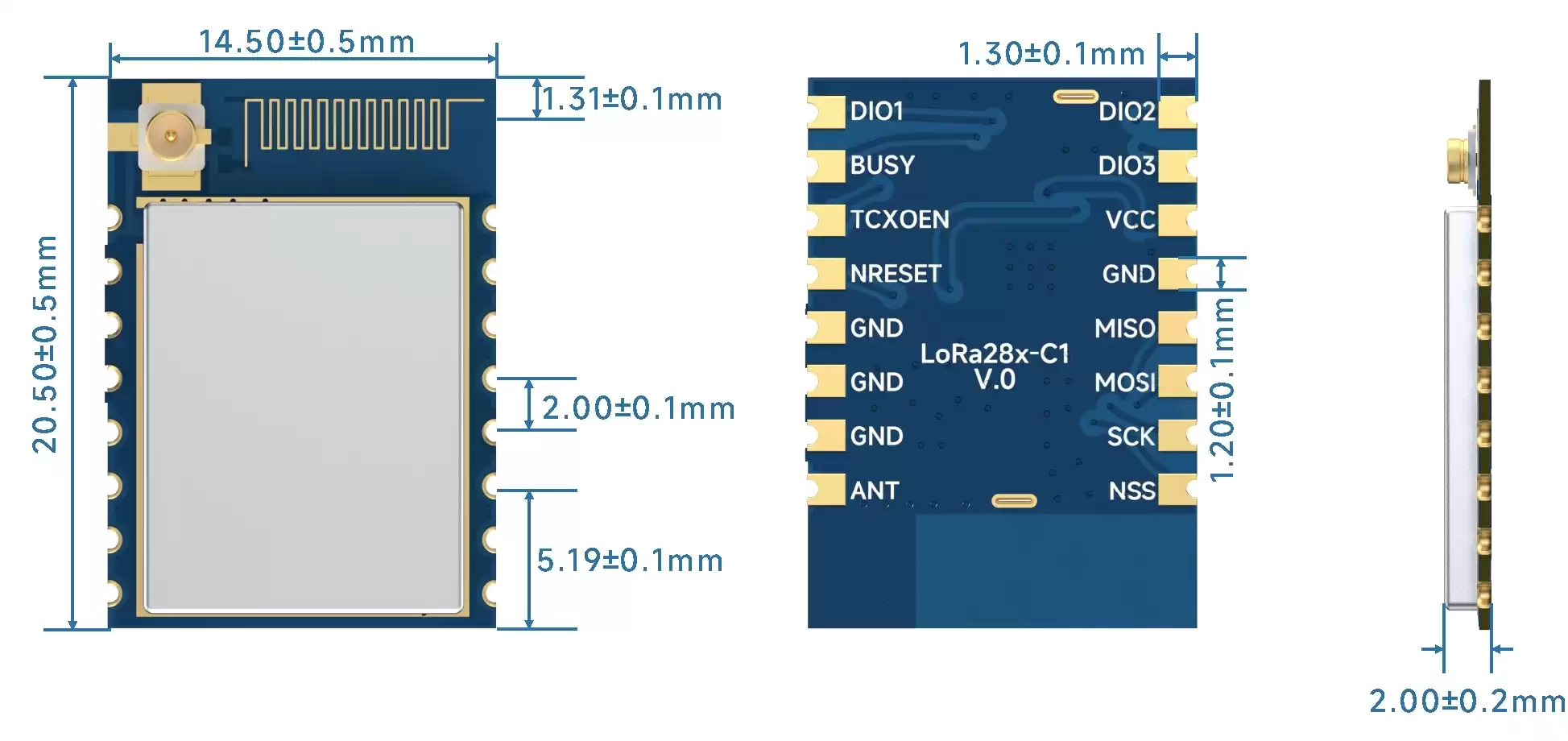

LoRa128X-C1-TIP/LoRa128X-C1-TA:

LoRa128X-C1-IP/LoRa128X-C1-A:

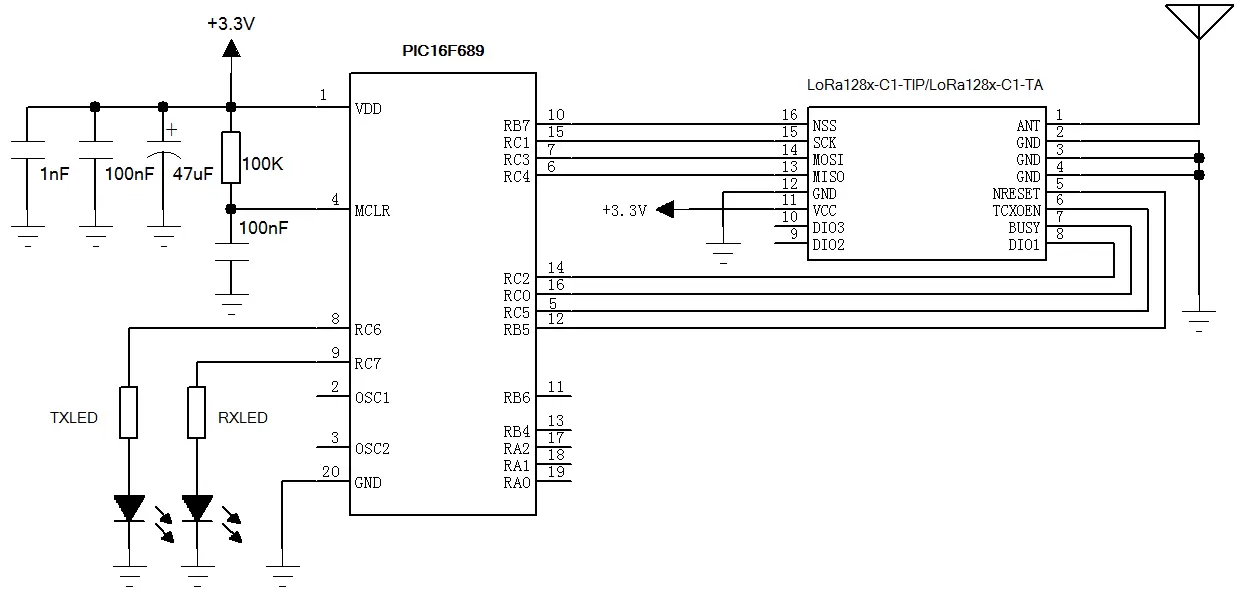

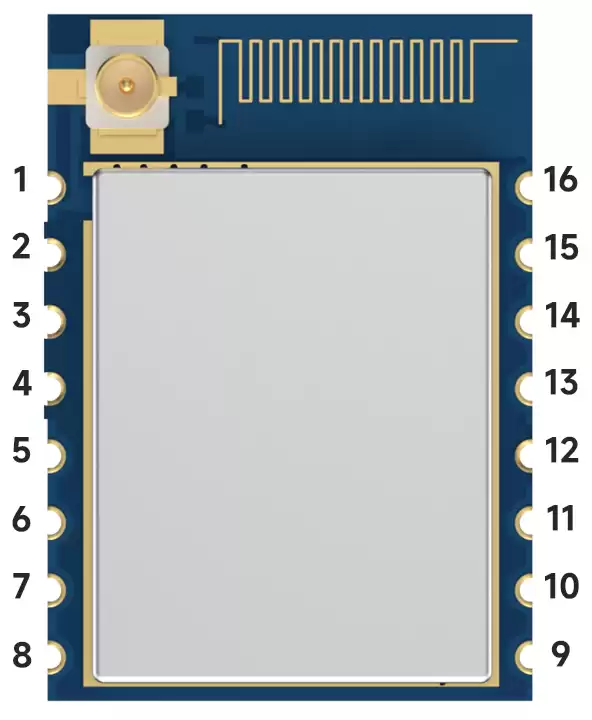

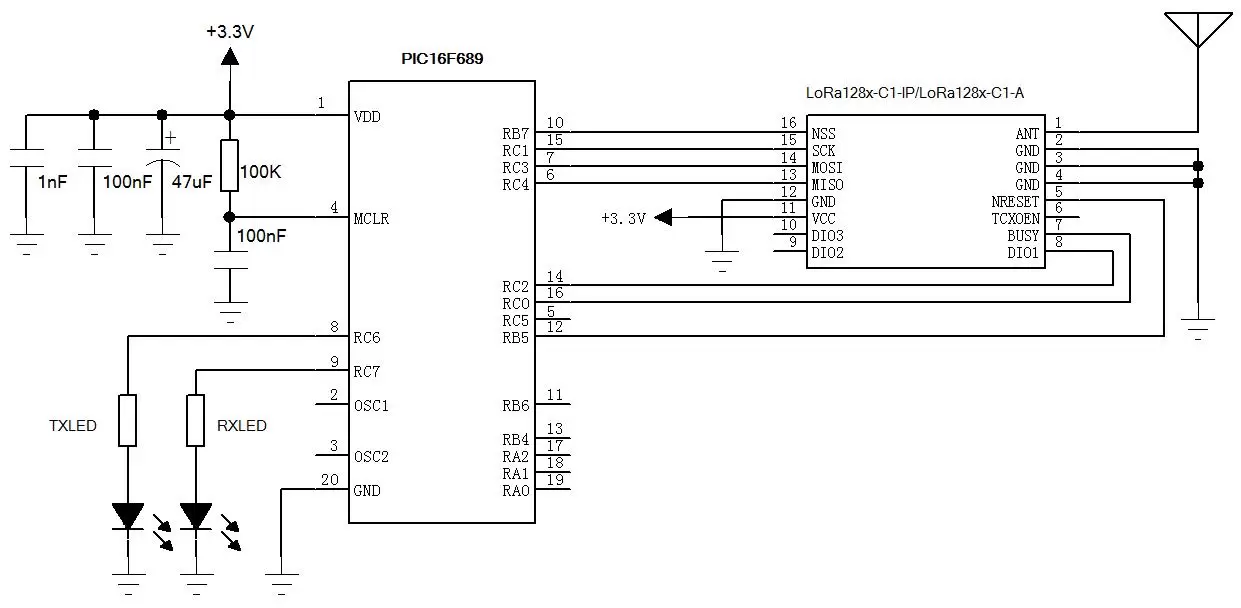

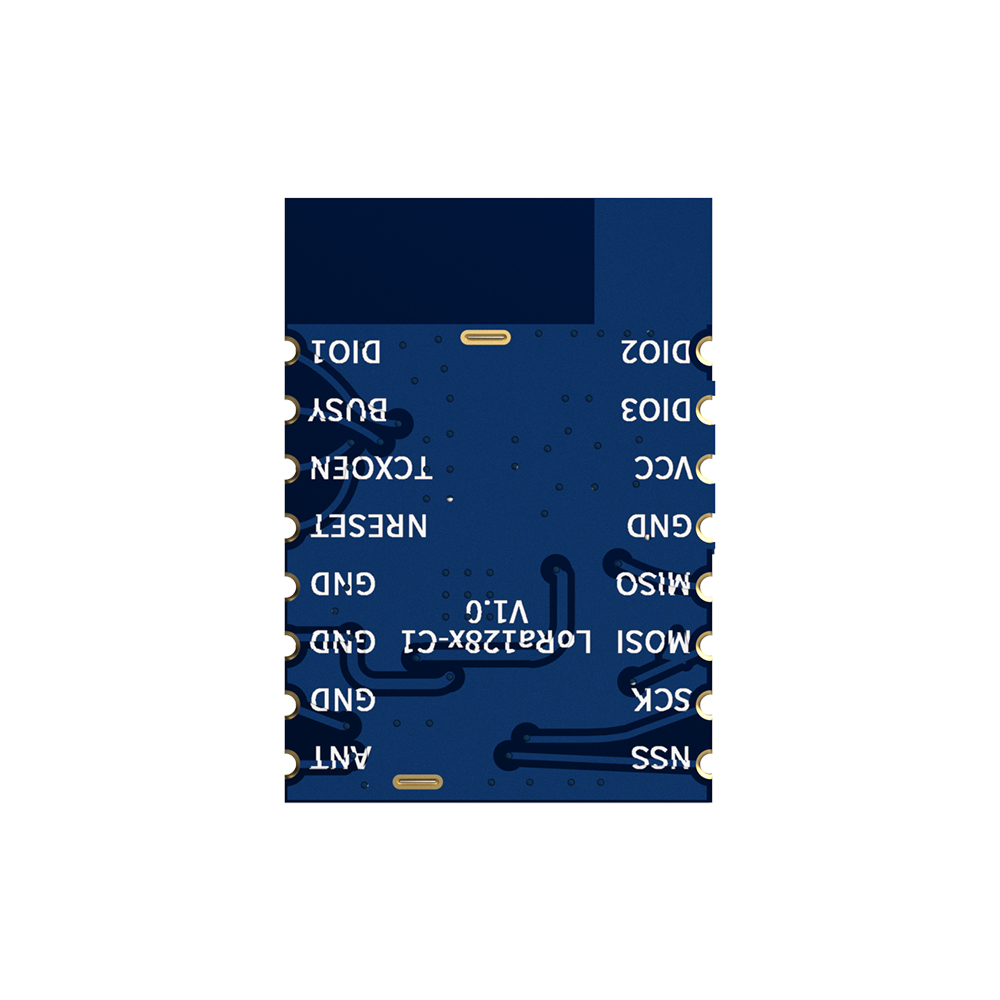

Pin NO.	Pin name	Description
1	ANT	Connect with 50 ohm coaxial antenna
2,3,4,12	GND	Connected to the negative pole
5	NRESET	Chip reset trigger pin, active low
6	TCXOEN	Turn on TCXO: 1．Turn TCXOEN pin to high level before reset SX1280;; 2．Delay at least 3ms to wait for the TCXO startup； 3．During the use of the 1280 module, TCXOEN must keep in high level Turn off TCXO (if module needs to enter sleep mode): 1．Call the Set Sleep() function to put the module into sleep mode; 2．Delay for at least 1ms to wait for the module to complete its sleep process; 3．Pull down TCXOEN to disable TCXO; When using a regular crystal oscillator, leave this pin floating.
7	BUSY	Status indicator pin (refer to the SX1280/1281 datasheet for details).
8	DIO1	Direct connect chip pins, configurable as general-purpose I/O (function details can be found in the SX1280/1281 data sheet).
9	DIO2	Direct connect chip pins, configurable as general-purpose I/O (function details can be found in the SX1280/1281 data sheet).
10	DIO3	Directly connected chip pins, configurable as general-purpose I/O (function details can be found in the SX1280/1281 data sheet).
11	VCC	Connect the positive power supply (1.8-3.7V).
13	MISO	SPI Output for SPI data
14	MOSI	SPI Input for SPI data
15	SCK	Serial clock for SPI interface
16	NSS	Module chip select pin
