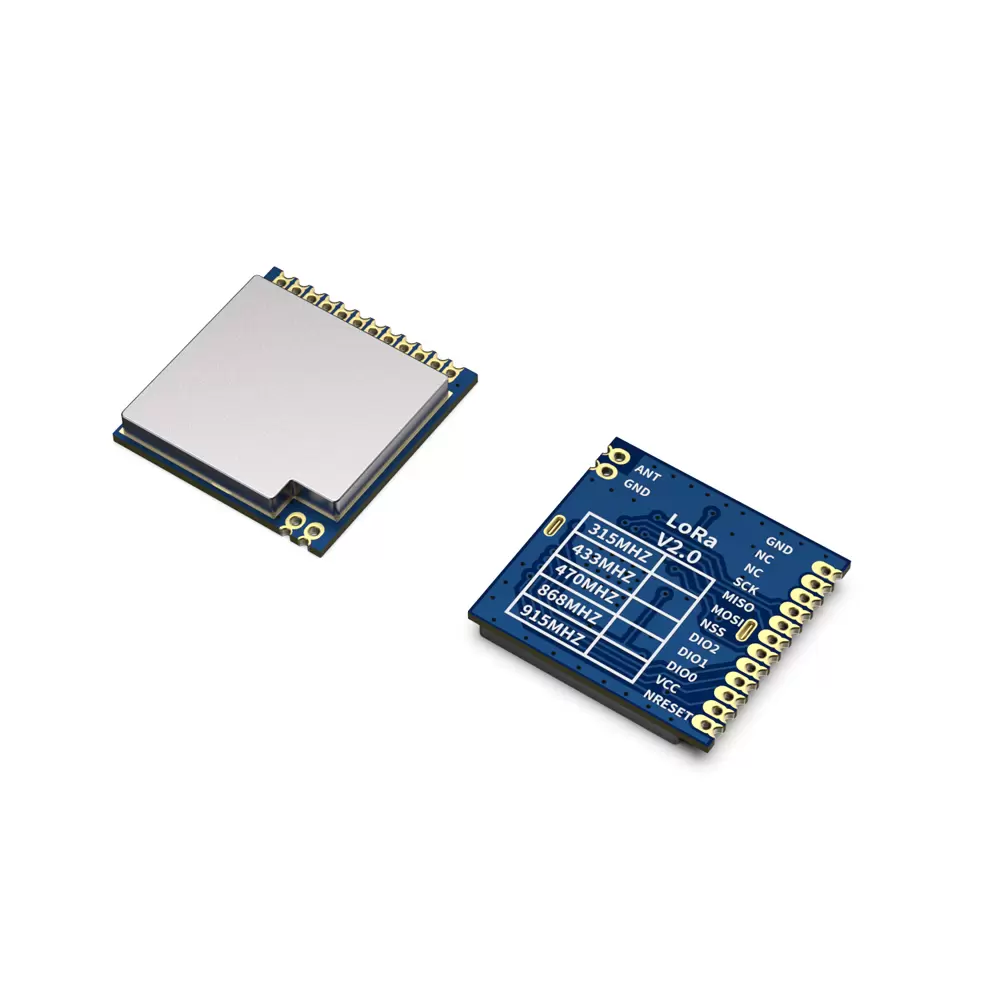

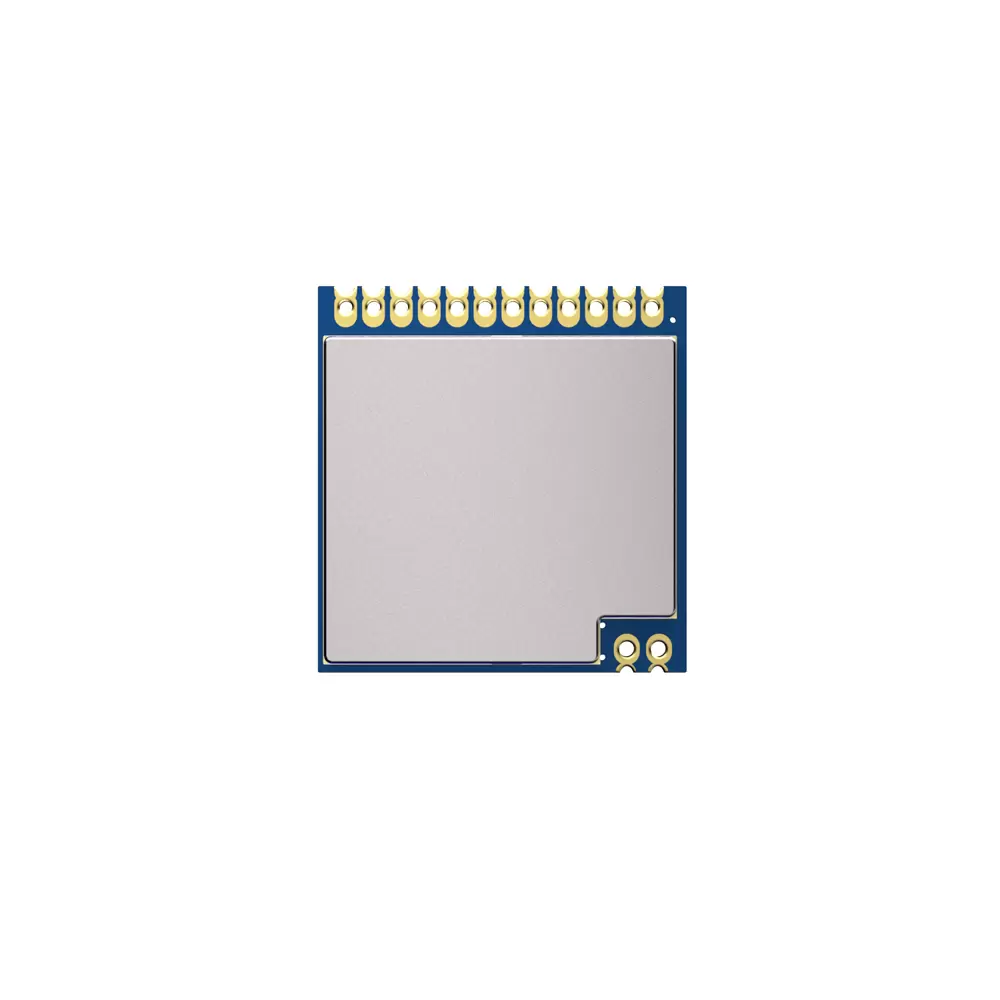

  • LoRa1278 integrates Semtech RF transceiver chip SX1278, which adopts LoRa Spread Spectrum modulation frequency hopping technique. Its communication distance and receiving sensitivity are much better than the current FSK and GFSK modulation. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This wireless module antenna switch is integrated and controlled by the chip. Its compact size is matched with an output power of 100mw. It can be widely used in wireless meter reading, remote industrial control and other industries.
  • LoRa1278 comply with lead-free craft in production and testing and meets RoHS and Reach standards.
ParameterMin.Typ. Max.UnitCondition
Operation Condition
Working voltage1.83.33.7V
Temperature range-40 85
Current Consumption
RX current 10.8 mA
TX current 120 mA@20dBm
Sleep current 1 uA
RF Parameter

Frequency range

403433463MHz@433MHz
470489.92510MHz@470MHz
Data rate1.2 300KbpsFSK
0.018 37.5KbpsLoRa
Output power-1 20dBm
Receiving sensitivity -123 dBm@FSK data=1.2kbps, Fdev=10kHz
 -139 dBm@LoRa BW=125KHz_SF = 12_CR=4/5
Interface SPI
Chip SX1278
Frequency 433MHz,470MHz
Modulation LoRa
Output Power 100mW

Features of sx1278 wireless module LoRa1278

  • Frequency Range:433/490MHz(Customizable137-520 MHz)
  • Sensitivity up to -139dBm @Lora
  • Maximum output power:20 dBm
  • Low receiving current:3 mA
  • Sleep current< 1.5uA
  • Data transfer rate:@FSK,1.2-300 Kbps
  • @Lora, 0.018-37.5 Kbps
  • Lora、FSK、GFSK Modulation mode
  • Built-in ESD Protection
  • 127dB Dynamic RangeRSSI
  • 256 bytes FiFo&CRC
  • Frequency hopping function
  • Built-in temperature sensor and low battery indicator
  • Operating Temperature Range:-40 ~ +85 °C

Applications of sx1278 wireless module LoRa1278

  • Remote meter reading
  • Industrial control
  • Home automation remote sensing
  • Toys control
  • Sensor network
  • Tire pressure monitoring
  • Health monitoring
  • Wireless PC peripherals

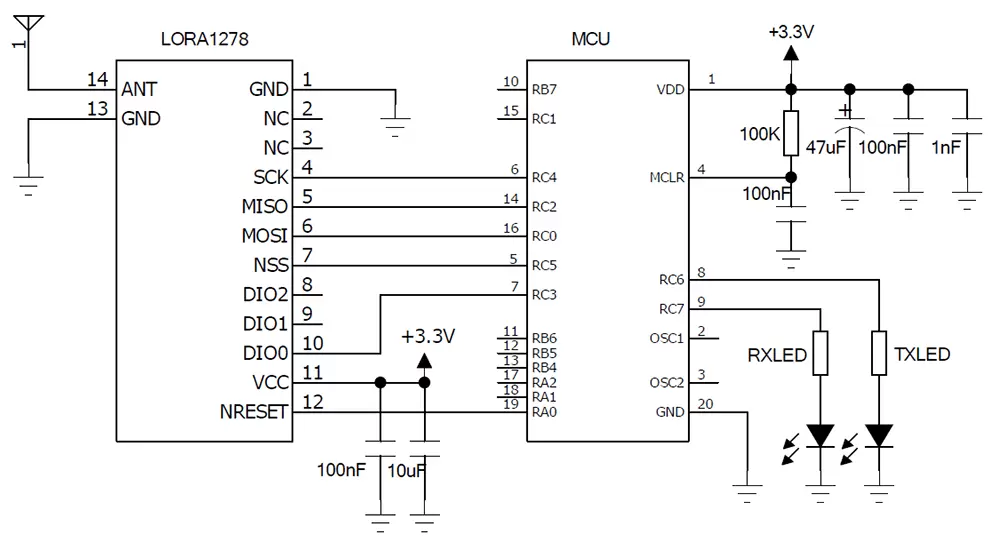

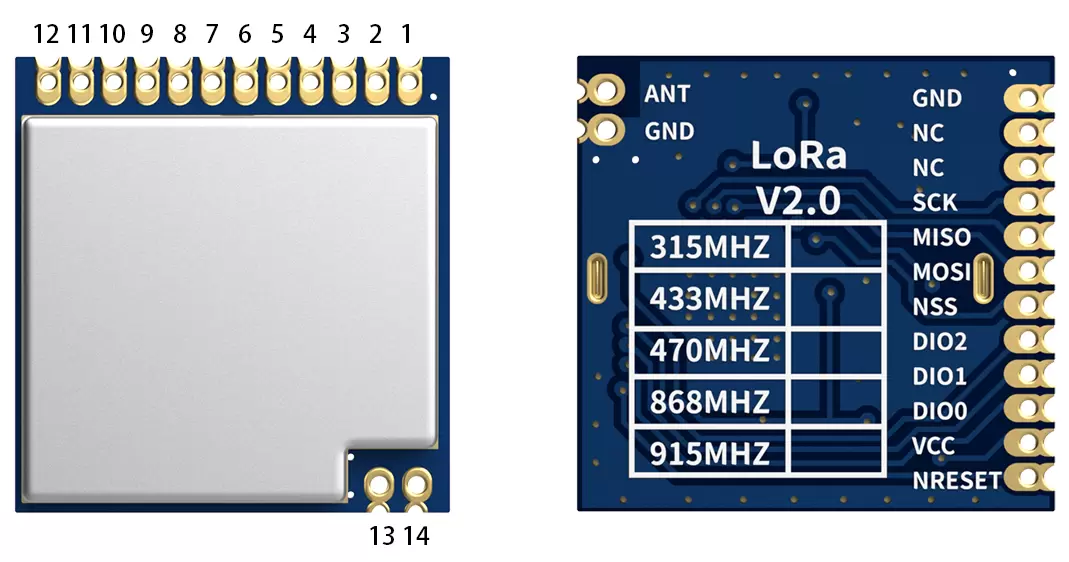

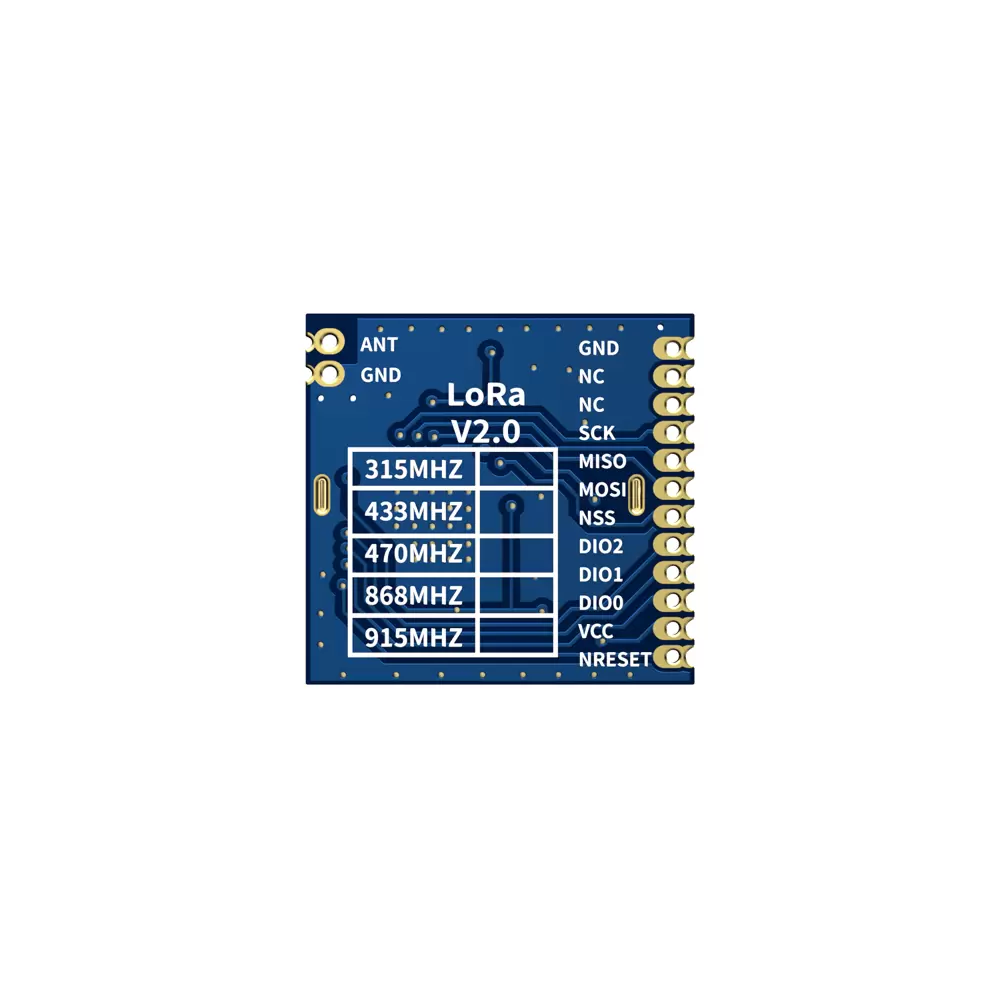

Pin NO.Pin nameDescription
1GNDpower ground
2NCEmpty
3NCEmpty
4SCKSerial clock for SPI interface
5MISOSPI Output for SPI data
6MOSISPI Input for SPI data
7NSSSPI enable
8DIO2Digital I/O, customizable
9DIO1Digital I/O, customizable
10DIO0Digital I/O, customizable
11VCCConnected power supply(default 3.3V)
12NRESETReset input
13GNDpower ground
14ANTConnect with 50 ohm coaxial antenna

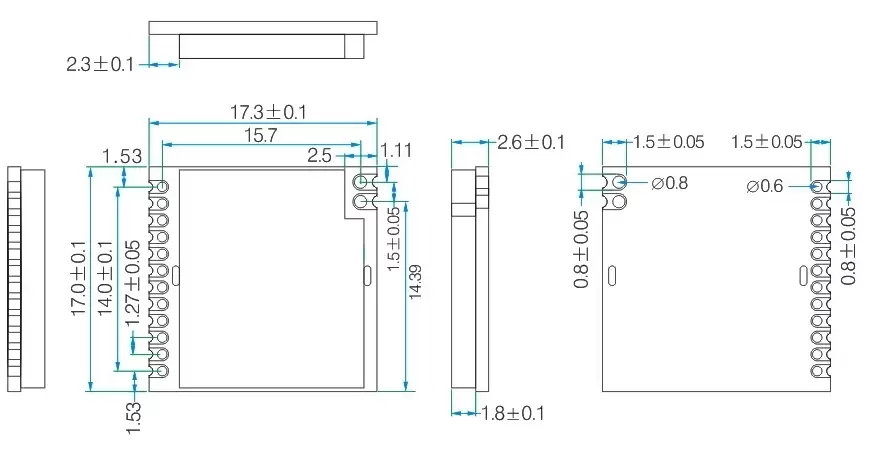

Mechanical Dimensions of sx1278 wireless module LoRa1278
