UWB Ranging: How It Works? Step-by-Step Guide!

Introduction

Do you require precise tracking for your industrial projects where old wireless systems often fail? Mastering the UWB ranging mechanism is simple with this comprehensive step-by-step guide. Precision distance measurements are a desirable skill for any engineer. Real results and accurate tracking begin here as we explore the essentials of powerful UWB ranging technologies.

Why Is UWB Ranging Essential For Precision?

UWB ranging is absolutely essential for accurate tracking because older technologies often become useless in challenging environments. These outdated systems lack the industrial grade accuracy that UWB ranging provides for your complex projects. The ultra-wideband ranging solutions from G-NiceRF offer the craftsmanship you can depend on. Our UWB ranging module works when others drift because it employs a UWB frequency range to mitigate interference.

You can rely on UWB ranging for consistent results because UWB localization exceeds the protective range of WiFi. Have you ever struggled with signal reflections in a crowded warehouse environment? Hence, ultra-wideband is a fitting technology for your projects.

How Does The UWB Ranging Mechanism Work?

To get the most out of UWB technology, you need to understand the core protocols thoroughly. The system works by sending pulses for nanoseconds and measuring the time to get a travel distance. This process ensures very high accuracy within the system while continuous background UWB ranging is occurring.

· IEEE 802.15.4-2020

You need to make sure that your device aligns with the standard of IEEE 802.15.4-2020. This protocol defines the physical layer and ensures interoperability between multiple devices of UWB localization. It efficiently supports features like UWB secure ranging so you can use techniques like TDoA.

As the IEEE Standards Association states, "The standard offers high-precision ranging and localization capabilities." The G-NiceRF model adheres to these standard and robust protocols for your benefit. It allows you to have very good two way ranging UWB performance in your setup. The assurance of compliance is what guarantees stable implementations of the UWB ranging protocol.

· DS-TWR

For better accuracy, you should use DS-TWR, which stands for double-sided two-way ranging. This method eliminates problems of clock drift and significantly improves on single UWB two-way ranging. It involves an exchange of messages between two devices to increase the UWB ranging accuracy. It lets you perform a how does UWB ranging work process that is very efficient. This is excellent for frequencies between 3.1 and 10.6 GHz in your application.

· Time Flight

To measure distance, you rely on Time-of-Flight principles where measurements are based on signal speed. You compute the time of a UWB range pulse which is effective at UWB frequencies of 3.1 to 10.6 GHz. You get precise UWB localization data in real time for your tracking needs. The short range of the pulses offers great time resolution, letting you measure intervals to 10 centimeters. This is the core of UWB ranging and why it is so effective.

· Signal Propagation

There are fewer issues when the pulses are propagating at the speed of light through the air. Multipath interference with ultra-wideband pulses is not a problem so you maintain a stable UWB range. The UWB ranging module filters reflected signals so you get the direct path signal clearly. This reliability beats UWB vs Bluetooth range limitations that you might face. I once spent days troubleshooting a factory setup where multipath interference ruined our Bluetooth tracking.

· Clock Synchronization

To achieve accurate distance measurements, you need precise Clock Synchronization to sync your devices effectively. UWB ranging techniques like DS-TWR are effective in mitigating synchronization errors that might occur. You must ensure the UWB ranging chip timestamps correctly to maintain high UWB ranging accuracy over time. Your UWB localization system stays perfectly aligned and secure for all your operations.

Comparative Technical Matrix: UWB Ranging Mechanisms vs. Legacy Protocols!

Step-By-Step Guide To Implementing UWB Ranging!

You will have no trouble adding a UWB ranging module to your system if you plan well. First, you have to define your system architecture and decide your UWB localization roles carefully. G-NiceRF makes this a lot easier with preconfigured branching for your convenience. You will have no trouble achieving a long UWB maximum range with our help.

· Master Slave

You will have to configure your devices as Master Slave units where the module is Initiator or Responder. You define the UWB ranging role on your software and the Master begins a two way ranging UWB session. Each Master can poll up to 5 Slave units to gather data efficiently. This topology will allow you to structure the UWB localization network for better flow.

· Anchor Installation

You will have to pre-emptively plan your Anchor Installation to sustain a good UWB range. Install the anchors at the highest points so the UWB ranging chip has minimal obstructions. This will allow you to reach the UWB long range potential of the system. You will ensure to have an unobstructed line of sight for the best results. This will allow you to outperform the AirTag UWB range in industrial settings.

· Tag Calibration

While performing measurements, Tag Calibration allows for precision as it compensates for various antenna delays. You make sure the UWB ranging accuracy levels out at 10cm which is essential for Apple UWB range reliability. You individually calibrate each UWB ranging module to ensure the best performance possible. This adjusts any hardware-specific offsets that might exist in your current setup. Your UWB ranging data becomes highly reliable and you trust the UWB maximum range measurements.

· UART Interface

You connect through the UART Interface easily because the module outputs TTL data for viewing. There is no need for complex RF programming which eases integrations with UWB ranging Android hosts. The interface serves to ease and streamline the retrieval of UWB localization data for you. This allows you to further streamline the development of your UWB ranging chip integration.

· 6.8Mbps Rate

You may take advantage of the 6.8Mbps Rate for the sake of speed and efficiency. This high RF rate is essential for fast UWB ranging and transferring data packets of 1023 bytes. You efficiently handle ultra-wideband ranging data without any lag in the system. This speed is essential for UWB long range applications that require quick updates.

Comparing UWB Ranging Accuracy Versus Standard Bluetooth!

UWB ranging technology is undeniably superior because Bluetooth signal strength is only accurate enough for proximity. UWB ranging can tell if a phone is sitting 10 cm away from you vertically. Bluetooth signal strength is not even close to this level of accuracy for industrial needs.

· 10cm Precision

G-NiceRF has surpassed the competition because their modules implement a proprietary algorithm for precision. If you try to do this with a standard ESP32 UWB range setup you will not come close. This precision is what enables UWB localization that is truly reliable.

· RSSI Instability

No fluctuations in Bluetooth signal strength means no RSSI instability issues for your project. UWB ranging uses time-based calculations rather than strength-based estimation so your measurements will be stable. Because of this, your measurements will be far more reliable than Bluetooth distance measurements. How often do your current sensors drift when the temperature fluctuates?

· Phase Difference

UWB signals can use Phase Differences to determine different attributes of the signal effectively. This allows you to improve the UWB ranging protocol and build better localization systems. There are new and better localization systems available for you because of this feature.

· Angle Arrival

Angle of Arrival can be calculated with much more precision because the pulses provide clarity. Detection of aim is both confident and accurate which is what aids Apple UWB range implementation. This enables swift location of tags with your UWB ranging module in any environment.

· Broad Spectrum

You implement Broad Spectrum effectively because ultra-wideband spans a 500 MHz frequency range. This helps to withstand narrowband interference and guarantees high ultra-wideband ranging performance. According to Qorvo, "Ultra-wideband (UWB) technology enables secure, precise, micro-location services."

Essential Components For A High-Performance UWB System!

To achieve success, high performance is essential and the heart of it is the chip. G-NiceRF integrates solid components for you to guarantee the best UWB ranging performance.

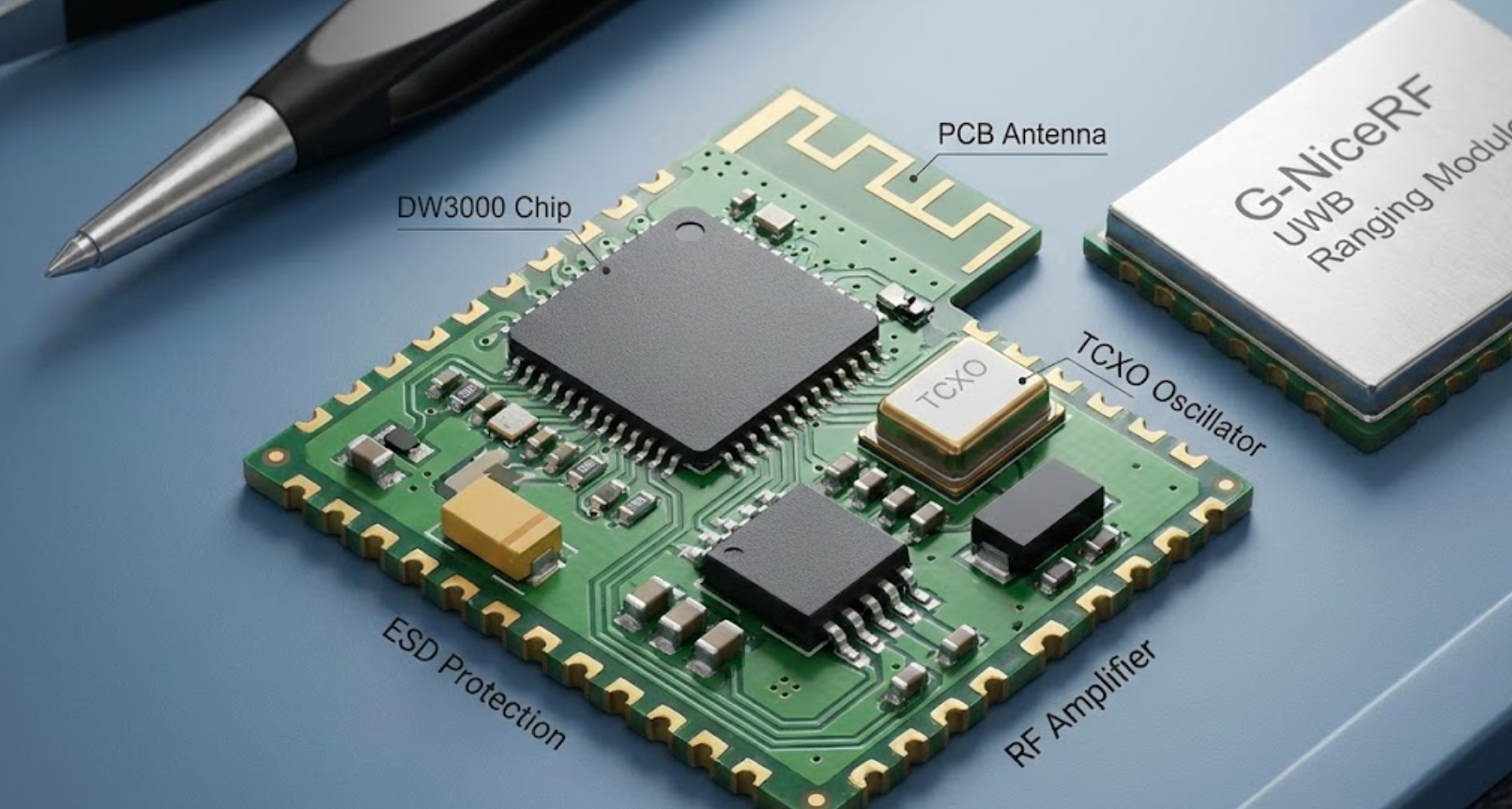

- DW3000 Chip: You take advantage of the powerful DW3000 chip which drives the module performance. You achieve low power UWB ranging capabilities operating on a UWB frequency range of 3.1 to 10.6 GHz. You meet the expected standards for UWB localization which is a must for what is UWB used for.

- PCB Antenna: You have a specialized PCB Antenna that supports the wide UWB frequency range. The design directly affects the UWB ranging accuracy and ensures stable transmission for the module. It is small and thus is able to fit into the UWB ranging module.

- TCXO Oscillator: You depend on the TCXO Oscillator for timing because it stabilizes the chip clock. You minimize drifting errors of UWB ranging and assure the consistent temperature of the UWB maximum range. This component is key for understanding what is the range of UWB.

- RF Amplifier: You add an RF Amplifier for distance to boost the UWB long range signals. You extend UWB ranging to one kilometer and overcome the UWB vs Bluetooth range limit. This is important for outdoor UWB localization where distance is a factor.

- ESD Protection: You must include ESD Protection circuits to guard the sensitive UWB ranging chip. You prevent static from damaging the UWB ranging module and ensure reliable ultra-wideband operation. You protect your UWB ranging investment which is crucial for industrial UWB localization.

Achieving 1km Distance With High-Power Modules!

UWB ranging can reach incredible distances when high power modules unlock the potential. G-NiceRF offers the UWB3000F27 for this purpose to significantly expand your UWB localization area.

· 500mW Output

With a 500mW output, you strengthen and amplify UWB ranging module signals significantly. This power defines ultra-wideband performance and achieves a level of UWB maximum range that is superior.

· 27dBm Power

Transmitting at 27dBm level of power guarantees UWB long range connectivity for you. This surpasses standard UWB two way ranging barriers while sustaining a strong and reliable signal.

· LNA Integration

You benefit from LNA Integration onboard as it improves the sensitivity of the module. This balances the UWB long range link and provides a UWB ranging protocol clearer than average.

· Open Space

You experience UWB long range at its maximum of 1.5km in open space. This means you have minimized obstructions which allows you to test the UWB ranging module limits.

· Long Range

You track UWB long range deployment for logistics and ensure UWB secure ranging. Your awareness of the power of the UWB ranging module grows with use. During a mining project, we found that standard narrow-band signals simply couldn't penetrate the heavy machinery.

FAQs!

What Is The Range Resolution Of UWB Sensors?

Range resolution is obtained at 10cm because UWB ranging is very accurate by design. At 10cm precision is considered standard for most UWB range technologies today.

Does UWB Coexist With Narrowband Wifi Signals?

Yes, UWB ranging can coexist because the UWB frequency range is very broad. Ultra-wideband creates very little interference even in crowded signal environments.

What Is The Sleep Current For UWB Modules?

Sleep current is below 1uA so the UWB ranging module is power efficient. This is compatible with battery use of the UWB ranging chip for ultra-wideband.

Which Frequency Channels Does UWB Operate On?

Channel 5 is used at 6489.6 MHz and UWB ranging also uses Channel 9. The UWB frequency range is constrained and defined by the UWB ranging protocol.

What Is The Maximum Data Packet Length Supported?

The data handled via the UWB ranging module allows for a packet size of 1023 bytes. The UWB ranging protocol is designed for large payloads and advantageous data transmission.

Conclusion

Greater precision is a game changer for operational function, and greater power enables longer ranges. UWB ranging is a trusted technology for Industrial applications requiring safety and efficiency. We have implemented measures for greater operational success. Visit G-NiceRF for additional information on our robust offerings and on how to improve your operational capabilities right now.
