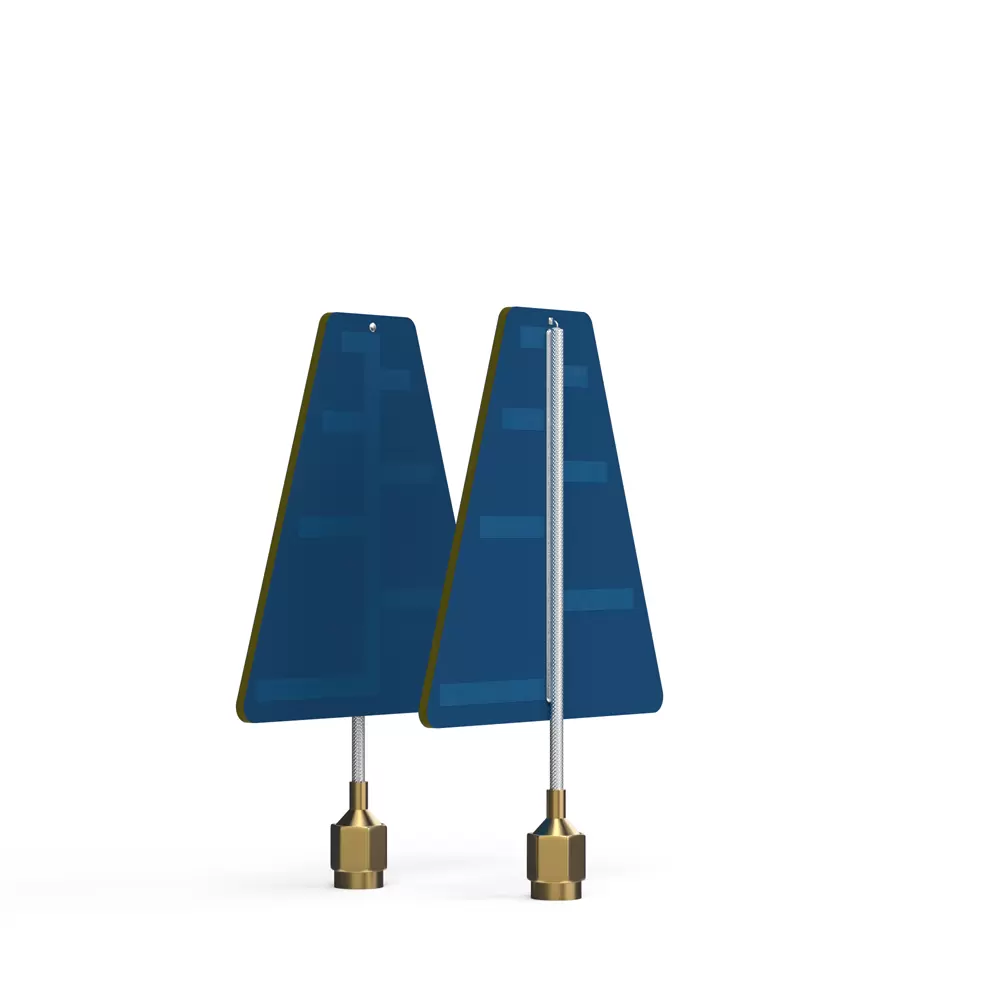

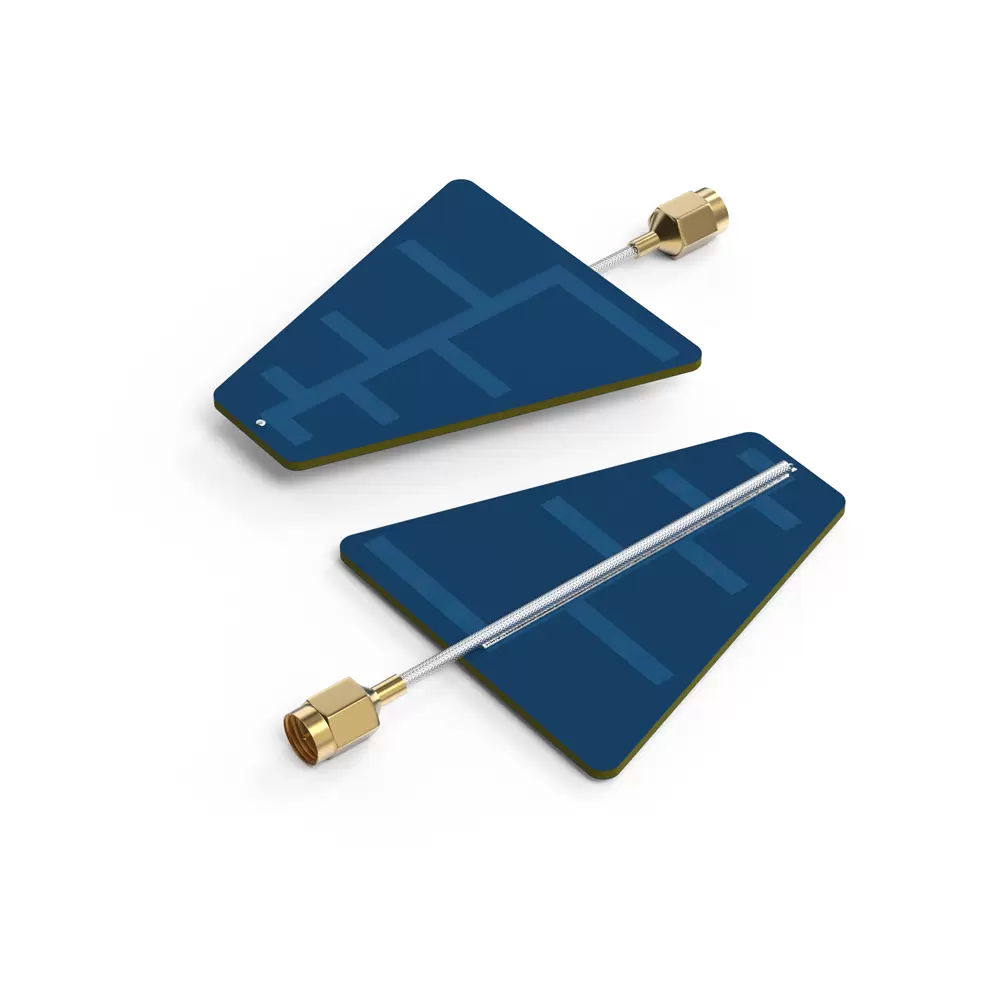

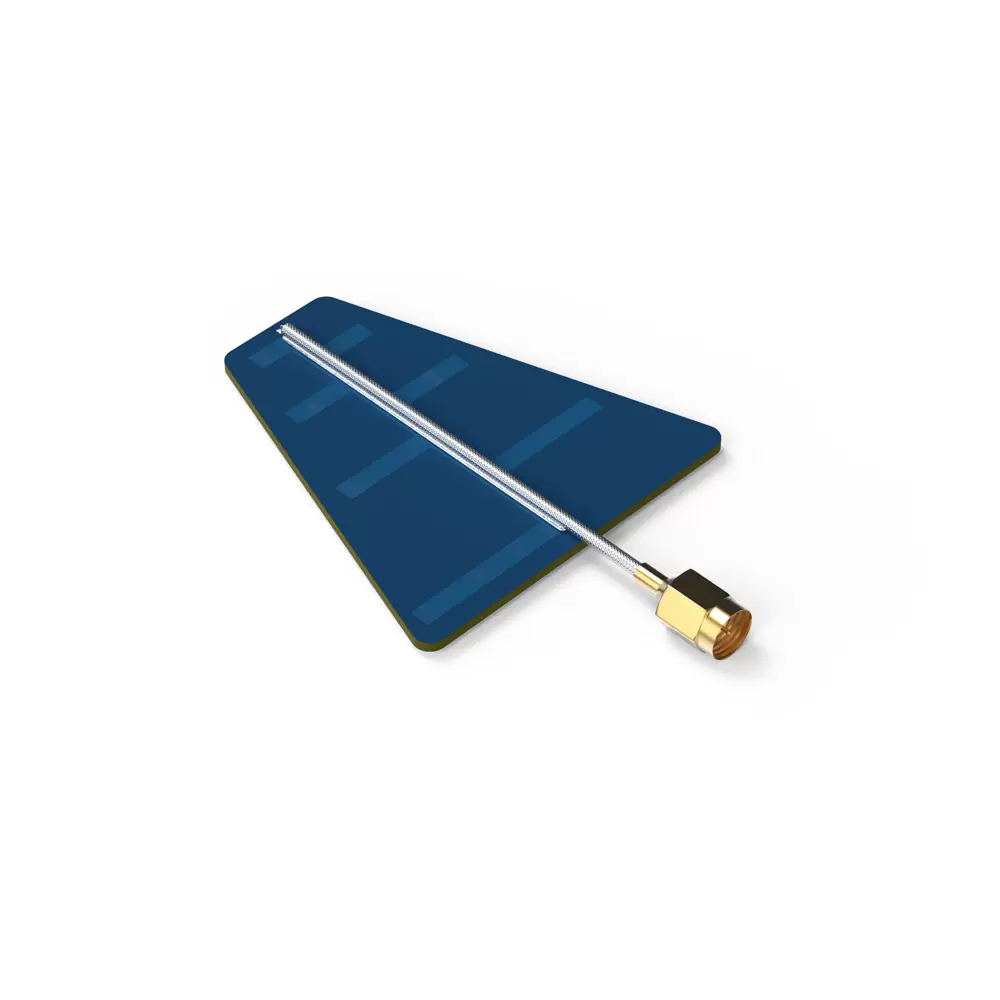

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

UWB-PCB-D : UWB Directional Logarithmic PCB Antenna

● UWB Built-in FPC Antenna

● Low Cost, Ultra-wideband Omnidirectional Antenna

● Embedded Small Size

Contact us

DOWNLOAD

UWB-PCB-D UWB Directional Logarithmic PCB Antenna .pdf

n Frequency Range: 4000-7000 MHz

n VSWR ≤ 2.0

n Gain: 7.0 dBi

n Input Impedance: 50 Ω

n Maximum Power: 10 W

n Polarization: Horizontal Polarization

n Height: 83.6±0.5 mm

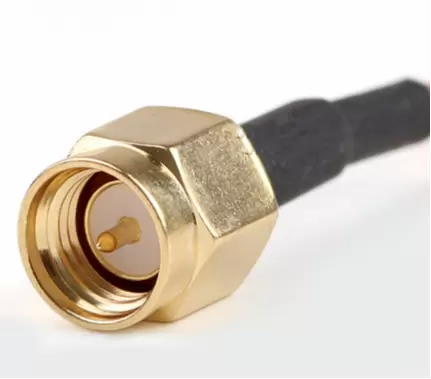

n Connector Type: SMA-J

n Efficiency: 85%

n Antenna Color: Blue

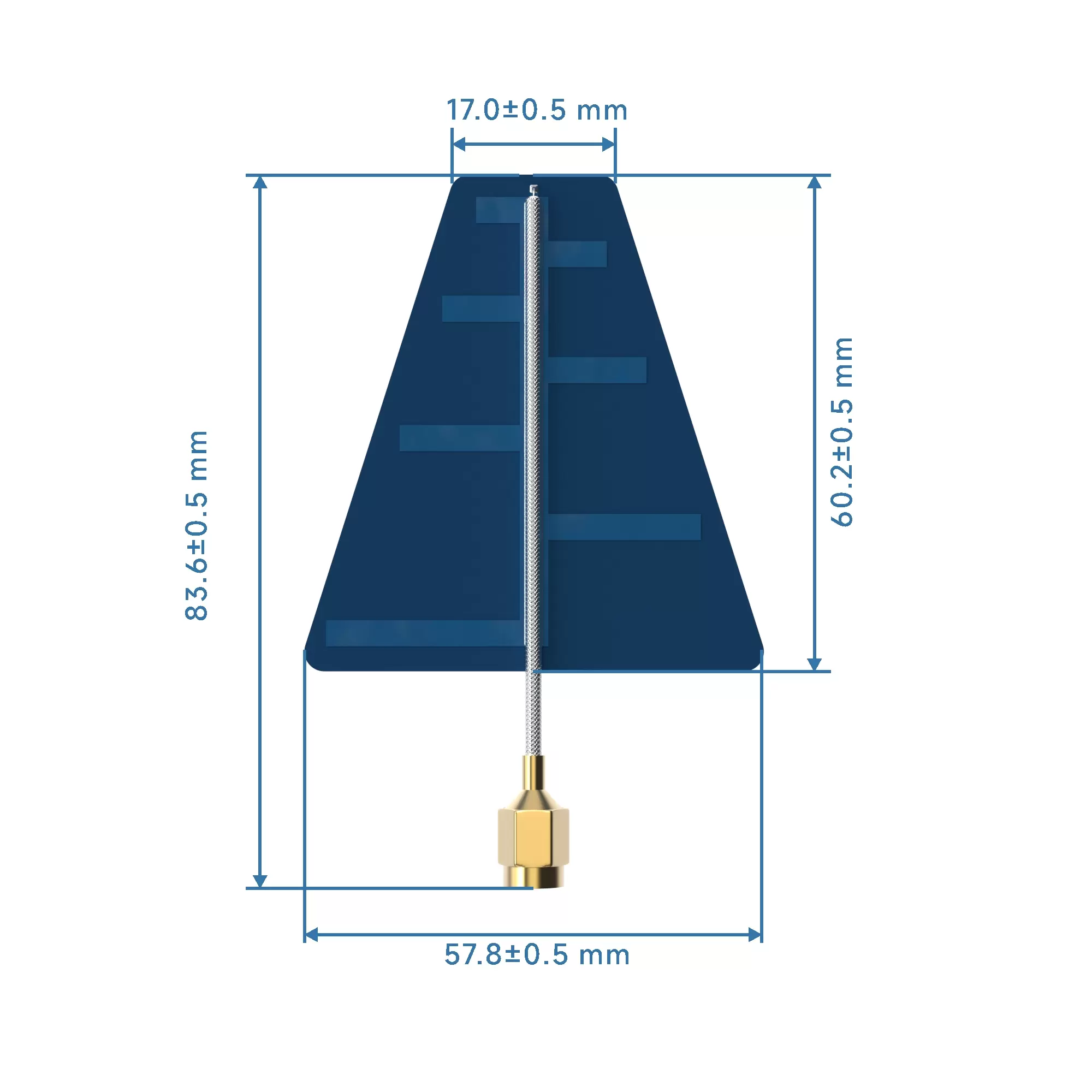

Mechanical Dimensions

Mechanical Dimensions

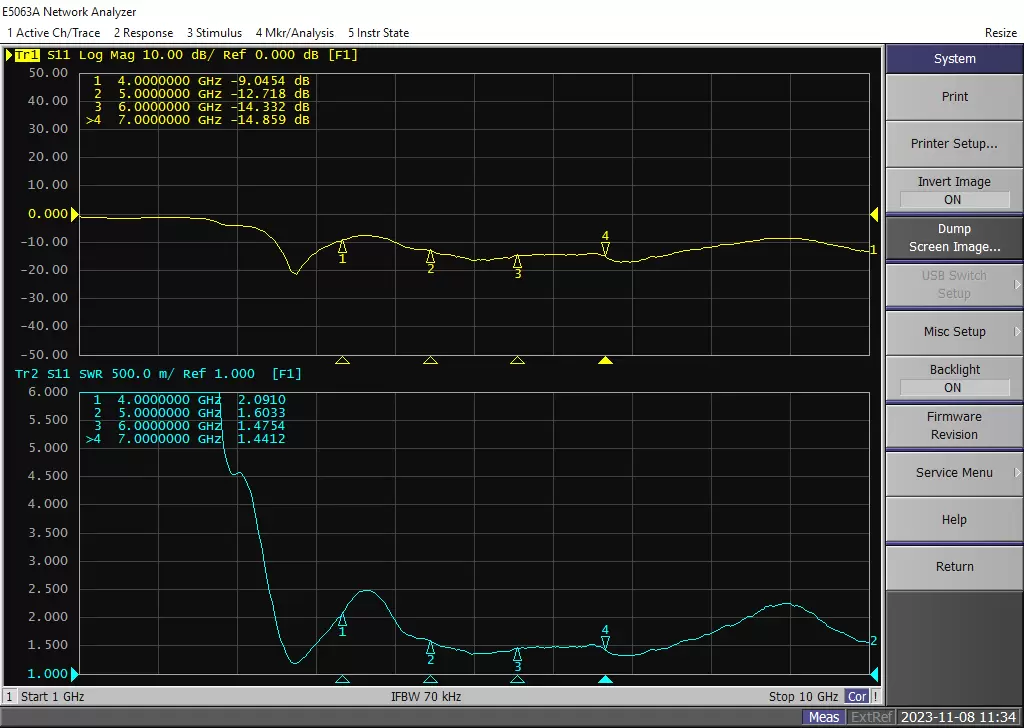

Standing Wave Ratio (SWR) Diagram
