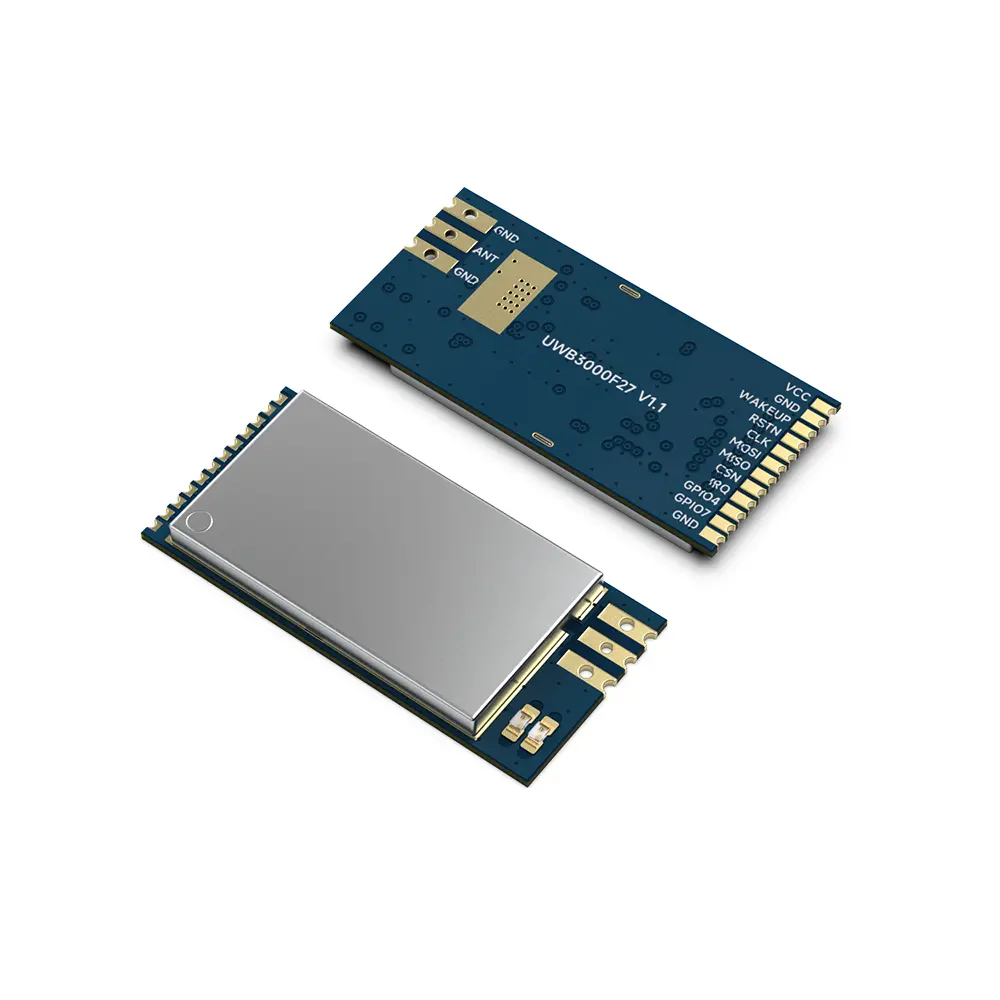

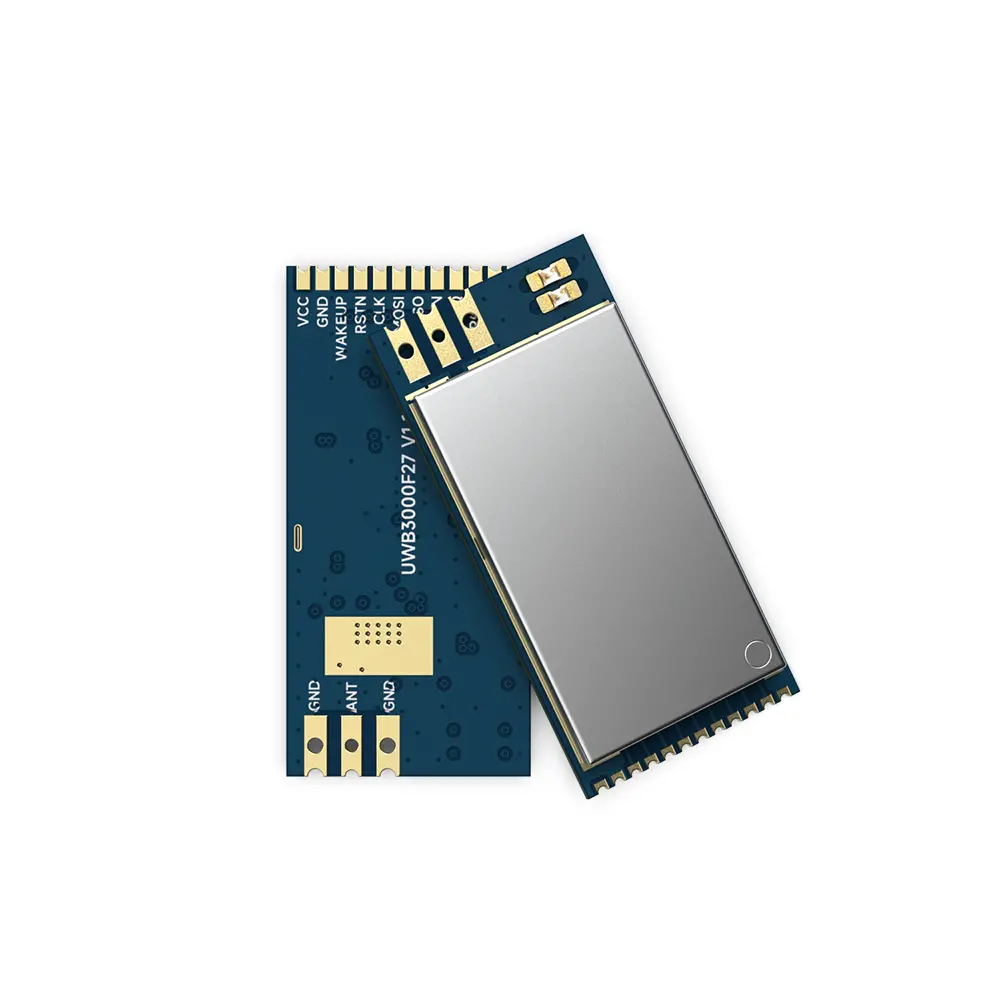

UWB3000F27 adopted Qorvo's DW3000 , designed with PCB antenna and a 500mW high power amplifier chip . UWB3000 is in line with IEEE802.15.4-2015 and IEEE802.15.4z (BPRF mode). It can be used for two-way ranging, TDOA and PDOA systems, positioning accuracy of 10 cm.

Parameter

Condition

Min.

Typ.

Max.

Unit

Supply Voltage


3.0

5.0

5.5

V

Operating Temperature Range


- 40

25

85

Frequency Range

CH5


6489.6


MHz

RF Data Rate


850k


6.8M

bps

Current Consumption

Sleep Mode



< 1.3


uA

Rx

CH5


93


mA

Tx

CH5


310


mA

TX for range measurement

CH5


21


mA

Transmit parameters

Tx Power

@VCC=3.3V

0


27

dBm

Tx Bandwidth(BW)



499.2


MHz

Receive parameters

Rx Sensitivity

@850Kbps


-100


dBm

@6.8Mbps


-94


dBm


Chip
DW3000
Frequency6489.6 MHz
positioning accuracyAsset location to an accuracy of 10 cm
Output Power500mW
Data rates850 kbps and 6.8 Mbps


Features

  • I15.4-2015 UWB
  • 15.4z(BPRF mode)
  • Supports channels 5(6489.6 MHz)
  • Data rates of 850 kbps and 6.8 Mbps
  • Integrated HW AES 256
  • Worldwide UWB Radio
  • Regulatory compliance
  • Packet length up to 1023 bytes
  • Supports 2-way ranging, TDoAand PDoA location schemes
  • Programmable output power
  • Provides precision location and data transfer simultaneously
  • Asset location to an accuracy of 10 cm
  • Long distance communication and ranging

Applications

  • Precision real time location systems (RTLS) using two-wayranging, TDoA or PDoA schemes in a variety of markets: Healthcare\ Consumer\ Industrial\ Automotive
  • Location aware wireless sensornetworks
  • Presence detection for secure entry and secure payment

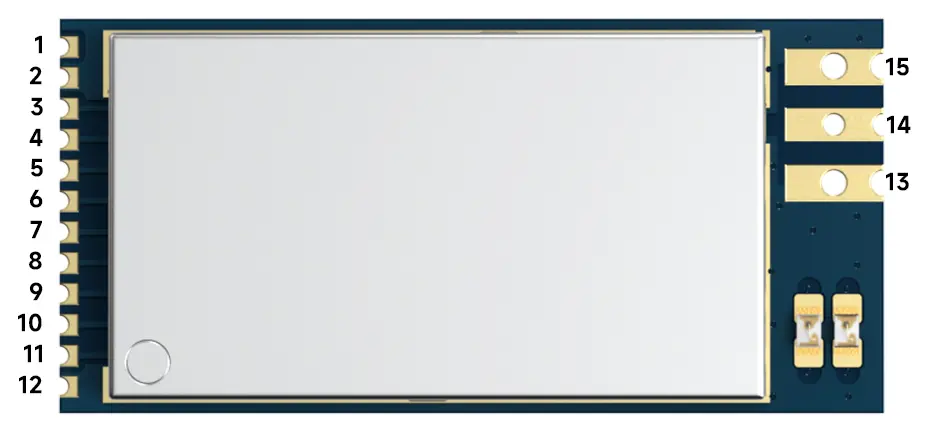

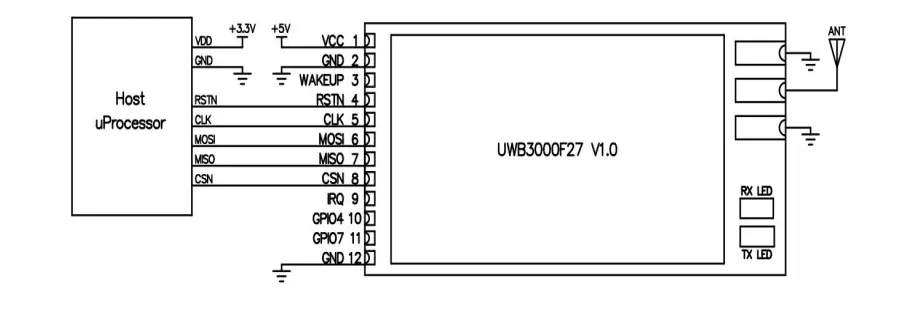

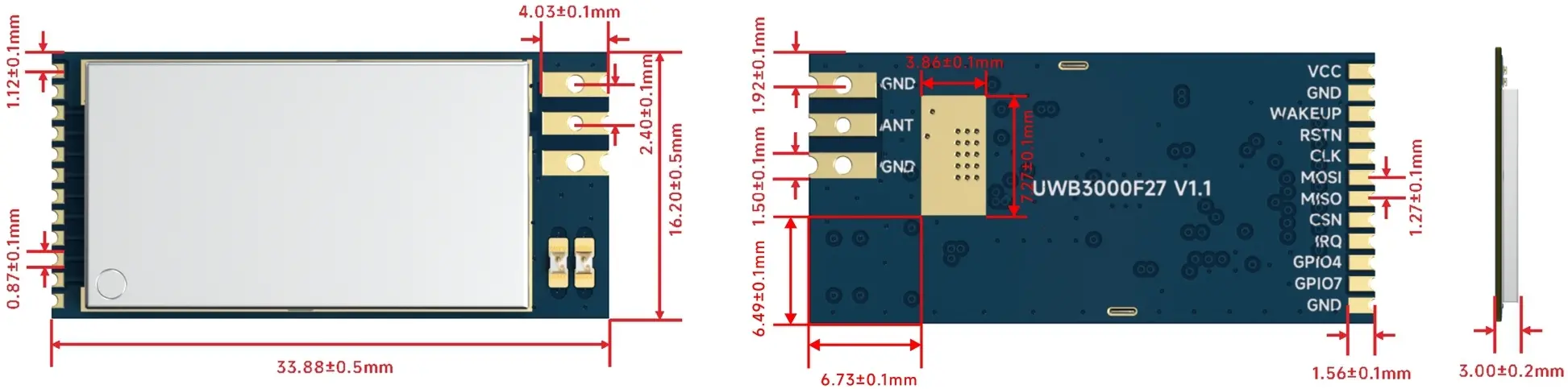

Pin No.

Pin definition

I/O

Level

Description

1

VCC



VCC (3.0-5.5V)

2,12,13,15

GND



Ground

3

WAKEUP

DI

0-3.3v

When asserted into its active high state, the WAKEUP pin brings the DW3000 out of SLEEP or DEEPSLEEP states into operational mode.

This should be connected to ground if not used.

4

NRSTn

DIO

0-3.3v

Reset pin. Active Low Output.

May be pulled low by external open drain driver to reset the DW3000.

Must not be pulled high by external source.

5

CLK

DI

0-3.3v

SPI peripheral clock input.

6

MOSI

DI

0-3.3v

SPI peripheral data input.

7

MISO

DO

0-3.3v

SPI peripheral data output.

8

CSN

DI

0-3.3v

SPI chip select. This is an active low enable input. The high-to-low transition on SPICSn signals the start of a new SPI transaction. SPICSn can also act as a wake-up signal to bring DW3000 out of either SLEEP or DEEPSLEEP states.

9

IRQ

DI

0-3.3v

Interrupt request output from the DW3000 to the host processor. By default IRQ is an active-high output but may be configured to be active low if required. For correct operation in SLEEP and DEEPSLEEP modes it should be configured for active high operation. This pin will float in SLEEP and DEEPSLEEP states and may cause spurious interrupts on the host unless pulled low externally (100kΩ recommended). When the IRQ functionality is not being used the pin may be reconfigured as a general purpose I/O line2 , GPIO8.

10

GPIO4

DIO

0-3.3v

GPIO4 from DW3000.

11

GPIO7

DIO

0-3.3v

GPIO7 from DW3000.

14

ANT



External 50 euro antenna
