How to Build an Efficient and Stable LoRa Master-Slave Communication System

When implementing a LoRa master-slave network, it is essential to focus on several core aspects: master-slave architecture design, reasonable parameter configuration, communication conflict avoidance, and data collision management in master-slave mode. The following systematically explains how to build a stable and efficient LoRa master-slave network:

Master-Slave Architecture Design

Define clear roles: distinguish responsibilities between the master node and slave nodes

Master node: initiates communication, manages polling, receives data, and issues commands

Slave nodes: passively respond to master requests or report upon specific trigger conditions

Unique Addressing
Each slave node must be assigned a unique device address (e.g., ID=0x01 to 0x0F). The master node sends targeted requests based on these addresses to avoid interference caused by broadcast communications.

Communication Structure Selection

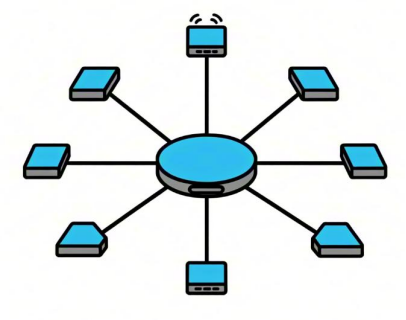

A star topology is recommended, with the master node at the center and slave nodes connected around it, facilitating unified management.

Reasonable Configuration of Communication Parameters
LoRa modules support multiple adjustable parameters. Proper configuration is key to avoiding interference and conflicts.

Frequency Allocation:
All nodes use the same center frequency (e.g., 433MHz / 470MHz / 868MHz, etc.)
If multiple frequency channels are supported, different slave nodes can be assigned separate frequencies to enhance concurrent communication capacity.

Transmit Power Setting:
Set appropriate power based on distance and obstacles.
Excessive power may cause co-channel interference, while insufficient power can lead to unstable communication.

Spreading Factor (SF) and Bandwidth (BW) Configuration
Increasing the SF improves receiver sensitivity and anti-interference capability but reduces the transmission rate.
Common BW settings are 125 kHz or 250 kHz; it is recommended to unify this setting to facilitate communication synchronization.

When configuring LoRa master and slave nodes, consistent communication parameters must be set to ensure proper module communication. For easier management and communication, a communication protocol can be established to specify data formats, transmission rules, and error handling. Each slave node should be assigned a unique address and include an identifier in the data frame to allow the master node to recognize the data source.

Communication Interference
In a one-to-many network, LoRa communication may struggle with efficient concurrent transmission, as multiple slave nodes uploading data simultaneously can cause collisions and packet loss. To avoid interference, polling or time-slot mechanisms can be used.

The polling mechanism uses a simple question-and-answer approach, which is easy to implement but has poor real-time performance. The time-slot mechanism requires slave nodes to upload data at preset times, offering higher efficiency but demanding precise synchronization and more complex implementation.

The LoRa one-master multi-slave network is suitable for agricultural soil moisture and temperature monitoring to achieve precise irrigation and fertilization. It can also be applied to industrial equipment status monitoring and remote control.

Mechanism of Data Collision in LoRa Master-Slave Mode

In a LoRa master-slave architecture, the master node initiates communication or receives data reported by slave nodes. Slave nodes generally stay in a listening state or wait for scheduled reporting. However, data collisions are prone to occur due to the following reasons:

Multiple Slave Nodes Reporting Simultaneously
When slave nodes detect an event or enter a periodic upload time window, if multiple nodes transmit at the same time, co-channel collisions are likely.

Master Node Broadcasting Commands
If the master node uses broadcast commands without specifying exact slave node IDs, multiple slave nodes may respond simultaneously, causing collisions.

Lack of Timing Control and Coordination Mechanisms
Without time allocation or channel listening among slave nodes, several nodes might transmit on the same channel simultaneously, leading to co-channel interference.

Echo Interference
When slave nodes reply, signal reflections causing multipath transmission can lead to signal superposition, interfering with the master node’s ability to correctly decode data.

Multiple Impacts of Data Collision on LoRa Master-Slave Networks

The LoRa protocol itself is asynchronous and low-speed, lacking strong error correction mechanisms, which makes the impact of collisions more severe:

Increased Packet Loss Rate
Collisions cause packet corruption or checksum failures, preventing the master node from receiving complete data.

Increased Communication Delay
The master node must resend requests or wait for timeouts, and slave nodes need to retransmit data, resulting in longer overall communication cycles.

Higher Energy Consumption
Frequent retransmissions and receiving failure feedback cause greater power consumption on slave nodes, reducing the advantage of low power consumption.

Reduced System Throughput
Network concurrency decreases, especially in dense one-master-multiple-slave scenarios, significantly lowering overall system efficiency.

Strategies and Practices to Address Data Collisions in LoRa Master-Slave Mode

When multiple slave nodes transmit simultaneously in LoRa master-slave communication, collisions occur causing data loss, increased delays, and even communication failure. To solve this issue, the following methods can be adopted:

Master Node Polling
The master node sequentially queries each slave node, and slaves respond only when addressed, avoiding simultaneous transmissions.

Set Transmission Time Intervals
Slave nodes add a random delay before sending data to stagger transmissions and reduce collision probability.

Allocate Fixed Time Slots
Assign fixed time slots for each slave node to communicate, ensuring orderly data transmission.

Enable Acknowledgment Mechanism
The master node sends acknowledgments upon receiving data. Slave nodes consider transmission successful only after receiving confirmation; otherwise, they retransmit.

Unify Communication Parameters
Ensure all nodes use the same frequency, data rate, and bandwidth to avoid reception failures caused by parameter mismatches.
