LoRa Serial Communication Module Function Analysis: From Transparent Transmission to Mesh Networking

Due to its long-range transmission, low power consumption, and high sensitivity, LoRa spread spectrum technology has gradually become a mainstream choice for various medium- to long-distance communication applications. Wireless serial communication modules based on LoRa technology are also widely used in scenarios such as industrial control, environmental monitoring, and smart agriculture, thanks to their simple architecture and ease of integration.

But how should one choose a communication module?
We can evaluate communication modules from four key dimensions: ease of use, compatibility, practicality, and security.

This article focuses on the core functions of LoRa spread spectrum serial modules, with an in-depth analysis of their typical application capabilities—such as mesh networking and transparent transmission. It also offers guidance on module selection based on the four dimensions mentioned above, helping users make informed decisions when choosing the right communication module.

Core Function Analysis of LoRa Spread Spectrum Serial Modules

Transparent Transmission (Pass-Through Mode)
Transparent transmission is the most fundamental communication mode of LoRa serial modules. In this mode, users don’t need to worry about communication protocol details—the module automatically handles the packaging and parsing of transmitted data, effectively functioning like a “wireless serial cable.” This feature is especially suitable for projects requiring rapid development and deployment.

Transparent mode supports point-to-point, point-to-multipoint, and broadcast communication, offering strong adaptability to meet the networking needs of various IoT applications.

Mesh Networking
In complex terrains or long-distance applications, single-point communication may not be sufficient to cover the entire area. Modules that support Mesh networking enable multi-hop forwarding, allowing nodes to communicate in a self-organizing manner. This significantly expands wireless coverage and enhances network stability.

Channel and Frequency Adjustment
LoRa serial modules typically support multiple frequency bands (such as 433 MHz, 470 MHz, 868 MHz, and 915 MHz). Users can choose the appropriate frequency according to local regulations and environmental conditions. These modules usually provide multiple channels and support flexible switching to avoid frequency conflicts and enhance anti-interference performance.

Multiple Communication Modes
LoRa modules support a variety of flexible communication modes, including:

Point-to-Point

Point-to-Multipoint

Broadcast/Multicast

These modes offer versatile communication topology options for different application scenarios, making it easier to build large-scale sensor networks.

Power Control
To meet the low-power requirements of IoT applications, LoRa modules are equipped with built-in sleep and wake-up mechanisms. They also support scheduled wake-up low-power modes, significantly extending battery life.

Data Verification
With built-in CRC verification, the modules effectively enhance data transmission reliability and resistance to interference. Even in environments with poor signal quality, they maintain a high data reception success rate.

Four Key Dimensions for Selecting a Communication Module
Once the module's functions are clear, the selection process becomes critical. A comprehensive evaluation can be made from the following four aspects:
Ease of Use, Compatibility, Practicality, and Security.

The versatility of a module can often be judged by how easy it is to get started. For users, the ideal module is one that can be tested right out of the box, with seamless switching between modes—rather than requiring extra steps such as connecting external microcontrollers, programming, soldering, or firmware burning, all of which extend the development cycle. A communication module that is easy to configure and integrate can greatly reduce the developer’s burden in terms of protocol handling and parameter setup.

Ease of Use: Simple Configuration, Quick to Get Started

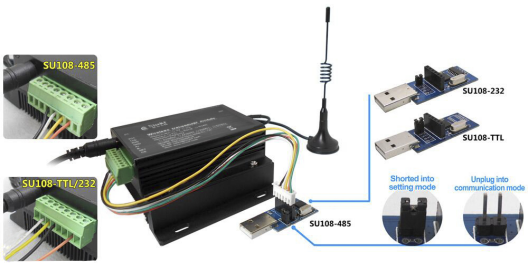

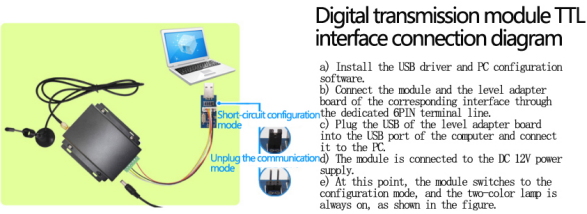

Comes with a matching development board

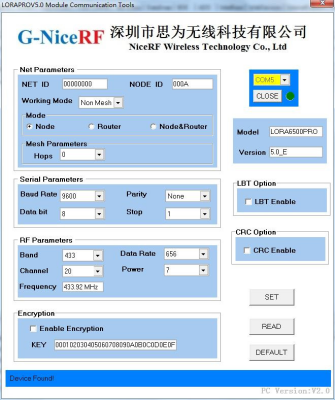

PC software for flexible configuration

Built-in High-Performance MCU: No external host controller is needed. The module handles protocol processing and data transmission internally, simplifying hardware design.

Ready-to-Use Default Configuration: Supports transparent transmission mode—users only need to power the module and set the serial ID to start communication.

Supports Configuration Commands/PC Software: Communication parameters such as frequency, data rate, power, and channels can be easily set via serial commands—no complex coding required.

Practicality: Solving Communication Challenges with Rich Features

LoRa Spread Spectrum Modulation: Delivers enhanced receiver sensitivity and strong anti-interference capability, ideal for long-distance and through-wall transmission scenarios.

Supports Mesh Networking: Modules can be configured as nodes or routers to form a Mesh network, enabling point-to-point and point-to-multipoint communication coverage.

RSSI and CRC Support: Useful for device management, improving communication quality and data reliability.

Security: Safeguarding Data and Preventing Interference

Built-in AES Data Encryption: Ensures data confidentiality and integrity during communication, preventing eavesdropping or tampering.

Multiple Hardware Protection Mechanisms: Includes anti-crash auto reset, overcurrent/overvoltage protection, and reverse polarity protection to enhance system stability and safety.

Strong Anti-Interference Capability: Thanks to spread spectrum technology and error correction mechanisms, the module maintains stable data transmission even in noisy industrial environments.

Compatibility: Flexible Integration and Strong Expandability

Multi-Band and Multi-Mode Support: Enables cross-region and cross-platform deployment, adaptable to various national regulations and network architectures.

Low Power Consumption Support: Features multi-level sleep and power control modes to suit battery-powered applications.

Standard Serial Interfaces Supported: TTL/RS232/RS485 options meet the needs of different systems and application environments.

By evaluating modules from the perspectives of ease of use, compatibility, practicality, and security, users can more accurately select the communication module best suited to their project needs—enhancing system stability and efficiency, and accelerating product deployment.
