The Invisible RF Killer: How Static Electricity Gradually Destroys Your Wireless Modules

Why Are Wireless Modules Particularly Susceptible to Static Electricity?

For a wireless module, the antenna is not only the signal channel but also the most vulnerable entry point for static electricity.
Human bodies continuously accumulate static in daily activities. Especially in dry environments, actions such as plugging or unplugging antennas, touching equipment, handling PCBs, or even friction from clothing can generate several kilovolts of static voltage.
Meanwhile, components in the wireless module such as the PA (power amplifier), LNA (low-noise amplifier), and RF switches are highly sensitive to transient high voltages. Therefore, the impact of ESD on RF systems is often more significant than on ordinary digital circuits.
In many cases, static electricity does not immediately destroy the module. Instead, it first puts the RF front end into a “partially damaged state”: the device can still function, but transmission power, communication distance, and reception performance have already begun to decline.

RF ESD Protection Is Essentially a “Balancing Act”

Toshiba Semiconductor, in articles about RF ESD protection, mentioned that in Wi-Fi, LoRa, and other wireless systems, RF front ends are not only prone to ESD strikes but must also maintain high-frequency performance.
This means that ESD protection in RF circuits is not as simple as adding a TVS diode like in digital circuits.
RF systems are highly sensitive to parasitic capacitance. If the ESD protection device is improperly selected, even if static electricity is blocked, it can introduce increased insertion loss, worsen VSWR, and reduce transmission efficiency, ultimately affecting communication distance.
For high-power wireless modules, ESD design is even more complex. On one hand, high-power PAs are more sensitive to impedance matching; on the other hand, 433 MHz, LoRa, and other long-range communication systems rely heavily on transmission efficiency and reception sensitivity.
Therefore, ESD immunity design is not only about “blocking static electricity,” but also about maintaining RF performance stability.

NiceRF ESD Testing and Validation

To verify the stability of wireless modules in complex environments, Shenzhen NiceRF Technology Co., Ltd. conducted electrostatic discharge immunity tests on several data transmission modules.
In design, NiceRF modules include RF-specific ESD protection circuits and hardware watchdog mechanisms to improve anti-interference ability and long-term operational stability.

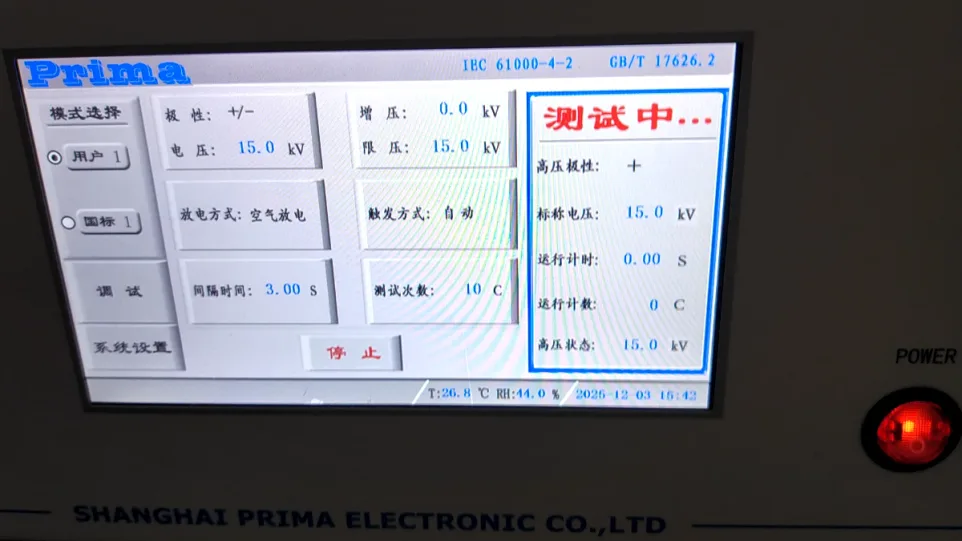

Testing was conducted using the Shanghai Prima ESD61002 series electrostatic discharge generator, in accordance with IEC61000-4-2 / GB/T 17626.2 standards, including both contact discharge and air discharge methods.

System-Level ESD Immunity Testing

In real industrial applications, system-level ESD tests focus on the device’s stable operation under real-world conditions. Therefore, the test is closer to actual usage scenarios, such as discharges around the enclosure, interfaces, and antennas.
In this test, NiceRF conducted the following on a 5W high-power wireless module:

• 6KV contact discharge
• 8KV air discharge

Results showed that the module could maintain normal operation under these conditions.

From the perspective of the IEC61000-4-2 standard, 6KV contact discharge and 8KV air discharge are already common requirements for high-level industrial environments. For high-power RF modules, such ESD immunity demonstrates good reliability for engineering applications.

Bareboard-Level Extreme ESD Testing: How High-Voltage Static Affects RF Performance

In addition to system-level ESD immunity tests, NiceRF also conducted bareboard-level extreme ESD tests on low-power (20 dBm) wireless modules to observe RF front-end performance under high-level static strikes.

Compared with discharges on the complete enclosure or interface, direct bareboard discharges allow static energy to couple more directly into the RF front end, exerting more significant impact on the PA, RF switches, and matching networks.
These tests are not part of routine IEC61000-4-2 system-level immunity verification but are mainly used to analyze potential RF front-end performance degradation under extreme ESD conditions.

8KV Air Discharge: Module Still Operates Normally
Results showed that under 8KV air discharge, the module could still operate normally, with transmission power maintained at approximately 20 dBm.

15KV Extreme Testing: RF Performance Begins to Degrade Significantly

In subsequent 15KV air discharge extreme tests, the module showed noticeable RF performance degradation with a progressive decline trend:

• After the first 15KV air discharge, transmission power dropped to about 0 dBm
• After the second 15KV air discharge, power further dropped to about -40 dBm

The results indicate that high-level ESD strikes first cause cumulative damage to the RF front end, leading to a gradual decline in transmission power, eventually making wireless communication impossible.
Such damage typically affects key RF circuits like PA, RF switches, and matching networks. As RF front-end performance continues to degrade, module transmission power continues to drop, ultimately causing wireless links to fail.
Many field scenarios where “the device still works, but communication distance decreases” essentially reflect RF front-end components slowly being damaged by static electricity.

For wireless modules, ESD immunity has never been just an auxiliary specification. A truly mature RF system design must consider not only RF performance but also PCB grounding design, static discharge paths, RF-specific ESD device selection, and EMC anti-interference capability.
True reliability of a wireless system is not just “being able to communicate,” but being able to maintain stable communication over a long period despite numerous real-world ESD events.
