How Smart TDMA Doubles Digital Two-Way Radio Module Capacity

Introduction

Many engineers run into the same problem when they design handheld radios, mobile radios, base stations or repeaters, or dispatch terminals. The spectrum does not change, so how can call capacity go up?

Smart TDMA (Time Division Multiple Access) gives a very practical answer. It does not add new frequencies or raise license cost. It splits one channel into two time slots, so two links on the same frequency can work. This article explains how TDMA can double capacity from the view of module and host integration, and it also points out the key things to watch in hardware design.

Can Smart TDMA Double Digital Two-Way Radio Capacity

When you integrate an RF module that uses a TDMA design, you can expand network capacity without adding spectrum license cost. Smart TDMA splits a traditional 12.5 kHz channel into two different time slots, so it gives a workable engineering way to do this. This makes two voice paths. Now two people can talk on the same channel at the same time, and they do not disturb each other.

With typical setup and test conditions, this TDMA design can support more users at the same time than a traditional single-slot design. Smart TDMA gives two virtual frequencies, so each channel has 6.25 kHz bandwidth. In real projects, system integrators usually match the wireless plan to the standard and the service needs, so they can ease the pressure from limited spectrum.

This upgrade gives two virtual frequencies and it does not need an extra license. That is a main benefit. In real engineering work, the efficiency can reach 2× time-slot capacity in theory, so it adds extra function at lower cost. This upgrade also applies this method to DMR digital radio. This level of spectrum use matters a lot for industrial IoT deployments in high-interference environments.

Communication can be faster, and the system does not need an extra repeater, so it can save money. This design also shows why high-performance embedded RF solutions are widely used in DMR systems. As our technical document says, “With the same frequency resources, DMR channel capacity is twice that of a traditional analog system.”

TDMA in Digital Two-Way Radios for Two-Slot Communication

This section explains how parts like data multiplexing, the vocoder, and error correction work together. It also explains how these parts can improve the data flow of a secure wireless module and lower total cost of ownership.

AMBE++ Vocoder

High-quality audio processing matters a lot for wireless audio modules used in loud industrial areas. AMBE++ can compress voice data well because it can filter a lot of background noise. In about a 85 dB noise environment, speech can still be understood, so a team can hear each word more clearly. For industrial data transfer in sensitive sites, strong encryption is required. It uses a low bit rate, it works efficiently, and it works with security algorithms.

Calls at the Same Time

In a TDMA system, PA/LNA integration can support two data links on one carrier. It creates two 6.25 kHz logical channels, so team communication feels smoother. Our verification tests confirm that one RF transceiver can manage the two logical channels efficiently. This integration cuts the number of parts, so it lowers the bill of materials (BOM) cost for OEM production. A simpler hardware design also helps when you need a smaller portable industrial device.

Power Saving

To extend the working life of remote nodes, a low-power wireless module can use discontinuous transmission cycles. This lets the device rest during idle time slots, so it can save a lot of power. Bench tests show that current use drops a lot, and this matters for battery-powered remote sensing. The result can be longer shift use time and less frequent charging.

Error Correction

Low bit error rate (BER) matters if you want telemetry data to stay correct. Digital radio can use forward error correction (FEC) to fix damaged data bits. Advanced FEC algorithms can greatly improve the link budget of a long-range wireless module.

Data Multiplexing

You often need more than voice, and TDMA can carry data while voice is active. It can use unused time slots, so it can also add GPS and telemetry data. Because of this, a compact wireless data module in a wearable device can handle multiple tasks at the same time. Real-time location and short message service (SMS) are standard features in our industrial IoT solution.

Technical Specs Comparison of Smart TDMA and Traditional Design

SA868S as a Mid-Range Option with a Power Upgrade

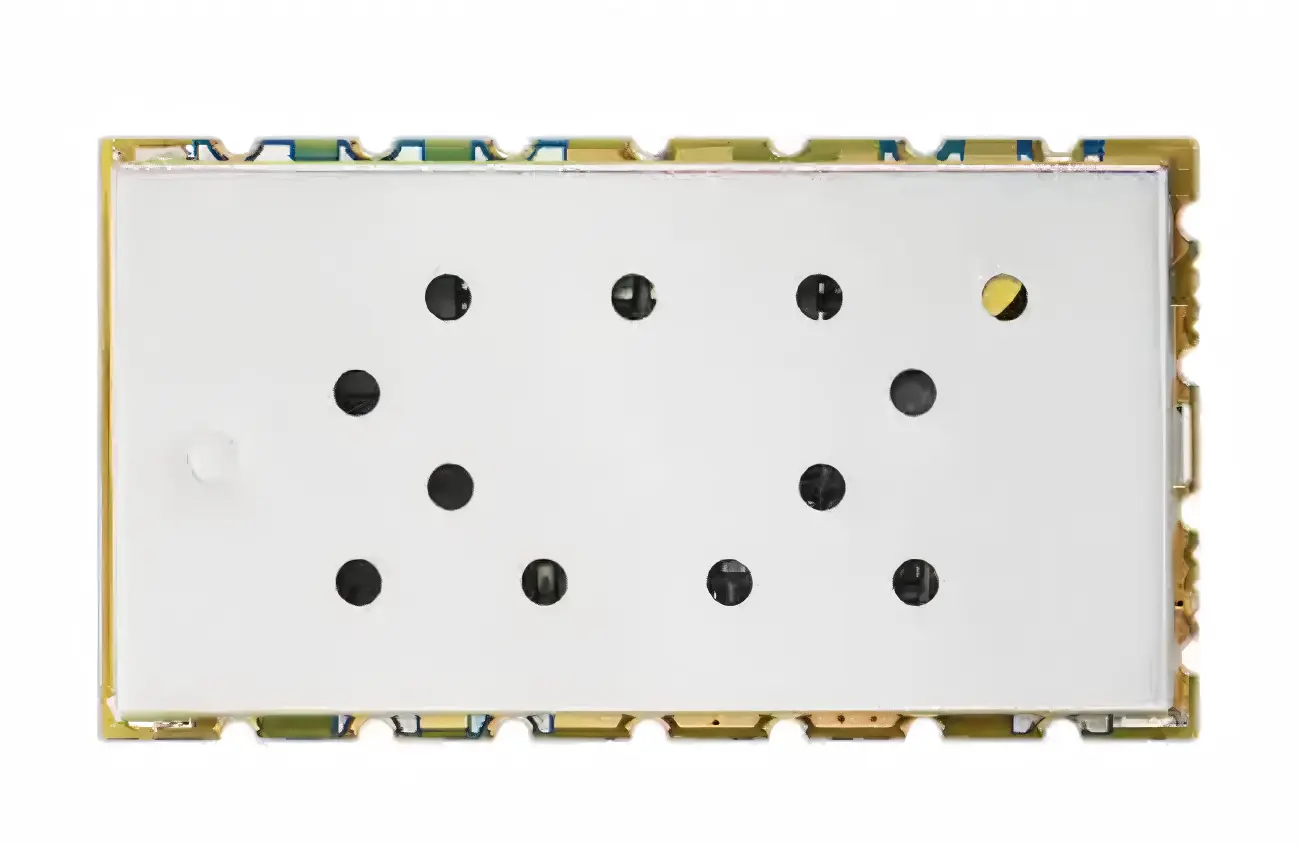

SA868S gives developers a pin-compatible package upgrade when they need a long-range wireless module and they do not want to redesign the PCB. This section explains a practical balance of power and cost, so a mid-size project can use a better fit.

2 W Power Balance

Mission-critical use often needs higher output power so wireless data transfer stays reliable in blocked terrain. SA868S raises transmit power to 2 W, so signal strength can go up a lot. Field tests confirm that link margin increases by about 30%, which fits long-range smart agriculture telemetry. The module is also tuned for industrial IoT use in logistics and warehousing.

Smooth Upgrade

Engineers can update an embedded system design without paying a large non-recurring engineering (NRE, one-time engineering cost). The module keeps the same size and interface as the 1 W version, so it is easy to use. This lets a team upgrade while keeping the same interface. It also avoids paying for an expensive high-power module when a site is mid-size.

Cost-Effective

For large rollouts, cost matters. This module balances power and cost well, so it sits between standard modules and high-power modules. It gives mid-size industrial parks a lower-cost option instead of a high-end RF solution.

DMR828S for Easier Digital Integration

DMR828S fits projects with a tight budget that still need digital features. It lowers the barrier for integrators who want to move to a digital RF communication system.

Plug and play. DMR828S can greatly shorten the development cycle. This highly integrated wireless audio module needs very few external parts to start working. Because the RF transceiver is pre-configured, many OEM production lines use it. The device can work without complex setup and it can be used right away.

Analog and digital compatible. Compatibility and flexibility matter. This module supports mixed-mode operation, so it can connect traditional analog systems with modern digital radio networks. A team can move to a fully digital system step by step, and this mixed module can help lower upgrade cost.

Tri-band support. More frequency choices are available across the UHF, VHF, and 350 MHz bands. The two-slot TDMA design improves spectrum use for high-density M2M communication. This matters because it helps a system use limited spectrum more efficiently.

Smart TDMA as the Key to Double Capacity

Sync timing and two-channel structure in TDMA

30 ms Time Slot

Knowing the timing structure matters for daily operation. Each TDMA time slot is exactly 30 ms, and it can hold voice data well without errors. Strict timing helps synced data transfer stay stable in a mesh network and helps reduce drift. It also helps avoid signal conflicts and helps use the channel more fully.

60 ms Frame

Knowing the frame length helps explain how the system works. One full TDMA frame is 60 ms, and it has two 30 ms time slots. A steady 16.7 Hz frame rate is a basic part of reliable commercial RF systems. The receiver gets steady pulses, so two users can access the system.

Two Channels

With bandwidth splitting, one cost can give two channels. A 12.5 kHz bandwidth can create two communication paths, and this is an efficient engineering use of the channel. This also explains why a cost-effective RF transceiver module can bring strong return on investment (ROI). The system does not need extra spectrum fees to add more users.

Burst Transmission

Burst transmission can save energy because the radio sends short chunks of information. As pulse current tests show, active time can be only 30 ms. So the RF power amplifier runs with less heat, which can help module life. It also reduces time exposed to interference, and the design can better fit this pulsed behavior.

Sync Timing

TDMA needs very accurate timing because the base station controls sync. It times each radio interaction, and the design ensures microsecond-level accuracy. This keeps the RF front end tightly synced and helps prevent data conflicts. It also helps keep calls clear. Tests show that stable sync supports a reliable network.

Removing TDD Noise in Digital Two-Way Radios

This section explains practical engineering ways to reduce TDD noise in a sensitive wireless audio module. The proposed solution uses a 15 µH inductor and an LDO regulator.

217 Hz Ripple

In high-quality wireless audio use, audible artifacts like 217 Hz TDD pulses must be reduced. They come from 217 Hz harmonics, and the envelope is about 16 to 20 Hz. So PCB layout needs enough filtering to isolate sensitive analog paths. These pulses can also affect the microphone, so the design needs countermeasures. Texas Instruments also identifies 217 Hz current pulses that couple into the audio path as a source of buzzing.

15 µH Inductor

A 15 µH power inductor is recommended because it can filter power noise effectively. It can capture low-frequency content and block noise. Tests under a 1.3 A load confirm that proper LC filtering matters for a clean industrial audio link. This can also clean a noisy power source and block switching spikes that can harm audio.

LDO Regulator

Clean power is needed for good audio. That is why an LDO with high power supply rejection ratio (PSRR) is important, because it can suppress power noise. Using XC6228D33 can help the RF synthesizer get a low-noise voltage source. It can reach greater than 70 dB ripple suppression and help keep microphone bias stable.

Current Pulse

Transmit surge needs careful handling because current can jump by 0.5 A, and this can also pull system voltage down. To handle a 2 A peak load, the power management circuit needs enough bulk capacitance. Stable voltage rails are also needed to avoid system reset. One board debug case took a full week, and the root cause was current pulses that reset the main chip.

Audio Path

The microphone line needs protection because RF pulses can couple into traces. This can create unwanted noise, so a third-order filter can help. Proper decoupling helps a multi-band wireless module keep a low noise floor. Adding a ground guard and good layout can also reduce this coupling.

Basic Parts for a Rugged Digital Two-Way Radio

This section lists the exact part values used to build a rugged digital two-way radio. These capacitors and filters matter for long-term use.

33 pF capacitor. Explosion-proof digital PoC (public network push-to-talk) uses a 33 pF capacitor to keep a stable 400 MHz RF signal.

Ferrite bead. A wireless digital two-way radio needs a ferrite bead to reduce high-frequency EMI noise.

Power inductor. A digital UHF two-way radio uses a 15 µH power inductor to smooth ripple.

100 µF tantalum capacitor. A top two-way radio for hunting uses a 100 µF tantalum capacitor to balance power.

LC filter. A PMR radio uses an LC filter to clean the 3.3 V audio path.

Industrial Uses for High-Capacity Digital Two-Way Radio Modules

This section looks at typical industrial scenarios where a digital two-way radio module (for example, a voice and data module that supports TDMA and DMR) is built into handheld radios, mobile radios, fixed base stations or repeaters, or dispatch terminals. It explains how to use two-slot capacity, voice clarity, data services, and reliability design to meet on-site communication needs.

Smart Agriculture

In open or partly blocked areas, on-site work often cares about coverage, battery life, and teamwork.

When a handheld terminal integrates a TDMA-capable digital two-way radio module, it can raise the number of users on the same channel through two time slots. Also, time-slot operation can lower average power use, which can help extend continuous use during a work shift. If the system needs location or status reporting, it can also send basic data through the module data channel in addition to voice (based on module capability and the upper-layer protocol).

Security Patrol

Security work focuses on group calls, clear speech, low delay, and reliable coordination.

When the host integrates a digital two-way radio module, it can support fast dispatch based on group calls. In high-noise places, digital voice coding and error correction can often improve how well speech can be understood and can improve resistance to interference. If higher security is needed, the system can enable authentication, encryption, or whitelist management at the module or system level (based on the standard, configuration, and legal requirements) to protect business data and dispatch commands for patrol teams.

IoT Integration

Many industrial projects need more than voice. They also need device status, alarms, and short commands.

A digital two-way radio module can act as the main communication core of the host. It can work with an MCU or main controller through serial and audio interfaces to support, for example, voice dispatch, short data or status reporting, and alarm triggering. In the network, on-site handheld and mobile terminals can work with fixed base stations or repeaters, or with a dispatch platform. They can gather needed data and alarm information to a back-end system, so the radio system can both support voice and also support on-site coordination and status feedback.

Remote Sensing

In water, energy, and environmental projects, common needs are long distance, small data, and steady reporting.

After the host encodes key status from sensors, RTU, or PLC (for example, digital inputs or analog values sampled by the main controller) into short data frames, it can send periodic reports or event reports through the digital two-way radio module. Under weak signals and interference, a digital link is often more stable (based on FEC, receive threshold, and system design). It can be a supplemental remote monitoring link for low-frequency but critical status reporting.

Medical Alert

In emergency work, the core is one-button trigger, priority handling, and reliable delivery.

A terminal that integrates a digital two-way radio module can support emergency alarms or priority calls (based on protocol stack and platform support), so it can quickly build a dispatch link when on-site staff need help. For medical or safety-critical systems, the host design needs to focus on power redundancy, audio link stability, anti-false-trigger and fail-safe alarm logic, and communication reliability under weak networks and interference, so critical alarms are not buried by normal traffic.

Common Questions (FAQ)

This section answers common questions we receive. It gives specific technical information about device current and range.

How Long Is a Standard TDD Frame

This is key information about frame duration. A standard TDD frame lasts 60 ms, and it is split into two parts. A 16.7 Hz cycle rate is verified to keep sync across a digital RF network. This timing setup is common in engineering practice, and it helps balance voice continuity and sync stability.

How Much Peak Current Does 5 W Transmission Use

Based on the spec, the digital two-way radio design supports 5 W transmission. 5 W transmission needs high input current, so the design must plan for it. Experience shows peak transmit current is about 1.5 A. So the host system that uses the RF module needs enough battery margin.

What Frequency Range Defines the UHF Operating Band

In this case, the correct band is UHF. UHF covers 400 MHz to 470 MHz, and this is a common range for many devices. It is known for better wall penetration in many urban environments. Many vendors test modules in this range.

Can TDMA Improve Battery Life in Typical Use Cases

For this device, the answer is yes. TDMA can greatly reduce transmit time, so it can save a lot of power. As a result, the radio can sleep between active time slots. This kind of power saving is supported by extensive test results. As the comparison guide says, “TDMA directly doubles communication capacity on the same band.”

What Is the Digital Receive Sensitivity of DMR

To reach longer distance, higher sensitivity helps. DMR sensitivity is usually about -120 dBm, which helps the radio receive weak signals more clearly. Clear audio can still be recorded at -124 dBm in weak-signal conditions, which shows the coverage and communication distance of this digital two-way radio module. The disconnect rate is also relatively low, which is helpful for users.

Conclusion

For industrial or professional communication where spectrum is fixed and many users need to communicate at the same time, a TDMA-based digital two-way radio module can raise system capacity without adding new frequencies. In real design work, it is also important to consider legal limits, power budget, communication distance, and service type, then evaluate and choose the right implementation plan.
