SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module
SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module

SA356-TX : 5W Long Range High Fidelity Wireless Audio Transmitter Module

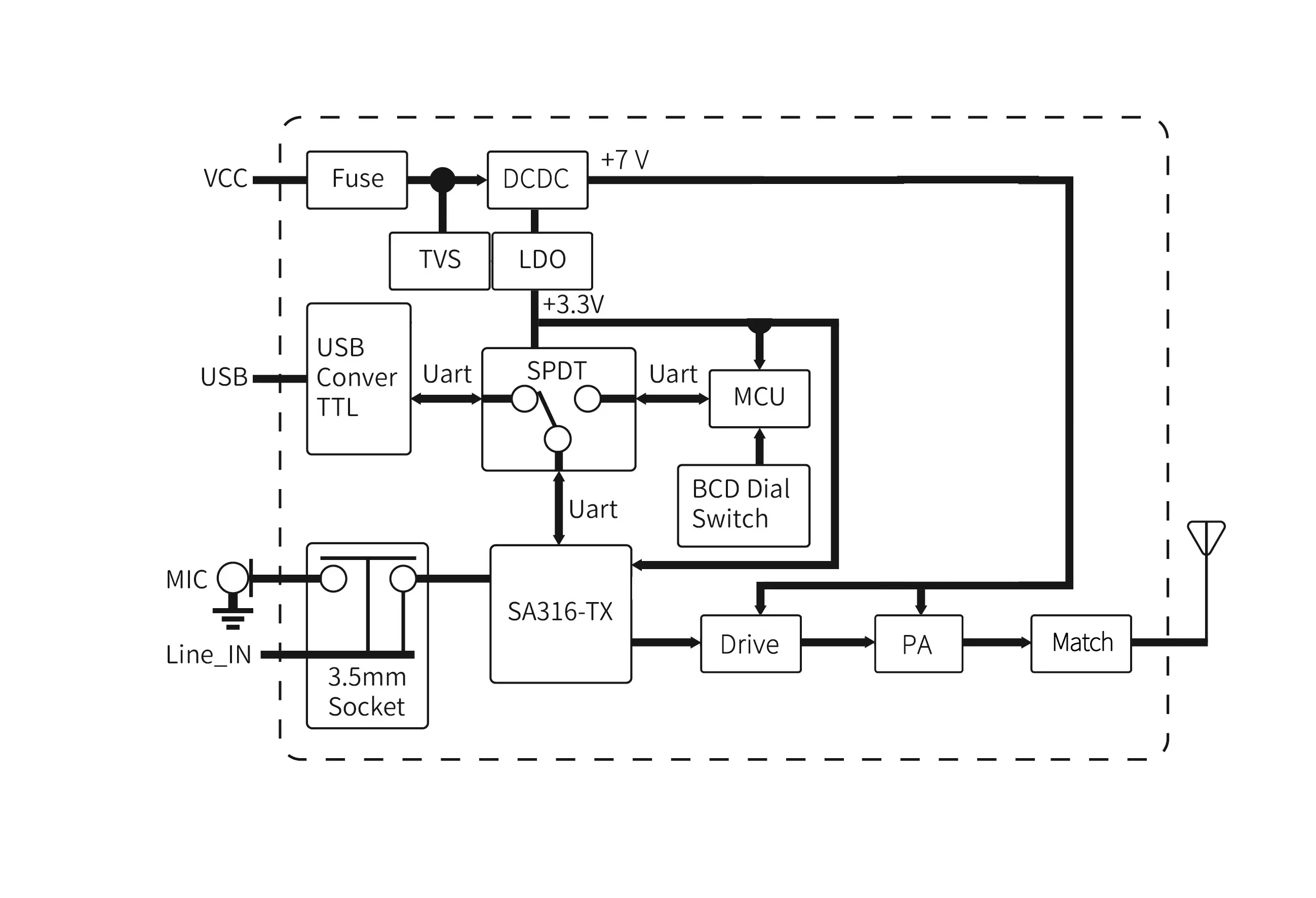

The SA356-TX products are divided into 5W wireless audio transmitter module, which can be matched with wireless audio receiver module SA326-RX. This product is an application board with SA316-TX amplified to 5W. It can work after power-on. You can also use PC software to directly set the module's frequency, sound size and other parameters, which greatly simplifies the user's development difficulty. This product is widely used in occasions with relatively high sound quality requirements.

Wireless Audio Transmitter Module SA356-TX



Parameter Test Conditions Min. Typ. Max. Unit
Operating voltage range   9.0 12 30 V
Range of working temperature   -20 25 60
Operating frequency range   500.02   516.02 MHz
Audio transmission and reception delay     3   ms
Serial port baud rate     9600   bps
Current consumption
Stand-by current     <100   mA
Emission current     <1.5   A
Transmit parameter
Transmit power @VCC=12V 36 37   dBm
Emission bandwidth(BW)     300   KHz
Adjacent channel power ratio(ACPR) @600KHz   -60   dBc
Maximum microphone input voltage     0.3 1.5 Vrms
Audio frequency response range   20   20k Hz
Type Wireless audio
Output Power 5W

Features of SA356-TX wireless audio transmitter module

  • UHF frequency band:500 MHz
  • The transmission distance is 3000 meters in the open area
  • Audio signal to noise ratio: 96 dB
  • Frequency response: 20 Hz-20 KHz
  • The delay from microphone input to audio output is less than 3ms
  • Digital modulation method: pi/4 DQPSK
  • Occupied bandwidth: <300 KHz
  • Transmission rate: 8 Ksps
  • Sampling rate: 48 KHz



Applications of SA356-TX wireless audio transmitter module

  • Wired speakers become wireless speakers
  • wireless microphone
  • Wireless Headphones
  • High-quality wireless audio transmission

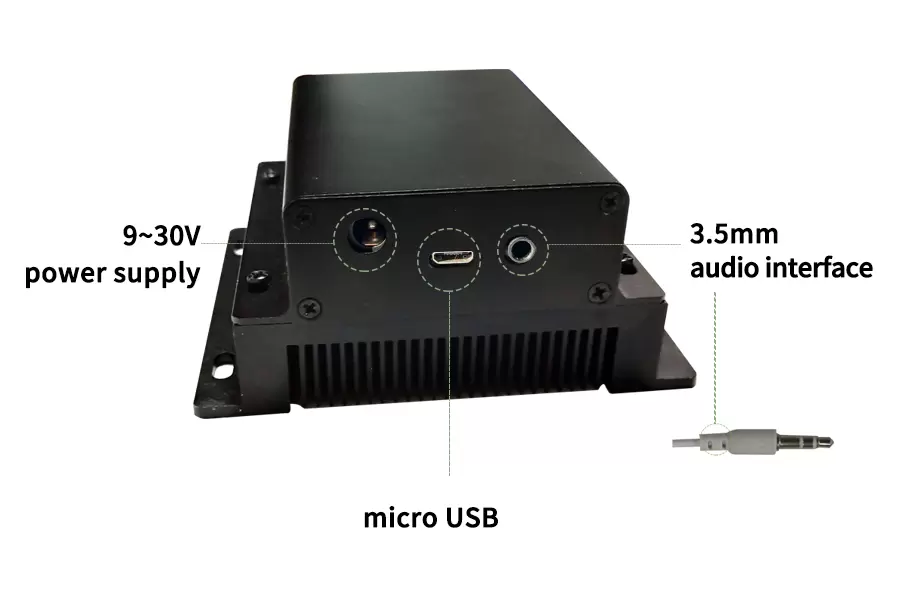

SA356-TX wireless audio transmitter module interface description diagram 1

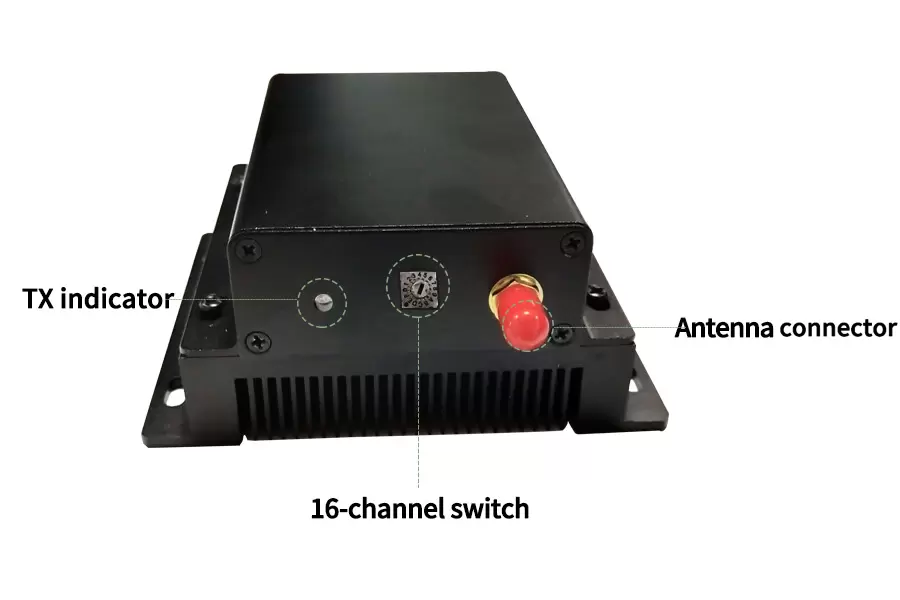

SA356-TX wireless audio transmitter module interface description diagram 2

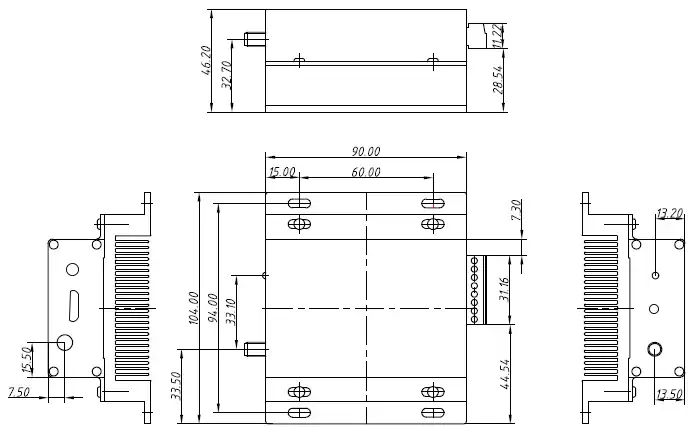

Mechanical sizes of wireless audio transmitter module SA356-TX
