SW2400-ZD195 2.4GHz High Gain Folding Rod Antenna
SW2400-ZD195 is a 2.4GHz high gain folding rod antenna with 2400–2500 MHz frequency range, 5.0 dBi gain, ≤1.8 VSWR, 50Ω impedance, vertical polarization, and omnidirectional radiation.
Technical Parameter of Rod Antenna SW2400-ZD195
Frequency Range: 2400 -2500 MHz

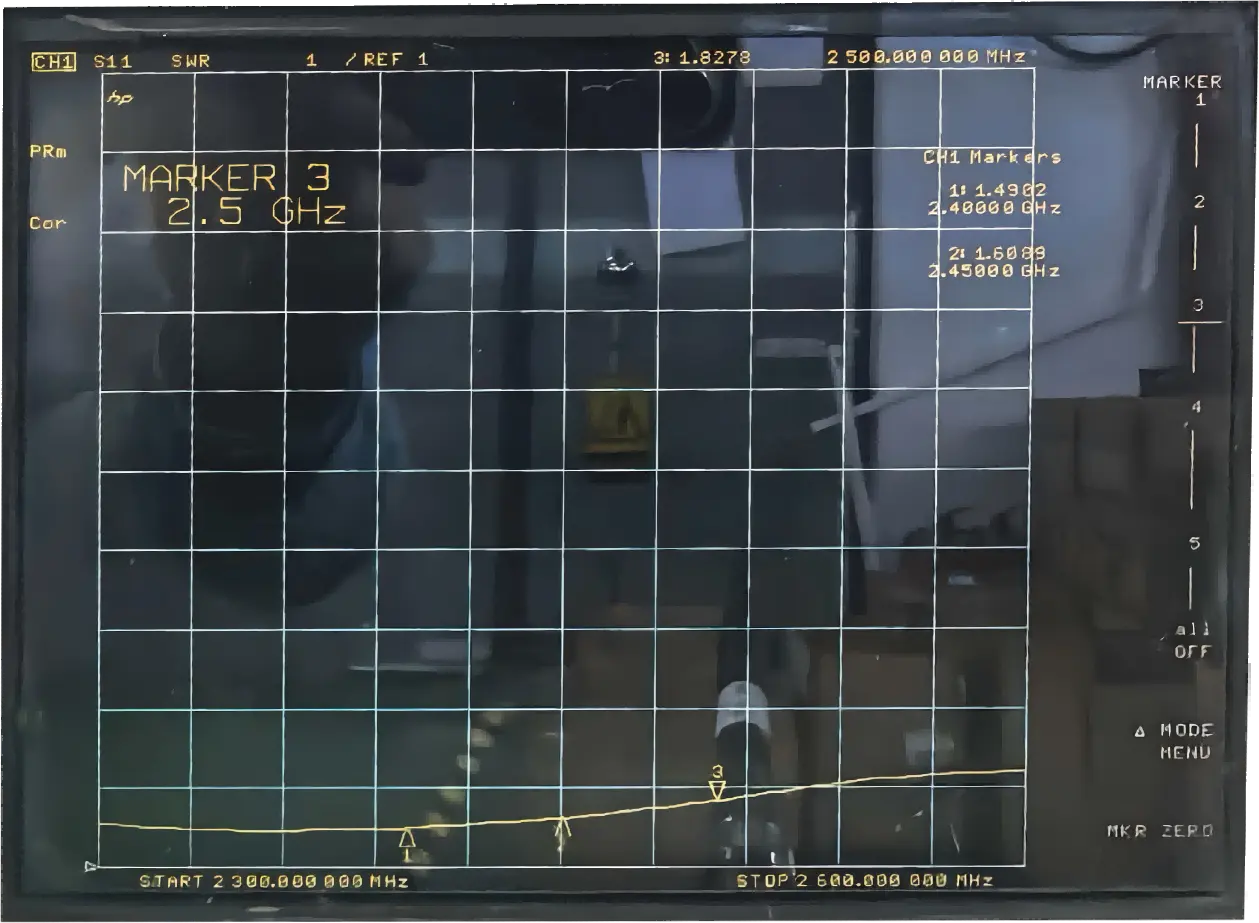

VSWR: ≤ 1.8
Gain: 5.0 dBi
Input impedance: 50 Ω
Max power: 5 W
Height: 170 ±1 mm
Radiation
Pattern: Omnidirectional
Polarization:Vertical polarization
Weight: 17.5g
| Frequency | 2.4GHz |
| Type | Rod |
| Gain | 5dBi |

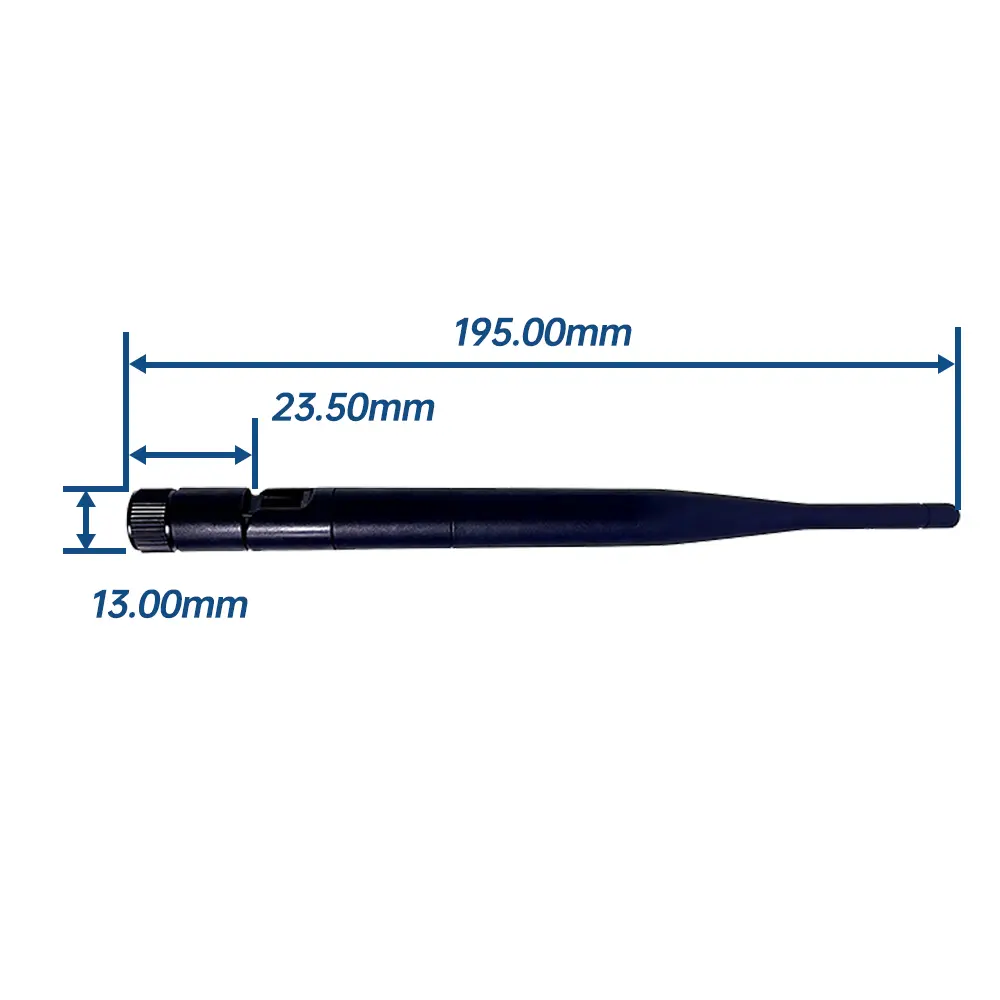

| Size (mm) | Overall length: 195 mm; Height: 170±1 mm |
