LoRa611II : Wide Voltage & High Rate: 160mW Industrial Uart LoRa Module With ESD Protection
- LoRa611II is a Uart LoRa module launched by NiceRF. Its width voltage and high rate are the main characteristics. The module adopts LLCC68 chip scheme and is designed based on Semtech official standard. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
- The LoRa611II module is designed for 160mW output power and embedded small size design, which is widely used in wireless remote transmission control industries.
- LoRa611II module supports AES128 data encryption method, LBT (Listen Before Talk) function is optional, CRC encryption optional, and node/routing/node+routing is optional in MESH mode(Hop level in MESH mode).
- LoRa611II modules are strictly produced and tested by lead-free process, which comply with RoHS and REACH standards.
| Parameters | Min. | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 3.3 | 5.0 | 5.5 | V | |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | < 9 | mA | TTL/RS232 level | ||
| <13 | mA | RS485 level | |||
| Tx current | < 110 | mA | |||
| Sleep current | < 220 | uA | TTL/RS232 level | ||
| RF Parameters | |||||
| Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| 470.92 | 490.92 | 509.92 | MHz | @490MHz | |
| 849.92 | 868.92 | 888.92 | MHz | @868MHz | |
| 895.92 | 914.92 | 934.92 | MHz | @915MHz | |
| Data rate | 1312 | 62500 | bps | @LoRa | |
| Output power | 1 | +22 | dBm | Software level 7 adjustable | |
| Sensitivity | -129 | dBm | @1.3Kbps | ||
Remark: If you need lower sleep power consumption, please contact us to send the “sleep current = 5uA” or “sleep current = 15uA” version.
| Interface | TTL,RS232,RS485 |
| Network | MESH |
| Frequency | 433MHz,470MHz,868MHz,915MHz |
| Modulation | LoRa |
| Output Power | 160mW |
Features of LLCC68 LoRa Module LoRa611II
- AES128 data encryption method
- No blind zone without distance limitation
- Single module open transmission distance of 5Km @ low rate
- Frequency band: 433/470/868/915 MHz for option
- Up to 40 communication channels in the same frequency band
- Diversified serial port parameters
- Operating voltage range: 3.3~ 5.5 V
- LBT (Listen Before Talk) function optional
- Node/route/node+route optional in MESH mode(Hop level in MESH mode)
- Built-in hardware reset protection circuit
- LoRa modulation
TTL/RS232/RS485 interface
- Sensitivity up to -129 dBm@1.3Kbps
- Maximum output power: 160 mW (+22 dBm)
- CRC optional
- Operating temperature range: -40 ~ +85 °C
Applications of LLCC68 LoRa Module LoRa611II
- Remote control
- Remote meter reading
- Industrial data collection
- Home automation telemetry
- Wireless data communication
- Access control system

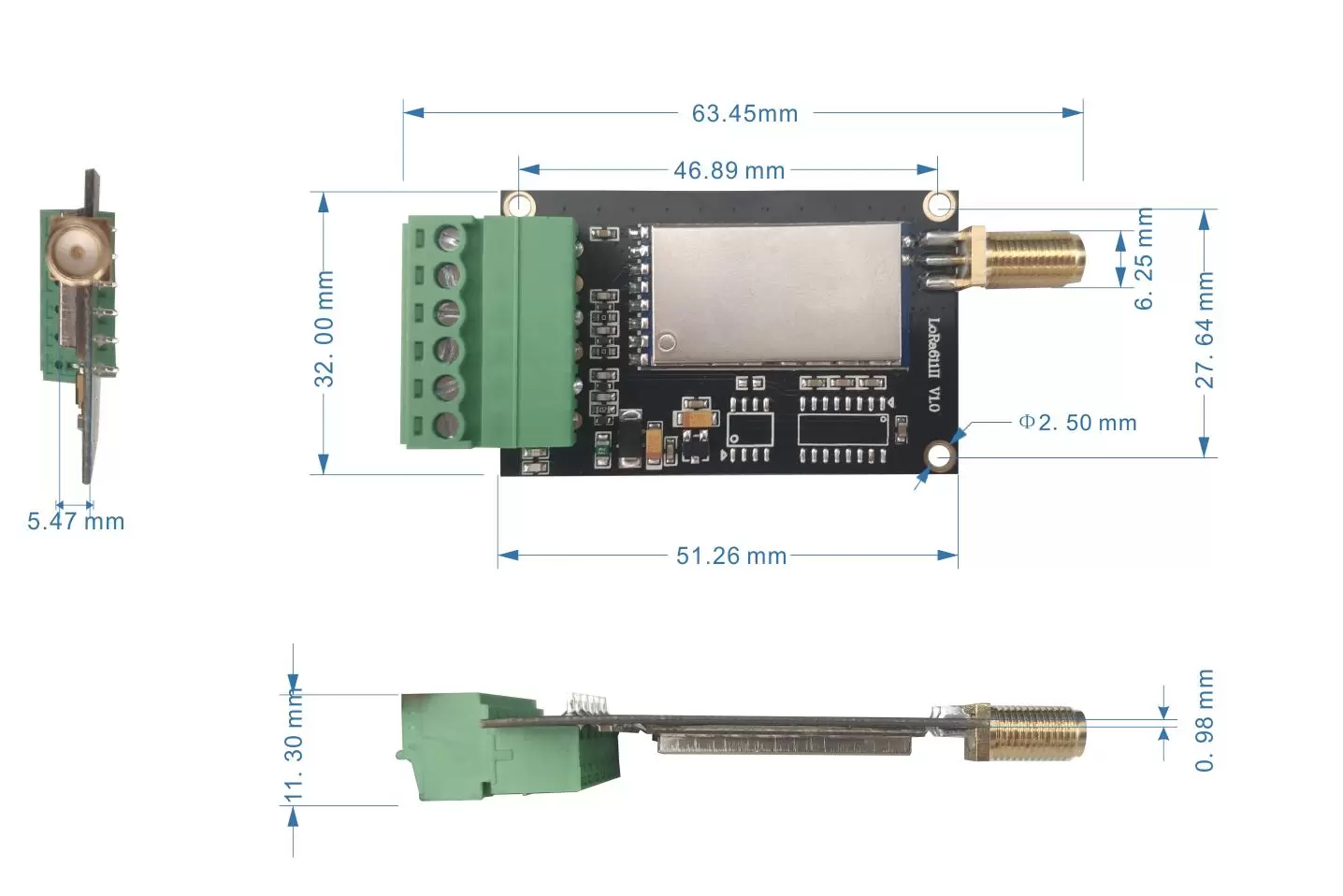

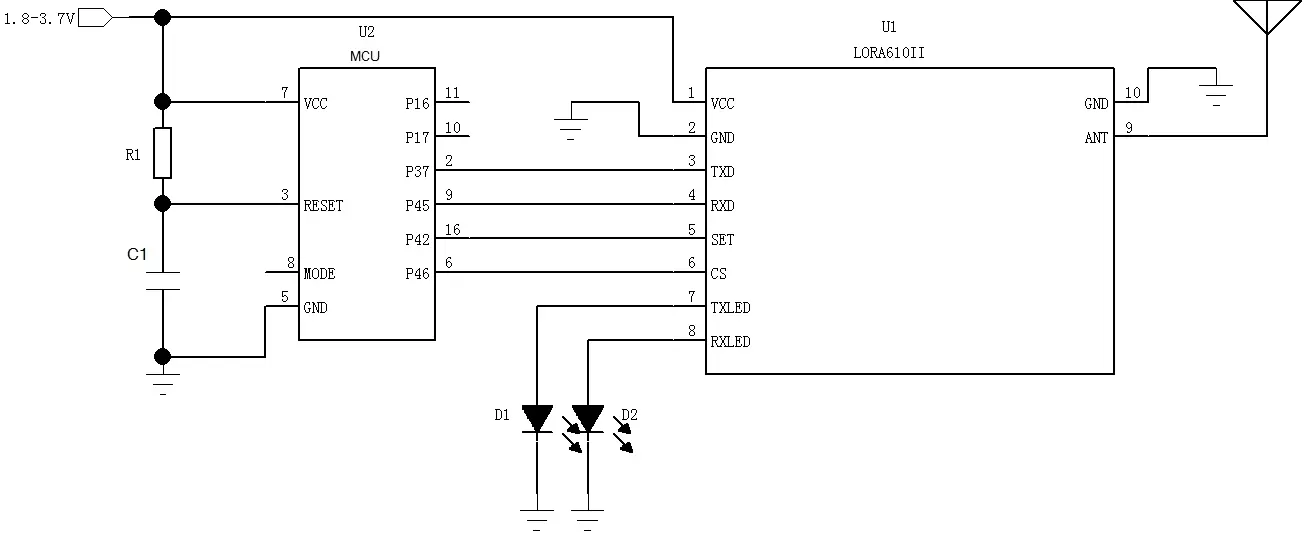

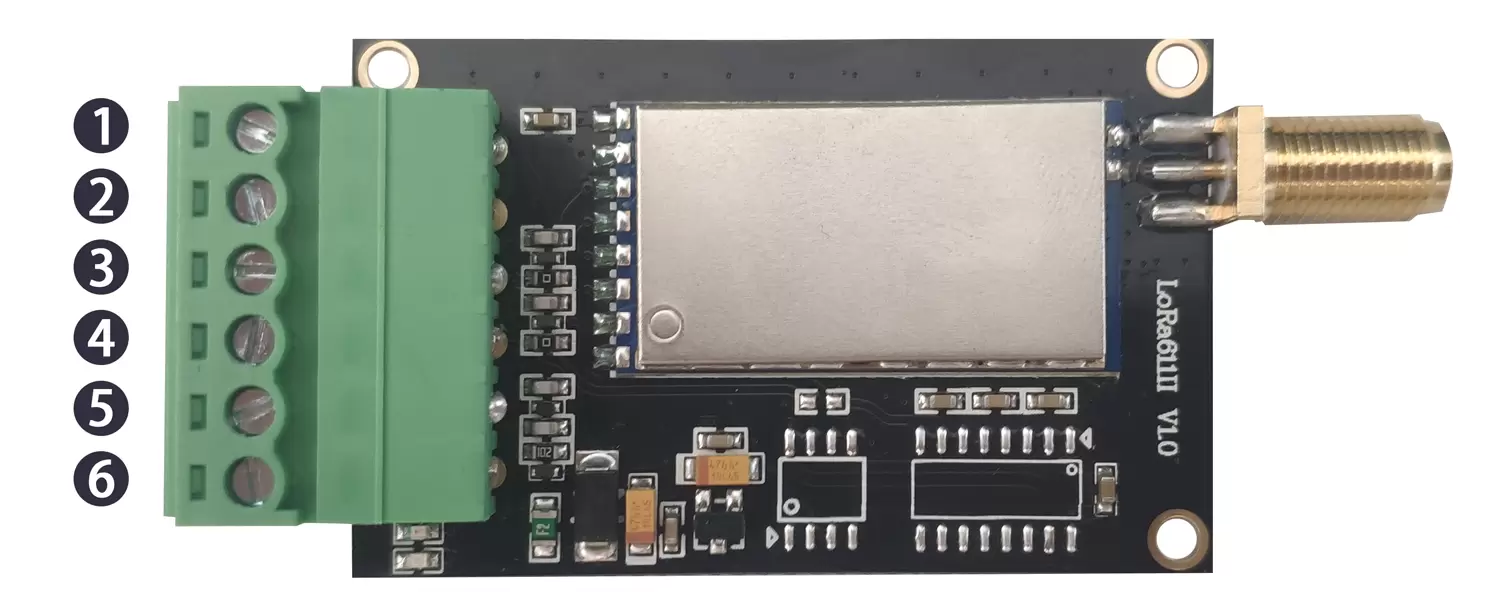

| NO. | PIN | Description |
| 1 | VCC | Connect to the positive pole of the power supply (external 3.3-5.5V) |
| 2 | GND | Connect to power ground |
| 3 | TXD/A+ | Serial communication data transmission |
| 4 | RXD/B- | Serial communication data reception |
| 5 | SET | Low = setting mode, high = normal working mode. |
| 6 | CS | Leave open when RS485 interface, High: working mode, L = sleeping mode ( for TTL or RS232 ). |
