SK106 : 1W 4-20mA Input And Output Remote Control Wireless Switch Module
- SK106 series is Industrial Level remote wireless analog(4～20mA) and wireless switch module, which includes SK106-TX and SK106-RX. SK106-TX provides four Digital signal input Interface & four current analog input Interface, SK106-RX provides four switch control interface & four current analog output interface. The parameters can be modified by PC software / UART command. DIP switch on the module can used to change operating frequency (maximum 16 group), operation mode,Group ID etc. Using this module, user can replace wired device with the wireless connection, which significantly reduce the cost and save much time.
- SK106 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Note: Below parameters base on 12V power supply/ 25℃ testing environment.
| Parameters | |
| Voltage rang | 433MHz/470MHz/868MHz/915MHz |
| Analog channel(4～20mA) | 4AI（SK106-TX）、4AO（SK106-RX） |
| Switch channel | 4DI（SK106-TX）、4DO（SK106-RX） |
| Analog input/Output range | Current: 0-20mA |
| Distinguish | 12Bit |
| Accuracy | ±0.1% |
| Configration interface | RS-485 |
| Channel | Standard 16 channel, the user can use Dip Switch to change the channel |
SK106-TX
| Parameters | Min | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 10 | 12 | 30 | V | |
| Working temperature range: | -40 | 25 | 85 | ℃ | |
| Current Consumption | |||||
| Rx current | < 50 | mA | |||
| Tx current | < 350 | mA | |||
| RF Parameters | |||||
| Output power | > 30 | 31 | 32 | dBm | @433MHz，490MHz |
| 27 | dBm | @868MHz，915MHz | |||
| Sensitivity | < -132 | dBm | |||
SK106-RX
| Parameters | Min | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 10 | 12 | 30 | V | |
| Working temperature range | -40 | 25 | 85 | ℃ | |
| Current Consumption | |||||
| Rx current | < 40 | mA | |||
| Tx current | < 300 | mA | |||
| RF Parameters | |||||
| Output power | > 30 | 31 | 32 | dBm | @433MHz，490MHz |
| 27 | dBm | @868MHz，915MHz | |||
| Sensitivity | < -132 | dBm | |||
| Interface | 4-20mA |
| Communication | One-way |
| Open distance (km) | 3 |
Features of Wireless Switch Module SK106
- Up to 5Km line-of-sight in open area
- 16 predefined channels
- LoRa Spread Spectrum Modulation Mode
- Switch and analog combination control
- Real-Time/Timning Mode options
- 485 Interface Configure parameter
- Input/Output: 4～20mA current
- Sensitivity up to 132 dBm
- Maximum output power：1.5W
- Working voltage 10～30 V
- Working temperature range:-40 ～ +85 °C
- Weight：143g
Applications of Wireless Switch Module SK106
- Industrial field sensors、Transmitter signal acquisition
- Automated data acquisition system
- Building automation, security, equipment room wireless monitoring, access control system
- Traffic, Oil drilling, and alarm. can be widely used for real-time monitoring of displacement, speed, temperature, pressure, flow, and water level.
 |  |

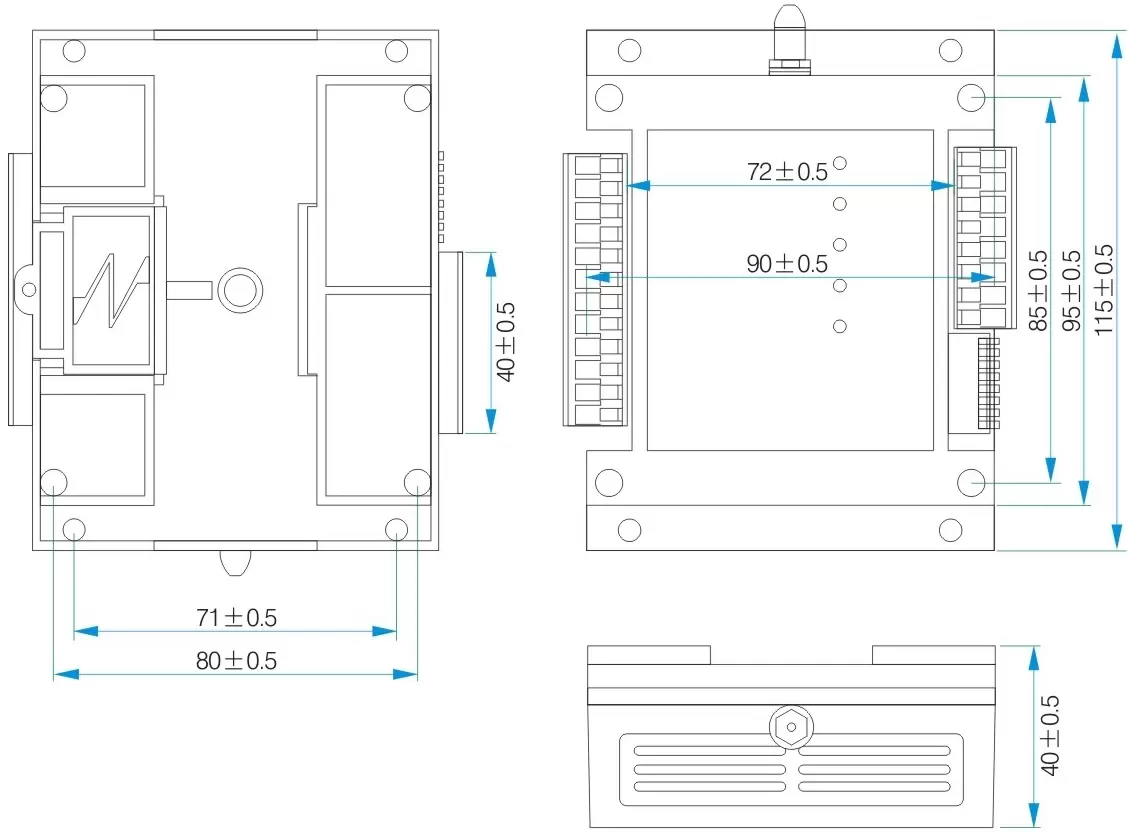

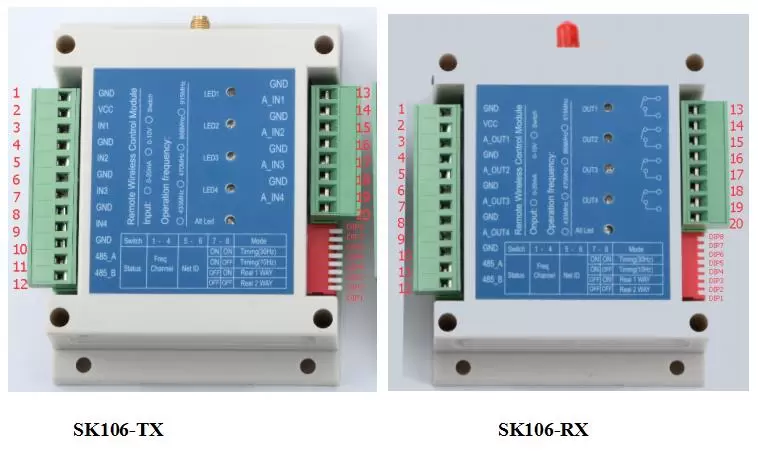

| SK106-TX | SK106-RX |
|
Pin NO. | Pin | Description | ||
| SK106-TX | SK106-RX | SK106-TX | SK106-RX | |
| 1 | GND | GND | Connect to negative power | |
| 2 | VCC | VCC | Connect to positive power | |
| 3 | IN1 | A_OUT1 | Ch1 input, internal pull up | Ch1 analog output |
| 4 | GND | GND | ||
| 5 | IN2 | A_OUT2 | Ch1 input, internal pull up | Ch2 analog output |
| 6 | GND | GND | ||
| 7 | IN3 | A_OUT3 | Ch1 input, internal pull up | Ch3 analog output |
| 8 | GND | GND | ||
| 9 | IN4 | A_OUT4 | Ch1 input, internal pull up | Ch4 analog output |
| 10 | GND | GND | ||
| 11 | 485_A | 485_A | 485 Interface A | |
| 12 | 485_B | 485_B | 485 Interface B | |
| 13 | GND | OUT1 | Ch1 analog input | Ch1 relay control output |
| 14 | A_IN1 | |||
| 15 | GND | OUT2 | Ch2 analog input | Ch2 relay control output |
| 16 | A_IN2 | |||
| 17 | GND | OUT3 | Ch3 analog input | Ch3 relay control output |
| 18 | A_IN3 | |||
| 19 | GND | OUT4 | Ch4 analog input | Ch4 relay control output |
| 20 | A_IN4 | |||

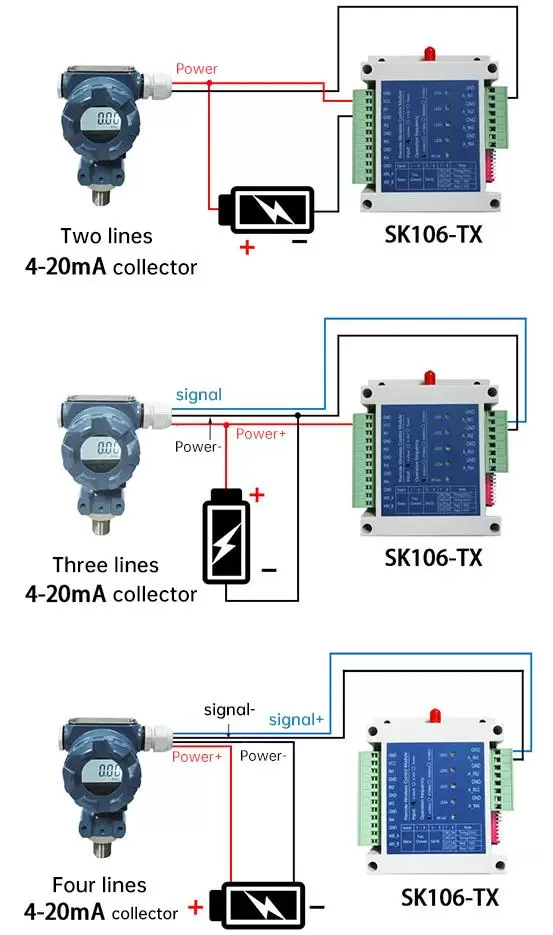

Interface Definition
 |  |
| SK106-TX interfaces as below | SK106-RX interfaces as below |
