IOT-G010 : IOT Sensor Monitoring System Gateway

IOT-G010 : IOT Sensor Monitoring System Gateway

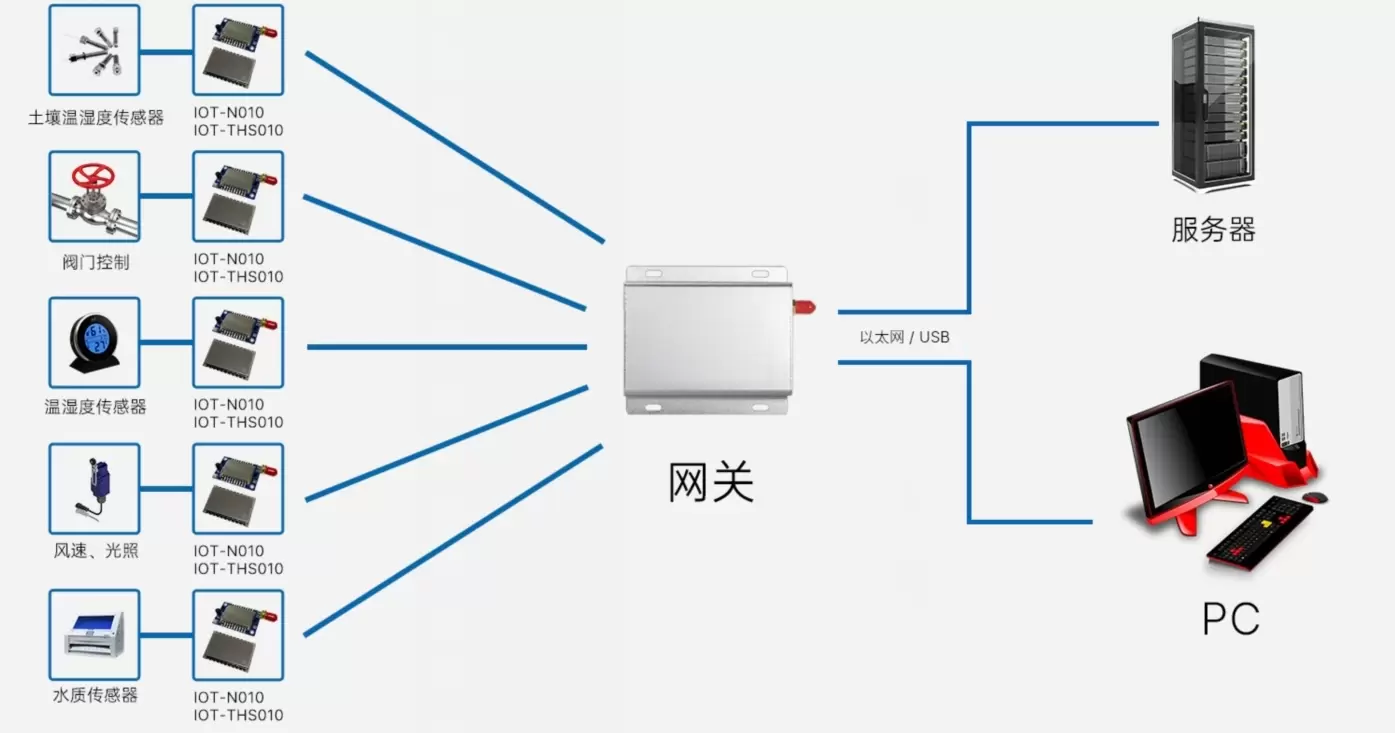

The ultra-low power sensor monitoring star network system is mainly used for sensor data acquisition and control of the Internet of Things. The whole network system is composed of gateway IOT-G010 and node IOT-N010/ IOT-THS010, which uses a wireless star network combined with Mesh networking. A good coordination mechanism and precise scheduling algorithm are used internally between the node and the gateway to avoid collisions between data packets in the air. The communication protocol between the node and the gateway has been implemented by the system, and customers can build a reliable acquisition and control network as long as they follow a simple configuration.

DOWNLOAD

Parameter	Min.	Type.	Max.	Unit	Conditions
Operation Conditions
Operating voltage range	5	12	30	V
Operating temperature range	-40	25	85	℃
Current Consumption
RX Current		<18.5		mA
TX Current		<100		mA	@20dBm
Sleep Current		<1.5		uA
RF Parameters
Modulation rate	1.2	9.6	1000	Kbps	GFSK
Output power	-1	/	20	dBm	Software configurable
Receiving sensitivity		-121		dBm	@1.2kbps
Frequency Range	424.42		444.42	MHz
Serial port baud rate	1200		115200	bps
Number of nodes	1		255
Serial port upgrade	Support
Air upgrade	Support
Wireless configuration parameters	Support
Wireless awake	Support
RSSI	Support
Battery Life Calculate	Support
Mesh	Support
Automatic resend	Support

Special Function	Sensor acquisition

Features of Sensor Monitoring System Gateway IOT-G010

Node ultra-low power consumption
Star network combined with Mesh networking
Multi-point data collection(Up to 255 Node for a single gateway)
Serial data input and output
Multi-level data collision avoidance mechanism
Serial port firmware upgrade
OTA firmware upgrade
Programmable Upload time interval
Wake up in the air
OTA parameter modification
Industrial grade (-40～+85 ℃ )
Multiple anti-crash mechanisms
Wireless data encryption
Reserve multiple interfaces such as SPI, I2C, GPIO, etc., Strong scalability
Customize various functions quickly
Battery life calculated precise
RSSI signal strength indicator
Retransmission automatically
Lost Link indicator

Applications of Sensor Monitoring System Gateway IOT-G010

Various sensor signal acquisition and control
Smart home
Security, access control
Remote control
Industrial control
Drone
Robot
Multi-channel switch/door magnetic signal collection summary
Smart manhole cover
Remote meter reading
Sensor signal acquisition and control

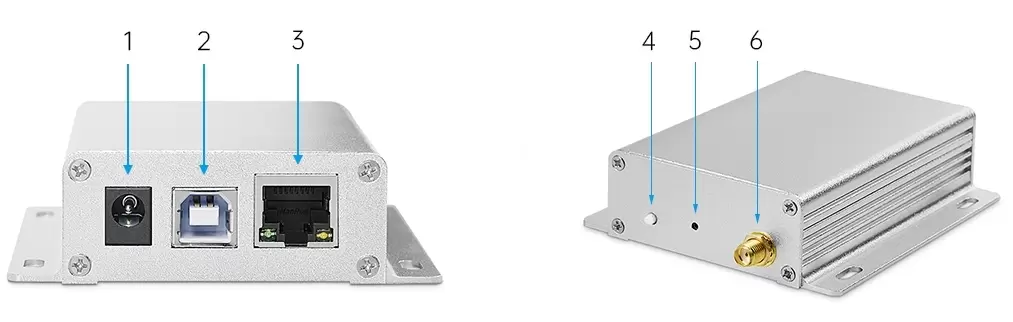

Pin No.	Pin Definitions	Description
1	Power connector	Connect to the 5-30V power supply
2	USB-B interface	Data output method one
3	RJ45 interface	Data output mode two
4	Indicator light	Sending and receiving instructions, data output mode switching instructions
5	button	Short press to switch the data output mode, long press to enter the node firmware upgrade mode
6	ANT	Connect the antenna (50-ohm copper shaft antenna)

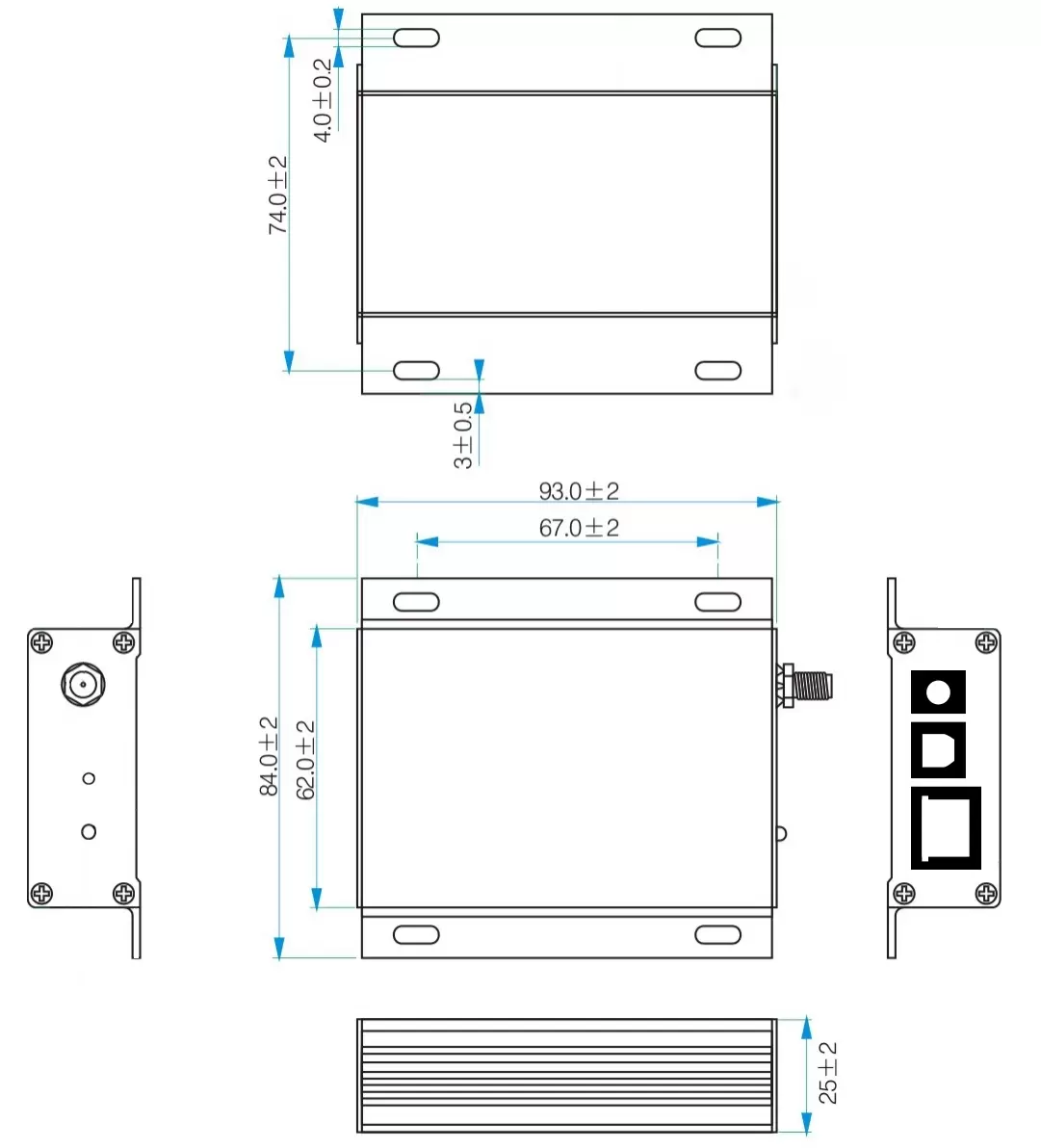

Mechanical Sizes of sensor monitoring system gateway IOT-G010
