SW915-BM-11DB : 915MHz High Gain Yagi antenna
SW915-BM-11DB, a Yagi antenna, designed specially for 915MHz outdoor wireless system. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 900~930 MHz
- VSWR: < 1.5
- Gain: 11 dBi
- Input impedance: 50 Ω
- Power Capacity: 100 W

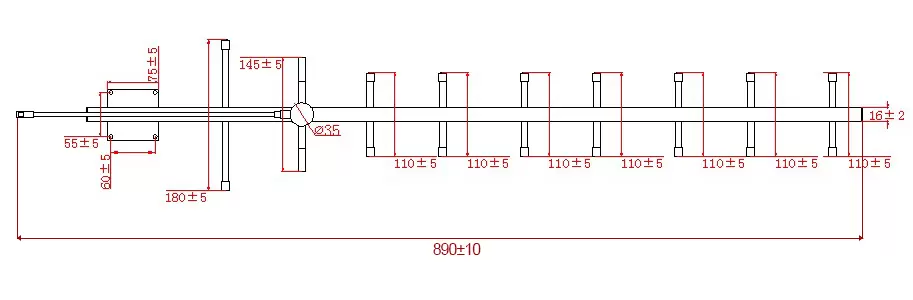

- Antenna size: 890*180*58 mm
- Front-to-rear ratio: >18dBi
- Wind resistance: 60m/s
- Beam width: H:42°V:38°
- Lightning Protection: DC ground
- Interface form: SMA-J
- Length of cable: RG58; 5m
- Environment temperature:－40～＋60 ℃
- Environment humidity: 5%-95%
- Weight: 510g
| Frequency | 915MHz |
| Type | Yagi |
| Gain | 11dBi |
| Size (mm) | > 150 |
