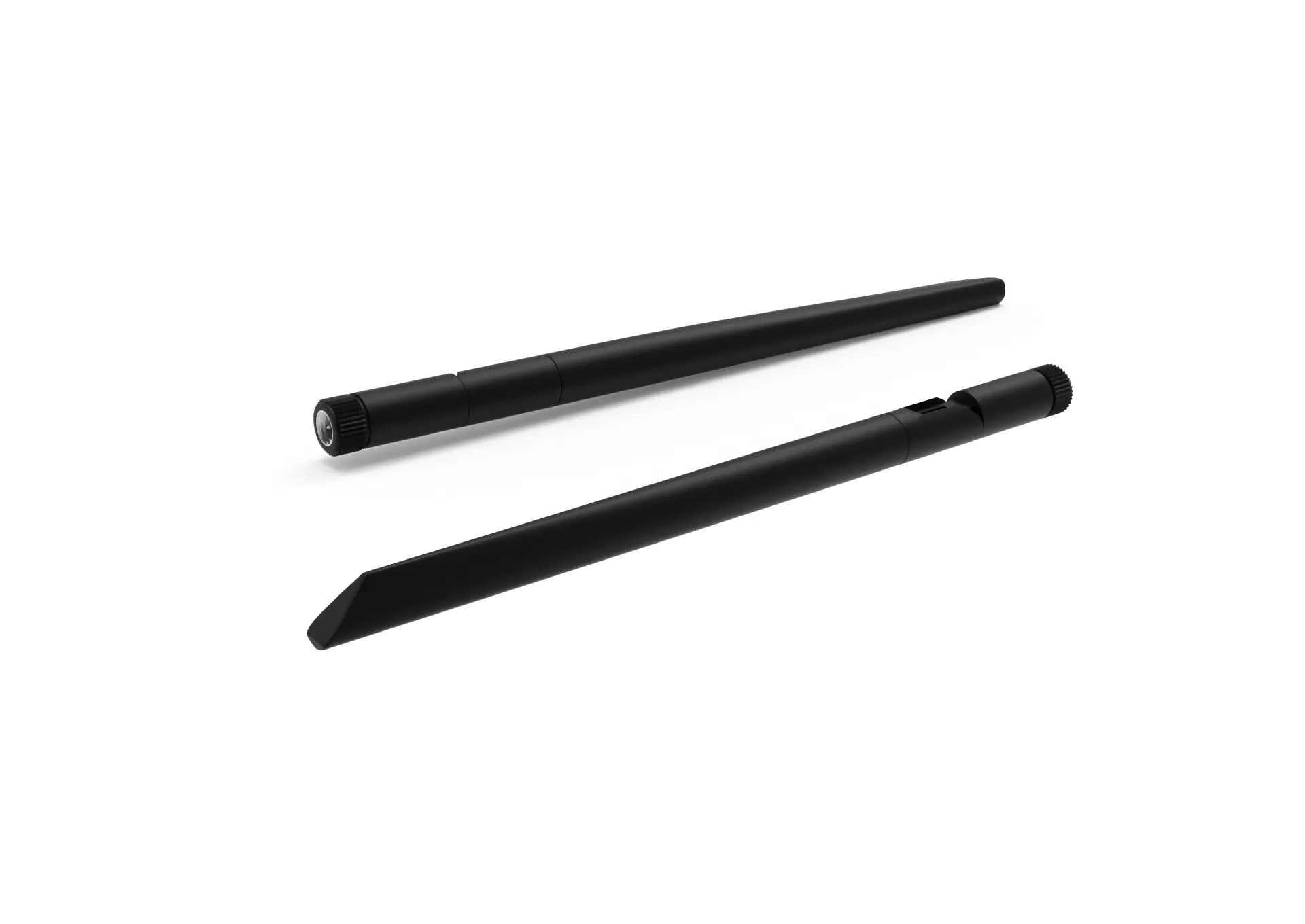

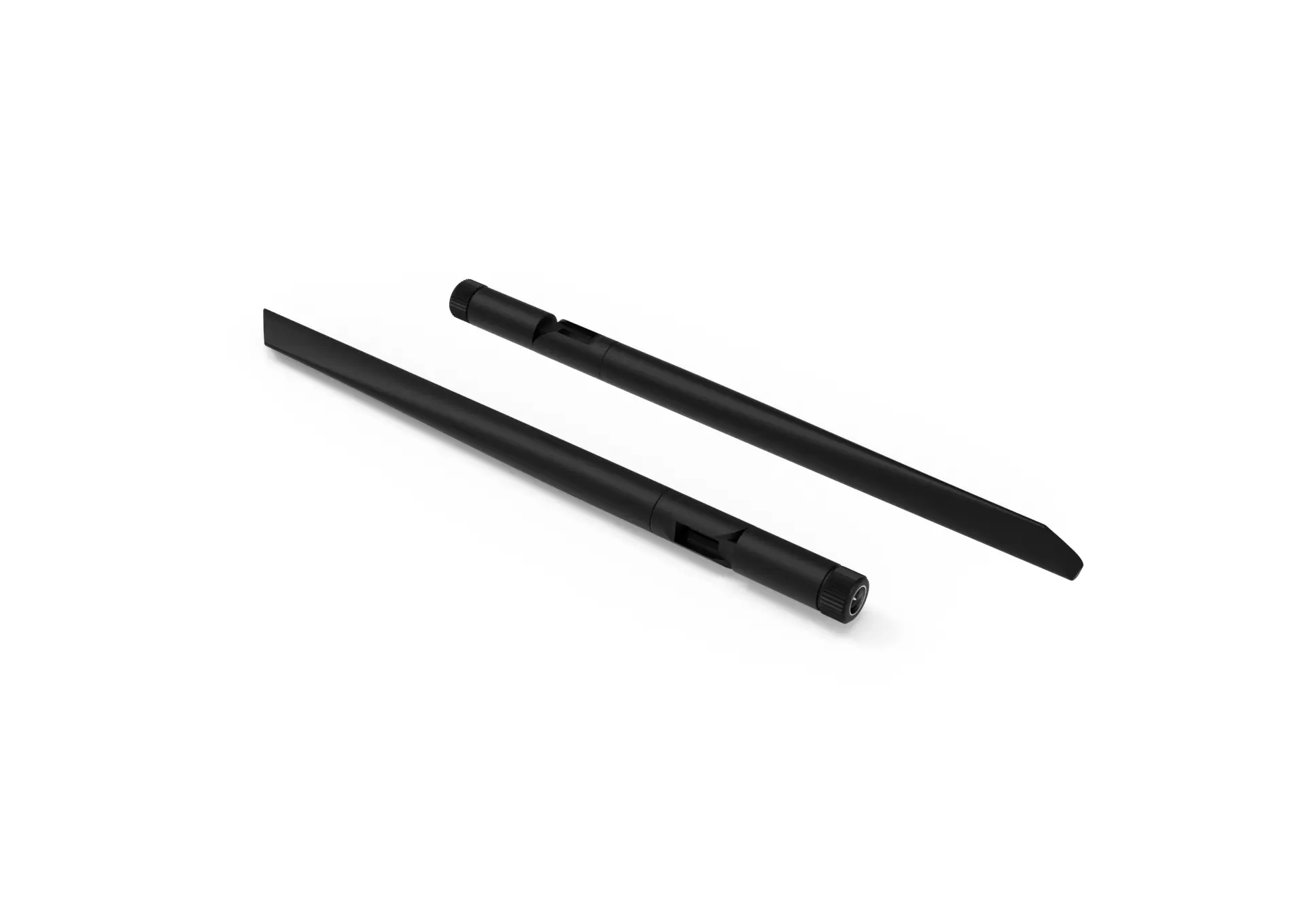

SW868-ZD200：860-880 MHz High-Gain Foldable Rod Antenna
SW868-ZD200 foldable rod antenna is specifically designed for communication systems in the 860-880 MHz frequency band. It features a wide frequency range, excellent standing wave ratio performance, easy installation, stable performance, and strong vibration resistance and aging resistance capabilities.
Technical Parameter
Frequency Range: 860-880 MHz
VSWR: ≤ 1.5
Gain: 5.0 dBi
Input impedance: 50 Ω
Max power: 10 W
Polarization: Vertical polarization
Height: 177±3 mm
Interface form: SMA-J
Antenna Color: Black
Lead cable: None
