SW370-ZB202：350~390MHz High Power Straight Rod Antenna
SW370-ZB202, a high power straight rod antenna, designed specially for 350~390MHz walkie talkie module and wireless communication system, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 350~390 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

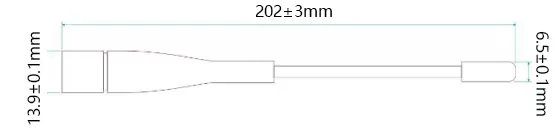

- Height: 202 ±3 mm
- Interface form: SMA（build-in）
- Lead wire: none
- Antenna Color: black
- Weight: 20 g
| Frequency | Others |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | > 150 |

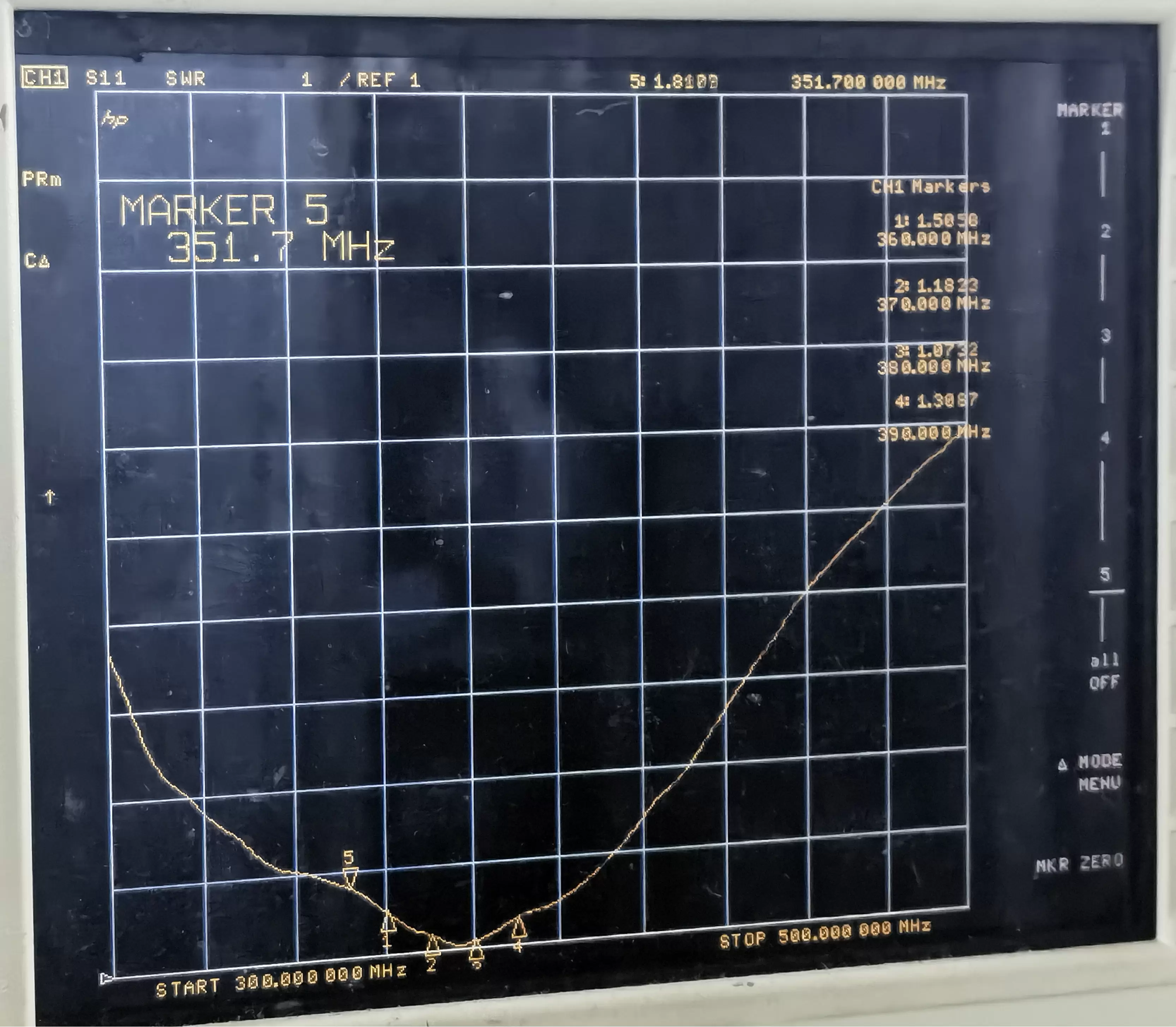

Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency：370 MHz SWR：1.1823
