SW-UHF171 : Walkie-Talkie UHF Straight Rod Antenna
SW-UHF171 straight rod antenna is a special antenna specially designed for the UHF band walkie-talkie system. The working frequency range is 400-470MHz. The antenna standing wave ratio performance is good, the installation is convenient, the performance is stable, and it has good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 400~470MHz

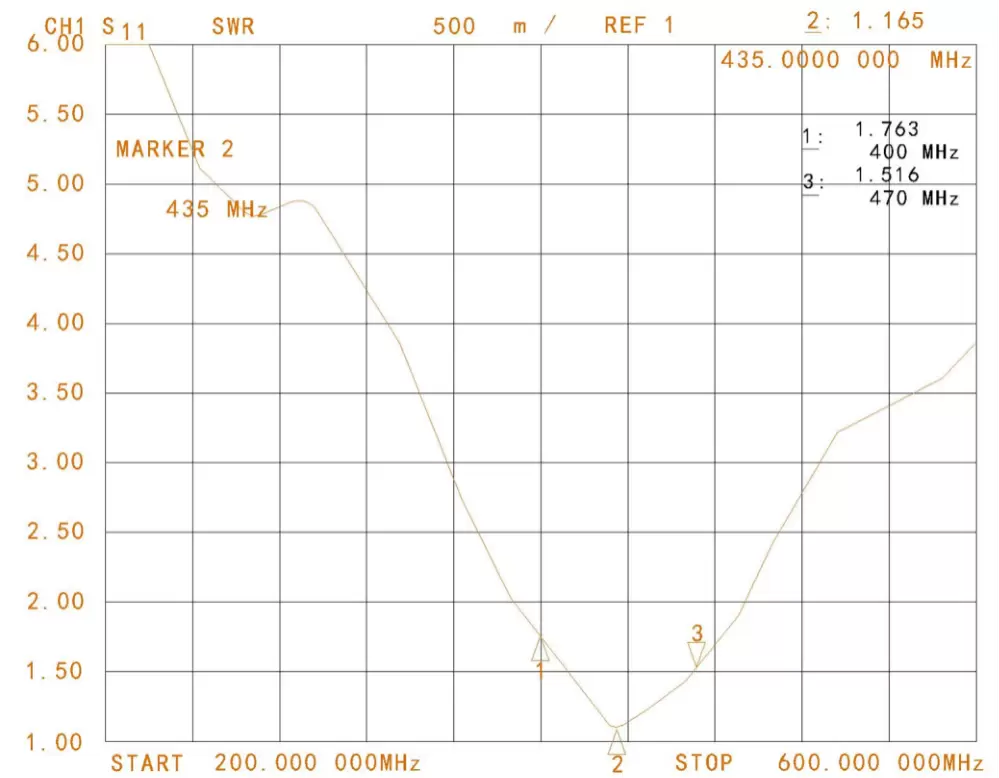

- Voltage standing wave ratio: ＜1.5
- Gain: 2.15 dBi
- nput impedance: 50 Ω
- Power Capacity：5W
- Polarization: vertical polarization

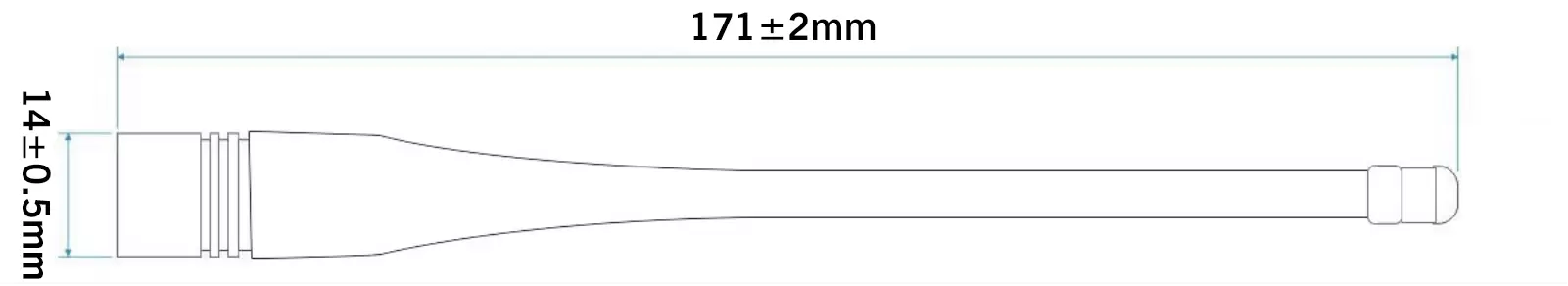

- Height: 171±2mm
- Interface form: SMA/J
- Lead out cable: none
- Antenna Color: black
- Weight: 10g
| Frequency | Others |
| Type | Rod |
| Gain | 2.15dBi |
| Size (mm) | > 150 |
The antennas are rigorously calibrated in the wireless data transmission system simulation environment by the network analyzer before leaving the factory.
