AGPS20A-36C : High gain GPS active antenna
AGPS20A-36C is a built-in active antenna specially designed for GPS L1 and BD2 B1. The antenna consists of ceramic antenna and RF coaxial cable.
Product Features
| NO | Item | Specifications |

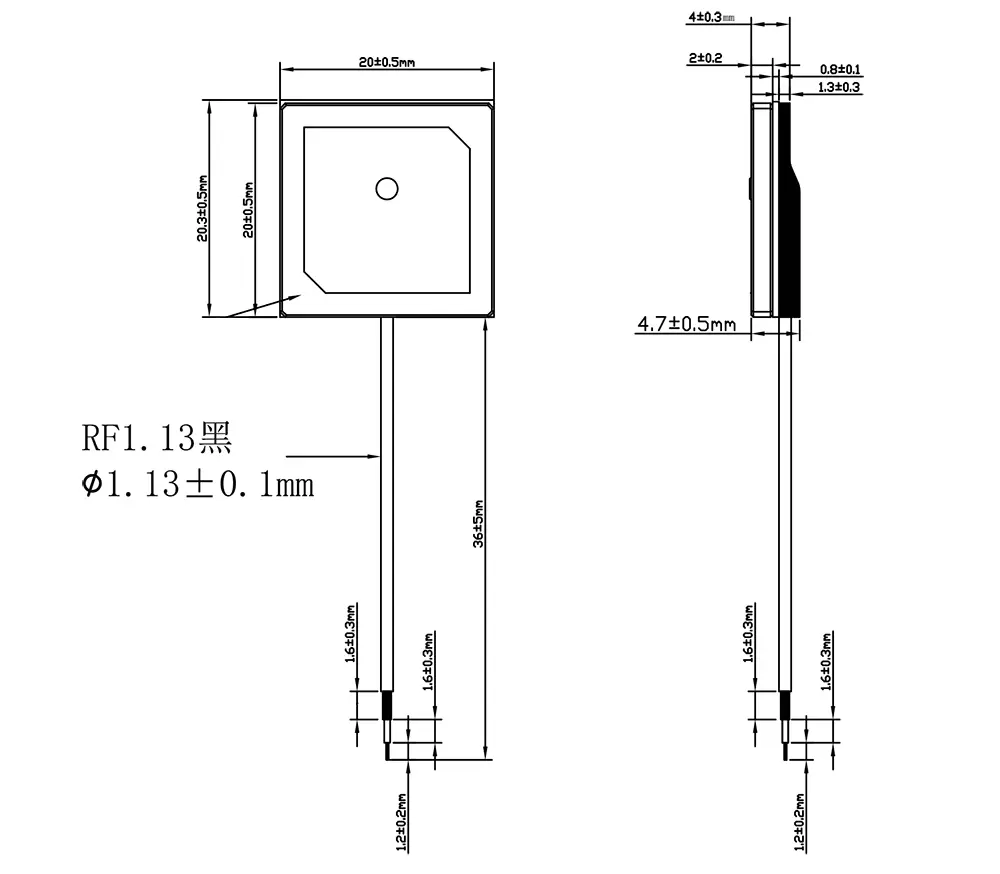

| 1 | Size | 20*20*4（mm） |
| 2 | Shielding cover | Tinplate |
| 3 | PCB | FR4 |
| 5 | Cable | RF1.13 /36±5mm |
| 6 | Dielectric antenna | 20*20*2 ceramic antenna |
| 7 | LNA | Active |
| 8 | Operating temperature | -35℃ ～ +75℃ |
| 9 | Working humidity | 0% ～ 95% |
| 10 | Storage temperature | -40℃～+80℃ |
| 11 | Storage humidity | 0% ～ 95% |
| Frequency | Others |
| Type | GPS |
| Gain | 18±2dB |
| Size (mm) | < 100 |
| Material & Technology | Ceramics |
Antenna characteristic
| NO | Item | Specifications |
| 1 | Frequency Range GPS L1 | 1575.42±2.5MHz |
| 2 | Frequency Range BD2 B1 | 1561.098±2.5MHz |
| 3 | V.S.W.R | ≤2.0 |
| 4 | Gain | 18±2dB |
| 5 | Bandwidth | ≥10 MHz |
| 6 | Output VSWR | ≤2.0 |
| 7 | input VSWR | ≤2.0 |
| 8 | Voltage | DC 3.0～5.0V |
| 9 | Current | 2±1mA |
| 10 | Polarization | Right-Handed Circular |
