SWGPRS-ZT120 : GPRS Straight Rod Antenna
SWGPRS-ZT120 straight rod antenna is a dedicated antenna designed for wireless data transmission and remote meter reading communication systems. The antenna features excellent standing wave ratio performance, a clever structure, easy installation, and stable performance. It also has strong vibration resistance and aging resistance capabilities
Technical Parameter
- Frequency Range: 880~960MHz
- VSWR: <= 1.5
- Gain: 3.0 dBi
- Input impedance: 50Ω
- Max power: 50 W
- Polarization: vertical polarization

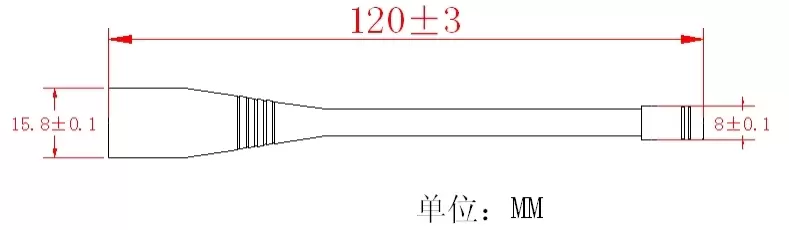

- Height: 120±3mm
- Interface form: SMA-J
- Lead wire: none
- Antenna Color: Black
| Frequency | Others |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | > 150 |

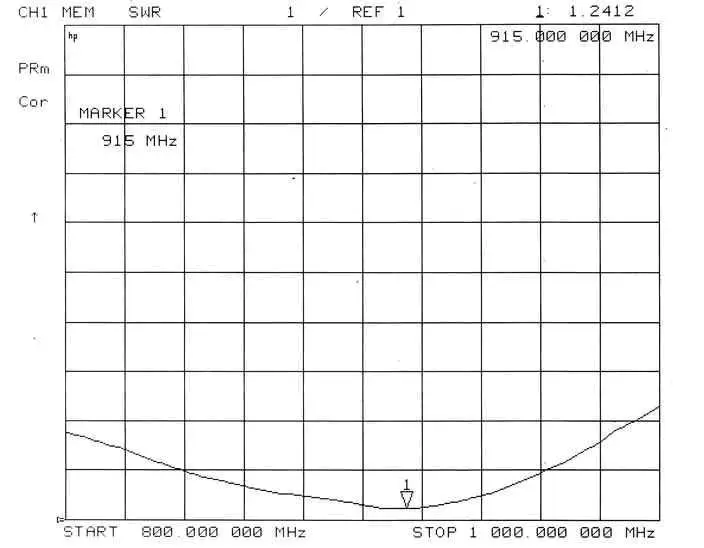

Antennas have been tested under wireless simulated environment by Network Analyzer.
