SW433-LXP-10M : 433MHz Sucker Antenna
SW433-LXP-10M, sucker antenna, designed specially for 433MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of 433MHz Sucker Antenna SW433-LXP-10M
- Frequency Range: 433 ±10 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

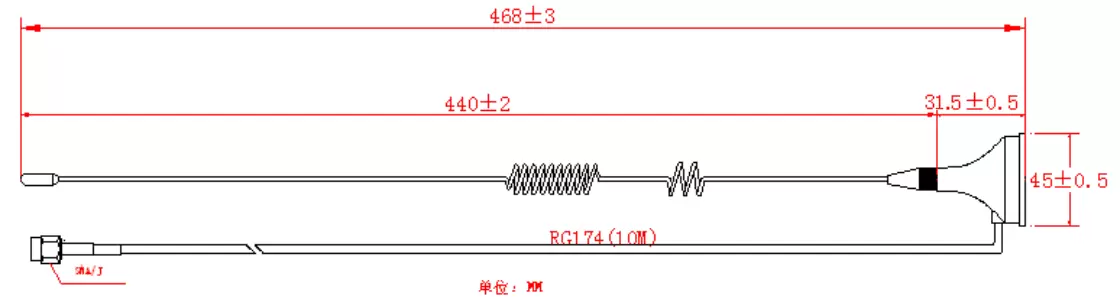

- Height: 468±3mm
- Interface form: SMA-J
- Cable length: 10m
- Color: black
| Frequency | 433MHz |
| Type | Magnetic |
| Gain | 3dBi |
| Size (mm) | > 150 |

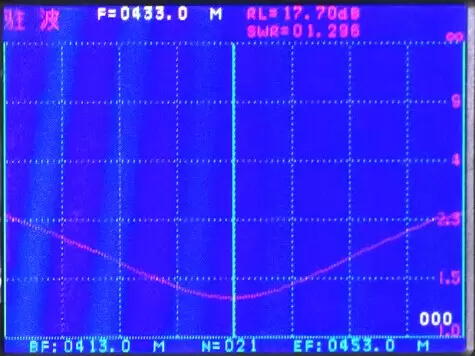

Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency：433 MHz RL:17.7dB SWR：1.296
