UWB Asset Tracking: Mastering Logistics with RF Tech!

Introduction

Have you ever felt the frustration of frequently misplacing valuable goods in your busy warehouse? You require a more efficient system like smart UWB asset tracking solutions to solve this specific problem. Antiquated techniques often let you down, but G-NiceRF high-power modules help you boost operational efficiency in your system and always trust the data completely.

Why Choose UWB Asset Tracking For Logistics?

Gaining effective control over your inventory requires a system that is stronger than Bluetooth low energy beacons, which often fail in complex environments. You likely lose an extreme amount of valuable time per day because RFID tool tracking systems are very complicated and unreliable. A warehouse manager we worked with once said he spent three hours daily just looking for forklifts before switching systems. UWB asset tracking is unique because it provides a precise data range with incredible 10 cm accuracy. G-NiceRF modules aid in covering a massive range of 1.5km, allowing you to work with 27dBm output power very effectively.

Any facility manager with a need for a real time location system warehouse solution clearly sees the benefits of RTLS for their bottom line. You save money on lost goods and you save time that was previously wasted on manual searches. UWB asset tracking solves your time and data issues by providing a reliable stream of location information.

Understanding The Core Mechanics Of UWB Asset Tracking!

You should learn exactly how this technology works to improve your current logistical operations at the moment. It employs fast pulses to obtain precise data instead of relying on unstable signal strength measurements.

· IEEE 802.15.4-2020

You need to be on the clock with these regulations, so the proper guide is the IEEE 802.15.4-2020 standard. This important standard steers the utilization of UWB technology to help you remain secure and compliant with industry rules. It is of utmost importance to UWB rtls systems because you must use chips that are fully compliant. Different UWB devices are able to communicate with each other seamlessly when they follow these specific protocols.

These modules suit UWB tracking to perfection because you obtain uniform parts that work well together. The stability of the system is remarkable, meaning you can rely on the standard for consistent performance.

· Nanosecond Pulses

Signals of nanosecond duration are very short, which allows them to travel through noisy environments without distortion. Pulses of this duration are very short, making the data transmission process very fast and efficient. It serves to eliminate data inaccuracies that plague other narrowband systems in industrial settings. UWB positioning algorithms work with these pulses because they break through the noise to provide clear signals. You obtain unambiguous data because the devices transmit them without getting mixed with other radio signals. You can see the precise location because the pulse width is small, which is a factor of how precise the positioning is.

· Channel 5

You choose a clear path for your data because Channel 5 is very clear and uncongested. The frequency is 6489.6MHz, which is a high one that avoids the crowded spectrums used by other devices. It eliminates WiFi interference effectively, ensuring that your UWB sensor networks operate without interruption.

You obtain minimal noise on this channel, so the signal is clean and your data remains safe. UWB positioning algorithms work with it very well to calculate location data quickly and accurately. You are fast to connect to the network because the link is powerful and stable.

· 500MHz Bandwidth

The road for your data is very wide because you use 500MHz bandwidth for transmission. This is huge compared to other technologies, meaning your location data moves very fast across the network. UWB range meters need this large bandwidth to function correctly and help maintain high precision.

You see small changes in location instantly because ultra-wideband location relies on this specific capability. Narrow bands fail often in busy areas, but this width is best for consistent tracking results. You track well because the capacity is high, allowing you to send more data efficiently.

· Time Domain

You measure the time it takes for a signal to travel because this is the time domain. It is exact and reliable because you do not use signal strength, which is often weak and fluctuating. You count flight time to determine distance, and many zebra UWB systems do this too. You get 10 cm accuracy with this method, which is reliable enough for critical safety applications. Distance is clear and you know the spot exactly because the math is simple and robust.

Technical Specifications and Core Mechanics of UWB Asset Tracking Systems!

Mastering Long-Range Data With High Power Modules!

You can track items from very far away because high power modules make this easy for you.

· 500mW Output

You need strong signals to penetrate obstacles, so you use 500mW output for maximum reach. This is powerful enough to beat thick walls that industrial UWB environments often present to wireless systems. You reach far into the facility because weak signals fail often in these challenging conditions.

This one lasts and you cover big areas without needing to install excessive amounts of infrastructure. UWB tracking gets easy when you lose less data because the signal is bold and consistent.

· 27dBm Power

Power is one of the most important things to consider when deciding on how to place your devices. With 27dBm transmit power, the modules operate on a loud setting to ensure the receiver hears them.

The signals go through a lot of things, but not everything, yet an ultra-wideband gateway hears the modules fine. You can place the gateway far away, and it will still be connected to the network reliably. You can track data in real time to see how effective your UWB tracker devices are working.

· 1.5km Distance

These modules have a very long range, being 1.5km, which allows you to cover massive outdoor yards. You are able to cover a very wide area, making it easy to surveil an entire site. UWB asset tag signals have a long range, meaning you are going to need fewer gateways. This saves you a lot of money because the area is open and unobstructed to get range. You track items that are very far away, giving you the ability to manage the entire yard.

· LNA Integration

You can hear weak sounds from a distance because it is boosted by LNA integration for sensitivity. This integration allows the receiver to be more sensitive, meaning you can catch very faint signals. This will help in extending the range significantly, so a UWB sensor will work better in the field. You get excellent and clear data because the noise is low and the gain is high.

· Link Budget

You plan the signal carefully by checking the link budget to ensure it adds up correctly. Power is high and sensitivity is good, so you have margin to ensure the system works. Indoor tracking devices connect reliably, helping you avoid dead spots in your warehouse coverage area. You calculate loss to ensure the signal stays strong, meaning the design is sound and you succeed.

Implementing UWB Asset Tracking With Two-Way Ranging!

You will find locations using smart time math because two-way ranging makes distances very clear for you.

· DS-TWR Method

You measure two ways using the DS-TWR method because it is smart and eliminates common errors. You ask the tag for a location, it replies back, and UWB positioning algorithms use this data. Errors go away with this method, whereas RTLS TDoA is harder to implement in some scenarios. This is simpler and you get precise range because you trust the math behind the measurement.

· Round-Trip Time

You count the trip using round-trip time because the signal goes out and the signal comes back. You time it in nanoseconds, which UWB range meters read to determine the exact distance. You know the distance because it is simple physics and the speed of light is constant. You calculate fast and the data is real, so you track the item with exact precision.

· Clock Synchronization

Having clock drift is detrimental in any case scenario, so you must avoid it at all costs. Synchronization of clocks in DS-TWR enables you to correct drift errors that might otherwise ruin your data. As NXP Semiconductors notes, 'Where other technologies use signal strength (RSSI) to determine distance and location, UWB uses Time of Flight (ToF) calculations,' which is the foundation for its ability to deliver secure, centimeter-level accuracy." Indoor navigation without beacons utilizes tricks, but this is better because it aligns the clocks exactly. The tag and anchor communicate seamlessly, so the time is matched across all devices in the network.

· Flight Time

Measuring the range is a breeze, as it's quick and light can move fast across the room. How does UWB positioning work to measure this? You are able to measure the distance accurately using the speed of light to see the gap. The range estimation is reliable since the distance is known and the distance is visible to the system.

· Node Polling

This is called node polling, where the rest of the devices are called the slaves. You can check 5 tags as you are the master in this interaction to gather data. The UWB devices use time division to limit their toggling controls and avoid simultaneous preemption of measurements. You manage the network devices while obtaining updates of the devices in the network in a smooth manner.

Integrating UWB Asset Tracking Via Serial Interfaces!

Integrating the UWB tracking tag with your existing system is made simple and quick using Serial Interfaces. You are allowed to transmit bulk data fast, which can be done via the standard UART connection.

§UART Protocol Standard: UART protocol is simple to use as it can connect many simple devices including UWB asset tracking hardware. Data and commands transit seamlessly between the host and the module, ensuring that your system stays updated.

§TTL Signals: You are safe using TTL signals because indoor tracking devices use it to communicate with the main controller. It's low voltage, running at 3.3V, and is safe for integration into your custom circuit boards.

§115200 bps: 115200 bps is the set speed, so data transfer is good and you see the UWB tracker update. This speed ensures that latency remains low and your location updates appear on the screen instantly.

§Micro-controller Unit: Use a Micro-controller Unit to control the chip, meaning UWB technology is subservient to your specific commands. This allows for custom behaviors and ensures the module acts exactly as your application requires it to.

§AT Commands: Ultra-wideband location is started as you send control characters, known as AT Commands, to the device. These commands tell the module when to sleep, when to wake, and when to measure distance.

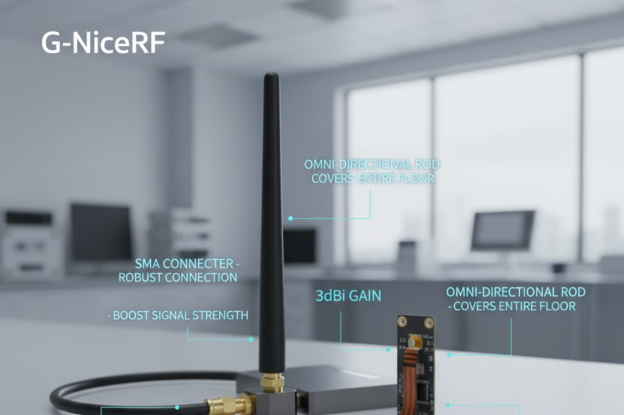

Selecting The Right Antenna For Precision Ranging!

You want the strongest range, so the right selection gives you distinct and powerful signals every time.

· FPC Embedded

You save space because it is flat and it fits inside compact indoor tracking devices easily. It's peel and stick, soft, and works well, so hiding it gives a clean look. UWB asset tracking needs this for discreet installations where you do not want external antennas visible.

· Directional PCB

You can point the signal exactly where you need it with directional PCB types to maximize range. They send the signal in one direction while also maximizing gain, which is perfect for long corridors. UWB range meters can see great distances because they tighten the beam to a target to avoid waste.

· SMA Connector

If you need a port, the SMA is the one you need because it screws on tight. You are able to add rods for UWB RTLS standard cabling to ensure a robust connection. It’s a tough and reliable connector, so you can count on it as there is low loss.

· 3dBi Gain

To boost signal strength, you can achieve a free gain of 3dBi, which improves your overall coverage. This is ideal for signals that need to be within a wide circle, like the UWB sensor tag. It lets you cover a room while also reaching the farthest corners to track all your items.

· Omni-directional Rod

You are able to see all around you with the omni-directional rod because it sends signals everywhere. This is why industrial UWB uses it, as it stands up and covers the entire floor. You track the entire floor with an even signal, so it’s the right signal for you.

FAQs!

You have questions regarding the functionality of the smart tracking modules and we have the answers below. Below are the brief explanations to assist you in the functionalities of the smart tracking modules effectively.

Does Channel 5 Operate At 6489.6mhz?

Yes, Channel 5 is correct and the frequency is 6489.6MHz, which is the industry standard. What is UWB tracking frequency usually set to? This is it, as UWB technology is utilized here to avoid noise.

Is The Sleep Current Below 100ua?

Yes, UWB asset tag batteries last because the sleep current is low, being below 100 microamps. You save power because the chip sleeps well until you decide to wake it up for use.

Can Data Rates Reach 6.8 Mbps?

Yes, the data rates are high at 6.8 Mbps, which is fast enough for data-heavy applications. UWB devices talk fast which is a good thing, but you also use 850 kbps for range. How does UWB positioning work so fast? This high speed helps transmit large packets of data instantly.

Do Modules Support Three-Point Planar Positioning?

Yes, it does, and for this you use three-point planar positioning which requires three anchors to work. Anchor positions define a plane in which UWB positioning algorithms do the math for you to locate. UWB RTLS does require this specific use case to accurately track and find the tag effectively.

Is The Preamble Code Configuration Adjustable?

Yes, it can be changed, and the preamble code, which you set to the ID, is key. UWB sensor groups stay individually separated, which is key to avoiding mix-ups in a busy network. An ultra-wideband gateway reads it, so matching the codes keeps the network contained and secure.

Conclusion

With great technology, you can solve great logistics challenges and stop losing money on misplaced assets. You can achieve accurate signaling, high distance reliability, and now, integrated modules to make your system reliable. For real success in UWB asset tracking, you can save money, improve your operations, and trust G-NiceRF products. To see great options for you now, visit G-NiceRF.
