Comprehensive Analysis of Serial Communication: A Simple Yet Irreplaceable Communication Method

Serial communication is a method of transmitting data bit by bit. Common serial communication protocols include RS-232, RS-485, and TTL-level serial ports. Compared with parallel communication, which transmits multiple bits simultaneously, serial communication has a lower transmission rate but offers simpler wiring, stronger anti-interference capability, and lower cost, making it especially advantageous for long-distance communication.

Advantages Compared with Other Communication Methods
Compared with parallel communication: simpler wiring and lower cost
Parallel communication transmits multiple bits at a time and is faster, but it requires multiple data lines, making wiring complex, costly, and prone to interference. Serial communication only needs three main signal lines (TXD, RXD, GND), featuring a simple structure, flexible wiring, and lower cost, making it especially suitable for space-constrained or long-distance scenarios.

Compared with USB communication: easier development and lower system resource usage
Although USB offers high transmission rates and is suitable for large data transfers, it is more complex to develop, requires driver support, and consumes more system resources. Serial communication, on the other hand, can be implemented directly in embedded systems without drivers, making it ideal for debugging and rapid development, particularly in embedded devices with high real-time requirements and limited resources.

Compared with wireless communication (such as LoRa, Wi-Fi, Bluetooth): higher stability and no interference issues
While wireless communication is convenient, it is easily affected by environmental interference (such as wall obstructions, electromagnetic noise, and device crosstalk), which can impact stability and data real-time performance. Serial communication, by using a wired transmission method, offers strong anti-interference capability and a low bit error rate, making it especially suitable for high-reliability applications in industrial, power, and medical fields.

Summary of the Specific Advantages of Serial Communication
Simplicity: Clear interface structure, easy to implement and maintain

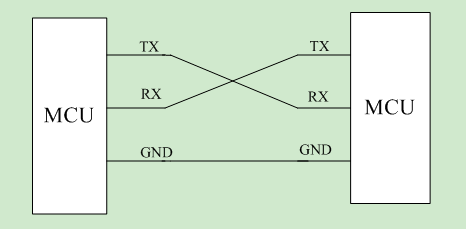

The greatest feature of serial communication is its simple structure. It usually requires only three basic signal lines—TXD for transmission, RXD for reception, and GND for ground—to achieve basic point-to-point data transmission. Additional control signals (such as RTS and CTS) are optional and can be used in more complex flow control scenarios. This streamlined interface design makes hardware connections very easy to deploy, especially in resource-constrained embedded systems and cost-sensitive control devices.

Stability: Strong anti-interference capability
Serial communication excels in both anti-interference and stability. In particular, RS-485-based serial communication offers excellent differential anti-interference performance, enabling stable data transmission even in noise-heavy industrial environments.

Low cost and high cost-effectiveness
Serial communication has low hardware requirements, needing only basic transceiver chips and interfaces. This saves considerable development and material costs, making it especially suitable for mass-produced industrial equipment and consumer electronics.

Strong long-distance transmission capability
Especially with the RS-485 protocol, data is transmitted via differential signals, allowing communication distances of up to 1,200 meters—far exceeding short-range methods like SPI. This makes it ideal for connecting equipment across factory areas or between floors.

Low Power Consumption: Ideal for Low-Energy Systems
Serial communication modules generally have low power consumption, making them especially suitable for battery-powered devices such as remote sensors and wireless meter reading terminals, helping to extend device battery life.

Considerations for Multi-Device Serial Bus Design
How to avoid serial port conflicts?
How to assign addresses when using an RS-485 bus?
Baud rate consistency requirements for serial devices
Managing multiple serial ports: requires software protocols or MCU hardware serial port support
