LoRa Wireless Module Communication Solution for Lawn Mowers

In modern smart agriculture and garden maintenance, lawn mowers are no longer merely mechanical tools that rely on close-range manual operation. With the application of wireless communication technology, lawn mowers are gradually moving toward intelligence and automation.

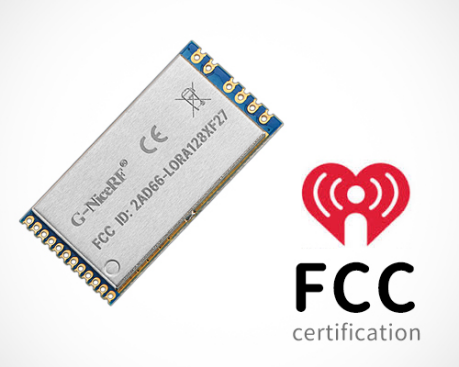

Among them, the LoRa1281F27 module, which integrates the SX1281 RF chip and a PA amplification circuit, provides solid support for long-distance communication and highly stable control of lawn mowers with its 500mW high-power output, ultra-high reception sensitivity of -132dBm, and excellent penetration performance in the 2.4GHz band.
Considerations for wireless module selection
Lawn mower applications must balance long-distance coverage, low-latency control, anti-interference capability, and power consumption. The 2.4GHz LoRa modulation not only ensures strong penetration but also achieves both low power consumption and long-distance transmission. Compared with Wi-Fi or Bluetooth, it offers broader coverage, and compared with UHF/Sub-GHz, it provides better anti-interference performance and lower latency control. With its high-power output and high-sensitivity design, the LoRa1281F27 is an ideal wireless module for lawn mowers in gardens and farmlands.

Key Application Features
Long-distance, low-latency precise control
The core of lawn mowers lies in safe and precise remote operation. Leveraging LoRa modulation in the 2.4GHz band, the LoRa1281F27 achieves stable communication over several hundred meters, maintaining reliable signals even in complex environments with trees, bushes, and metal fences. With 500mW transmit power and a built-in LNA (low-noise amplifier), link quality is greatly enhanced, enabling commands such as moving forward, turning, and blade activation to be executed with virtually no delay.

Highly reliable sensor data feedback
Data generated by sensors on the mower—such as blade speed, grass height, battery level, obstacle detection, and GPS—can be reliably transmitted to the control terminal or cloud platform using the LoRa1281F27’s 256-byte FIFO packet mode. Even at the edge of weak signal areas, the -132dBm reception sensitivity ensures that critical data is delivered completely and in real time.

Intelligent scheduling and precise navigation
For automatic lawn mowers (AGV-type devices), the LoRa1281F27’s high-precision 5ppm TCXO oscillator and excellent anti-interference performance ensure a stable link with base stations and RTK differential systems. In large-scale farmland, it can be integrated with a LoRa network to achieve wide-area stable communication.

OTA Remote Maintenance and Upgrades
Traditionally, maintaining lawn mowers distributed across farms and gardens requires manual access to interfaces or even disassembly. The LoRa1281F27 supports OTA remote firmware upgrades and parameter adjustments, reducing the need for on-site maintenance and lowering both labor and time costs.

Security and Anti-theft Protection
By integrating with a GPS module, the LoRa1281F27 can report real-time location and trigger alarms when the mower leaves a designated area. It even supports remote shutdown and lock functions, adding an extra layer of protection for unattended outdoor equipment.

LoRa1281F27  Features

Lawn Mower Operating Environment and LoRa1281F27 Technical Compatibility Table

Application of the LoRa1281F27 Module in Lawn Mowers

By combining high-power output, ultra-high reception sensitivity, and LoRa’s long-distance, strong anti-interference characteristics, the LoRa1281F27 enables lawn mowers to achieve long-distance, low-latency control, real-time data feedback, intelligent navigation, remote upgrades, and security protection. This not only enhances operational efficiency and safety but also provides a stable and reliable wireless communication solution for automated operations in various scenarios such as gardens and farmland.
