How Does the DMR Protocol Achieve Efficient Communication? From the Physical Layer to the Application Layer

How can we achieve clear, stable, and efficient wireless intercom communication in scenarios involving long-distance transmission, multi-person collaboration, and complex environments? Traditional analog intercom methods face numerous limitations in terms of anti-interference capability, communication quality, and functional scalability. As an internationally adopted digital intercom protocol, DMR (Digital Mobile Radio) was developed specifically to address these challenges. By employing digital encoding, Time Division Multiple Access (TDMA), and a multi-layer protocol architecture, DMR provides reliable voice and data communication capabilities. This article will analyze the working principles and communication mechanisms of DMR, layer by layer, from the physical layer to the link layer and application layer.

Physical Layer: Ensuring Basic Communication Capability
In the DMR protocol, the physical layer utilizes digital modulation of signals combined with a 12.5kHz narrowband channel design and introduces a dual-slot TDMA structure to significantly improve spectrum efficiency. Each frame is 30 milliseconds long, consisting of two 15-millisecond time slots, allowing two simultaneous communications on a single channel. This greatly enhances the system’s concurrency and communication efficiency.

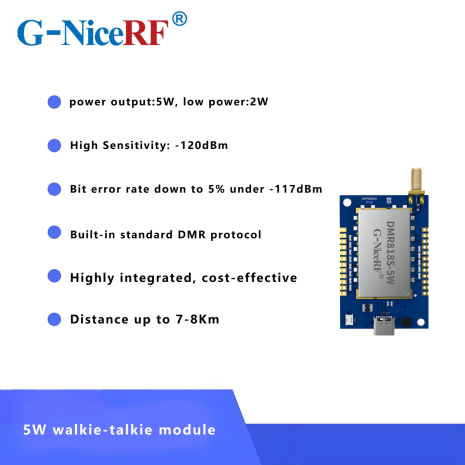

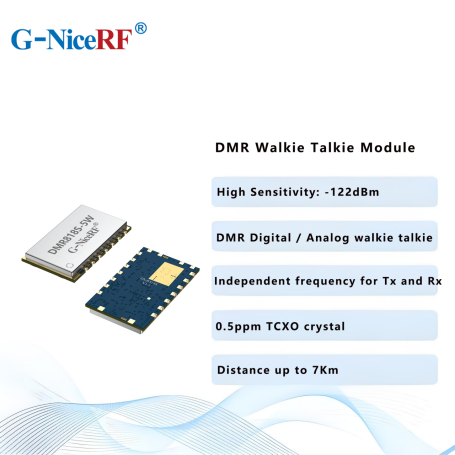

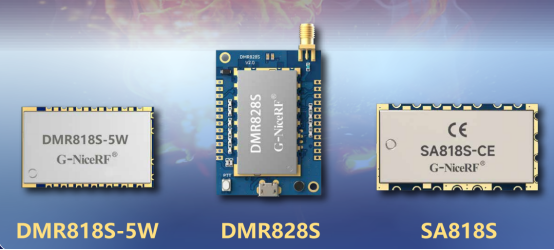

Example: NiceRF DMR818S-5W
At the physical layer, the DMR818S-5W module supports three selectable frequency bands (UHF 400–470MHz, VHF 134–174MHz, and 350MHz 320–400MHz) and offers a transmission power of up to 5W (with a 2W low-power option). In open areas, it achieves a communication range of up to 7 kilometers, demonstrating strong long-distance performance. Additionally, the module uses a 0.5 ppm high-precision TCXO oscillator to ensure frequency stability even under temperature fluctuations or voltage variations, meeting the demanding requirements of industrial scenarios.
With a receiver sensitivity as high as -122dBm and a bit error rate as low as 5% at -117dBm, it provides a solid foundation for voice clarity and data reliability.

Data Link Layer: Reliable Communication Control
The data link layer is key to the stable operation of the DMR protocol. The DMR818S-5W module utilizes the TDMA frame structure to manage the types of bursts within each time slot (voice burst, data burst, and control burst), effectively enhancing communication reliability in environments with interference, obstruction, and signal reflection.
Additionally, the module supports both analog and digital dual-mode operation. The analog mode accommodates 12.5kHz and 25kHz channel bandwidths, while the digital mode operates with a 6.25kHz equivalent dual-slot bandwidth. This ensures that users can upgrade to digital systems without having to replace all their equipment, significantly reducing system retrofit costs.

Network Layer: Flexible Addressing and Networking
The DMR protocol supports unique terminal ID identification. Through contact management and group call list mechanisms, it builds a stable and efficient communication network. The DMR818S-5W module supports three call types—private call, group call, and all call (broadcast). Users can configure contact numbers and call attributes via serial commands, flexibly enabling one-to-one or one-to-many communication.
The module also allows separate configuration of receive and transmit frequencies, supporting longer-distance communications.

Transport Layer: Efficient Transmission of Both Voice and Data
At the transport layer, the DMR818S-5W is equipped with a built-in AMBE++ voice compression codec, delivering high-fidelity voice transmission over low bandwidth. Even under weak signal or high-interference conditions, it ensures clear audio quality. The module offers 9 levels of volume adjustment and microphone input gain settings to accommodate diverse pickup and output needs across different scenarios.

Beyond Voice: Versatile Non-Voice Data Services
In addition to voice communication, the module supports various non-voice data services, including:

Text Messaging: Supports both private and group text messages (UTF-16 encoded), with customizable message length. Message content can be read and queried via serial commands.

Emergency Alarms: Allows broadcasting of alarm signals to designated group contacts, ideal for security, inspection, and other high-risk scenarios.

Status Inquiry: Enables real-time access to the module’s operational status, current channel, signal strength, contact information, firmware version, and more.

Data Retention: Built-in EEPROM stores key configuration parameters—such as frequencies, contact lists, and volume settings—ensuring settings are retained after power loss.

The module also supports serial command control for transmission, TX/RX switching, wake-up, and system querying, making it convenient for users to develop automated control systems or embedded solutions.

Session Layer and Security Mechanisms: Balancing Encryption and Compatibility
Although the DMR protocol does not strictly define the session and presentation layers, the DMR818S-5W enhances its capabilities in these areas through extended features:

Encrypted Communication: Supports AES-level data encryption (with 8-byte encryption keys), ensuring secure transmission of voice and text messages. Encryption settings and keys can be flexibly configured via serial commands.

CTCSS and CDCSS Tones: Supports 50 groups of analog CTCSS tones and 166 groups of digital CDCSS tones to avoid interference among multiple devices.

Flexible Call Control: Offers both PTT (push-to-talk) analog control and serial control modes, allowing greater flexibility and integration into a variety of systems.

Application Layer: Rapid Integration and Broad Compatibility
The DMR818S-5W module features a standard TTL serial communication interface, allowing users to configure various parameters—such as channel selection, contact settings, power level, frequency assignment, and tone controls—through simple serial commands. Without the need for complex development processes, users can quickly build a complete digital intercom terminal by integrating just a microphone, speaker, and audio amplifier.

The module shares the same package dimensions as the NiceRF DMR818S but increases the output power from 2W to 5W, significantly extending the communication range. This makes it well-suited for demanding scenarios such as outdoor operations, emergency rescue, large industrial sites, and tunnel work.

Typical Applications :

Urban security and police communication networks

Smart inspection terminals with intercom functionality

Emergency communications and disaster site deployment

Building and residential security systems
