Introduction to the RF9209 Module: A 2.4GHz Wireless Solution Featuring Both Low Power Consumption and High Sensitivity

As wireless communication modules increasingly evolve toward low power consumption, high sensitivity, and stable reliability, the RF9209 digital wireless communication module stands out among many 2.4GHz ISM band products with its exceptional performance and dependable quality. It is built around the high-performance EM9209 wireless chip from EM Microelectronic, a renowned semiconductor company under the Swiss Swatch Group. Designed specifically for long-range, low-power communication applications, the RF9209 achieves an outstanding balance between high sensitivity and ultra-low power consumption.
Swatch Group and EM Microelectronic: A Foundation of Premium Technology
The Swatch Group is a globally recognized watchmaking giant headquartered in Switzerland, owning world-class brands such as Omega, Longines, and Tissot. EM Microelectronic-Marin SA (EM Microelectronic), a wholly owned subsidiary of the Swatch Group, specializes in the development of ultra-low-power microcontrollers, RF chips, sensors, and power management IC.

With decades of experience in low-power design, EM Microelectronic's products are widely used in applications with stringent power requirements, such as watches, sensors, RFID, smart cards, and medical devices.
The EM9209 is one of EM’s flagship products in short-range wireless communication. It is designed for the global license-free 2.4GHz ISM band and offers multiple advantages including low cost, compact size, low power consumption, and high sensitivity—making it an ideal choice for today’s 2.4GHz wireless applications.

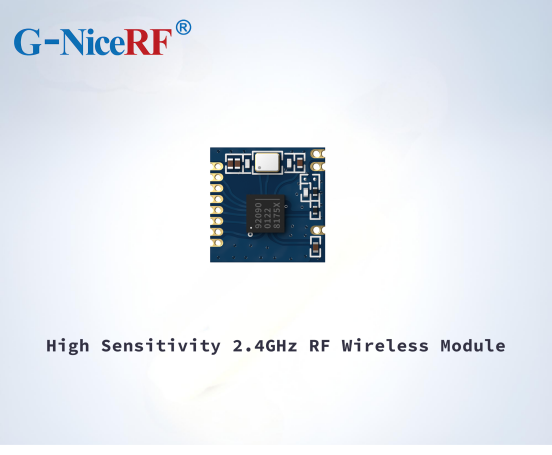

RF9209 Module Overview: Ultra-Low Power Consumption + Ultra-High Sensitivity

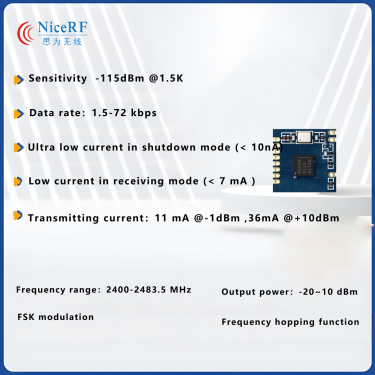

Ultra-Low Power Consumption:
The EM9209 chip adopts advanced low-power design technology, enabling the RF9209 module to achieve a standby current of less than 10nA. The receive current is only 7mA, and the transmit current is as low as 11mA (@-1dBm). Even at the maximum output power of +10dBm, the transmit current is just 36mA, making it highly suitable for battery-powered devices.

Ultra-High Sensitivity:
At a data rate of 1.5Kbps, the module achieves a receive sensitivity of up to -115dBm—an exceptionally rare level in the 2.4GHz band. Combined with frequency hopping and an optimized antenna design, the module maintains stable reception performance even in complex environments.

Long Transmission Distance:
In open areas, the RF9209 module can achieve a communication range exceeding 500 meters, significantly outperforming typical 2.4GHz modules. It is especially suitable for applications with stringent distance requirements.

Flexible Configuration Capabilities:
The module supports adjustable output power ranging from -20dBm to +10dBm and selectable data rates from 1.5Kbps to 72Kbps, allowing users to flexibly balance power consumption, speed, and stability based on the specific application scenario.

Comprehensive Feature Support:
The EM9209 chip integrates a built-in voltage regulator and supports features such as low battery detection, frequency hopping, and temperature compensation. These ensure that the RF9209 module continues to operate stably even under extreme environmental conditions.

In-Depth Look at the EM9209 Chip: Small Size, Big Intelligence
As the core of the RF9209 module, the EM9209 chip is designed to precisely meet the dual demands of today’s IoT devices for ultra-low power consumption and high performance.
In addition, the EM9209 supports on-chip digital modulation and demodulation, enabling it to perform basic communication tasks without the need for an external MCU.

Built around the EM9209 chip from EM Microelectronic—a subsidiary of the Swatch Group—the RF9209 module fully leverages the chip’s technical advantages in low power and high sensitivity, providing robust wireless communication capabilities. Whether used in remote controls, industrial control systems, home automation telemetry, or health monitoring—where communication reliability is critical—the RF9209 demonstrates excellent stability and adaptability.

If you’re looking for a 2.4GHz wireless communication module that truly balances communication range, power efficiency, compact size, and application flexibility, the RF9209 is your ideal choice.
