Digital Walkie-Talkie Module vs Analog Walkie-Talkie Module: Stability and Communication Experience Analysis

Walkie-talkie modules are gradually transitioning from traditional analog systems to more advanced digital formats. There are significant differences between analog and digital walkie-talkies in terms of communication methods, performance, and scalability, making them suitable for different application scenarios and user needs.

Features of NiceRF Digital and Analog Walkie-Talkie Modules

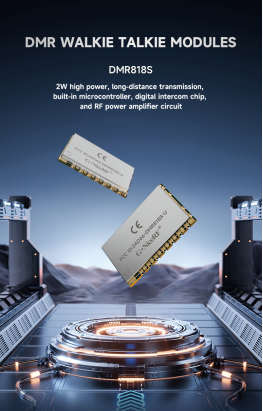

The DMR digital walkie-talkie module integrates a microcontroller, digital communication chip, and RF power amplifier circuitry. This module is not only compatible with commonly used analog walkie-talkie systems on the market but also provides full digital communication functionality. It offers a standardized serial interface, allowing users to conveniently configure transmission frequency, contacts, and other parameters via simple serial commands. By externally connecting an audio amplifier, microphone, and speaker, the module can function as a compact digital walkie-talkie.

The digital walkie-talkie module supports the following functions:

Confirmed/unconfirmed text messaging with preset message options

Voice encryption and SMS encryption

Support for all-call, group-call, and individual-call modes

Call alerts and caller/callee detection

Built-in emergency alarm and remote monitoring functions

Support for direct mode and repeater mode for both voice and text messaging

Built-in EEPROM for data retention in case of power loss

Equipped with a 1ppm TCXO crystal oscillator for stable performance

In addition, it also supports analog features such as CTCSS/CDCSS sub-audio tone settings and squelch level configuration.

Analog Walkie-Talkie Module

The analog walkie-talkie module integrates a high-speed microcontroller, high-performance RF transceiver chip, and RF power amplifier. It provides a standard serial port for communication with the module, allowing for quick and easy configuration of parameters and control of transmission and reception functions. By externally connecting an audio amplifier, microphone, and speaker, the module can operate as a compact walkie-talkie.

Features of the Analog Walkie-Talkie Module:

Built-in EEPROM, data saved even powered off

1 ppm KDS TCXO crystal, Stable performance

Differences Between Analog and Digital Walkie-Talkies

Communication Principle
Analog walkie-talkies rely on analog signals for voice transmission. The voice is modulated and transmitted as a continuous wave, then demodulated at the receiving end to restore the original audio. They respond quickly and are suitable for basic communication scenarios requiring real-time conversation.
Digital walkie-talkies, on the other hand, digitize the voice signal, encode, compress, and modulate it for transmission. The receiving end decodes and reconstructs the voice. They offer higher resistance to interference and greater communication stability, making them ideal for complex or noisy environments.

Signal Processing Method
Analog walkie-talkies process and transmit audio using continuous waveforms, where the audio signal resembles the waveform of the human voice. This mature technology enables rapid setup of communication links.
Digital walkie-talkies first digitize the voice signal and transmit it through encoding methods, offering more flexible signal management and easier post-processing.

Voice Performance
In terms of audio quality, analog walkie-talkies deliver natural sound transmission, making them suitable for scenarios that require direct voice reproduction.
Digital walkie-talkies apply various optimization algorithms to the voice signal, providing clear and stable audio performance, which is more suitable for environments that require consistent high-quality voice communication.

Function Expansion and Data Transmission
Traditional analog walkie-talkies offer relatively limited functionality, primarily focusing on voice communication. In contrast, digital walkie-talkies support a wide range of features beyond voice calls, such as text messaging, location tracking, remote control, group/individual calls, and more. Some modules also integrate encryption technologies to enhance communication security, making them more suitable for high-demand scenarios such as security and command dispatch systems.

Interfaces and Networking Methods
Analog communication systems typically rely on dedicated wiring to build communication networks, and compatibility between devices largely depends on manufacturers’ design standards. Digital systems, however, often use standardized TCP/IP protocols, allowing seamless integration into LANs or WANs. This enables unified management platforms and better integration with other low-voltage systems, improving overall system cohesiveness.

Video Transmission Capability
Digital walkie-talkie devices possess stronger data processing capabilities in video transmission. Network-based video communication enables long-distance high-definition image transmission while maintaining clarity even across buildings or residential complexes. In contrast, analog systems are more dependent on distance and wiring conditions for video quality, making them better suited for short-range applications.

Conclusion
Overall, digital walkie-talkies, with their advanced signal processing and rich functionality, offer superior stability and user experience, especially in complex environments. Analog walkie-talkies, with their mature technology and quick response, remain a solid choice for basic voice communication. The selection between the two should be based on actual needs and specific application environments.
