A Must-Read Guide to Selecting Wireless Communication Modules — A Technical and Application Comparison of LoRa and LoRaWAN

LoRa and LoRaWAN are widely used low-power wide-area (LPWA) communication technologies in the Internet of Things (IoT) field.
LoRa refers primarily to a physical layer modulation technique that employs spread spectrum communication, enabling long-range wireless transmission with low power consumption. In contrast, LoRaWAN is a network protocol built on top of LoRa technology. It defines how devices join the network, exchange data, and are managed, allowing multiple devices to connect to a centralized network server through gateways.

In simple terms, LoRa handles "how to transmit the signal", focusing on the hardware communication layer, while LoRaWAN defines "how to organize and manage the signal", operating at the network protocol level. Working together, LoRa and LoRaWAN form a complete IoT communication system.

Thanks to their long-range coverage, low energy consumption, and ease of deployment, they are widely used in applications such as smart agriculture, remote metering, and urban environmental monitoring.

Differences Between LoRa and LoRaWAN in Terms of Functionality and Application

Different Technical Positions
LoRa is a wireless physical layer technology that focuses on the method of signal transmission. It adopts spread spectrum modulation to achieve low-power, long-range data transmission. It addresses the issue of how signals propagate, but does not involve data management or network organization.
LoRaWAN, on the other hand, is a network protocol responsible for managing communication rules between devices, data encryption, security authentication, and network topology. It belongs to the network layer in the IoT communication architecture. In short, LoRa is the transmission carrier, while LoRaWAN is the communication system manager.

Different Functional Focus
LoRa is mainly used to implement point-to-point communication between devices, making it suitable for simple wireless connection needs. It emphasizes energy efficiency and transmission range, but does not support complex network management or multi-node data coordination.

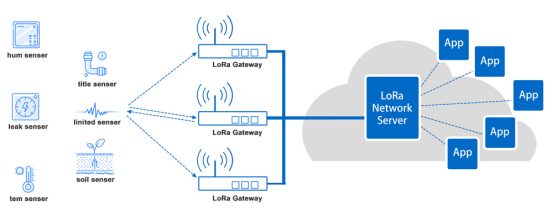

LoRaWAN provides a complete network architecture and communication protocol, including device management and security management. It is suitable for building large-scale IoT networks. LoRaWAN is deployed in a star topology, where nodes communicate with the internet through gateways, forming the foundation of large-scale IoT systems.

Differences in Application Scenarios
LoRa is suitable for IoT devices that require long-range communication and low power consumption, such as sensors and trackers. It is especially ideal for applications where battery life is critical and data volumes are small.
LoRaWAN, on the other hand, is better suited for scenarios like smart cities, precision agriculture, and industrial IoT, where wide-area coverage and multi-device networking are required. It supports remote monitoring and large-scale data collection, enabling complex network management and data processing to meet diversified IoT demands.

Reflection in Wireless Modules and Selection Advice
When selecting a wireless module, the technical differences between LoRa and LoRaWAN directly determine the module's design architecture and applicable use cases.
LoRa modules—such as  NiceRF LoRa1276 and LoRa1278 modules—focus on the LoRa modulation method, making them ideal for custom projects that require quick deployment and cost control.
LoRaWAN modules—such as  NiceRF LoRa1121 module (based on Semtech’s LR1121 chip)—support the standard LoRaWAN protocol, making them compatible with mainstream LoRaWAN gateways and cloud platforms. These modules are more suitable for systems requiring large-scale connectivity and remote management.

How to Choose?
In practical applications, users can flexibly select the appropriate solution based on project requirements.
If you're aiming to quickly set up a private wireless control system—for instance, for remote switching, sensor data collection, or remote control communication—LoRa modules are more suitable. They offer flexible deployment without relying on external networks.
However, if you're developing a system with thousands of nodes that require centralized data aggregation and cloud-based management, then LoRaWAN modules are the better choice. Their network protocol, encryption mechanisms, and platform compatibility will help you deploy your system more efficiently.

Although LoRa and LoRaWAN are closely related, they serve distinct roles. LoRa is the core modulation technology that forms the foundation of IoT wireless communication, while LoRaWAN is a network communication protocol that enables device management and data security.
Understanding the differences and strengths of both will help users design and deploy IoT systems more scientifically, achieving efficient, cost-effective, and scalable wireless connectivity solutions.
If you need a customized wireless communication solution for a specific project, feel free to consult a professional provider—such as  NiceRF—to get the products and technical support best suited to your needs.

How to Choose?
In practical applications, users can flexibly select the appropriate solution based on project requirements.
If you're aiming to quickly set up a private wireless control system—for instance, for remote switching, sensor data collection, or remote control communication—LoRa modules are more suitable. They offer flexible deployment without relying on external networks.
However, if you're developing a system with thousands of nodes that require centralized data aggregation and cloud-based management, then LoRaWAN modules are the better choice. Their network protocol, encryption mechanisms, and platform compatibility will help you deploy your system more efficiently.

Although LoRa and LoRaWAN are closely related, they serve distinct roles. LoRa is the core modulation technology that forms the foundation of IoT wireless communication, while LoRaWAN is a network communication protocol that enables device management and data security.
Understanding the differences and strengths of both will help users design and deploy IoT systems more scientifically, achieving efficient, cost-effective, and scalable wireless connectivity solutions.
If you need a customized wireless communication solution for a specific project, feel free to consult a professional provider—such as NiceRF—to get the products and technical support best suited to your needs.
