Star Network Uart LoRa Module LoRaStar Series

The LoRaStar module is a uart LoRa module that works under star network. Each module can switch to center or node to form a star wireless network. It supports the automatic MESH function, which can communicate without blind zone and distance limitation. The module also provides optional features such as AES128 wireless data encryption and LBT(listen before talk) to support more applications.
The LoRaStar module is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference.
LoRaSTAR strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

DOWNLOAD

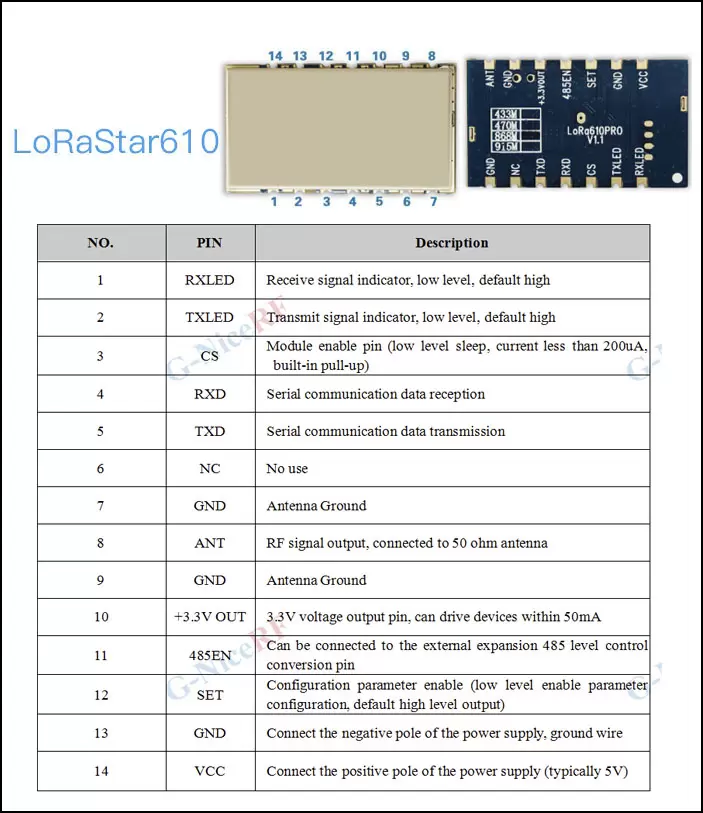

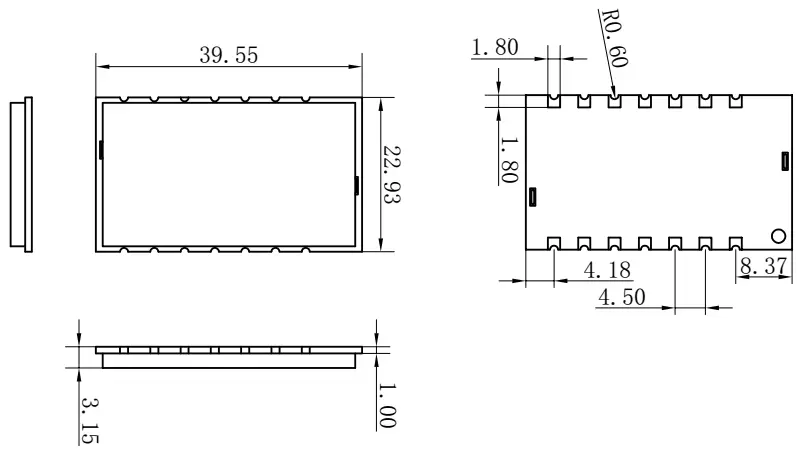

LoRaStar610	Parameter	Min	Typ.		Max		Unit		Condition
	Working Condition
	Voltage range	3.3	5.0		6.5		V		*2
	Operating Temperature	-40	25		+85		℃
	Current Consumption
	Rx current		< 15				mA		TTL level
	Tx current		< 130				mA
	Sleep current	*1	< 200				uA
	RF Parameter
	Frequency Range（Different specifications）	414.92	433.92		453.92		MHz		@433MHz
		470.92	490.92		509.92		MHz		@470MHz
		849.92	868.92		888.92		MHz		@868MHz
		895.92	914.92		934.92		MHz		@915MHz
	Data rate	91	656		17353		bps		@LoRa
	Output power	4	20		+20		dBm		Software 7 adjustable
	Sensitivity		-139				dBm		@91bps

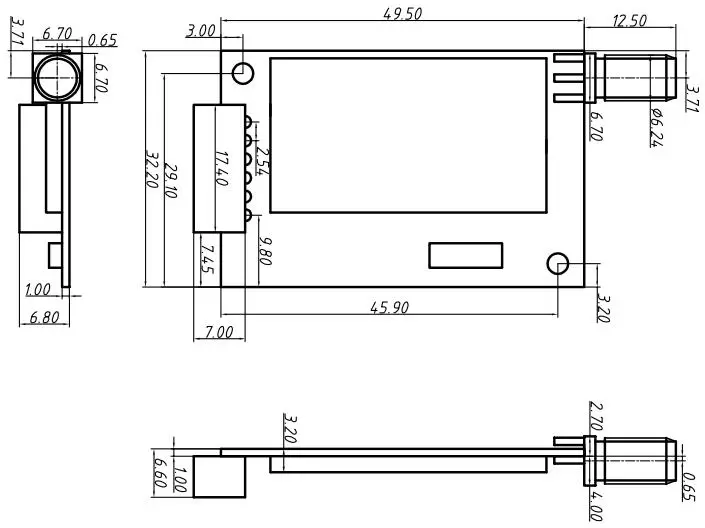

LoRaStar611	Parameter	Min	Typ.		Max		Unit		Condition
	Working Condition
	Voltage range	3.3	5.0		6.5		V
	Operating Temperature	-40	25		+85		℃
	Current Consumption
	Rx current		< 15				mA		TTL Level
	Tx current		< 130				mA
	Sleep current	*1	< 200				uA
	RF Parameter
	Frequency Range (Different specifications)	414.92	433.92		453.92		MHz		@433MHz
		470.92	490.92		509.92		MHz		@470MHz
		849.92	868.92		888.92		MHz		@868MHz
		895.92	914.92		934.92		MHz		@915MHz
	Data rate	91	656		17353		bps		@LoRa
	Output power	4	20		+20		dBm		Software 7 adjustable
	Sensitivity		-139				dBm		@91bps

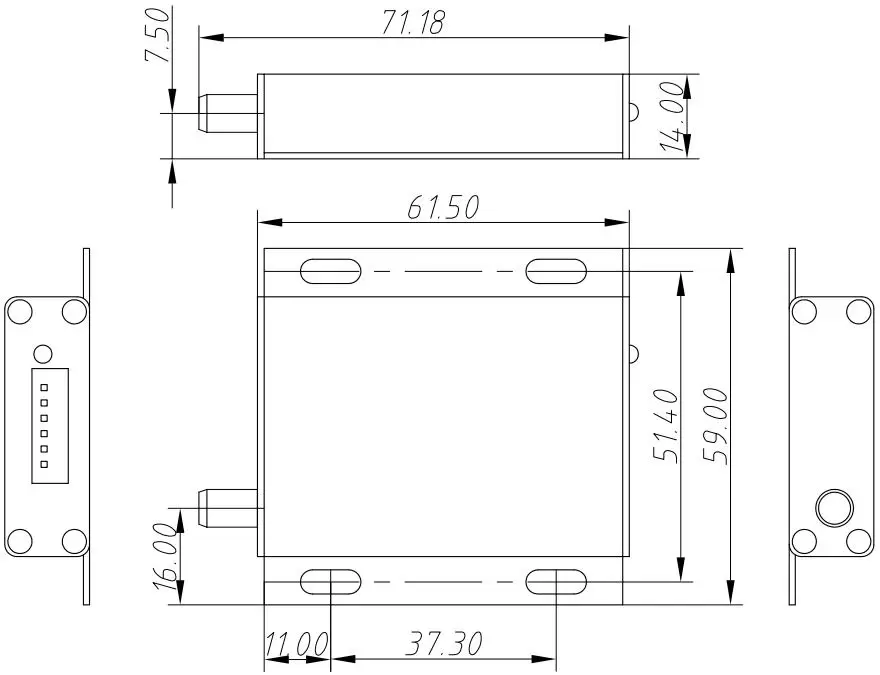

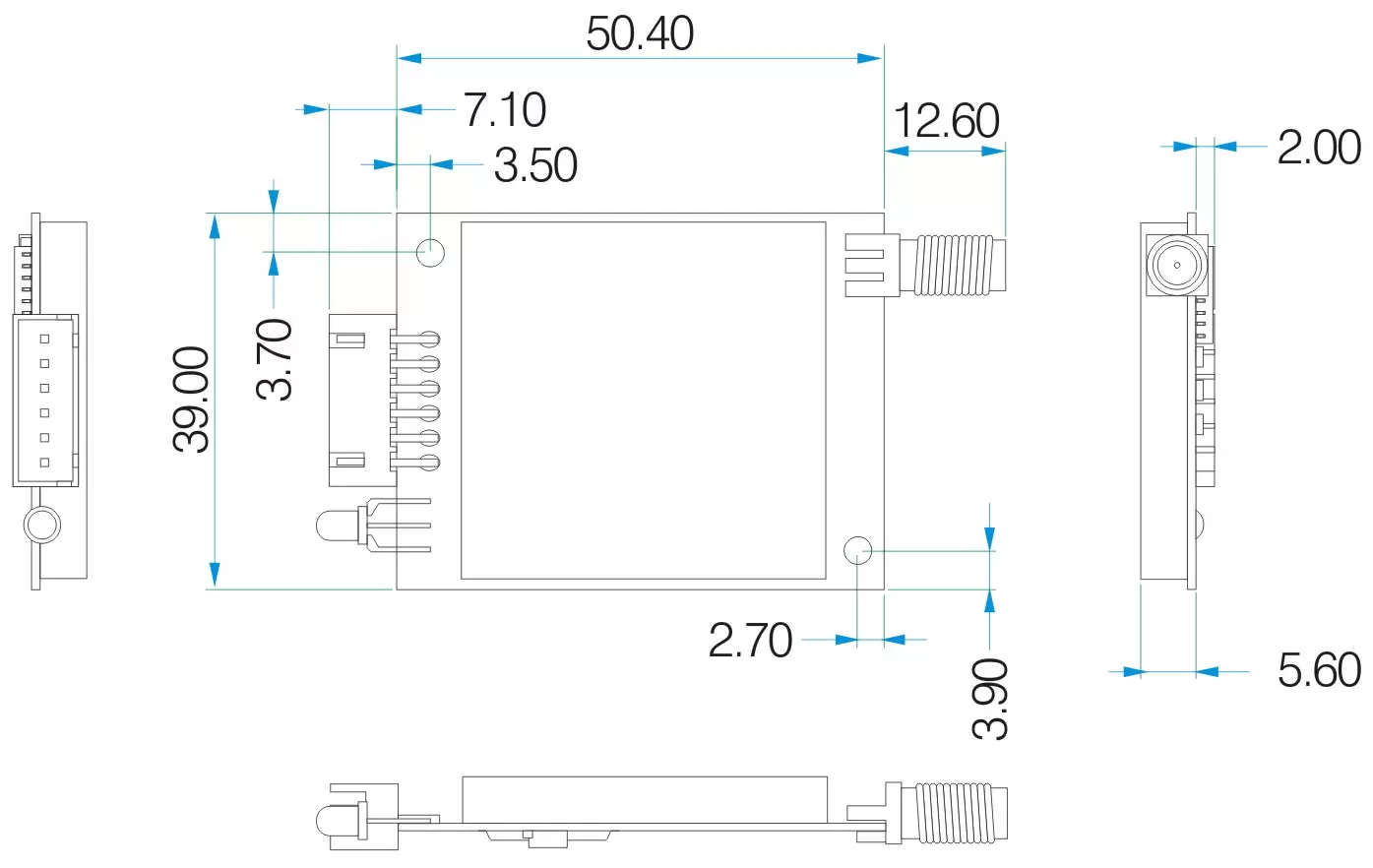

LoRaStar6100 LoRaStar6102	Parameter	Min		Typ.		Max		Unit		Condition
	Working Condition
	Voltage range	3.3		5.0		6.5		V
	Operating Temperature	-40		25		+85		℃
	Current Consumption
	Rxcurrent			< 16				mA		@5V,TTL Level
	Tx current			< 600				mA		@5V,TTL Level
	Sleep current			< 250				uA		@5V,TTL Level
	RF Parameter
	Frequency Range (Different specifications)	414.92		433.92		453.92		MHz		@433MHz
		470.92		490.92		509.92		MHz		@470MHz
		849.92		868.92		888.92		MHz		@868MHz
		895.92		914.92		934.92		MHz		@915MHz
	Data rate	91		656		17353		bps		@LoRa
	Output power	+ 24		> 29.5		+ 31		dBm		@5V,@433/490MHz
		+ 21		> 27		+ 28.5		dBm		@5V,@868/915MHz
	Sensitivity			-139				dBm		@91 bps

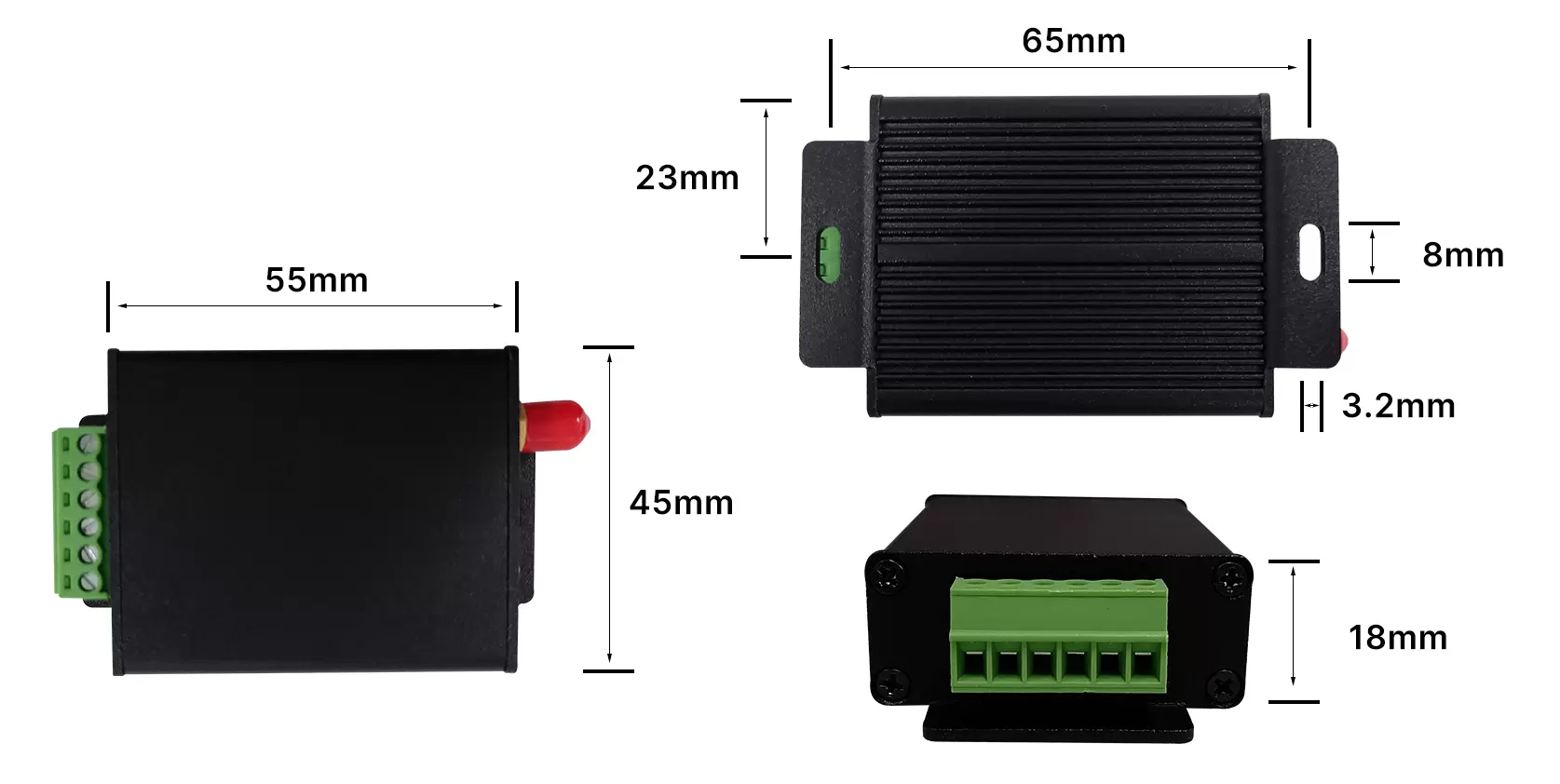

LoRaStar6200	Parameter	Min	Typ.	Max	Unit	Condition
	Working Condition
	Voltage range	9	12	30	V
	Operating Temperature	-40	25	+85	℃
	Current Consumption
	Rxcurrent		< 18		mA	TTL Level
	Tx current		< 500		mA	@33dBm,12V
	Sleep current		< 7		mA
	RF Parameter
	Frequency Range (Different specifications)	414.92	433.92	453.92	MHz	@433MHz
	Frequency Range (Different specifications)	470.92	490.92	509.92	MHz	@470MHz
	Data rate	91	656	17353	bps	@LoRa
	Output power	18	/	+33	dBm	@12V,@433/490MHz
	Sensitivity		-139		dBm	@91bps

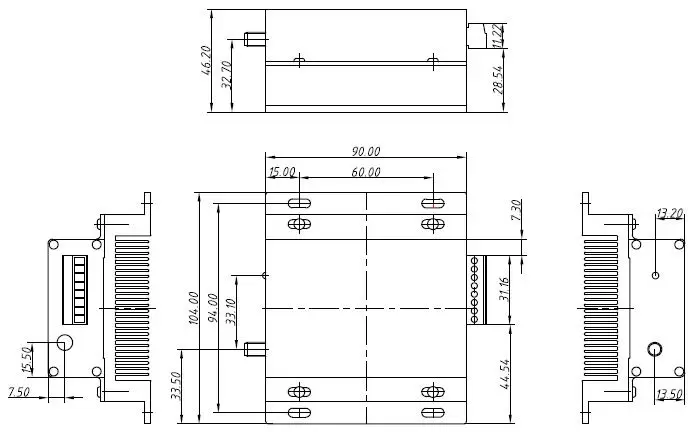

LoRaStar6500	Parameter	Min	Typ.	Max	Unit	Condition
	Working Condition
	Voltage range	9	12	30	V	*2
	Operating Temperature	-40	25	+85	℃
	Current Consumption
	Rx current		< 18		mA	TTL Level
	Tx current		<1.8		A	@37dBm,12V
	Sleep current		< 7		mA
	RF Parameter
	Frequency Range Different specifications	414.92	433.92	453.92	MHz	@433MHz
	Frequency Range Different specifications	470.92	490.92	509.92	MHz	@470MHz
	Data rate	91	656	17353	bps	@LoRa
	Output power	28	/	+37	dBm	@12V,@433/490MHz
	Sensitivity		-139		dBm	@91bps
