SV610 : 100mW Industrial TTL Port RF Transmitter And Receiver Module With Embedded ESD Protection
- SV610 is an Industrial class & highly-integrated RF transmitter and receiver module. SV610 has a standard TTL interface, SV610 has good sensitivity and 100mW output power to achieve long RF range and reliable RF communication. To avoid the interference, SV610 provides 40 frequency channels and configurable Net ID. SV610 is flexible but easy to use, it comes with many parameters, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device.
- SV610 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Note: High quality 3.3V LDO is integrated, and Pin CS / SET is 3.3V interface. TXD/RXD is also 3.3V for SV610-TTL.
| Parameters | Min. | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 3.3 | 5.0 | 7.0 | V | TTL level |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | 25 | mA | TTL level | ||
| Tx current | 95 | mA | @20dBm | ||
| Sleep current | ≤5 | uA | @TTL level | ||
| RF Parameters | |||||
| Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| 470.92 | 489.92 | 509.92 | MHz | @470MHz | |
| 849.92 | 868.92 | 888.92 | MHz | @868MHz | |
| 895.92 | 914.92 | 934.92 | MHz | @915MHz | |
| Data rate | 1.2 | 9.6 | 115.2 | Kbps | GFSK |
| Output power | -1 | / | +20 | dBm | |
| Sensitivity | -121 | dBm | @1.2kbps | ||
| Interface | TTL |
| Network | STAR,Point-to-point |
| Frequency | 433MHz,470MHz,868MHz,915MHz |
| Modulation | (G)FSK |
| Output Power | 100mW |
Features of RF Transmitter And Receiver SV610
- 433/470/868/915 MHz (Customizable240-930 MHz)
- Industrial class
- 40 channels
- 4 bytes Net ID & 2 bytes Node ID
- Series Data Rate: 1200 ~ 115200 bps
- Air Data Rate: 1200 ~ 115200 bps
- GFSK modulation
- RSSI
- Interface: TTL
- Antenna matching automatically
- Bi-directional & Half duplex
- Sensitivity: -121 dBm
- Max output power: 100mW （+20 dBm）
- Working voltage: 3.3 ~ 7.0 V
- Working temperature : -40 ~ +85 °C
- Weight: 2.0 g
- Parameters save automatically

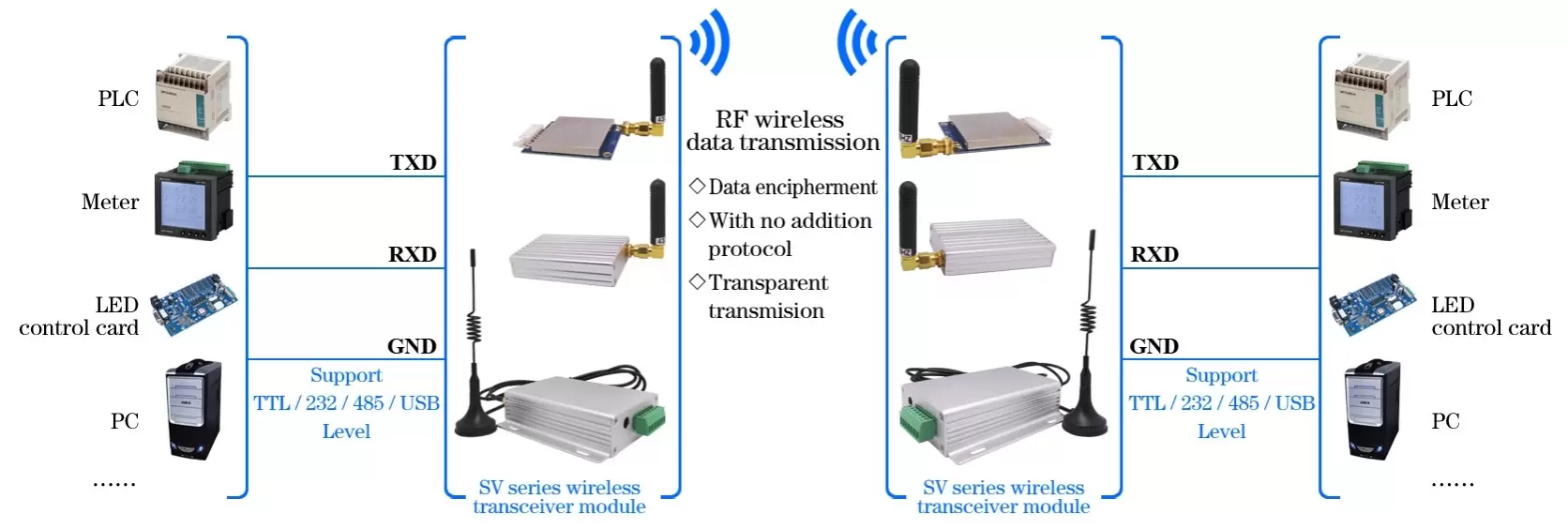

Applications of RF Transmitter And Receiver SV610
- Remote control telemetry
- Security system
- Industrial data acquisition
- Home automation
- Wireless data communication
- Access system
- Robot control
- Wireless PC peripherals

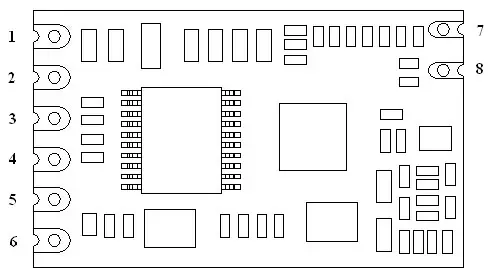

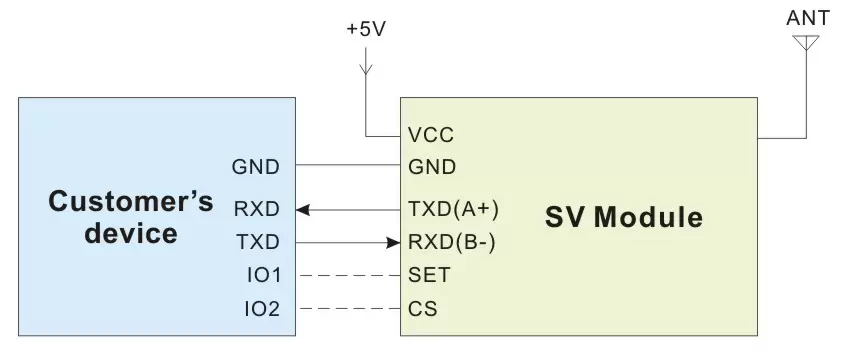

| Pin No. | Definition | Description |
| 1 | VCC | Connected to the positive power supply (typical 5V) |
| 2 | GND | Connected to ground |
| 3 | TXD | TXD of the module and connect to external RXD |
| 4 | RXD | RXD of the module and connect to external TXD |
| 5 | SET | Configuration mode enable (low to enter into the setting mode, leave open or connect high level to exit setting mode) Valid when CS Pin is high or leave open. |
| 6 | CS | Module working Enable（Pull Low to make the module enter into sleep mode, Leave open or connect high level make the module enter into normal working mode） |
| 7 | GND | Antenna ground |
| 8 | ANT | Access antenna (50 ohm coaxial antenna) |
