DEMO Board For ASK Transmitter And Receiver Module Series
DEMO Board For ASK Transmitter And Receiver Module Series
DEMO Board For ASK Transmitter And Receiver Module Series
DEMO Board For ASK Transmitter And Receiver Module Series

DEMO Board For ASK Transmitter And Receiver Module Series

  • ASK demo Kit include ASK transmitter kit and ASK receiver kit. In the transmitter, several encoders (HT12E, EV1527, PT2262 and MCU ) are included. In the receiver, the MCU decode the signal for all the encoders. With this demo, user can evaluate the performance of the RF module. It is easy to use and helpful especially in field test. Customer can contact sales for the source code related to this demo kit.
  • Transmitter kit is for STX882.
  • Receiver kit has 2 versions, one for SRX882, another for SRX887.

Features:

  • HT12E / EV1527 / PT2262 / MCU encoder

  • LCD display

  • 3V ~ 12V

  • Very easy to use

  • Manchester encode / decode

  • High stability in varies nvironment

  • Superheterodyne modulation

  • Wild voltage range

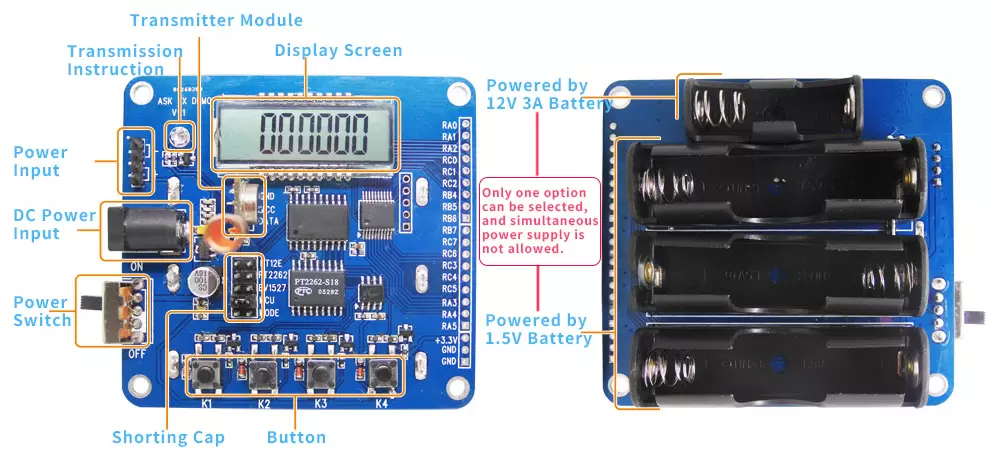

Transmitter:

DEMO Board For ASK Transmitter Module Series

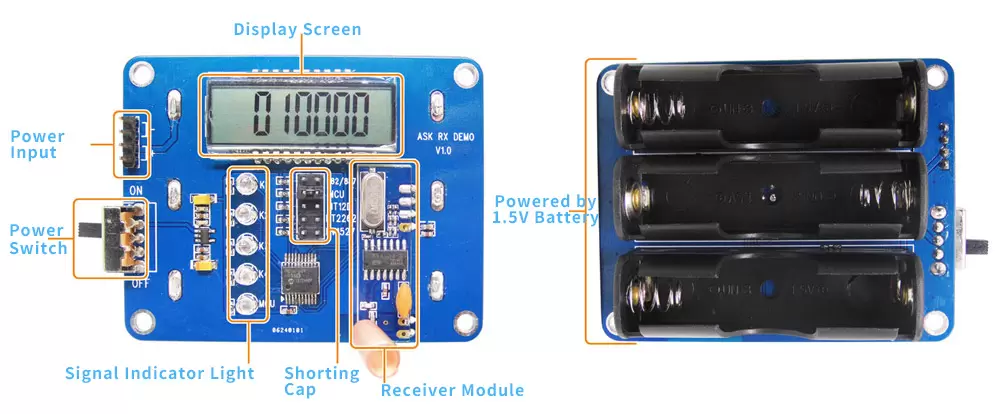

Receiver:

DEMO Board For ASK Receiver Module Series
