  • STX885 is a highly integrated, low-cost ASK transmitter module with coded that intergrets the ev1527 digital encoding circuit, high-precision oscillating circuit and power amplifier. The module's operating frequency is available in 315MHz and 433MHz. Its integrated high-precision oscillator, which can provides accurate pulse width accuracy for the system.The OOK modulation rate can reach 10kb/s. The design of the two encoding formats reduces the re-code rate and can generate multi-key composite codes to avoid Misoperation of special buttons. The STX885 features small size, low harmonics and is high stability for a wide range of wireless remote control systems.
  • STX885 is manufactured and tested strictly using lead-free process and complies with RoHS and Reach standards.
Parameter Min. Typ. Max. Unit Condition
Operation Conditions
Operating voltage range 2.0 3.0 3.6 V
Operating Temperature Range -20 25 70 ℃
Current Consumption

TX current

  20 25 mA @433MHz

Sleep current

    1 uA
RF Parameters
Frequency Range 433.82 433.92 434.02 MHz @433MHz
314.9 315 315.1 MHz @315MHz
Output Power   15   dBm @3.3V
Modulation Rate 0.1   10 Kbps
Modulation ASK
Frequency 315MHz,433MHz

Features of ASK transmitter module STX885

  • Operating frequency: 433MHz or 315 MHz (for optional)
  • Integrated ev1527 digital encoding circuit, 20-bit internal code, with 2 million encoding capabilities
  • sleep and fast wake-up function, zero standby power consumption
  • Meet various international testing standards
  • OOK modulation mode, speed up to 10kb/s
  • Ultra-high power long distance, reliable and stable frequency, super strong against power interference



Applications of ASK transmitter module STX885

  • Remote control door
  • Wireless security alarm
  • Wireless industrial control
  • Wireless data transmission

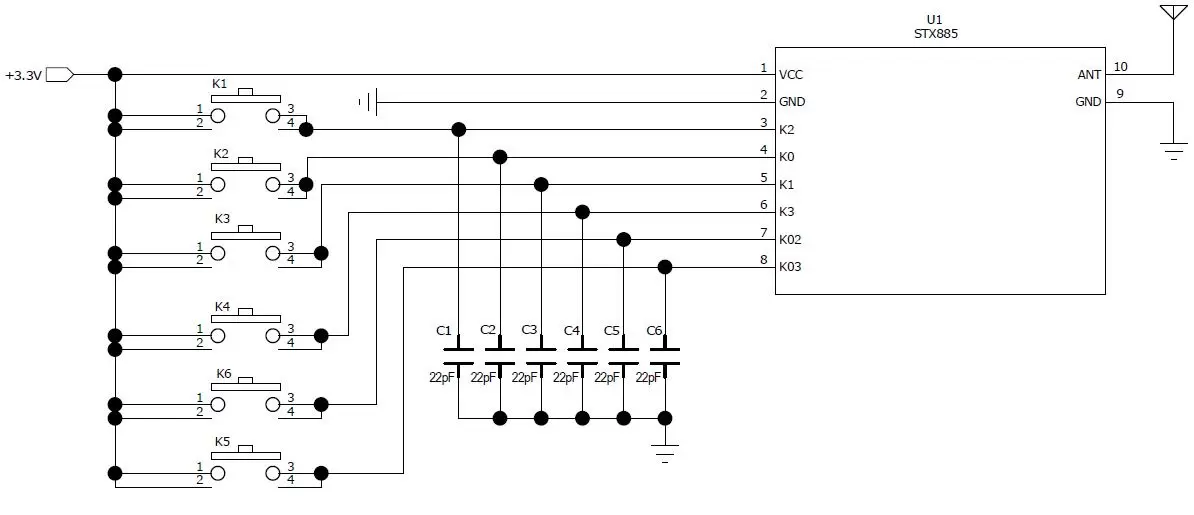

Application circuit of wireless ASK transmitter module STX885

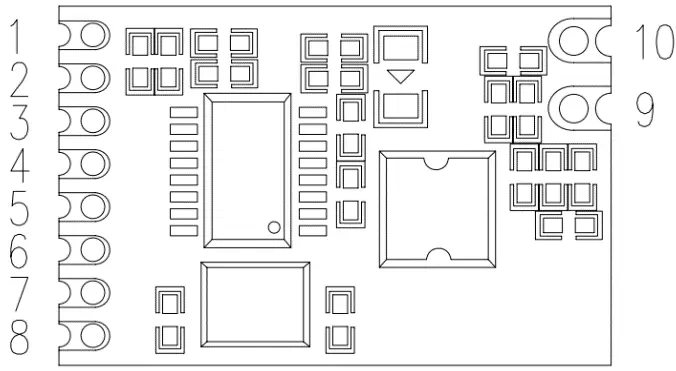

Pin definition of wireless ASK transmitter module STX885

Pin NumberPin DefinitionsDescription
1VCCPower supply is positive, range 2.0V-3.6V
2, 9GNDPower ground
3K2Key input, built-in pull-down resistor, high level TX
4K0Key input, built-in pull-down resistor, high level TX
5K1Key input, built-in pull-down resistor, high level TX
6K3Key input, built-in pull-down resistor, high level TX
7K02Key input, built-in pull-down resistor, high level TX
8K03Key input, built-in pull-down resistor, high level TX
10ANTConnect 50 ohm antenna

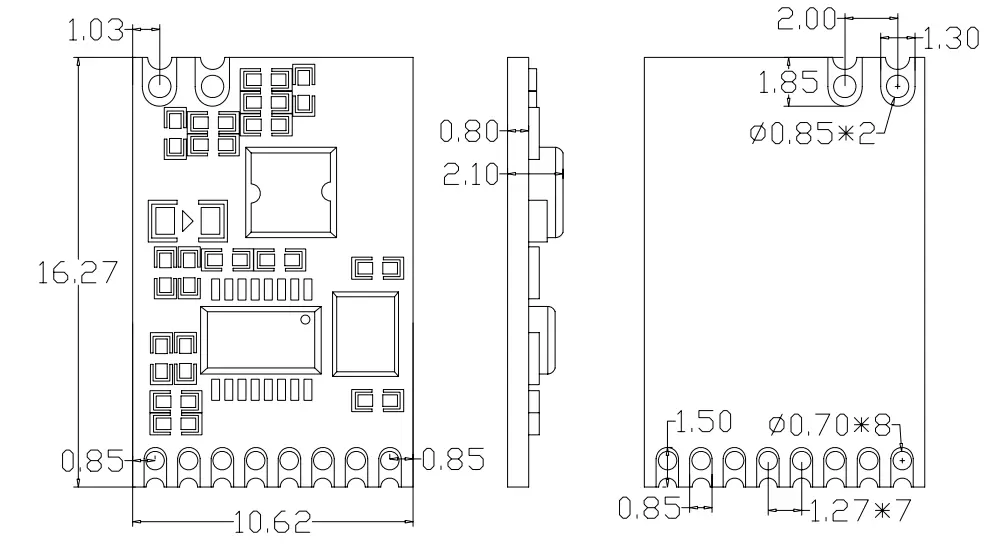

Mechanical dimensions of wireless ASK transmitter module STX885

Mechanical Sizes of 315MHz ASK transmitter module STX885
