SW433-SMA20 : SMA Interface RF Cable -
SW433-SMA20 is a radio frequency cable used to connect the wireless module and an external SMA interface antenna. It has the advantages of excellent material and stable performance. Ingenious structure, easy to install, with good anti-vibration and anti-aging ability.Internal thread with hole, thickness: 1.7mm.
Features
- Frequency Range : 0~3 GHz
- Input Impedance : 50 Ω
- Voltage standing wave ratio VSWR: <= 1.20
- Cable Length: 20 cm
- Connector Type: SMA /K~direct welding
- Inner conductor structure : 7/0.10 (number of wires/diameter mm)
- Insulation outer diameter : 0.87 soil 0.08 mm
- Type: Single-layer braid
- Outer diameter of sheath : 1.80 soil 0.10 mm
- Characteristic impedance : 50 Ω
- Test voltage : 1.2 KV
- Cable length: 200±3 mm
- Connector: SMYKA2-12mm tooth length
- Copper shaft cable: RG178 line (brown tinned)
| Interface | SPI |
| Chip | nRf24L01+,SX126X,SX127X,SX128X,si4463,si4438,si4432,si4431,CC1101,others |
| Frequency | 150MHz,315MHz,433MHz,470MHz,490MHz,868MHz,915MHz,2.4GHz,others |
| Modulation | ASK,(G)FSK,LoRa |
| Output Power | 1mW,10mW,100mW,400mW,500mW,1W,1.6W,2W,3W,5W,30W |

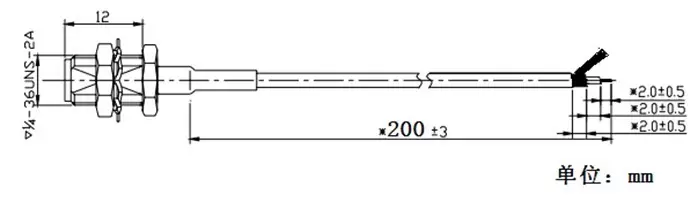

Mechanical Dimensions（Unit:mm）
