SW-DC01 : DC to DC Power Module
- SW-DC01 is manufactured and tested strictly using lead-free process and complies with RoHS and Reach standards.
DOWNLOAD
| Parameter | Min | Type | Max | Unit | Condition |
| Operation Conditions | |||||
| Supply Voltage | 8 | 12 | 30 | V | |
| Operating Temperature Range | -20 | 60 | ℃ | ||
| Current Consumption | |||||
| No-load current | < 1 | mA | |||
| Oscillation Frequency Parameters | |||||
| Oscillation frequency | 100 | KHz | |||
Features
- Operating voltage range: 8-30V
- 3.3V/4.2V/5V output voltage for optional
- Max output current 2A
- Built-in reverse connection and overvoltage protection
- Strong anti-interference
- Operating temperature range: -20 ~ +60 °C
Applications
- Remote controller power supply
- Toy control
- Wireless modules power supply
- 3.3V, 4.2V, 5V output applications

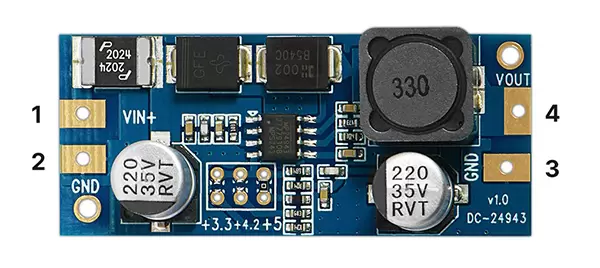

| Pin NO. | Pin definition | Description |
| 1 | VIN+ | Connect to positive power supply (+8~+30v) |
| 2、3 | GND | Connect to ground |
| 4 | VOUT | Select voltage output (+3.3v, +4.2v, +5v) by the jumper |
