Introduction

Do you need to improve the tracking capabilities within your busy factory? Old systems often struggle with signal issues, but you can resolve these with new technology. UWB localization serves as your powerful solution for precision. We explain the basics clearly so you achieve complete safety with our systems.

Why Master Complex UWB Localization Setups Today?

G-NiceRF UWB system tracking assets in a large logistics warehouse.

You must master complex setups to get the most out of modern UWB localization systems. These setups offer flawless UWB indoor positioning that older technology cannot match. You can track assets for an impressive 1 km range. We make this simple with G-NiceRF modules.

I once saw a project stall for weeks because the team ignored signal reflections in a dense warehouse. Have you faced similar delays? You can avoid costly mistakes made in the field during large system deployments. You achieve high levels of safety with reliable UWB tracking in hazardous zones.

To achieve this, a robust 27 dBm power output is required. As the FiRa Consortium states, "UWB’s unique pulse radio properties allow for accurate location and secure fine ranging." Unlock the real potential of UWB technology for your IoT project today.

What Is UWB Localization And Its Core Mechanics?

Visualization of UWB time-domain physics and 500 MHz bandwidth.

You will learn the basics of ultra-wideband physics and how the industry measures performance. How does UWB work to deliver such high precision?

· IEEE 802.15.4-2020

UWB localization operations depend heavily on this specific standard for compliance. It describes the physical layer for low-rate wireless personal area networks (WPANs) efficiently. It allows you to communicate with other certified devices without compatibility issues. This is the standard used by G-NiceRF modules, like the UWB3000, to achieve reliable connections. This compliance secures your what is UWB deployments around the world.

· Time Domain

Your system measures distance by using the travel time of the signal in the time domain. This method is unlike standard Bluetooth, which uses signal strength measurements. UWB accuracy is superior because time measurement is linear and stable. This is an ideal time-based system because light travels 30cm in just one nanosecond. This method ensures you get total precision.

· Nanosecond Pulses

Rather than using continuous waves, this system uses ultra-short nanosecond pulses to transmit data. These pulses, often lasting only 2 nanoseconds, avoid causing signal overlap in cluttered indoor environments. This allows the UWB sensor to effectively distinguish between direct signals and reflections. Thus, you retrieve accurate location data in complicated environments.

· 500 MHz Bandwidth

You are able to use a massive 500 MHz bandwidth for the transmission of pulses. This bandwidth allows the system to transmit data at 6.8 Mbps without issue. The 500 MHz spectrum enables signals to span a large frequency, making transmission appear as noise to narrowband receivers. Thus, you avoid interference with nearby Wi-Fi and ZigBee networks.

· Channel 5

Most industrial UWB devices operate on Channel 5 at 6489.6 MHz frequency. This high frequency penetrates thin materials, like wood, quite easily for better coverage. This provides a nice balance between coverage area and strict regulatory compliance. To obtain optimal results, you should configure the UWB sensor to this center frequency. G-NiceRF modules default to Channel 5 for immediate use.



UWB Localization Mechanic

Key Technical Specification

Physical Phenomenon

Operational Function

Primary Advantage

Target Environment / Compatibility

Compliance Standard

IEEE 802.15.4-2020

WPAN Physical Layer

Protocol Alignment

Device Interoperability

Global Deployments

Measurement Domain

Time Domain (ToF)

Light Speed (30cm/1ns)

Linear Calculation

High Precision

Vs. Bluetooth RSSI

Signal Modulation

Nanosecond Pulses

~2 ns Duration

Impulse Transmission

Anti-Multipath

Cluttered Indoors

Spectrum Bandwidth

500 MHz

Wide Frequency Span

Noise-like Signal

Interference Immunity

Wi-Fi / ZigBee Coexistence

Operating Frequency

Channel 5 (6489.6 MHz)

High Frequency RF

Signal Penetration

Barrier Throughput

Thin Materials (Wood)

Data Throughput

6.8 Mbps

High Bitrate

Fast Packet Transfer

Low Latency

Real-time Tracking

Technical Specifications of Core UWB Localization Mechanics!

Simplifying The Three Layers Of UWB Localization Architecture!

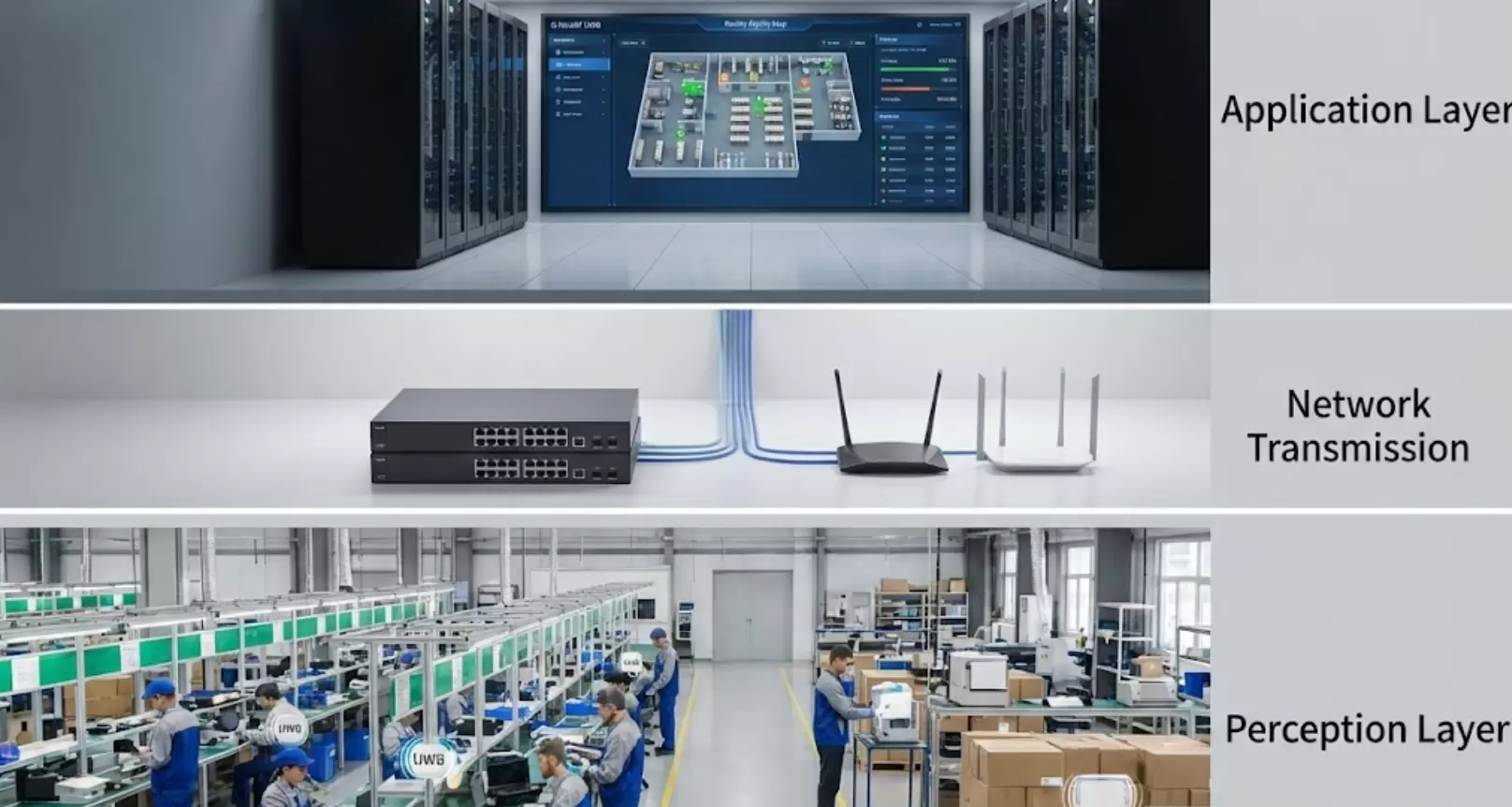

A layered diagram showing the Perception, Network, and Application layers.

We will cover the three critical layers that make up a complete indoor positioning system. This helps you understand how hardware and software function together.

· Perception Layer

You start with the perception layer, which consists of hardware that physically picks up data. This layer includes tags and anchors that are stationed around your building. Your UWB sensor clocks the raw Time of Flight timestamps during this point. For example, a tag blinks out a message every second. Hence, this layer acts as the system's sensory eyes.

· Network Transmission

You need a robust network layer to move data to the server efficiently. It consists of switches and Wi-Fi which help transport raw location packets. This layer connects your indoor positioning system hardware to your central processing unit. You need to ensure low latency here for real-time tracking performance. This bridge is vital for valid UWB positioning updates.

· Application Layer

The application layer is the final stage of data processing that you interact with. It shows you data as mapped coordinates on a digitized facility map. This layer incorporates geofencing business logic to trigger staff safety alerts instantly. You can supervise the real-time movement of 30 active tags. This layer turns numbers into actionable insights using UWB localization algorithms.

· Engine Server

The engine server performs the necessary calculations to arrive at the precise location. It computes with high-end UWB localization algorithms like trilateration to reach a determined location. Multiple anchors require a high-end server to handle the complex calculations. For example, the server determines the intersection of three distance circles. This server is the system's brain.

· Smart Terminal

You can track devices with smart terminals, such as tablets, to view data remotely. It connects to the application layer and allows you to monitor field activities. Staff members check the status of tracked assets and the location of devices. This system allows you to manage the network remotely. Consequently, operational efficiency is significantly improved in the factory.

Comparing TOA Vs TDoA For Precision UWB Localization!

Visual comparison of TOA and TDoA UWB localization methods.

You will compare two different UWB localization techniques so you can pick the better option. In this comparison, you understand the tradeoffs regarding hardware configuration.

Signal Flight: The system measures the absolute flight time to ensure high UWB accuracy.

Clock Synchronization: The method requires tight spacing of UWB localization techniques for synchronization.

Time Difference: The system calculates UWB positioning based on signal arrival offsets.

Triangular Area: The geometry defines UWB localization regions within the facility.

10cm Accuracy: The setup achieves precision in 3d UWB localization for assets.

Key Components For High-Performance UWB Localization Systems!

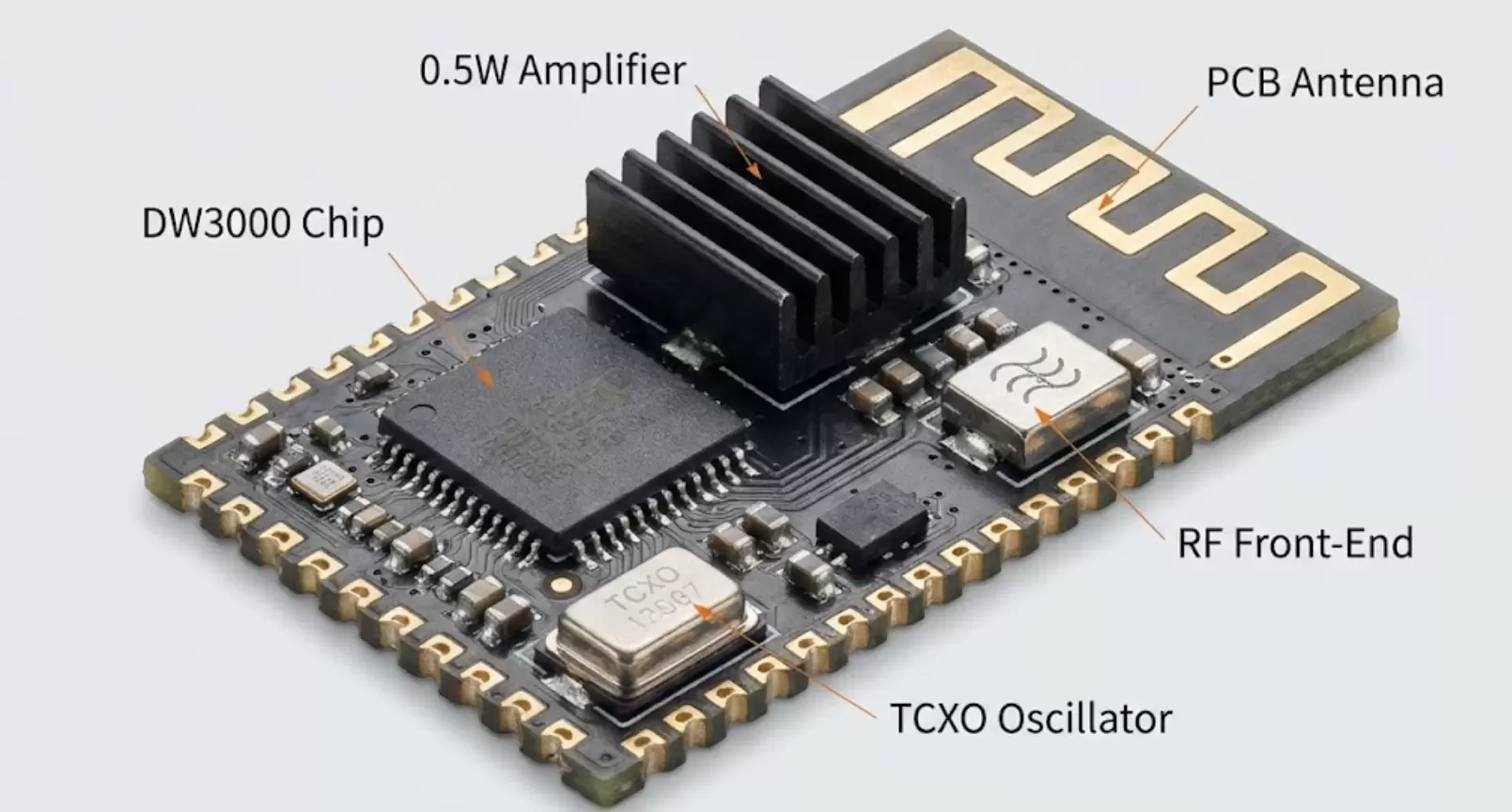

Macro view of a UWB module's key components like DW3000 chip.

You will walk through the five basic hardware components that make high-performance systems work. These components guarantee the system's highest UWB range and fidelity.

· DW3000 Chip

You depend on the Qorvo DW3000 chip to perform all core processing functions. This integrated circuit takes care of low-level PHY and MAC layer operations. It supports the IEEE 802.15.4z standard so you benefit from better security. As such, this chip is the backbone of modern UWB sensor designs.

· 0.5W Amplifier

A 0.5W amplifier will improve how far your signal travels in the facility. This makes the total output signal for the amplifier reach 27 dBm. The signal can then travel 1.5 km outdoors effectively. This allows fewer base stations to cover the same area. This maximizes UWB range for industrial sites.

· PCB Antenna

A tuned PCB antenna allows for even radiation patterns and removes bulky connectors. This allows for a more compact dimension in wearable tag designs. This is efficient for esp32 UWB prototyping and custom builds. Antenna gains in this range are often around 3 dBi. This ensures your UWB sensor hardware performs well.

· RF Front-End

The receiver sensitivity improves to -94 dBm through the RF front end. This is beneficial for detecting feeble signals in a noisy factory environment. This component filters noise from the signal before it reaches the chip. A good front end protects the DW3000 chip and is important for UWB range.

· TCXO Oscillator

You must use a TCXO oscillator so that clock timing remains stable. This component combats frequency drift due to temperature changes in environments. For TDoA calculation methods, clock timing is critical to avoid errors. Hence, this component keeps your UWB Arduino project accurate. This is needed for any reliable esp32 UWB deployment.

Overcoming Multipath Interference With 0.5W Power Output!

Visualizing 0.5W UWB signal penetrating obstacles in a cluttered environment.

You will see how high power and short pulses mitigate signal reflection problems. This pair is the secret to dependable UWB NLOS mitigation performance.

· Non-Overlapping Signals

UWB pulses are so short that they rarely overlap in time sequences. This lets the receiver recognize the primary path without confusion. You avoid the signal mix-up common in narrowband Wi-Fi systems. As Qorvo notes, "UWB provides a noise-like signal that sits below the noise floor of other technologies." As such, your system effectively counters fading caused by wall reflections.

· 27dBm Power

You use 27 dBm power to punch signals through tough obstacles effectively. This 500-mW output ensures the signal reaches even the farthest anchors. It overcomes the default power loss over distance with high frequencies. As a result, G-NiceRF modules stay connected when others drop. This power increases your effective UWB range.

· 1 km Range

With the high-power setup, you can achieve a massive 1 km range. This allows you to cover more distance and spend less on anchors. You save money on infrastructure installations and costly cablings. Open field tracking becomes viable for logistics yards. This extensive UWB range makes your network planning easy.

· Short Pulses

The system uses very short pulses to measure small time differences accurately. A pulse width of two nanoseconds is excellent for receiver resolution. This precision differentiates multiple signal paths along the same range. This performance enhances UWB accuracy significantly. It aids UWB robot localization in complex environments.

· High Sensitivity

This module has a sensitivity of about -94 dBm for registering pulses. This means it can register very tiny incoming pulses from tags. You capture signals even after they pass through thin walls. This sensitivity complements the high transmit power perfectly. This balance preserves accuracy when located far from other devices.

FAQs!

You will find answers to common technical questions about UWB module configuration. Answers to these questions assist you with technical troubleshooting for UWB localization.

Does UWB Support Half-Duplex Data Communication?

Yes, UWB is able to do half-duplex data communication efficiently. This is a function available alongside UWB positioning abilities. You can transmit packets of sensor data during the range interval. This makes it possible to get status updates from your UWB tracking tags.

What Are The Supported Preamble Code Configurations?

The modules handle preamble codes 3, 4, 9, 10, 11, and 12. You need to set the same code on both the transmitter and receiver. The modules cannot communicate if there are different codes. This feature lets you split different logical networks. It helps keep your UWB localization organized.

Can UWB Signals Coexist With Narrowband Frequencies?

Yes, UWB signals coexist with narrowband systems, including Wi-Fi, without issues. The ultra-wide bandwidth disperses energy across the spectrum thinly. This low power density appears as background noise to other devices. Therefore, your UWB range performance does not degrade existing networks. You are able to deploy UWB accuracy systems in offices.

What Is The Maximum Packet Capacity With Encryption?

With encryption turned on, the maximum packet capacity is 99 bytes. If the packet is unencrypted, it can hold up to 1023 bytes. You are sacrificing payload size to gain AES-128 security protection. For most sensor data and ID strings, this is sufficient. In this way, you secure your UWB tracking data.

Does DS-TWR Offset Time Synchronization Errors?

Yes, Double-Sided Two-Way Ranging (DS-TWR) offsets clock synchronization errors for higher accuracy. It rounds trip time in both directions to eliminate processing delays. This achieves great accuracy without needing expensive atomic clocks. It makes the system durable for commercial purposes. This is a major advantage of UWB range measurement.

Conclusion

You track your assets in crowded regions using short pulse lengths for clear signals. You mitigate interference with our smart technology while our modules assist you in system development. You achieve exceptional UWB localization accuracy for your enterprise. Our chips enable you to attain dependable data. Visit G-NiceRF for more information about our products.
