With the rapid development of the Internet of Things (IoT)—from smart cities to industrial monitoring, smart agriculture, and public safety—an increasing number of devices require long-range communication, low-power operation, and large-scale connectivity.

LoRa technology provides the “language” for IoT, while the LoRaWAN protocol defines the “grammar rules” that allow this language to be universally understood and applied. It specifies how devices join the network, how data is transmitted and routed, and most importantly, it builds a secure and scalable communication ecosystem.

At the center of this system, the LoRaWAN1302 Gateway, designed with the Semtech SX1302 chipset, supports multi-channel concurrent reception and high-performance backhaul. It serves as the “digital nervous hub” of smart city and industrial IoT deployments.

1. Design Philosophy of the LoRaWAN Network Architecture

1.1 Simplifying Complexity

LoRaWAN adopts a star topology, avoiding the complexity of multi-hop routing in traditional networks. End devices only focus on data acquisition and transmission, while routing, decryption, and load optimization are handled by gateways and network servers. This significantly reduces device power consumption and cost.

1.2 Scalability

Whether for thousands of smart meters in a city or an industrial park-wide monitoring system, LoRaWAN scales easily through standardized interfaces and unified management mechanisms.

The LoRaWAN1302 Gateway, with its multi-channel design, can simultaneously monitor multiple frequencies and spreading factors, allowing a single gateway to cover a larger area and support more node connections.

2. Layered Architecture Explained

2.1 Device Layer (End Devices)

Typical Modules: LoRa1276-C1, LoRa1278F30, LoRa1120

Functions: Data acquisition and preliminary processing, ultra-low power operation (battery life up to 5–10 years).

Classes Supported:

Class A: Minimum power consumption

Class B: Scheduled communication

Class C: Real-time response

2.2 Access Layer (Gateways)

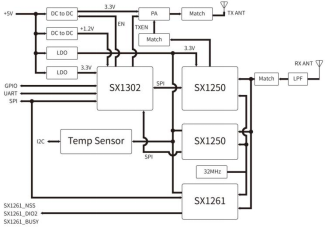

Typical Product: LoRaWAN1302 Gateway

Key Features:

·Based on SX1302, supporting 8–16 channels of concurrent reception

·High sensitivity (≤ –140 dBm)

·Supports UDP/MQTT backhaul for seamless cloud integration

Application Value:

·One gateway can serve thousands of end devices, reducing deployment cost

·Suitable for smart cities, industrial parks, and agricultural environments

2.3 Network Layer (Network Server)

·Responsibilities: Device authentication, key management, routing, load balancing

·Features: Supports ADR (Adaptive Data Rate) to dynamically adjust SF, bandwidth, and power based on signal quality

2.4 Application Layer (Application Server)

Provides APIs and big data interfaces for business logic, visualization, and alerts

Typical Applications: Smart lighting, smart parking, remote metering, environmental monitoring

3. Advantages of the LoRaWAN1302 Gateway

3.1 Multi-Channel High Capacity

Supports concurrent reception across multiple frequencies and spreading factors, enhancing simultaneous access capacity.

3.2 High Sensitivity Reception

Optimized RF architecture based on SX1302 achieves reception sensitivity as low as –140 dBm, ensuring stable long-distance communication.

3.3 Low Power Consumption & Low Latency

Efficient demodulation algorithms and optimized hardware deliver stable operation while lowering maintenance costs.

3.4 Protocol Flexibility

Supports standard protocols including UDP and MQTT, enabling easy integration with major cloud platforms (Alibaba Cloud, AWS, private clouds).

4. Typical Application Scenarios

·Smart Street Lighting: Connects hundreds of streetlight nodes via the LoRaWAN1302 Gateway for remote control and energy management.

·Smart Parking: Works with geomagnetic sensors and parking management systems to report real-time parking availability.

·Smart Metering (Water, Gas, Electricity): Enables remote data collection, reduces manual labor, and supports prepaid billing and alert functions.

Conclusion

LoRaWAN network architecture—characterized by simplicity, scalability, and security—is the digital nervous system of IoT communication. Within this architecture, the LoRaWAN1302 Gateway acts as a critical hub, delivering high capacity, multi-channel support, and low-power operation for smart cities, smart agriculture, and intelligent energy management.

As a provider of industrial-grade wireless modules and system solutions, NiceRF will continue to advance LoRa and LoRaWAN technologies, offering products with higher performance, lower power consumption, and more flexible deployment.
