How to Overcome Intercom Communication Challenges in Space-Constrained Devices?Compact Size with High Power Is the Key

In the field of wireless intercom, RF power and module size often present a difficult trade-off. As the demand for portable and embedded devices continues to grow, communication modules must not only deliver reliable performance but also be compact enough to fit into limited spaces.

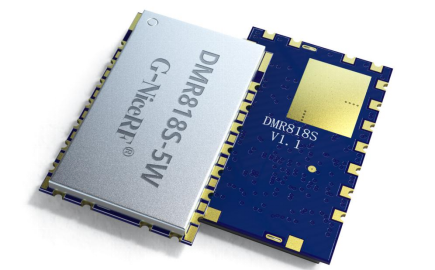

The intercom module introduced here was developed precisely to meet such needs. Within a compact size of just 39.5 × 24 mm, it integrates 5W transmission power, dual-mode support for both DMR digital and analog communication protocols, -122 dBm high receiving sensitivity, and a full range of intercom features including relay, SMS, and low power consumption. This highly integrated, high-performance-density design offers a practical solution for devices that are space-constrained but require robust communication capabilities.

Why is "small size and high power" so important in real-world projects?

In many intercom system engineering cases, we often face the classic trade-off between space and performance.
In portable walkie-talkies, the mainboard has limited space and must coexist with the battery compartment, display, and control buttons.
In wearable devices, the communication module must conform to the human body and cannot accommodate externally mounted high-power amplifier circuits.
In unmanned equipment (such as security robots or inspection vehicles), module integration is restricted by the original wiring layout of the hardware platform.

In these scenarios, traditional, bulkier communication modules cannot be directly integrated. Engineers are often forced to reduce power output or split functions to meet size constraints, which in turn leads to limited communication range, increased system complexity, and longer development cycles.

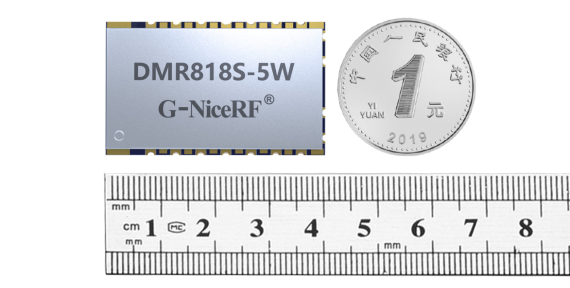

This module, however, integrates 5W RF power and a complete intercom protocol processing unit within a footprint smaller than a postage stamp. It offers a fully integrated intercom system solution and opens up new possibilities for deploying communication systems in compact devices.

 Overview of Key Module Features

 Frequency Range: Three optional bands (134–174 MHz, 320–400 MHz, 400–470 MHz)

 Size: 39.5mm × 24mm

 Transmit Power: Configurable high power 5W / low power 2W

 Receiver Sensitivity: Up to -122 dBm, with bit error rate below 5% at -117 dBm

 TCXO Oscillator: 0.5 ppm TCXO

 Bandwidth Support: Analog bandwidth 5 / 25 KHz, digital bandwidth 6.25 KHz

 Other Features: Supports voice/SMS transmission, independent TX/RX frequency settings, and data retention on power-off

From the Perspective of System Integration — High Integration Reduces Overall Development Complexity

This module is equipped with a standard serial communication interface, allowing users to easily configure key parameters such as transmit/receive frequency and contact lists via simple serial commands, making operation straightforward and efficient.
Thanks to its highly integrated design, users only need to connect basic external components—such as an audio amplifier, microphone, and speaker—without the need for additional RF amplification circuits or protocol decoding boards. This enables the creation of a complete intercom link with minimal hardware effort.

For end-product manufacturers, this brings three significant advantages:

 Shorter Development Cycle — Saves substantial time in debugging and hardware matching

 Smaller Overall Size — Functional units that would typically require separate PCB space are now fully integrated into the module

 Improved Consistency and Reliability — Power control and bandwidth filtering are handled internally by the module with high precision

Pictured above is NiceRF’s intercom application development board based on the DMR818S-5W module.
With a compact footprint of just 38.69 × 58.31 mm (excluding antenna)—even smaller than a credit card—it still manages to integrate a wide range of functions. This high-cost-performance module supports DMR Tier II and features a built-in Moto AMBE++ vocoder. By simply connecting a power supply and speaker, customers can use it as a compact 16-channel digital walkie-talkie. It supports low-power sleep mode, dual-slot DMR communication, repeater compatibility, and automatic tail noise suppression to enhance the performance of end devices.

Foundations of Communication Performance — From Signal Quality to Protocol Optimization

On the hardware level, the module delivers a receiver sensitivity of -122 dBm, which ensures communication reliability even in areas with weak signal coverage. To handle multipath interference and signal obstruction common in industrial and urban environments, it incorporates automatic tail noise suppression and error correction algorithms to maintain clear voice communication.

On the protocol level, support for DMR dual-slot technology increases spectrum efficiency and allows access to repeater networks. This is especially critical for multi-user, multi-floor relay systems.

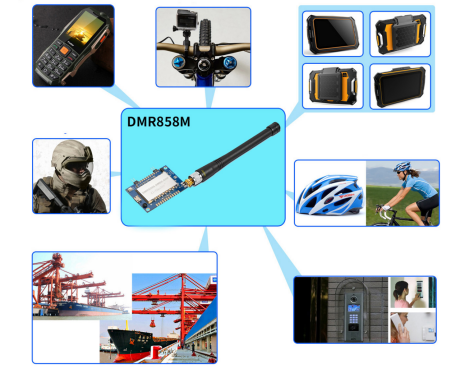

Application Scenarios

Scenario 1: Emergency Communication Terminals
In emergency response, both portability and communication range are essential. For example, in forest firefighting, earthquake rescue, or mobile command centers, single-user terminals must be compact and easy to carry while still capable of long-distance communication. This module achieves an effective range of 7–8 km in open environments, making it ideal for emergency deployments.

Scenario 2: Wearable Voice Communication Devices
In applications like chest-mounted intercoms for security personnel or wireless intercom headsets in industrial workshops, space constraints are often critical. This module enables maximum internal space to be preserved for batteries or control circuitry while still delivering full communication functionality.

The core value of this intercom module lies in its ability to provide a truly practical, high-performance communication solution for space-constrained scenarios. By integrating key functions—such as RF power, protocol processing, and voice handling—into a compact 39.5 × 24 mm form factor, it strikes a balance between PCB layout efficiency, communication reliability, and functional completeness.

For developers aiming to build compact, high-performance, and quickly deployable wireless communication systems, this module is more than just a hardware choice—it's a strategic path toward communication architecture optimization.
