VHF Two-Way Radio Design: Outdoor Signal Attenuation and Module Solutions!

13

Feb . 2026

By sdga:

Introduction

Even when you're standing in an open field, does your walkie-talkie product still sound choppy and intermittent? This VHF two-way radio design issue often appears to be signal attenuation, but the real cause is actually internal noise. In this guide, you’ll learn how to identify these hidden hardware faults and apply practical, professional techniques to fix them—so you can achieve clear outdoor communication.

Can Internal Noise Mimic Outdoor Signal Attenuation?

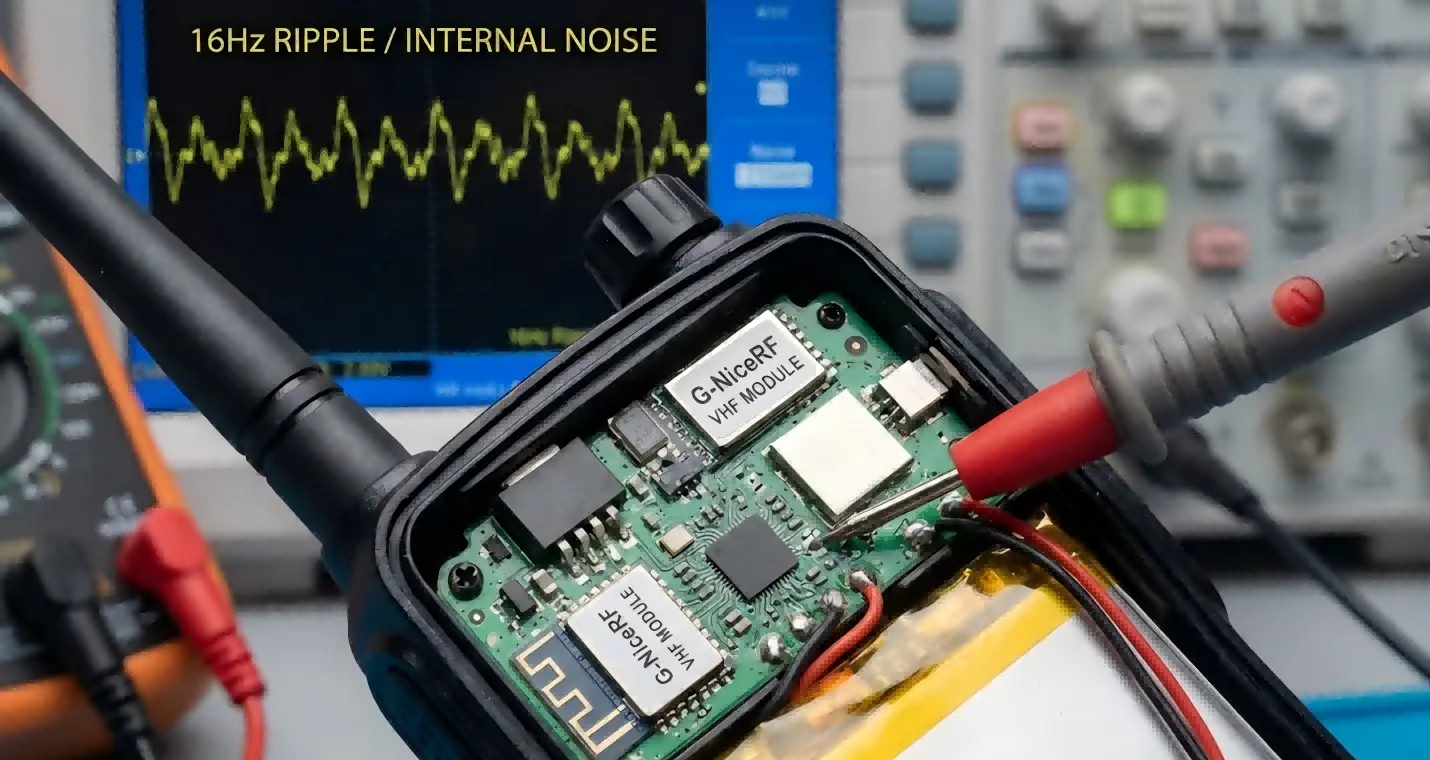

Oscilloscope measurement of internal noise inside a G-NiceRF two-way radio

Internal noise can damage signal integrity in wireless audio module design, producing artifacts that resemble outdoor signal attenuation. Low-frequency pulsing audio often comes from the device's internal power architecture—not from atmospheric conditions.

When the power amplifier switches at 16 Hz, the RF module generates pulses that create 16.7 Hz ripple. This can imitate weak-signal behavior and cause many engineers to mistakenly blame the audio processing unit. The real cause is usually a large current load disturbing the power rail.

Field diagnostics of industrial IoT devices often identify power-line instability (rather than environmental obstacles) as the culprit behind persistent hum. These pulses can leak into the audio path, degrading the effective communication range and clarity.

Distinguishing this internal hum from real static-interference zones is crucial for robust product development. Hardware analysis often reveals 217 Hz harmonics, indicating a circuit-level issue rather than environmental interference. If the voltage drop happens too fast, it can produce a "machine-gun noise," which signals a localized power fault requiring immediate design intervention.

How to Fix TDD Interference in VHF Two-Way Radio Modules

Reducing noise ensures a clean audio path for the wireless audio module.

Pulse Response

High power consumption creates large pulses. There are subtle differences between UHF and VHF RF module circuits. For example, a 5 W radio can draw 1.5 A, and rapid current changes create ripple. This ripple travels along the supply lines into your audio IC. To absorb these energy swings, you need large capacitors. They smooth the 16 Hz pulsing and eliminate noise.

Transmit Mode

During time-division duplex (TDD) operation, the wireless audio module switches modes quickly. This switching creates voltage dips and can directly cause a sudden 50 mV drop. It can confuse the microphone bias and make audio intermittent. You need stable regulation, so a high-PSRR (power supply rejection ratio) LDO is the best choice to keep voltage and noise steady.

Ground Loop

Poor grounding can act like an antenna, sensing TDD pulses and steering current in the wrong direction—forcing current through the audio path and creating hum. Separating analog ground and digital ground is essential; this is a technique that G-NiceRF prioritizes in LoRa module design. It protects sensitive microphones and significantly reduces hum risk, keeping grounding interference minimal.

Burst Noise

These are short burst signals during transmission that create sharp noise spikes with 100 Hz harmonics. They can be extremely loud—like a boat engine—so you need a low-pass filter. It blocks high-frequency noise spikes and cleans the audio. Use a 33 pF capacitor because it bypasses high-frequency noise to ground and prevents the interference amplitude from becoming excessive. Then playback becomes clean and burst noise disappears.

Power Rail

A dirty supply line injects noise into every part of the audio system. Keeping the 3.3 V rail clean is most important, and connected amplifiers are often the reason it gets "dirty." This is where isolation with a 15 µH inductor helps: it isolates high-power noise inherent to long-range wireless modules and prevents ripple propagation. With clean power delivered to the audio IC, audio consistency improves noticeably.

VHF Two-Way Radio TDD Interference Mitigation Matrix!

Interference VectorElectrical MechanismSpec MetricAudio ArtifactCircuit MitigationComponent Value
Pulse responseHigh power consumption1.5 A / 16 HzSupply rippleEnergy bufferingLarge capacitor
Transmit modeTDD mode switching50 mV sudden voltage dropIntermittent audioVoltage regulationHigh-PSRR LDO
Microphone biasUnstable voltage50 mV dropBias confusionSignal stabilityStable regulator
Ground loopAntenna effectTDD pulse pickupCurrent humPath separationSplit grounds
Burst noiseHarmonic spikes100 Hz harmonics“Boat engine” soundLow-pass filter33 pF capacitor
Power railDirty supply line3.3 V / 10 WWall-adapter rippleInductor isolation15 µH inductor

What's the Real Cause of Outdoor Signal Dropouts?

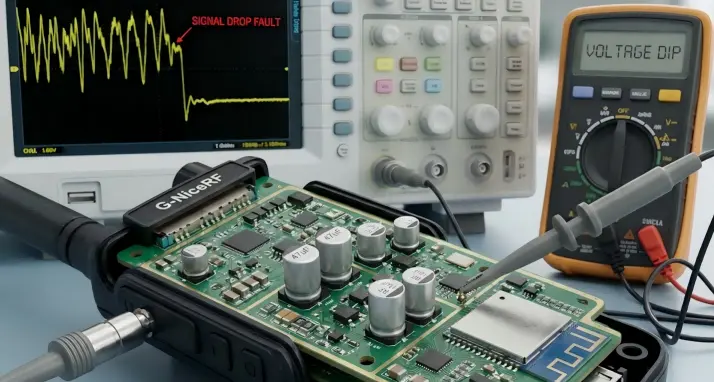

G-NiceRF board + signal-dropout analysis image

You'll find that the real reason behind signal dropouts mainly comes from internal hardware faults.

Microphone Bias

Microphones need stable voltage—if the voltage dips here, it is effectively audio loss. TDD pulses can shake this voltage, but the best wireless audio modules protect the microphone line. They use three-stage filtering to clean the bias voltage and keep audio strong. A 47 µF capacitor helps by storing energy and keeping the microphone "active," eliminating the fading effect.

Voltage Sag

Battery voltage droops under load and often drops during transmit. This becomes a power-integrity problem, shifting logic levels. VHF RF module architecture differs here because portable devices use compact power supplies. Voltage drops cause errors, so you need low-ESR (equivalent series resistance) capacitors. They charge/discharge quickly to maintain voltage levels and stabilize the signal.

Logic Level Shift

When voltage is low, bits can flip digitally, causing a chain of data loss. The radio becomes silent, creating dead zones. Can industrial IoT devices maintain data integrity in this state? No, they cannot. VCC must be stable, so you should use a 10 µF capacitor. It reduces sag and preserves logic levels.

Trace Coupling

Traces radiate and affect each other, so audio traces can pick up noise from high-current traces. This is layout coupling, so you should use a 4-layer PCB. It shields noise inside inner layers—this is the layout G-NiceRF recommends. Noise cannot “jump,” so signal paths stay clean and audio remains clear.

System Integrity

One weak part can break the whole assembly, so you need a system-level view. Verify every interconnect; loose pins can cause signal-integrity issues. Pay close attention to commercial RF modules. Aim to keep key-path resistance around 0.1 Ω to ensure low-impedance connections. With proper decoupling and stable power, the system operates as a coherent unit.

Where Do VHF Two-Way Radio Module Solutions Work Best Outdoors?

You can choose the best locations because VHF propagates best in large, open outdoor environments.

Marine Unit Integration

Water reflects radio waves, and the module handles these reflections well. Integrated into marine communication systems, it can communicate effectively with vessels—up to 10 nautical miles—with consistently strong audio. 156 MHz is excellent for boats because it tends to propagate along the Earth's surface.

Agriculture IoT Systems

Flat terrain in agriculture allows the LoRa module to operate with minimal interference. Operators can monitor remote irrigation pumps, and the system delivers reliable data updates. 162 MHz can cover 1,000 acres and penetrate dense crops. Farmers rely on this technology, and the module ensures stable, clear connectivity.

Remote Data Links

VHF modules support long-distance transmission, and signals can easily pass over mountains. 136 MHz waves can diffract around rocks, connecting devices in blind spots. UHF signals are often blocked, so long-range wireless modules are a better choice. Remote monitoring stations use this band for industrial IoT safety monitoring, and the module helps extend effective communication distance.

High-Power Amplifiers

Higher power pushes signals farther. A 10 W module provides strong output in its power class. It can cut into weak-signal areas, but the system requires a larger battery. Range can reach 15 km, and audio can be very loud. This module is ideal for emergencies and maintaining links effectively.

Weather-Band Receivers

Users can scan storms, and the module can efficiently tune to weather bands. G-NiceRF modules help receive alerts while keeping static interference relatively low. Rain won't block the signal, so operators can prepare for weather. This receiver system is robust and improves safety in outdoor environments.

How to Eliminate TDD Burst-Transmission Pulses

Use these parts to filter pulses and stop burst noise:

  • LC filter: You need a 15 µH inductor and a VHF walkie-talkie antenna.

  • 10 pF capacitor: Place a 10 pF capacitor near the pins of a waterproof VHF walkie-talkie.

  • Decoupling ferrite bead: Add ferrite beads on wiring to block 217 Hz noise.

  • Audio amplifier: Use a high-PSRR amplifier so you don’t need to worry about ripple on the supply.

  • Time slot: Synchronize TDD time slots to avoid beat frequencies. Texas Instruments notes that high-PSRR LDOs can suppress noise for hi-fi audio applications.

How to Achieve Global Compliance with DMR818S

This module helps you meet international requirements and bring products to global markets.

Dual Certification

Because strict regulations apply, DMR818S satisfies FCC and CE requirements equally. This increases global deployment opportunities without extra validation, accelerating your project timeline.

Digital Clarity

With an AMBE++ vocoder, DMR818S removes the voice distortion common in analog communications—especially in very noisy environments—so you can hear speech clearly. Static interference is gone, and voice is protected.

Dual Mode

You can switch from analog to digital. The module supports both modes, enabling gradual system upgrades without interruptions.

Data Services

The module provides data retention and also supports digital features such as SMS and encryption. This makes data protection controllable for public safety and private-sector networks.

How to Maximize Range with DMR858M

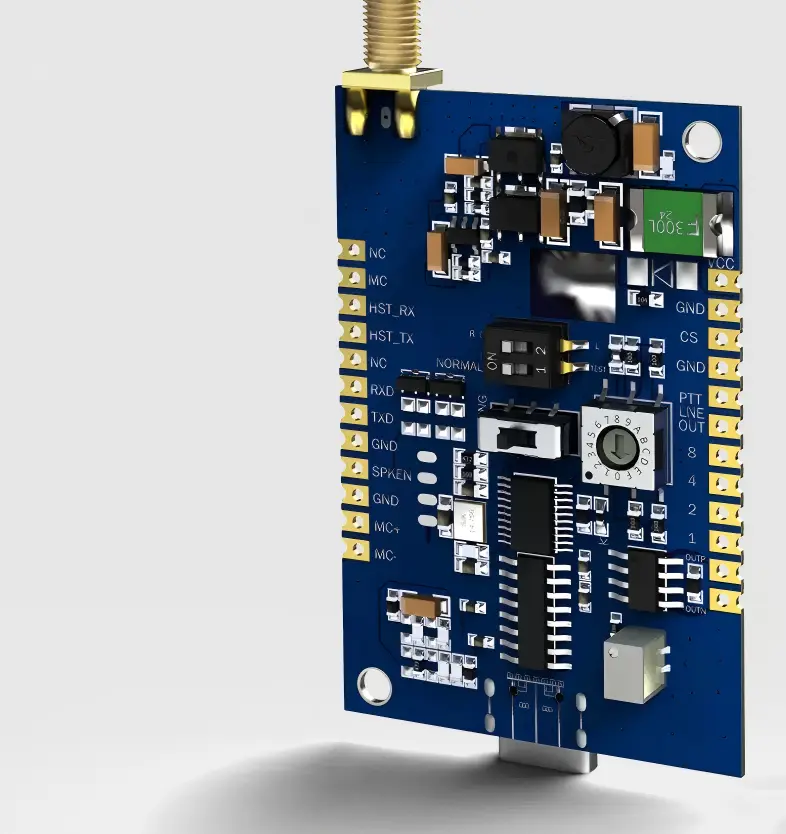

DMR858M module image

This high-power solution achieves longer coverage in open environments and ensures reliable connections across large areas.

5 W High Power

DMR858M is powerful because it pushes the signal farther. At 5 W, it can reach into weak-signal regions. Audio is loud, and transmission distance is 6–8 km.

Plug-and-Play

The module is fully integrated so you can save development time. It has a built-in MCU and RF amplifier. You only need to connect power and a speaker to use the system.

Energy Efficiency

OEMs need long-lasting modules because batteries drain quickly. This module achieves it with ultra-low sleep current below 0.1 mA, extending battery life so you can stay connected in the field.

Tri-Band Support

Integrators can choose the best band because it supports UHF, VHF, and 350 MHz. It also adapts to different terrain, meaning signals can penetrate obstacles effectively.

Five Tips to Improve Long-Range Signal Stability!

Technical setup image for improving G-NiceRF two-way radio signal stability

People using this system can maximize range with the following tips:

Shielding

Use a metal shield can over the RF section to prevent noise. With an impedance-matched 50 Ω path, shielding prevents RF leakage and keeps the signal clean. RF module compliance is safeguarded, and audio is protected.

Impedance Matching

Always match the antenna load to 50 Ω. Mismatched antennas reflect signals and create unwanted noise. The more noise in the signal, the shorter your range. Good circuitry and a network analyzer do this best—and top wireless audio modules will do it correctly.

Clean VCC

Noise from the power source through the circuit can collapse range. A clean VCC, smoothed with a 100 µF capacitor, stabilizes usable operation. RF module frequency remains stable over longer distances, and communication becomes more reliable when the signal is stable.

Battery Regulation

Battery voltage sag is serious, so regulation can improve voltage. The 3.3 V line must stay flat and logic levels must remain stable. You still need a high-current LDO. If the supply cannot handle the load, the system will fail—and the radio must remain on continuously.

Error Correction

Digital modes can repair errors because bits may be lost outdoors. The code corrects them, and DMR uses AMBE++. It reconstructs the voice so you can hear words clearly. Static interference disappears and it sounds like a phone call.
"As the ARRL Handbook notes, 'VHF signals interact with terrain and can travel farther than UHF in open areas.'"

Frequently Asked Questions (FAQs)!

Common questions about VHF radio performance? You'll find the answers here.

What frequency range does VHF radio use?

VHF is 136–174 MHz, the band used by VHF RF modules. It can diffract around hills outdoors. UHF is higher: 400–470 MHz. VHF is better for open spaces—choose based on terrain.

Does TDD noise reduce signal clarity?

Yes. It creates a hum, and the 16 Hz pulsing can be audible. It disrupts quietness and makes the range of the wireless audio module feel shorter. Noise masks weak signals, so you must fix the power system.

Why use 33 pF capacitors in the audio circuit?

They filter high-frequency noise and prevent RF interference. A 33 pF capacitor is small but effective: it shunts noise to ground and keeps audio clean.

Is VHF better than UHF outdoors?

Yes, for open areas, because VHF diffracts better and can bend around trees more effectively, while UHF is often better in buildings. The performance of UHF and VHF LoRa modules may vary by region.

How do I stop TDD burst-transmission interference?

Use large capacitors and add inductors. Separate grounds and shield audio lines. This stops pulses and eliminates interference.

Conclusion

Engineers can now enhance signal stability through proper circuit design. Internal noise no longer needs to destroy the link budget of long-range wireless modules. These integration approaches ensure audio clarity for critical industrial IoT deployments. Stay connected across wide outdoor environments—and for more expert modules and reliable solutions, visit G-NiceRF. Your next connection matters.
