What to Do When Wireless Communication Distance Is Limited? Multiple Relay Solutions to the Rescue!

Wireless modules are widely used in fields such as smart manufacturing, smart agriculture, smart homes, and remote control due to their advantages of flexible wiring, easy installation, and strong adaptability. However, despite the increasing functionality of wireless modules, their communication range is still limited by various factors. To overcome this inherent distance limitation and achieve longer-range, more stable data transmission, relay technology has emerged. This article will begin by exploring the factors that affect the transmission range of wireless modules and will then provide a detailed introduction to several mainstream relay methods and their applicable scenarios.

1. Factors Limiting the Transmission Distance of Wireless Modules

The communication range of wireless modules is not fixed but is influenced by multiple factors. The main ones include:

Transmission Power Limitations
The strength of the radio frequency (RF) signal emitted by a wireless module determines its communication distance. Generally, higher power means longer signal propagation, making high-power modules more advantageous for long-distance transmission.

Receiver Sensitivity
Receiver sensitivity refers to the minimum signal strength that a wireless module can detect. The higher the sensitivity, the better the module can receive weak signals from farther away. When designing long-range communication solutions, choosing a receiver with high sensitivity is crucial.

Operating Frequency Band
Different frequency bands significantly impact signal propagation characteristics. Lower frequencies usually offer stronger penetration and better diffraction capabilities. For example, a 433 MHz signal penetrates walls more easily than a 2.4 GHz signal, making it better suited for complex or obstructed environments.

Antenna Performance and Installation Method
The antenna is the critical pathway for sending and receiving wireless signals. High-gain antennas (such as directional or efficient omnidirectional antennas) can significantly enhance signal strength and transmission range. Factors such as antenna height, orientation, placement, and whether it is free from obstructions also affect communication performance.

Communication Rate and Modulation Scheme
Higher transmission rates require stronger signals and better signal-to-noise ratios. For long-distance communication, it is often necessary to reduce the data rate to improve interference resistance. For instance, LoRa technology achieves ultra-long-range transmission by lowering data rates. Additionally, different modulation methods (such as FSK, LoRa, DSSS, etc.) vary in their resistance to interference and distance capabilities.

Environmental Interference
Wireless signals may be affected by physical obstacles such as buildings, metal structures, trees, and bodies of water during transmission, which can degrade signal quality and reduce transmission distance.

2. Common Methods for Implementing Relays

To achieve longer-distance or cross-regional wireless communication, relay technology becomes a necessary approach. A relay refers to the use of one or more intermediate nodes to forward data, allowing signal amplification and further propagation to expand the coverage area. Depending on the implementation method, relays are mainly categorized into the following types:

Hardware Wireless Relay Modules
Some wireless modules natively support relay functions, automatically forwarding received signals to the next node. For example, full-duplex audio modules can receive and transmit simultaneously, making them suitable for continuous, real-time data link transmission. This type of relay features fast response, a simple system structure, and easy deployment.

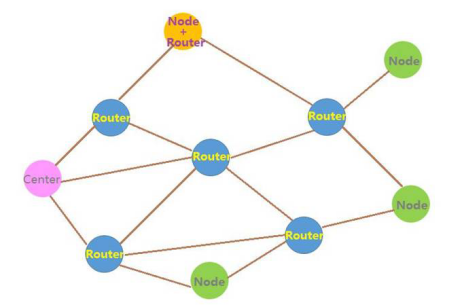

Protocol-Level Relays (Mesh or Ad Hoc Networking)
In complex multi-node networks, wireless communication protocols that support self-organization and self-healing can be used. For instance, LoRa wireless data radios enable multi-hop relaying through cooperative communication between nodes. Each node handles its own communication tasks while also forwarding data for others.

Multi-Level Relay Approach
When communication must span several kilometers or more, a multi-level relay method can be employed—connecting multiple relay nodes in series, with reliable communication between each level, thereby forming a tiered transmission path.

Gateway or Base Station Relay
In IoT systems, gateways are often used to convert wireless signals into wired ones (such as Ethernet). This cross-technology relay method is ideal for large-scale deployments and offers strong compatibility and seamless integration with cloud platforms.

3.Recommendations and Considerations for Choosing Relay Methods

Coverage Area and Environmental Complexity
For simple, linear scenarios, hardware relays are preferred due to their ease of deployment. In contrast, for large-scale areas or complex topologies, mesh protocols are better suited for flexible and robust networking.

Real-Time Communication Requirements
Full-duplex modules are ideal for scenarios that demand real-time transmission, such as voice communication or control signals. Mesh networks, while flexible, may introduce some forwarding delay.

Power Consumption and Power Supply Conditions
In areas with limited power supply, such as outdoor or remote locations, low-power modules like LoRa should be prioritized to ensure stable long-term operation.

Node Deployment Density
If nodes are densely distributed, a highly reliable mesh network can be formed. For sparse node layouts, multi-level relays or directional transmission methods are more suitable to ensure coverage and signal quality.

If you have specific application scenarios or need assistance selecting the right relay solution, feel free to reach out. I can provide more targeted advice and technical support based on your requirements.
