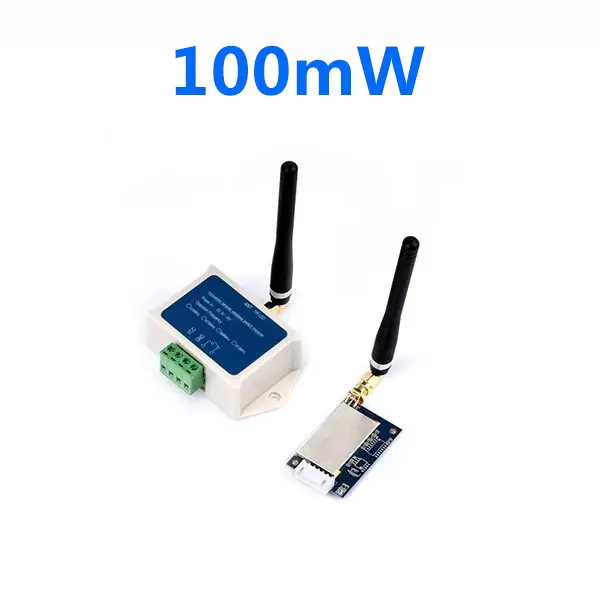

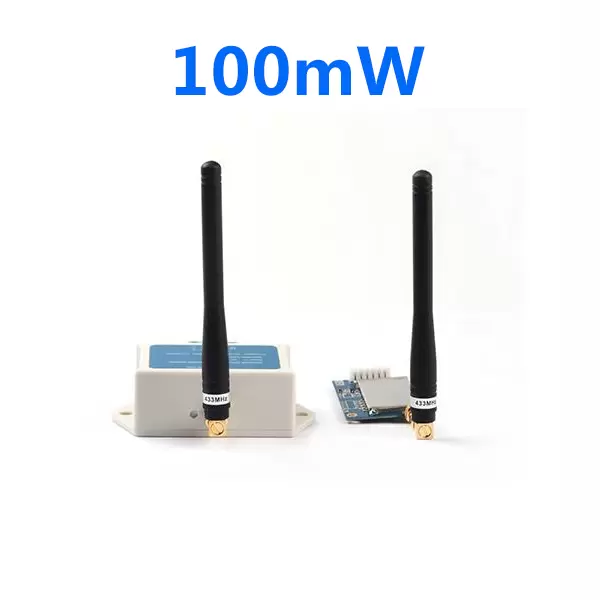

SK200PRO-U :100mW 1 Channel switch control module

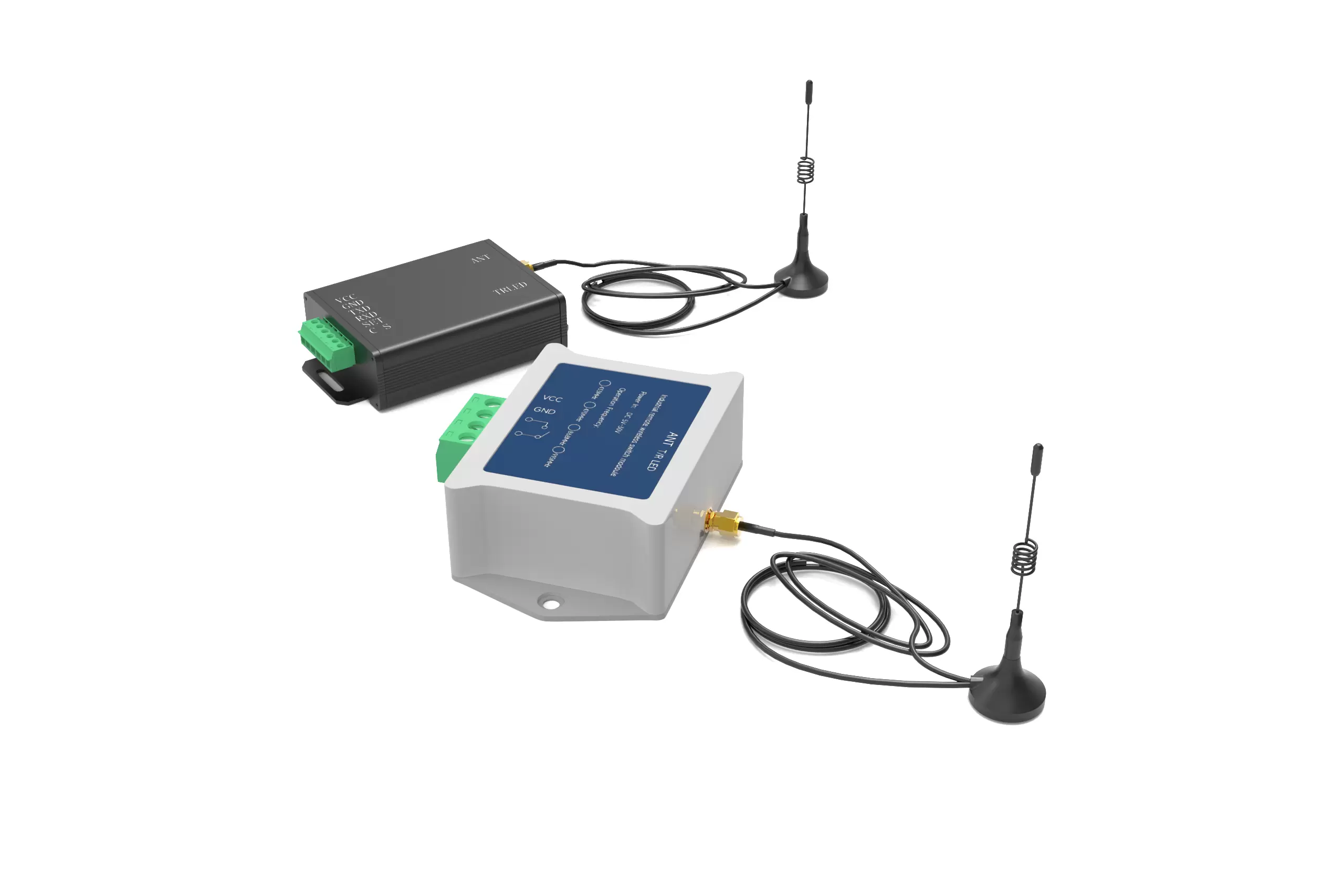

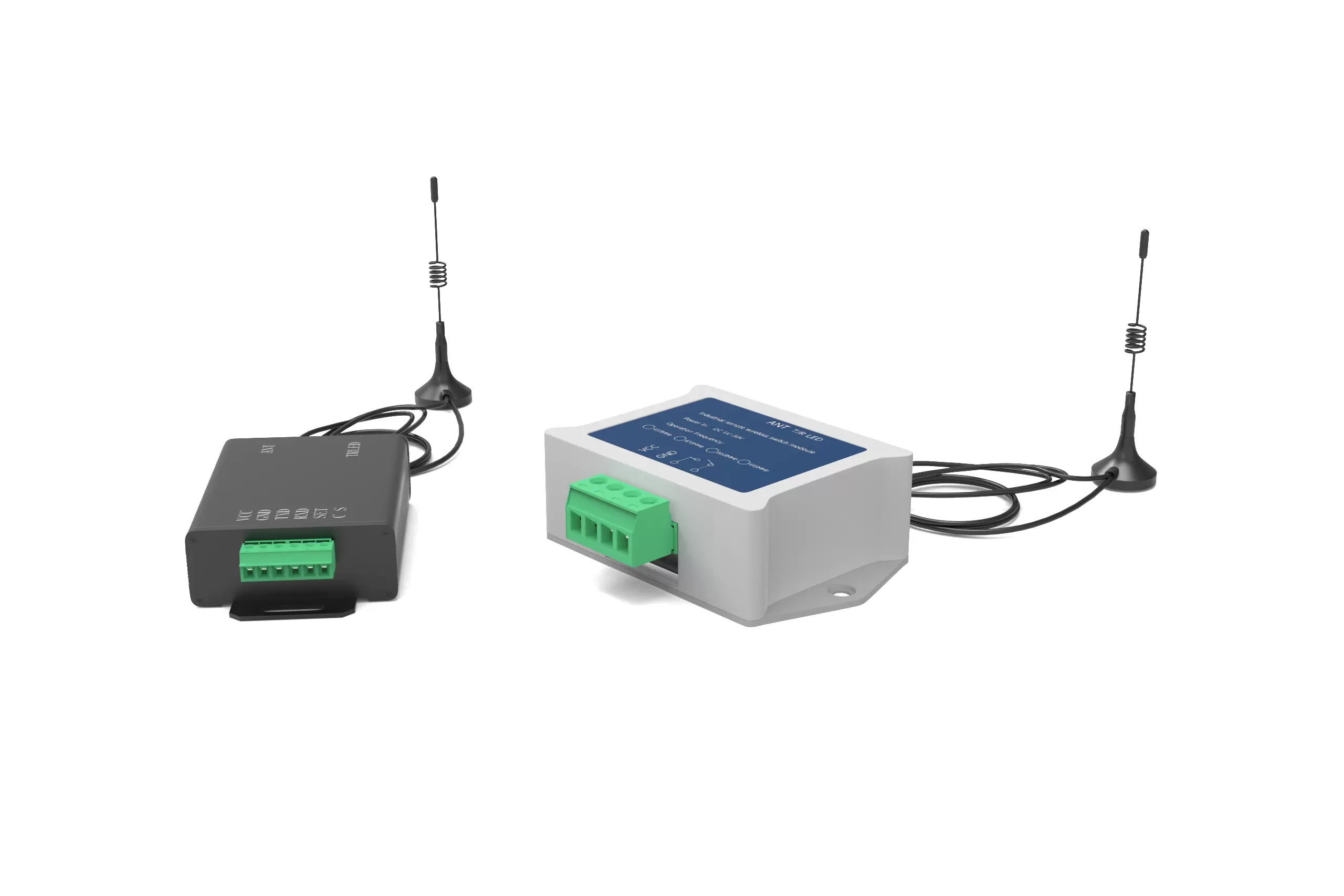

SK200PRO-U is an industrial wireless single switch control module. It consists of SK200PRO-U-TX ( transmitter module ) and SK200PRO-RX ( receiver module ). The transmitter can choose a module with a power of 100mW, 1W or 5W as required. The wireless design uses LoRa technology, which has highly efficient receiving sensitivity and strong anti-interference performance. Its communication distance and receiving sensitivity are better than FSK and GFSK modulation. In the one-to-many working mode, in cooperation with the MESH ad hoc network that comes with the receiving end, it can form a network transmission without blind spots and distance restrictions.

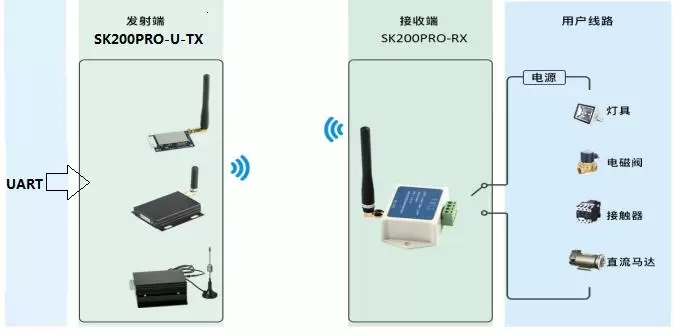

Transmitter provides a serial command control interface corresponding to the output interfaces of multiple receiver modules.It has the characteristics of simple interface and reliable operation. Users can combine our PC interface to configure and modify the internal parameters of the module. The parameters of the receiver can be wirelessly configured by the transmitter, which is convenient for online changes. Multi-pair simultaneous communication will not interfere with each other, and it is flexible and convenient to use.
SK200PRO-U strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
