SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module
SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module

SK200Pro : 1W Mesh One Way Dry Contact Routing ON/OFF Wireless Relay Module

  • SK200Pro is a 1W industrial wireless relay module. It consists of SK200PRO-TX ( transmitter module ) and SK200PRO-RX ( receiver module ). The wireless design uses LoRa technology, which has highly efficient receiving sensitivity and strong anti-interference performance. Its communication distance and receiving sensitivity are better than FSK and GFSK modulation. In the one-to-many working mode, in cooperation with the MESH ad hoc network that comes with the receiving end, it can form a network transmission without blind spots and distance restrictions.
  • The module provides single signal input and single control output interface. It has the characteristics of simple interface and reliable operation. Users can combine our PC interface to configure and modify the internal parameters of the module. The parameters of the receiver can be wirelessly configured by the transmitter, which is convenient for online changes. Multi-pair simultaneous communication will not interfere with each other, and it is flexible and convenient to use.
  • SK200PRO strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

The electrical parameters of SK200PRO-TX module are as follows:

Model SK200PRO-TX-1W
Transmit power 29.5dBm
Working voltage (range) 5V(3.3V~6.5V)
Sleep current 250uA
Quiescent Current 16mA
Emission current 600mA
Size (mm) 61.5*59*14
Range of working temperature -40℃~85℃

The electrical parameters of SK200PRO-RX module are as follows:

Parameter Smallest Typical Largest Unit Condition
Operating Conditions
Working voltage range 5 12 30 V
Relay load   < 10   A @220V
Radio Frequency Parameter
Receive current   < 10   mA @12V
Receiving sensitivity   -132   dBm
Interface I/O,Uart
Channel 1 channel
Communication One-way
Open distance (km) 4~5

Features of Wireless Relay Module SK200Pro

  • MESH network function
  • Working frequency band: 433/490/868/915 MHz optional
  • Sensitivity up to -132 dBm
  • Built-in software watchdog algorithm
  • Built-in hardware anti-crash protection circuit
  • Transceiving frequency can be arbitrarily configured
  • Multiple working modes
  • Anti-overcurrent, overvoltage, rever connection protection circuit
  • Built-in hardware reset protection circuit
  • Built-in anti-static protection circuit
  • LoRa modulation mode
  • Transmitter power is selectable: (100mW~5W)
  • Support wireless modification parameters
  • Operating temperature range: -40 ~+85 ° C

Application of Wireless Relay Module SK200Pro

  • Digital remote control
  • Security system
  • Wireless pump control
  • Wireless remote access control

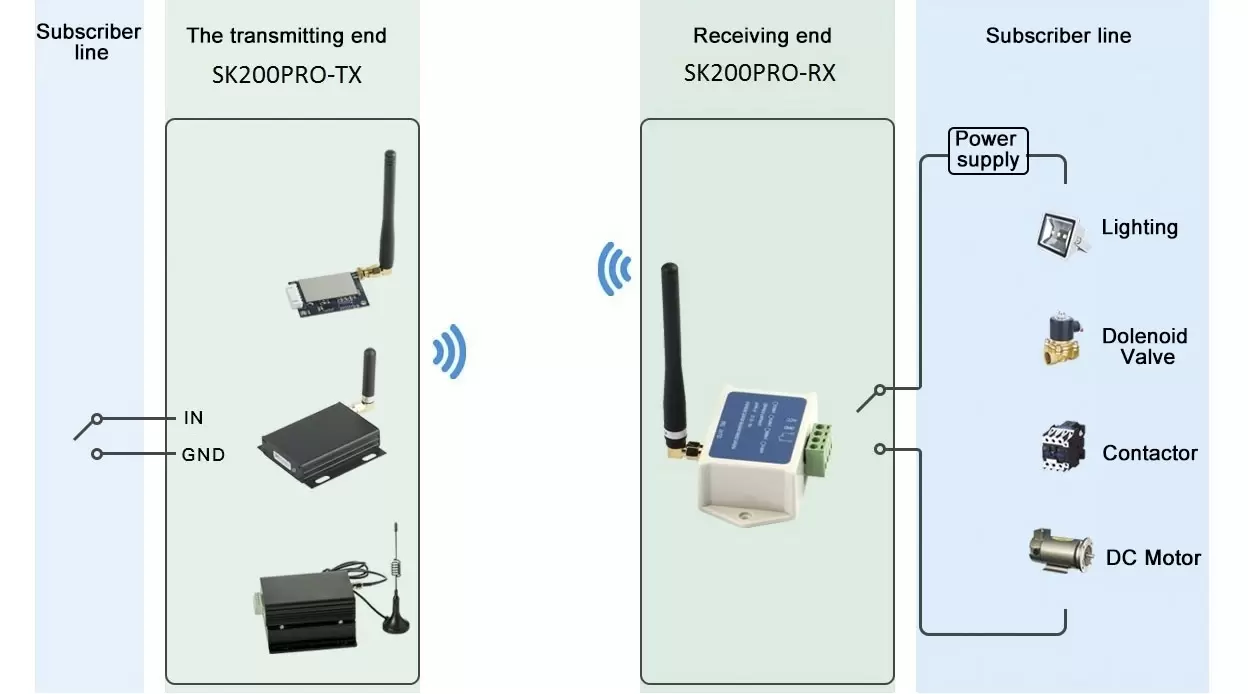

Typical application of Wireless Relay Module SK200Pro

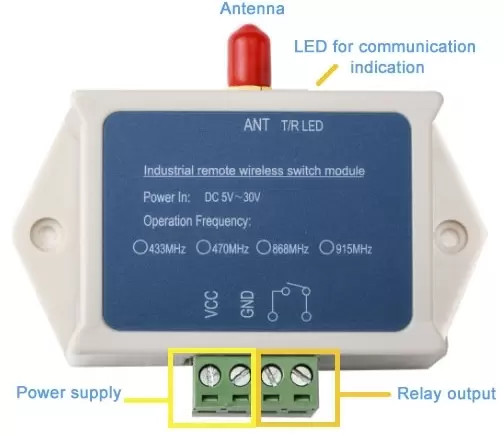

The interface description of the receiver module SK200PRO-RX is shown in the following figure:

Interface description of Wireless Relay Module SK200Pro-RX

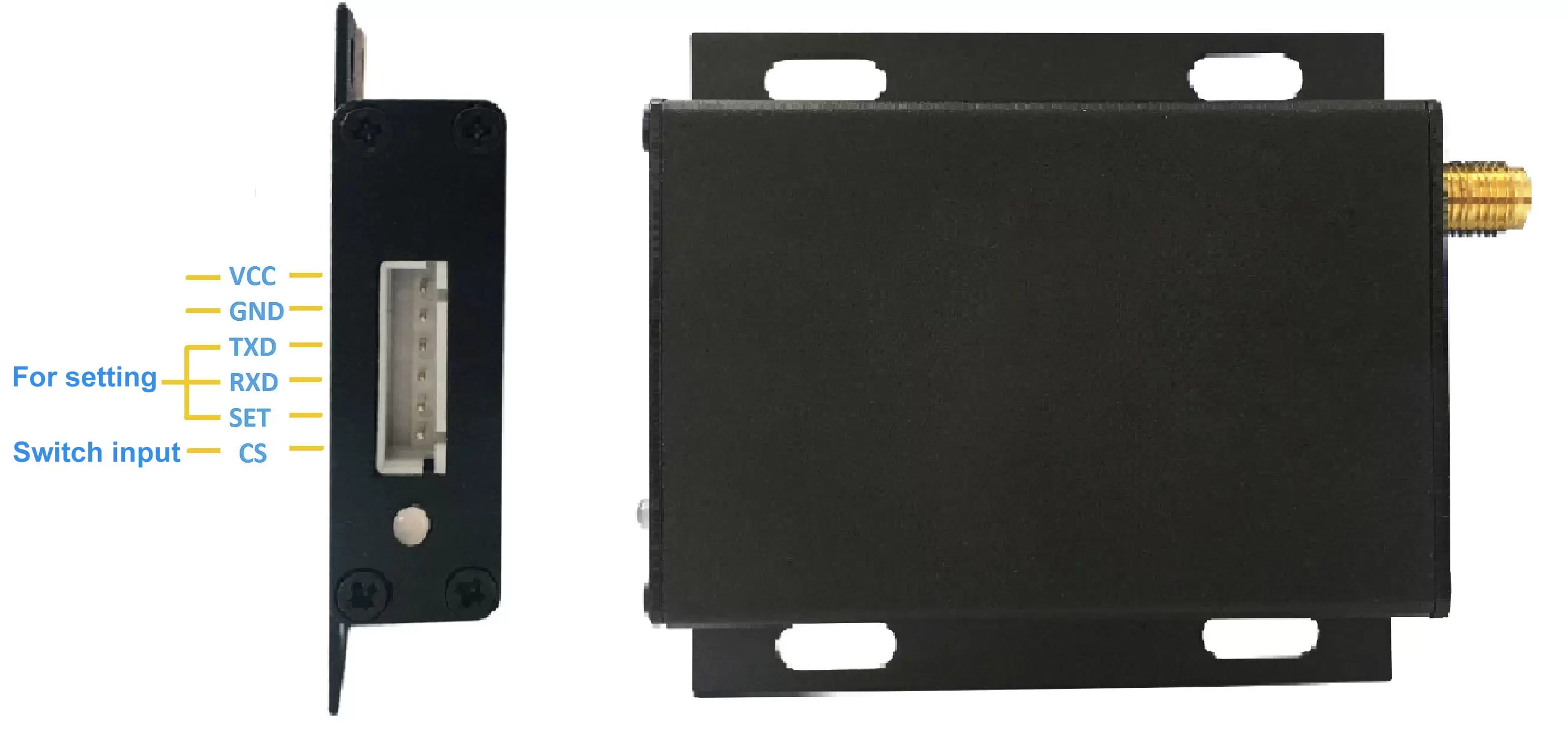

The interface description of the transmitter module SK200PRO-TX is shown in the following figure:



SK200PRO-TX-1W:

Pins of Wireless Relay Module SK200Pro-TX



Pin definition Description
VCC Connect to positive pole
GND Ground
TXD For configuration mode parameter setting
RXD For configuration mode parameter setting
SET Configuration parameter enable (low level enable parameter configuration, default high level output)
CS Switch signal input pin (with internal pull-up)

Transmitter module

SK200PRO-TX-1W

Mechanical Dimensions of Wireless Relay Module SK200Pro-TX

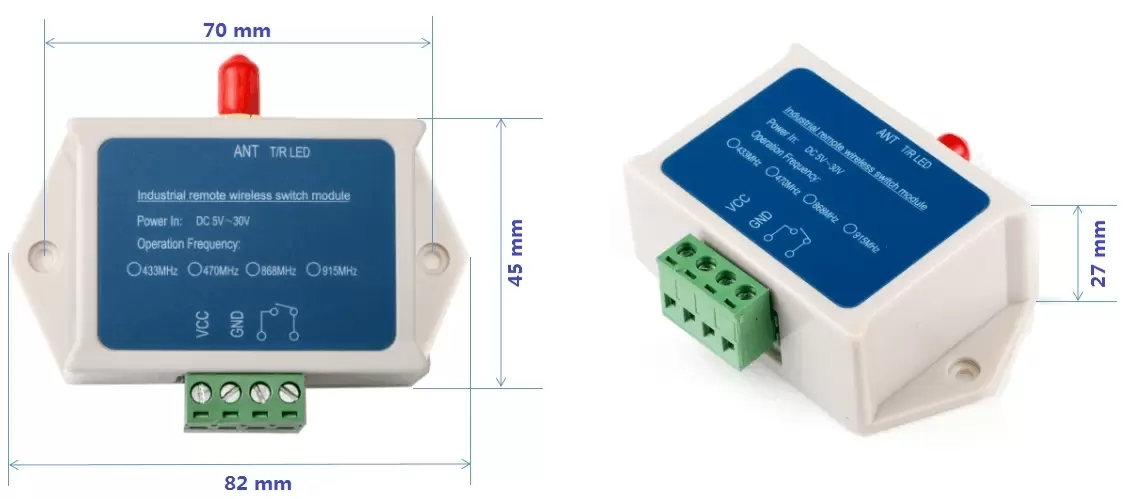

Receiver module SK200PRO-RX

Mechanical Dimensions of Wireless Relay Module SK200Pro-RX
