SW2400-TH11 : 2.4GHz Copper Spring Antenna
SW2400-TH11, copper spring antenna, designed specially for 2.4GHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW2400-TH11
- Frequency Range: 2400±100 MHz
- VSWR: ≤ 0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 10 W

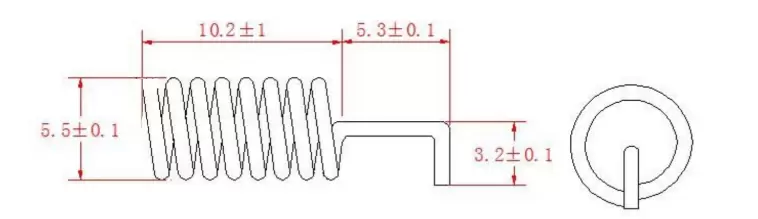

- Height: 10.2±1 mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 5±0.1g
| Frequency | 2.4GHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 20 |
| Material & Technology | Copper |

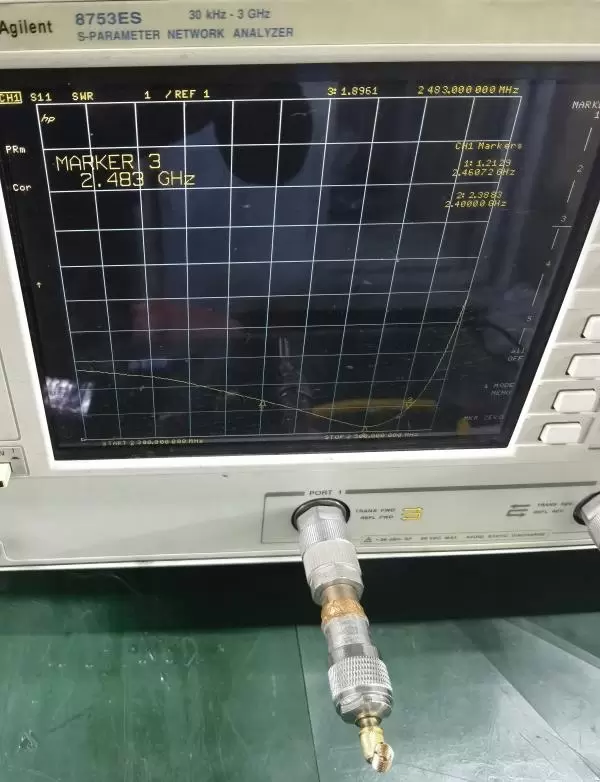

Antennas have been tested under wireless simulated environment by Network Analyzer.
