SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna
SW433-TH32DN : 433MHz Nickel Plated Spring Antenna

SW433-TH32DN : 433MHz Nickel Plated Spring Antenna

SW433-TH32DN, a small nickel plated spring antenna, designed specially for 2.4GHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 433±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 2.15 dBi
  • Input impedance: 50 Ω
  • Max power: 5 W
  • Wire diameter: 0.8mm
  • Height: 32±1 mm
  • Interface form: welding directly
  • Lead wire: silver
  • Weight: 2 g
Frequency 433MHz
Type Helical
Gain 2.15dBi
Size (mm) < 40
Material & Technology Nickel plated

SW433-TH32DN Size

Antennas have been tested under wireless simulated environment by Network Analyzer.

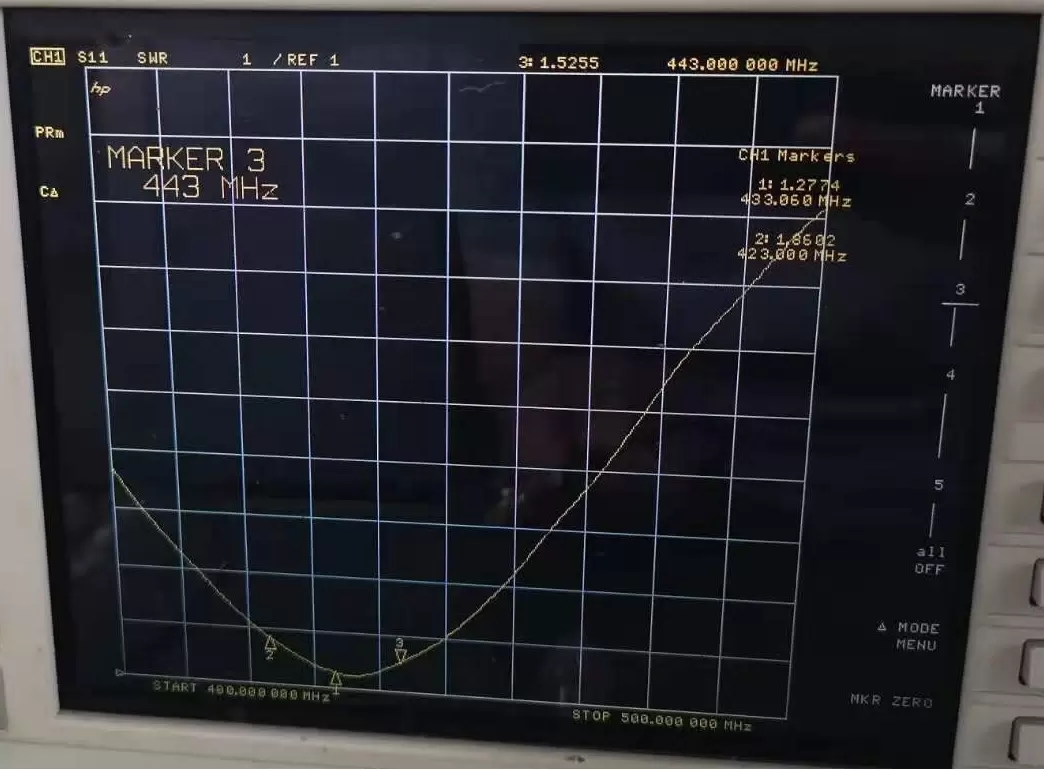

SW433-TH32DN VSWR Chart
