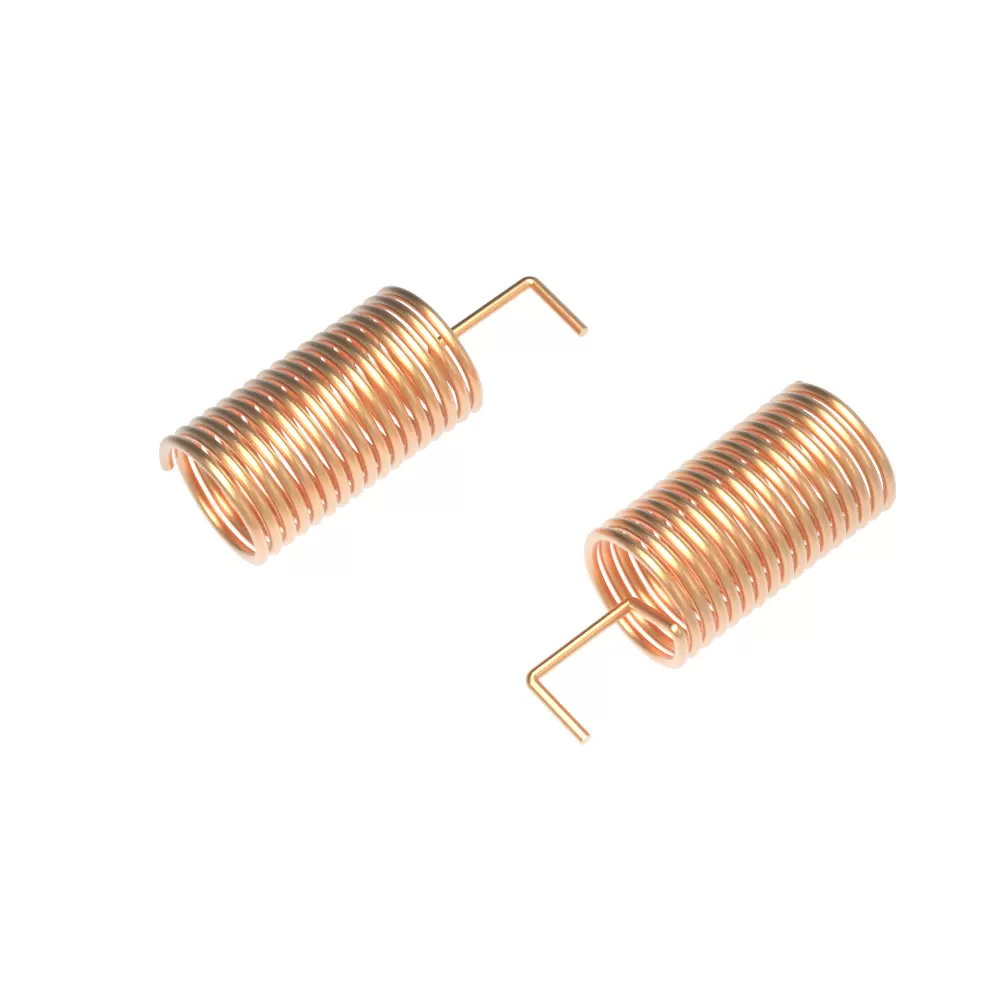

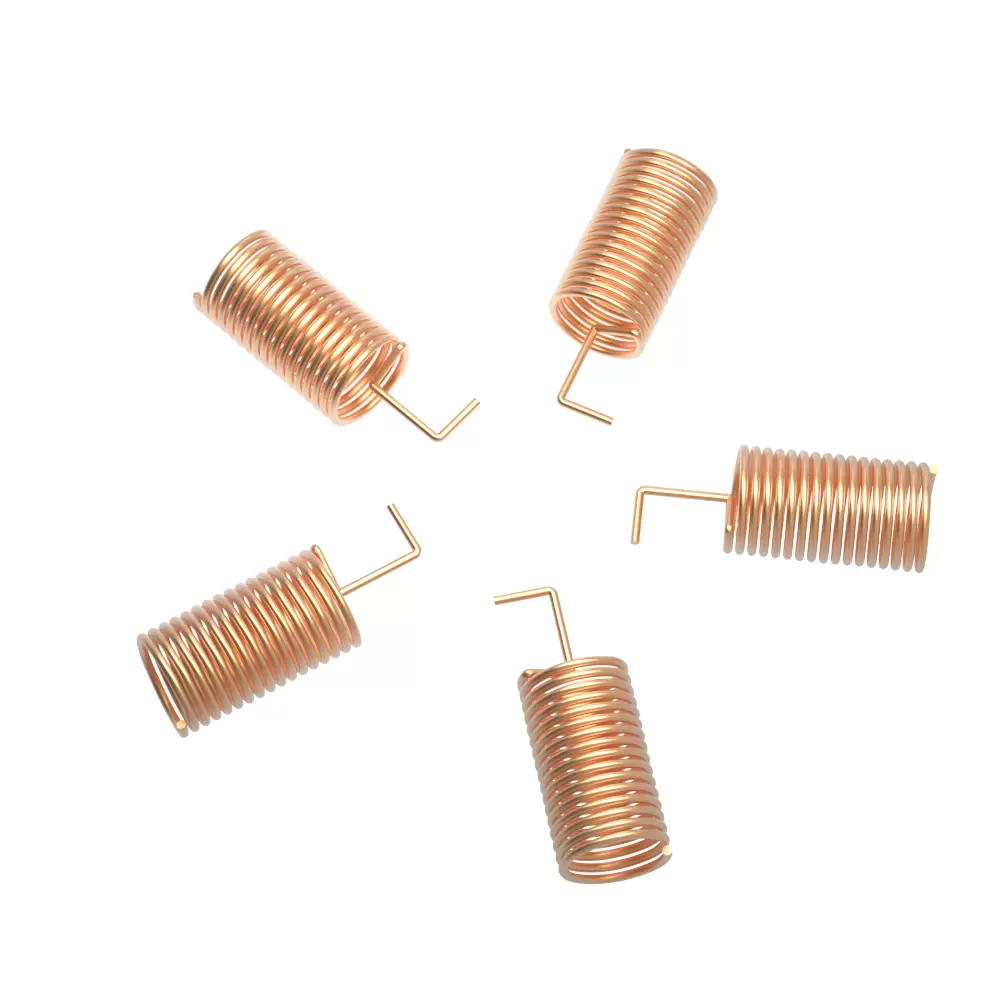

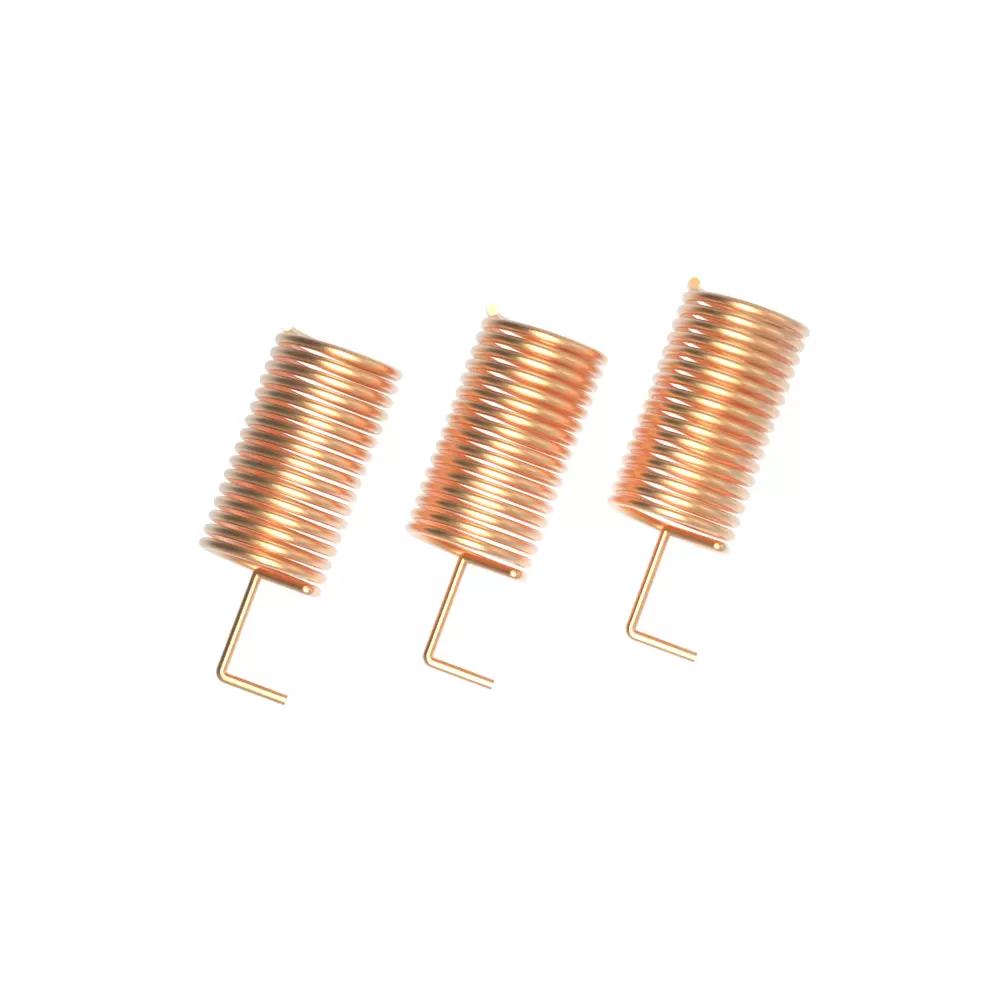

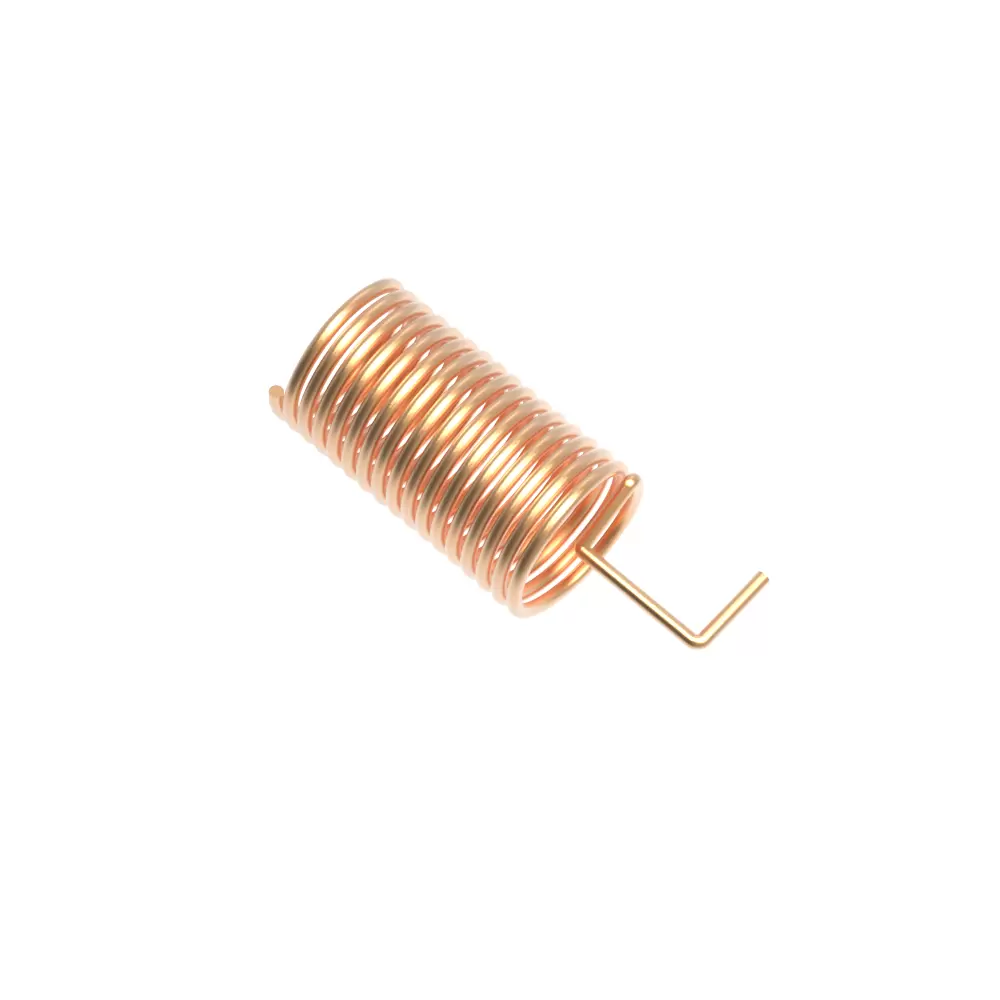

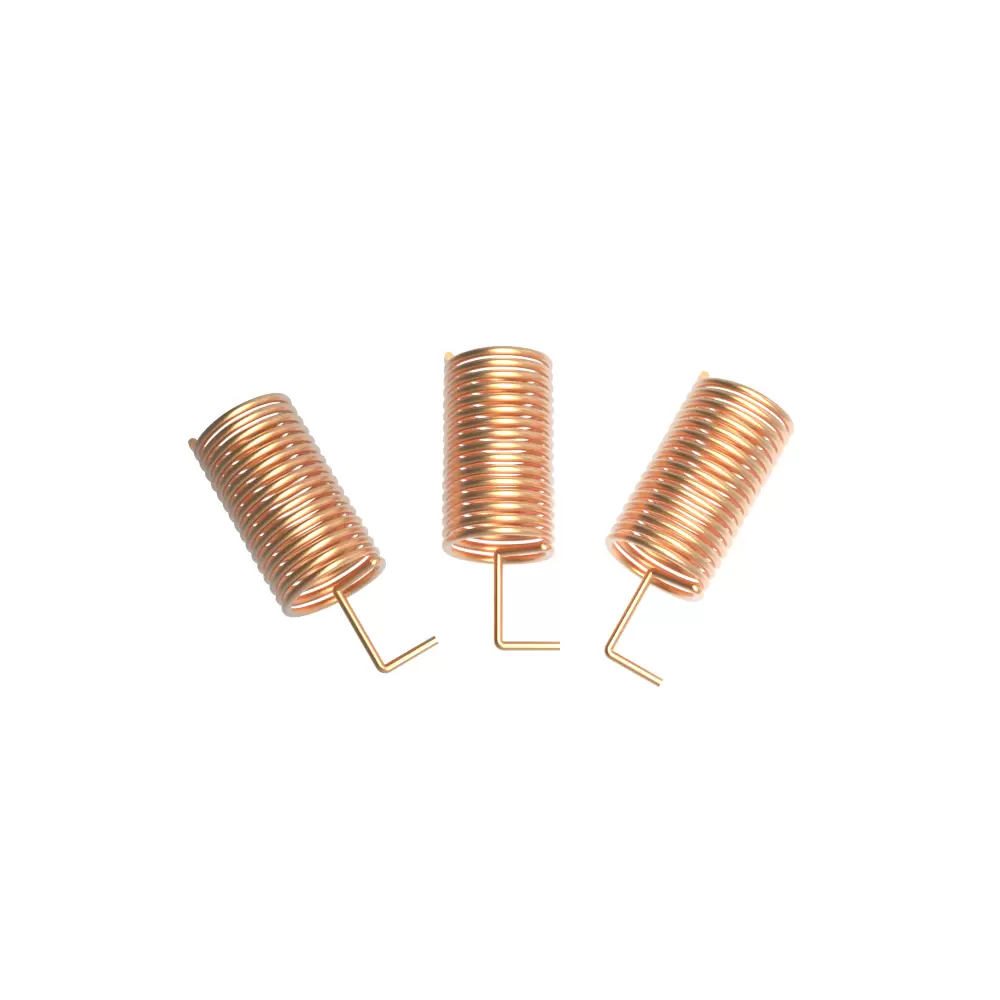

SW433-TH10 : 433MHz Copper Spring Antenna

SW433-TH10 : 433MHz Copper Spring Antenna

SW433-TH10,copper spring antenna, designed specially for 433MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.

DOWNLOAD

G-NiceRF Spring antennas REACH report .pdf
433MHz copper spring antenna SW433-TH10 V2.3.pdf

DESCRIPTION
SPECIFICATIONS

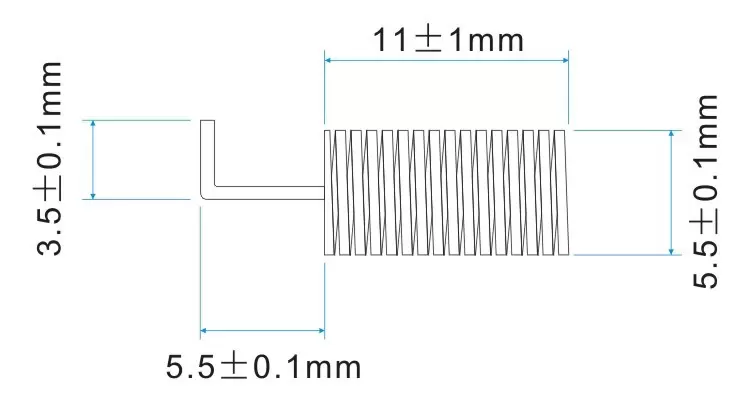

SIZE(MM)
VSWR ChART

Technical Parameter of Spring Antenna SW433-TH10

Frequency Range: 433±5 MHz
VSWR: ≤1.8
Gain: 2.15 dBi
Input impedance: 50 Ω
Wire diameter: 0.5mm
Max power: 5 W
Height: 11.3±1 mm
Interface form: welding directly
Antenna Color: copper
Weight: 2 g

Frequency	433MHz
Type	Helical
Gain	2.15dBi
Size (mm)	< 15
Material & Technology	Copper


Antennas have been tested under wireless simulated environment by Network Analyzer.


VSWR Chart of Spring Antenna SW433-TH10

SW433-TH10 : 433MHz Copper Spring Antenna

Technical Parameter of Spring Antenna SW433-TH10
