With the rapid development of the Industrial Internet of Things (IIoT), smart cities, and intelligent sensing systems, massive numbers of devices are placing higher demands on wireless communication solutions that must deliver low power consumption, wide coverage, high capacity, and low cost.
Traditional solutions such as Wi-Fi, BLE, or cellular networks each have inherent limitations in cost, battery life, or coverage.
LoRa (Long Range), a Low Power Wide Area Network (LPWAN) technology designed specifically for IoT, is becoming a cornerstone of large-scale IoT deployments. Leveraging Chirp Spread Spectrum (CSS) modulation, high receiver sensitivity, and flexible parameter configuration, LoRa offers a highly efficient and reliable connectivity solution.
This article provides an in-depth analysis of the principles of LoRa spread spectrum technology, its technical advantages, and key parameters. It also draws on NiceRF’s application experience with LoRa modules to explore how LoRa empowers the “Intelligent Internet of Everything.”
Principles of LoRa Spread Spectrum: Chirp Spread Spectrum (CSS)
1.1 What is Spread Spectrum Communication?

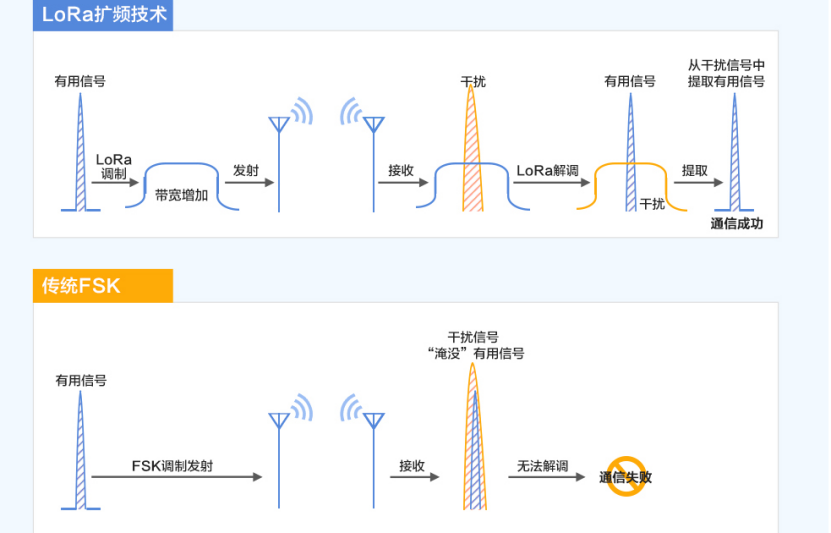

Unlike traditional narrowband communication, LoRa uses Chirp Spread Spectrum (CSS) technology. Its core mechanism modulates narrowband data into chirp signals with frequencies that change linearly over time. This distributes the signal energy across a wider spectrum and significantly improves resistance to interference.

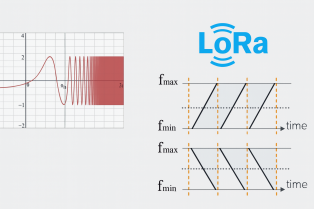

In CSS, information is encoded using upchirps (frequency increases) or downchirps (frequency decreases). At the receiver, a “de-spreading” process aligns the spectral pattern, enabling accurate demodulation even at very low signal strengths (as low as –140 dBm).
Key Benefit: The “spread + de-spread” mechanism provides strong anti-interference capability, long-range coverage, and ultra-low power consumption, making LoRa ideal for complex environments and cost-sensitive IoT deployments.
Key Technical Parameters (Based on NiceRF Module Configurations)
Parameter | Definition | CommonValues(NiceRFModules) | PerformanceTrade-offs |
SF (Spreading Factor) | Impacts modulation rate and coverage | SF7 ~ SF12 (e.g., LoRa1121 / LoRa1278F30 support) | Larger SF = longer range & higher sensitivity, but lower data rate, longer transmission time, higher power consumption |
BW (Bandwidth) | Frequency spectrum occupied by LoRa signal | 62.5 kHz / 125 kHz / 250 kHz / 500 kHz | Wider BW = higher data rate, but lower sensitivity and weaker interference resistance |
CR (Coding Rate) | Forward error correction (FEC) redundancy | CR = 4/5 ~ 4/8 (configurable) | Higher CR = stronger error correction, but lower effective payload and efficiency |
All NiceRF LoRa modules (e.g., LoRa1276-C1, LoRa1278F30, LoRa1120) support flexible configuration of SF, BW, and CR parameters, enabling customization for diverse application needs.
Four Key Advantages of LoRa Technology
3.1 Ultra-Long-Range Communication
Through CSS modulation and high-sensitivity receiver design, LoRa modules achieve long-distance communication—up to 20 km with proper antenna deployment in open areas.
Typical Module: LoRa1278F30 (1W output), ideal for long-range and complex terrain coverage.
3.2 Ultra-Low Power Operation
LoRa modules support multiple low-power modes, with standby currents as low as microampere levels. Combined with NiceRF’s duty cycle management and wake-up mechanisms, modules can operate for years on coin cells or lithium batteries.
Typical Scenarios: Remote environmental monitoring, underground meter reading, unattended facilities.
3.3 Large-Scale Connectivity
LoRa networks adopt a star topology, where a single LoRaWAN gateway can support thousands of end nodes. NiceRF modules support point-to-point, point-to-multipoint, broadcast, and polling communication modes, meeting both centralized and distributed application requirements.
Recommended Solution: NiceRF LoRaWAN development boards or embedded module platforms.
3.4 Strong Anti-Interference Performance
LoRa can effectively suppress narrowband, pulse, and multipath interference. With built-in FEC and adaptive frequency hopping, stability is further enhanced.
Typical Scenarios: Metro tunnels, industrial plants, high-voltage zones.
LoRa vs Other IoT Communication Technologies
Technology | Data Rate | Range / Coverage | Power Consumption | Licensed Spectrum |
NB-IoT | Medium (~200 kbps) | Wide-area, strong indoor penetration | Medium-High | Yes |
LoRa (LoRaWAN) | Low (0.3 kbps ~ 50 kbps) | Long-range: ~5 km (urban), 15+ km (rural) | Ultra-low (years of battery life) | No |
BLE (Bluetooth Low Energy) | High (hundreds of kbps) | Short range (10–100 m) | Medium-Low | No |
Conclusion: LoRa sacrifices data rate in exchange for long-range, ultra-low-power operation—making it especially suitable for status sensing, location tracking, and periodic reporting applications.
Application Scenarios (Based on NiceRF Use Cases)
Application | Recommended Modules | Features |
Smart Water & Gas Metering | LoRa1276-C1 / LoRa1120 | Remote reading, 10-year battery life |
Smart Street Lighting | LoRaPro | Mesh networking, remote dimming, centralized control |
Smart Agriculture | LoRa1268 / LoRa1121 | Weather data, irrigation control, pest monitoring |
Smart Parking | LoRa1278F30 | Magnetic sensors, vehicle status reporting |
Security / Smoke / Disaster Alarms | LoRa1276 / LoRa1120 | Large coverage, low-cost deployment in remote areas |
Future Trends: LoRa + AI + Hybrid Communication
Integration with GNSS: Modules such as LoRa1120 support low-power geolocation reporting.
Combination with BLE/2.4G: Hybrid architecture enabling local high-bandwidth communication with long-range backhaul.
Edge AI Processing: Embedding lightweight AI inference in LoRa terminals for intelligent event recognition.
LoRaWAN Protocol Integration: Unified access management across private and public LoRa networks.
Conclusion
LoRa may not be the fastest communication technology, but it is one of the most suitable for IoT. By trading off data rate for ultra-low power and wide coverage, LoRa occupies a strategic position in IoT communication infrastructure.
As a leading manufacturer of industrial-grade wireless modules, NiceRF continues to advance LoRa and LPWAN technologies, providing high-performance, low-power, and easy-to-deploy LoRa modules and solutions.
For more technical documentation and product selection guides, please visit: www.nicerf.com
