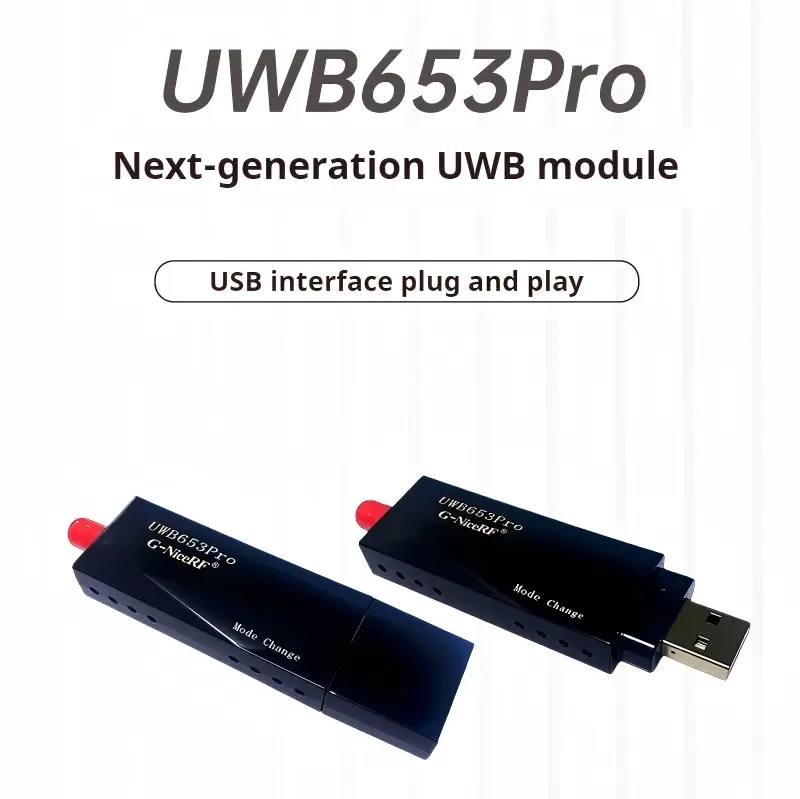

New Product: High-Speed UWB Communication Module UWB653Pro – USB Plug-and-Play Interface

The UWB653Pro module inherits the core communication capabilities of the UWB650Pro. It is based on the Qorvo DW3000 UWB chipset, strictly complies with the IEEE 802.15.4-2020 standard, and carries forward its excellent RF performance and Mesh networking capability, with built-in ESD protection and AES128 encryption.
The difference lies in its dedicated USB adapter board, which converts the module’s TTL-level signals into a more universal USB interface, significantly lowering the usage threshold.
This product is also functionally compatible with our UWB650Pro and UWB650 modules, allowing users to mix and match as needed.

Product Key Advantages

1. High-Precision Positioning and Ranging

• Ranging accuracy up to ±10 cm; supports two-way ranging (SS-TWR / DS-TWR).

• Supports ultra-long-range communication up to 1 km with strong signal penetration.

• Supports 2D/3D positioning; by flexibly deploying 3–8 anchors, precise tracking of personnel, assets, and equipment can be achieved.

• Ultra-short ranging time.

2. Efficient and Stable Data Transmission

• Air data rate up to 6.8 Mbps.

• Integrates ACK auto-acknowledgment, CCA channel assessment, low-power SNIFF mode, and multi-hop routing algorithms to effectively reduce packet loss and improve network coverage and reliability.

• Maximum payload: 1023 bytes (Data Transmission Mode) / 1004 bytes (Mesh Mode), suitable for various application scenarios.

• Pure Data Transmission Mode: module focuses on high-efficiency standard data transfer, ideal for scenarios requiring high throughput and real-time performance.

3. Flexible Networking with Mesh Capability

• Mesh self-organizing networking: module can act as a node or relay to build distributed networks

• Hop limit: forwarding hops of the same packet are fixed at 10; packets exceeding this limit are discarded by relay nodes to prevent redundant retransmission

• Target-oriented forwarding: relay nodes only process packets whose destination address is not the local address, avoiding unnecessary computation and resource usage

4. Low Power & High Protection – Stable and Reliable

• Multi-level adjustable TX power (up to 0.5 W), allowing flexible .balance between power consumption and communication distance.

• Sleep current as low as <100 μA (same as UWB650Pro), effectively extending battery life.

• Built-in ESD protection improves stability and durability in complex electromagnetic environments.

• Supports AES128 encryption.

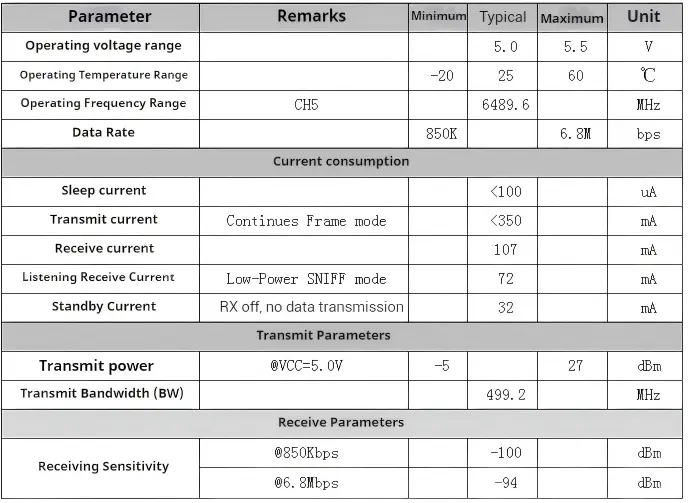

Product Performance Parameters

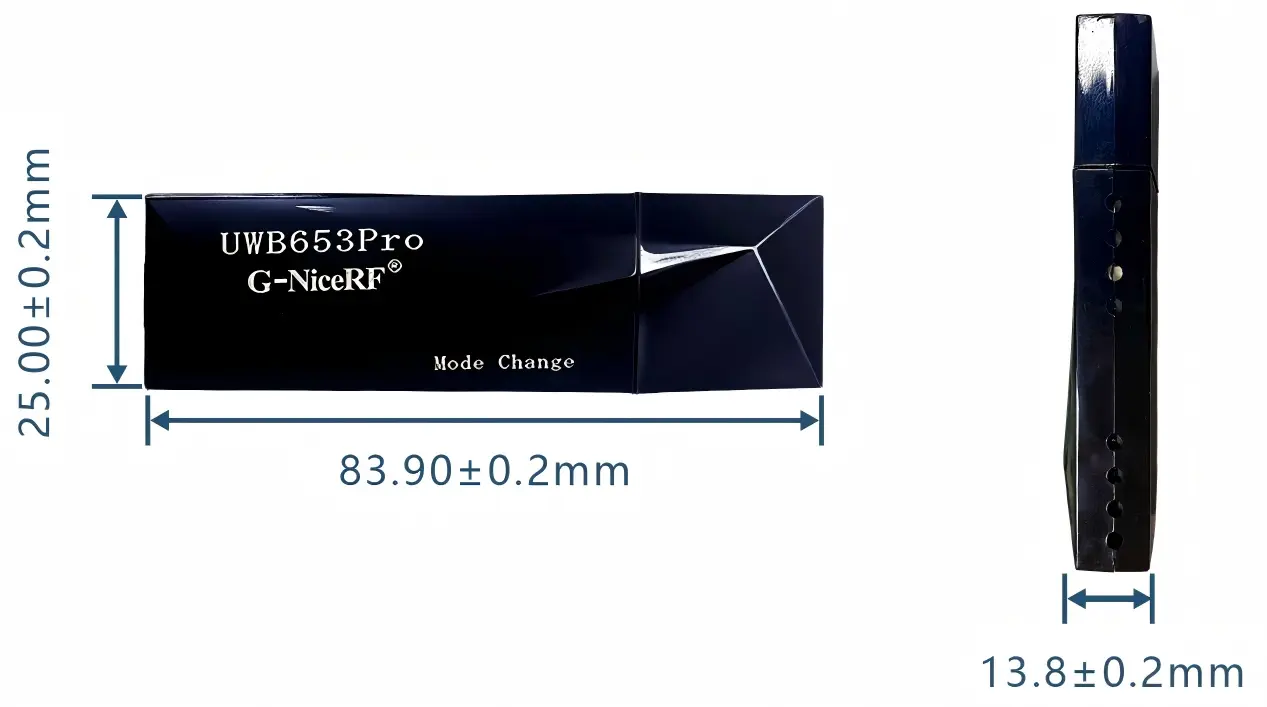

Product Dimensions

Typical Application Scenarios

• Personnel positioning in large industrial facilities

• Underground mine positioning

• Hospital staff/equipment tracking

• Indoor positioning and navigation

• Laboratories / exhibition halls / smart home systems

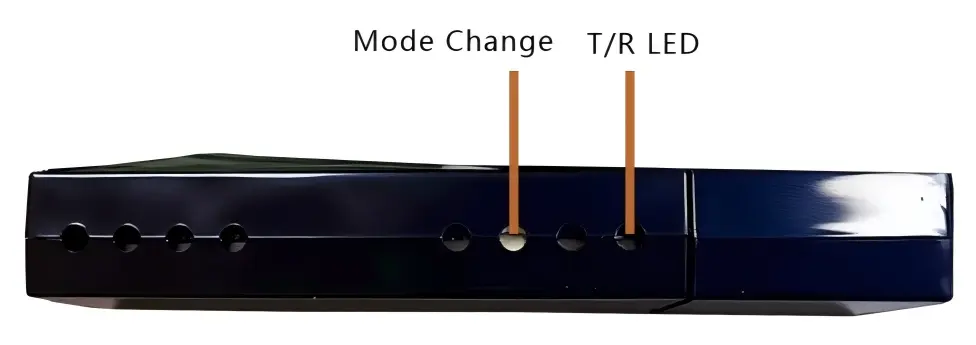

UWB653Pro not only offers plug-and-play hardware convenience but also provides a comprehensive command set and status indicators.
Users can easily configure PAN ID, TX power, data rate, ranging/positioning parameters, Mesh mode, and more via serial tools, enabling rapid customization.
The module supports Pure Data Transmission Mode, Ranging Mode, Positioning Mode, and Mesh Networking Mode by default, allowing users to switch flexibly according to application needs and meet diverse scenarios.
