UHF Walkie Talkie Module Performance Comparison and Use Cases

Introduction

In industrial environments, communication systems often need to maintain clear voice quality and stable connections under complex electromagnetic conditions. UHF walkie-talkie modules are commonly integrated into handheld radios, vehicle-mounted radios, and fixed terminals to meet medium-to-long distance communication needs. This article analyzes and compares several UHF walkie-talkie modules based on typical specifications and application scenarios. It also further discusses key technical features related to voice clarity and overall system stability.

Key Factors: How UHF Walkie-Talkie Modules Affect Industrial Communication Efficiency

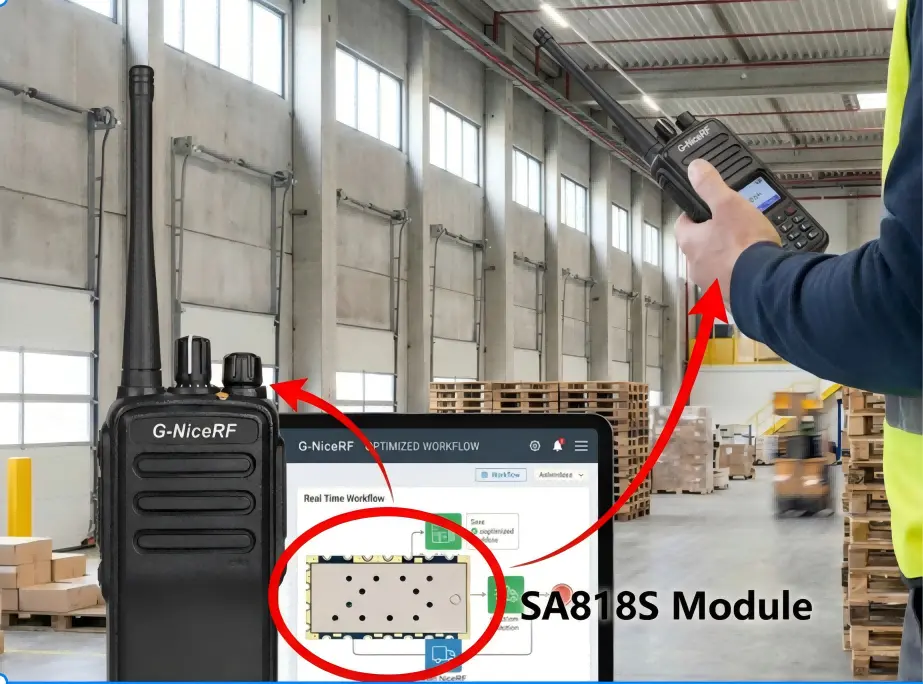

(Illustration: G-NiceRF UHF radio used in an industrial warehouse)

Integrating a stable data transmission module is often a major consideration in industrial communication system design. Industrial-grade UHF transceiver modules focus on operational efficiency in demanding fields such as smart agriculture and security systems.

These modules operate in the 400–470 MHz frequency range, which helps them penetrate concrete walls effectively. In typical open areas and under compliant transmit power limits, some UHF modules can achieve approximately 3–4 km of communication range. Real-world performance depends on the antenna, installation height, and environmental conditions. In critical workflows, higher communication reliability helps automation systems run continuously—especially important for safety-related applications.

In practical engineering deployments, G-NiceRF notes that a well-designed embedded RF module can reduce packet loss to a certain extent and mitigate the impact of communication blind spots on system operation. For industrial scenarios that rely on wireless links, proper module selection and deployment improve continuity and maintainability.

Application Characteristics of Different UHF Walkie-Talkie Modules

UHF transceiver modules for industrial applications are often designed or customized based on specific needs—supporting wireless communication while meeting distance requirements. When PCB space is limited, compact solutions are typically required. In many engineering scenarios, choosing the right embedded RF solution has a direct impact on system performance and reliability.

SA818S Module

Engineers often need a compact solution for small handheld devices. The SA818S offers stable 1 W output power and can operate reliably at rated power. It covers 400–480 MHz and delivers good energy efficiency in urban scenarios. Integrators can easily configure 16 channels using basic PC software. This makes it suitable for compact embedded systems with strict space constraints.

SA858 Module

Large-scale operations such as mining or logistics often require longer communication distances. The SA858 provides 5 W output power and maintains stable output in the 4–5 W range. In open areas, long-range wireless modules can reach 7–10 km. High sensitivity of -124 dBm helps improve decoding success under weak signal conditions. It is therefore a strong option for applications that require long-distance wireless links and high communication reliability.

SA868S Module

The SA868S is positioned as a balanced choice between power and cost efficiency. It increases output to 2 W for better penetration while maintaining a small footprint. Developers get a miniaturized wireless audio module capable of 4–5 km transmission without placing a heavy burden on the battery. This makes it suitable for mid-sized security projects or operational management tasks in commercial facilities.

DMR828S Module

Teams performing daily operations may need digital clarity and secure voice transmission. This digital UHF transceiver module provides 2 W power (with an available dual time-slot feature) and supports both voice and data. It uses modern AMBE voice processing and allows voice plus wireless data transmission. For developers who need high-performance digital voice encryption, the 5 W high-power mode enables sending SMS text messages. Other features include license-free wireless data transmission, and in modules with integrated DMR functionality, the communication range is typically around 6–8 km (open areas).

Technical Specification Table

UHF Walkie-Talkie Module Technical Comparison

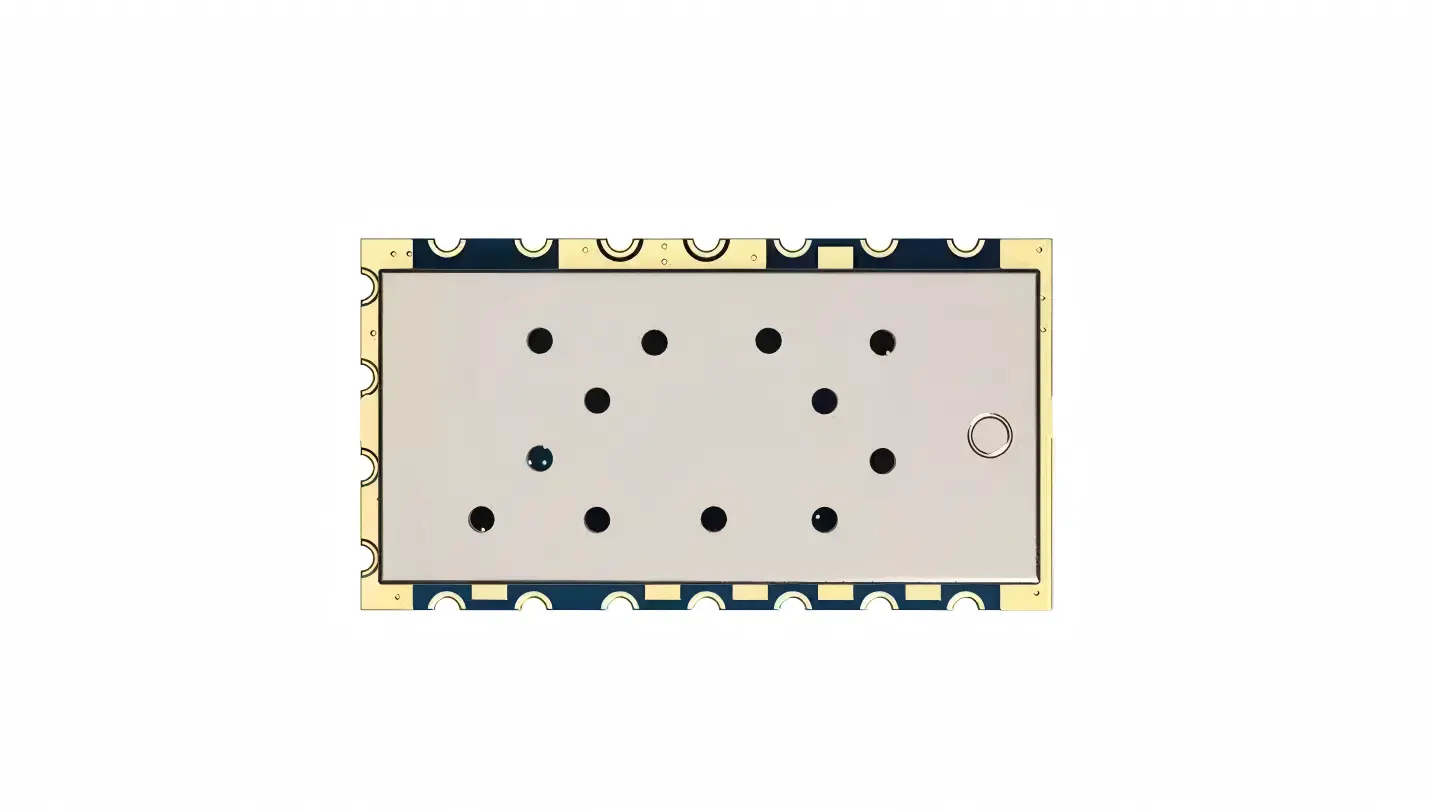

SA818S Module: A Globally Compliant, Compact, High-Sensitivity Choice

Following the success of earlier SA818S modules, the SA818S model has recently been updated for the European market. It has obtained CE-RED certification, meeting European compliance requirements. Beyond certification benefits, SA818S performance has also been significantly improved.

The module integrates an LNA (low-noise amplifier) circuit that increases receive sensitivity by 4 dBm, reaching -124 dBm total sensitivity. This means SA818S can receive and capture weaker, more distant signals in low-signal environments—expanding usable coverage.

Across the full 400–470 MHz band, power output variation remains within 1 dB, demonstrating RF consistency and stability. These features make it a practical mainstream solution for embedded applications that require both performance and compliance—such as high-end handheld devices and industrial wireless control.

Key parameters:

• Transmit power: 1 W
• Receive sensitivity: -124 dBm
• Communication distance: 3–4 km (open area)
• Band support: UHF (400–480 MHz) / VHF (134–174 MHz)
• Certification: CE-RED
• Size: 35.6 × 19 mm
• Core advantages: CE certified, high sensitivity, compact size, suitable for export to Europe

SA858 Module: A 4 W Powerhouse for Ultra-Long-Range Links

The SA858 from G-NiceRF is a 4 W high-power version. It supports 7–10 km range (open area). With high transmit power and long communication distance, it is positioned as a “main” analog transceiver module. It includes powerful built-in RF circuitry, DSP, and an audio amplifier, and fully supports UART commands and software configuration for PC control—making it suitable for professional communication devices and ultra-long-range wireless links.

Key parameters:

• Transmit power: 4 W
• Receive sensitivity: -124 dBm
• Communication distance: 7–10 km (open area)
• Band support: UHF / VHF
• Audio output: 2 W @ 8 Ω
• Integration: fully integrated application module
• Core advantages: 4 W high power, 7–10 km range, high sensitivity, professional walkie-talkie solution

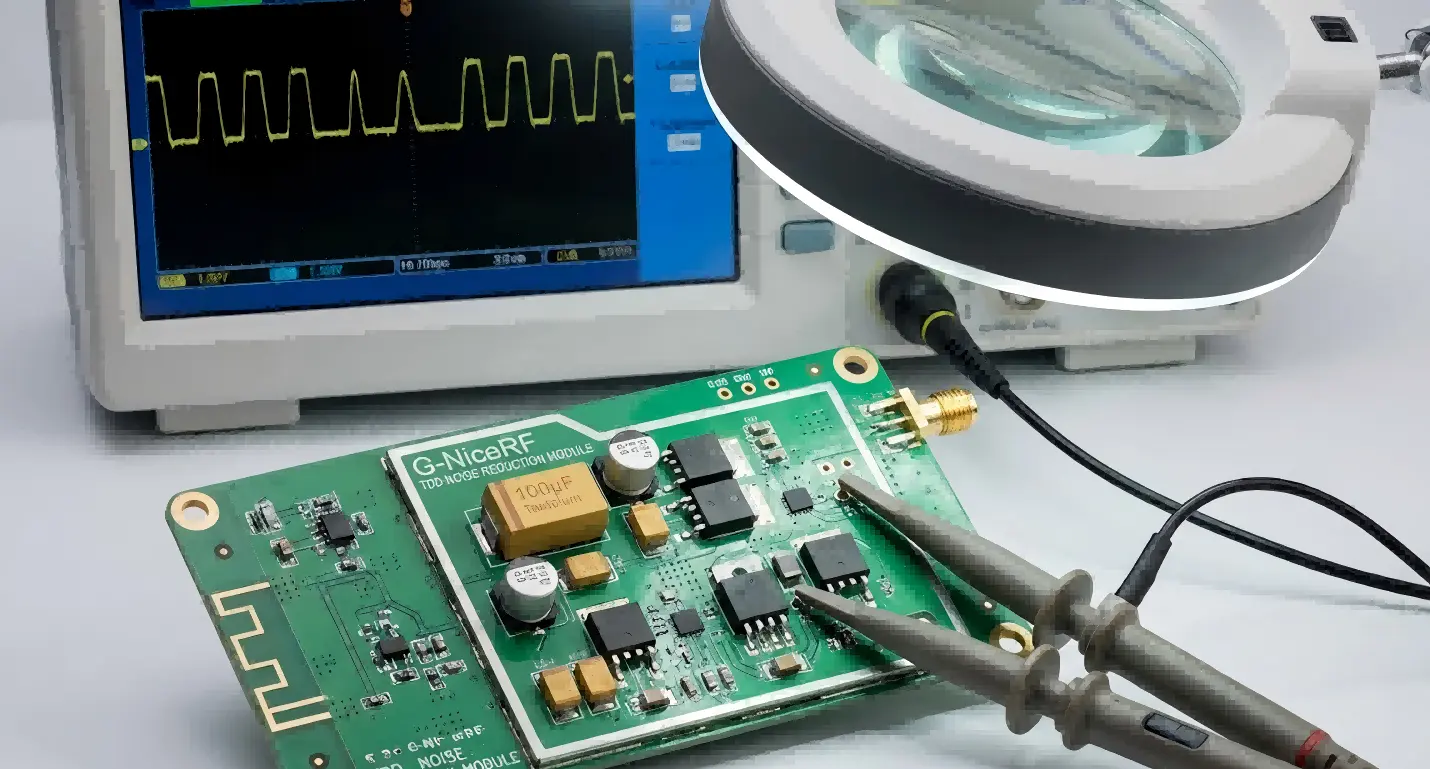

Solving TDD Noise Issues in UHF Walkie-Talkie Modules

This transceiver design improves audio clarity through a few straightforward steps. During field testing, engineers often observe phase noise when the antenna is too close. Layout adjustments were used to address this issue, and the changes provided useful reference for subsequent testing.

217 Hz Ripple

Users often hear a humming noise caused by power supply fluctuations. During UHF transmission, 217 Hz noise can appear when RF power is relatively high. Engineers need stable voltage to eliminate this audible noise. That is why a high-PSRR LDO regulator is used to block low-frequency ripple, helping keep the audio line clean and unaffected.

Current Pulses

Switching between transmit and receive causes sudden voltage changes. Loss is small, but current pulses can occur around 16–20 Hz. If the pulse frequency is near 16 Hz, noise may be injected into the audio path. A typical solution is placing a large 100 µF tantalum capacitor near the pulse source. The capacitor stores energy and smooths voltage effectively.

Audio Path

When using a wireless audio module with a headset, accessories must be handled carefully. Energy coupling can occur between RF signals and long microphone lines. Placing a 33 pF capacitor near the audio input pin helps block this issue. These capacitors filter unwanted RF-frequency signals and help transmit voice data clearly—even if the antenna is close to the microphone.

Ground Loops

Noise can occur when analog and digital ground share the same routing. Incorrect grounding may create multiple return paths, introducing digital noise into sensitive amplifiers. The amplifier should have an independent ground return to remain stable and avoid digital interference. This is often called star grounding, because return noise is guided to a single grounding point.

Burst Noise

A sharp clicking sound heard with each change in signal amplitude is “burst noise.” Users often notice it when the device attempts to receive signals. Adjusting the time constant so the signal ramps up to the required amplitude can reduce this noise. Slowing the ramp helps smooth burst noise. G-NiceRF’s design aims to provide a steadier output to reduce burst noise.

Why Digital UHF Walkie-Talkie Modules Offer More Options Than Traditional Analog Systems (Interference Resistance & Data Integration)

Few people can clearly identify audio clarity differences caused by digital noise. However, digital audio and communication systems are widely adopted in modern industrial and professional communication needs. People often ask why digital signals sound much clearer under harsh weather conditions.

AMBE++ Vocoder

This feature improves voice message quality for both transmission and reception. Even in very noisy environments, the vocoder compresses voice messages and reduces background static and wind noise. Compared with typical FRS systems, dedicated RF modules highlight the more advanced voice compression quality available here. Digital systems help maintain high voice quality regardless of link range. According to Hytera, “the AMBE+2™ vocoder provides high-quality voice even under poor signal conditions.”

Dual Time Slots

TDMA divides one channel into two time slots, effectively doubling call capacity for wireless audio module users. Unlike basic walkie-talkies, professional TDMA modules allow two simultaneous conversations. Operational teams can communicate more efficiently and avoid busy signals during peak periods.

12.5 kHz Bandwidth

Narrowband digital transmission makes better use of available bandwidth. This precise bandwidth management allows more users within limited spectrum space. The cost of wireless audio modules often reflects the quality of interference-free operation. Unlike older analog wideband systems, IoT networks can avoid spectrum congestion and maintain robust links.

Error Correction

Operators avoid the static and hissing common in weak analog signals. Digital modules use forward error correction (FEC) to repair lost bits. FEC can restore missing data bits to some extent and improve voice intelligibility under weak signal conditions. The actual effectiveness depends on channel conditions and system configuration.

Data Communication

Beyond voice audio, digital modules can send text, messages, and GPS coordinates. Digital protocols allow data packets to be embedded directly into the transmission stream. This enables efficient transmission of tracking device information and instant silent alerts. As a result, these digital modules support complex industrial IoT applications—not only voice communication.

UHF Walkie-Talkie Module PCB Layout Best Practices

To achieve optimal RF performance, strict layout guidelines must be followed. These design choices minimize interference and help reduce its impact on communication range. As DigiKey notes, “via fencing or stitching vias can effectively create a barrier to block RF interference.”

• 4-layer PCB: helps isolate UHF and VHF signal paths effectively
• Via stitching: add 0.3 mm vias to shield RF traces effectively
• Copper pour: use a thick ground layer to help dissipate 2 W of heat
• Short traces: keep RF traces short for long-range UHF walkie-talkies
• FR4 substrate: use material with dielectric constant 4.2 to match 50-ohm impedance

Component Selection for High-Performance UHF Walkie-Talkie Modules

Choosing the right passive components is essential for sufficient stability. These components affect the final product's reliability and clarity.

Power Inductor

To filter power noise, a 15 µH inductor is recommended. It blocks high-frequency RF from entering the battery power line. Power management remains stable even during 2 A current spikes. Choose an inductor with saturation current > 1.5 A to prevent resets and eliminate humming noise in high-power transceiver designs.

33 pF Capacitors

Placing these RF bypass capacitors on the audio line significantly improves stability—especially important for waterproof wireless modules. RF engineers use them to prevent radio waves from being demodulated into audible noise in the microphone path. These 33 pF parts also filter around the 400–470 MHz carrier frequency, helping preserve audio quality while preventing stray RF energy from being trapped inside.

LC Filter

This circuit improves microphone bias voltage. An inductor and capacitor form a low-pass filter to reduce noise. It protects your audio system from TDD noise sources that often create annoying pulses. As a result, even at maximum operating state, voice transmission remains clear and noise-free.

Ferrite Beads

Ferrite beads on the power line are critical for suppressing spikes. High-frequency resistance absorbs unwanted RF energy. Integrators use these parts to build quiet outdoor wireless audio solutions. They help prevent digital noise from radiating outward through the antenna, keeping the device “quiet” and reducing interference.

LDO Regulator

Select a regulator with high power-supply rejection to power the audio chip. This section feeds through to the load (output). The regulator provides a stable 3.3 V supply for the UHF transceiver system. Improved stability reduces maintenance issues caused by power irregularities.

Frequently Asked Questions (FAQ)

These answers address common technical issues during integration. Have you encountered audio humming in your design?

How do you suppress 217 Hz noise in the audio path?

Using a high-PSRR LDO as the audio power supply is the solution. This regulator removes 217 Hz ripple from the battery. PA/LNA integration helps prevent TDD current pulses from affecting microphone bias, keeping audio clean during burst transmissions. This is commonly used in high-quality digital radio designs to improve voice clarity.

Why use 33 pF capacitors in RF circuits?

Engineers use them to shunt high-frequency RF signals to ground. A 33 pF value is well-suited for 400–470 MHz filtering. This helps prevent internal interference (for example, in wireless modules used in smart toys) and also prevents RF coupling into audio amplifiers—so the device remains stable, and the speaker does not produce strange sounds.

Can a 4-layer PCB reduce digital interference?

A 4-layer PCB stack-up provides noticeably better isolation. The internal ground plane shields audio traces from RF energy. Proper layout reduces crosstalk between digital and analog sections. For high-performance modules, this is generally better than a 2-layer board and helps the product pass EMI certification tests for global market access.

What eliminates TDD burst transmission pulses?

Place a large 100 µF tantalum capacitor at the power input. RF module systems using capacitor-based voltage stabilization have proven beneficial. When the transmitter turns on and draws current, a significant voltage drop may occur; the capacitor smooths it. As a result, the power rail remains stable during bursts, preventing power collapse.

Can an LC filter stabilize microphone bias voltage?

Yes. With an LC filter, stability is improved. The inductor passes DC while blocking AC noise, ensuring a clean microphone signal. The difference between UHF and VHF is not critical here—the principle remains the same. Accurate, distortion-free voice modulation is a common approach used by G-NiceRF.

Conclusion

This article compares the performance parameters and application characteristics of several UHF walkie-talkie modules. System integrators can evaluate and select modules based on communication distance, power requirements, certification needs, and application scenarios. Professionals can now better understand RF modules and components that can significantly improve wireless systems, and integrators can determine which wireless audio module best fits complex connectivity challenges. You can explore G-NiceRF further to learn more about these solutions.
