In 2026, the Multi-PHY Architecture Based on LR2021: What Practical Engineering Challenges Does It Solve in Multi-Protocol Delivery?

In the development of IoT products, we clearly understand one core pain point faced by engineers: wireless protocol fragmentation.
Different regions, industries, and even individual customers often favor different communication standards. This inevitably leads to product line divergence, a rapid increase in stock keeping units (SKUs), and ultimately erosion of profit margins and time-to-market.

Based on the common delivery challenges encountered in multi-region and multi-protocol IoT projects, G-NiceRF introduces the LoRa2021 module as a general-purpose wireless hardware platform designed for multi-protocol applications, with a clear focus on reducing engineering complexity throughout the design and delivery process.

First, Get to Know the G-NiceRF LoRa2021 Module:

Turning “Multi-PHY” into Mass-Production-Ready Hardware

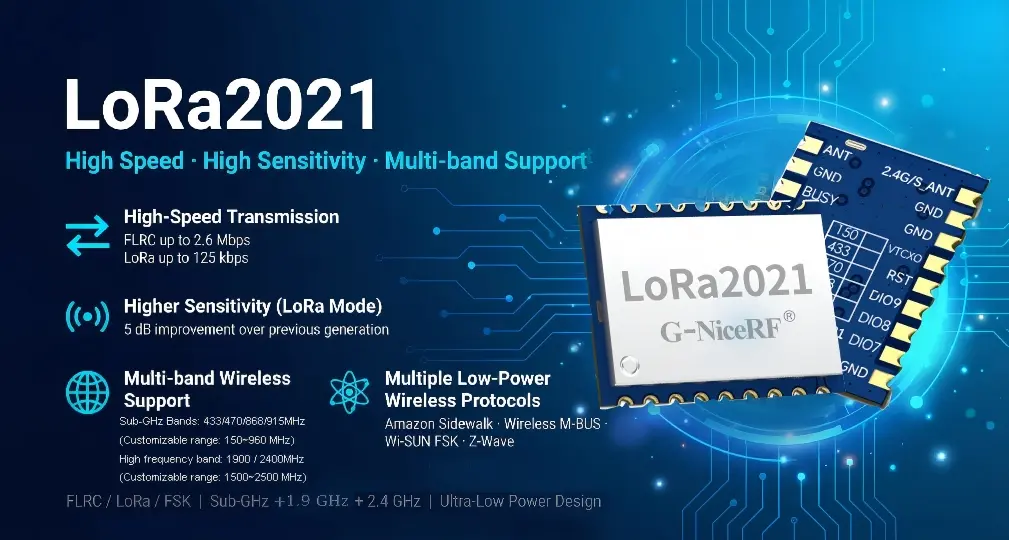

What Is the LoRa2021 Module?

The LoRa2021 module is designed around Semtech’s latest-generation LR2021 chipset.
It is not merely a basic RF transceiver, but a highly integrated wireless platform supporting multi-band and multi-PHY configurations. The module natively supports Sub-GHz bands, the global 2.4 GHz ISM band, and future-oriented satellite connectivity in the S-band, providing a practical hardware foundation for applications related to terrestrial networks and non-terrestrial networks (NTN).

Why Do We Recommend Starting Multi-Protocol Projects at the Module Level?

Based on our long-term RF engineering experience, developing multi-protocol products directly from bare RF chips often leads teams into complex challenges such as RF layout optimization, impedance matching, and electrostatic discharge (ESD) protection.

With the LoRa2021 module, these critical RF engineering tasks have already been designed and validated at the module level. This allows your engineering team to focus on protocol stack integration, application logic implementation, and regulatory certification, rather than repeatedly solving low-level hardware issues.

By adopting a unified hardware platform, successful design experience can be easily replicated across multiple projects, significantly shortening RF tuning cycles and enabling teams to allocate more resources to protocol integration and application-layer development—ultimately improving overall development efficiency.

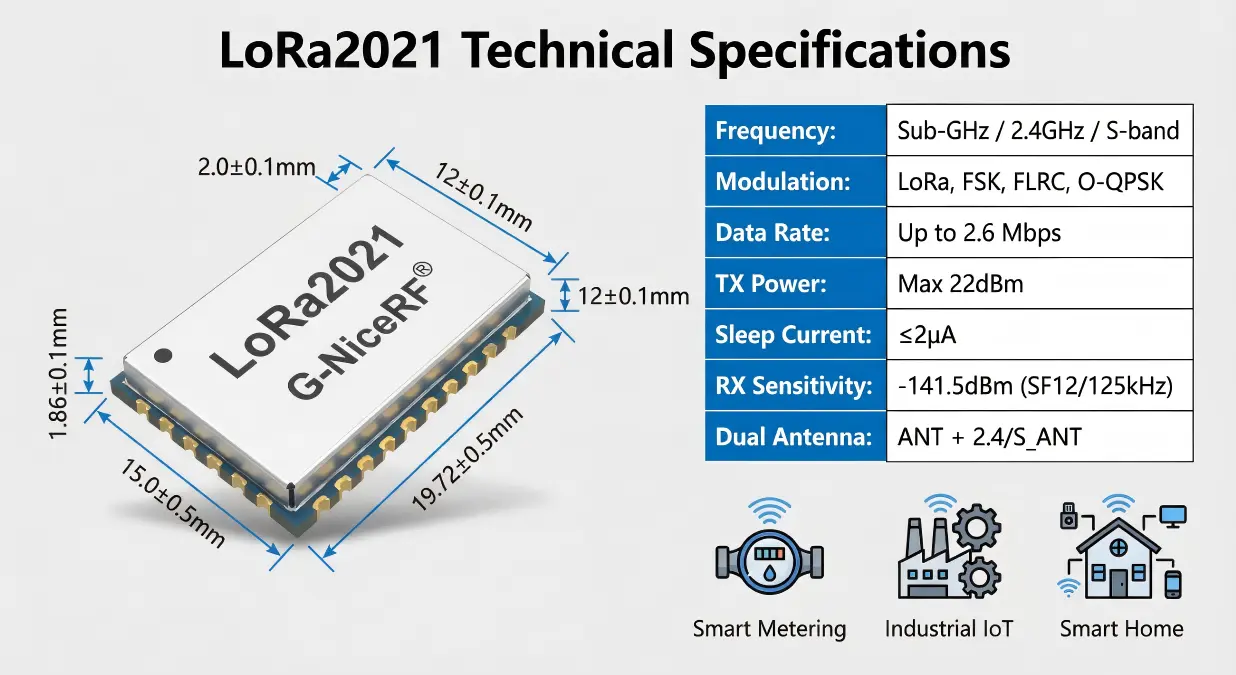

LoRa2021 Module Capability Overview

To provide a clearer understanding of its performance, the core capabilities of LoRa2021 are summarized below:

It is worth noting that Semtech officially highlights the LR2021’s potential for single-SKU, multi-region product designs and its improved frequency offset tolerance.
Accordingly, the LoRa2021 module intentionally retains the VTCXO pin, allowing system designers to balance frequency stability against BOM cost and flexibly decide whether to deploy an external high-precision temperature-compensated crystal oscillator (TCXO).

Why the Market Is Driving Us Toward “Multi-Protocol”

The era of winning markets with a single wireless protocol is over.
From real-world market observations, even within the same company, product teams must address pressures from multiple dimensions.

Three Realities We All Face

• Regional Reality: In European utility markets, Wireless M-Bus dominates; in North America, Wi-SUN plays a critical role. Products entering these regions must align with local ecosystems.
• Customer Reality: In security and smart home markets, there is a large installed base of devices using protocols such as Z-Wave. New products that cannot integrate into existing ecosystems face significant adoption barriers.
• Product Reality: To sell a common hardware platform across different channels and industries, products must support diverse protocol requirements—inevitably increasing product variants and version management complexity.

Multi-Protocol Communication Combinations in Key Industries

• European Utilities: LoRaWAN + Wireless M-Bus
• North American Utilities: LoRaWAN + Wi-SUN FSK
• Security / Smart Home: Long-range LoRa + Z-Wave and other ecosystem protocols

Multi-PHY ≠ All Protocols Embedded in the Chip

A common misconception is that a “Multi-PHY” chip includes all protocol stacks. In reality, wireless communication is layered.
The LR2021’s multi-protocol capability refers specifically to PHY-layer flexibility.

What Does “Multi-Protocol Compatibility” Mean for LR2021?

LR2021 provides Multi-PHY compatibility at the physical layer.
This means the hardware supports multiple modulation schemes, frequency bands, and air-interface parameters. When integrated with appropriate third-party protocol stack software, the platform can support the PHY requirements of various low-power wireless protocols such as Amazon Sidewalk, Meshtastic, W-MBUS, Wi-SUN FSK, and Z-Wave.

What Software Is Required for Deployment?

A typical multi-protocol product software stack includes:

· A LoRaWAN protocol stack (if LoRaWAN support is required)

· Third-party protocol stacks / SDKs (e.g., W-MBUS, Wi-SUN, or Z-Wave)

· Your own application-layer code (handling sensor data, alarms, OTA updates, logging, and business logic)

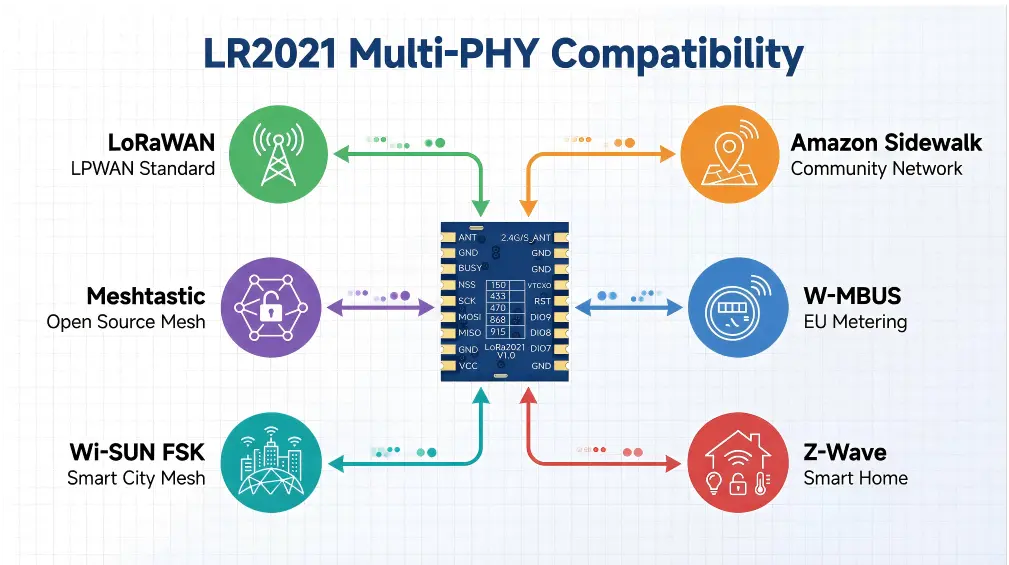

Which Protocol Ecosystems Can LR2021 Support? (User Value Breakdown)

·LoRaWAN (Core Backbone Protocol)

As one of the most widely adopted LPWAN standards, LoRaWAN serves as the backbone of many IoT platforms.
LR2021 ensures backward compatibility with existing LoRa devices and compliance with LoRaWAN PHY and RF specifications, making it an ideal choice for legacy device upgrades and new platform deployments.

·Amazon Sidewalk

Amazon Sidewalk is a community-shared network designed to provide seamless cloud connectivity for low-bandwidth devices.Its wireless layer combines BLE for short-range communication and LoRa / FSK (operating in the 900 MHz band) for long-range coverage.For North American consumer products targeting hub-free connectivity, Sidewalk compatibility is a significant advantage.
LR2021 supports the required Sub-GHz LoRa and FSK PHY configurations for the long-range portion of Sidewalk.

·Meshtastic (Open-Source LoRa Mesh Ecosystem)

Meshtastic is a community-driven open-source project that builds off-grid mesh communication networks using LoRa technology, without relying on cellular or internet infrastructure.
For companies developing emergency communication, outdoor, or private network devices, Meshtastic compatibility enables rapid entry into an active developer ecosystem.

·Wireless M-Bus (W-MBUS)

Wireless M-Bus is a mandatory standard for smart metering (water, gas, electricity, heat) in Europe under EN 13757-4.
For European utility markets, W-MBUS support is essential for interoperability and tender participation.

With LoRa2021, a single hardware platform can support both LoRaWAN and W-MBUS, significantly simplifying product lines.

·Wi-SUN FSK

Wi-SUN FAN is a large-scale wireless mesh networking standard based on IEEE 802.15.4g PHY and IPv6, widely deployed in smart city and utility infrastructure.
LR2021 meets the modulation requirements of Wi-SUN FSK and, when combined with a third-party Wi-SUN stack, enables development of Wi-SUN-compatible devices.

·Z-Wave

Z-Wave is a well-established Sub-1 GHz wireless protocol with a large installed base in smart home and security markets.It features a mature certification framework and channel ecosystem.Using LoRa2021, developers can create Z-Wave-compatible products and enter this established market.

Turning “Multi-Protocol” into Deliverable Products:

Two Common System Architectures

Based on practical deployment experience, LoRa2021-based products typically adopt one of the following architectures:

·Solution 1: MCU + LoRa2021

An external MCU runs the protocol stacks and application code, communicating with LoRa2021 via SPI.
This architecture is well suited for platform-based hardware designs, enabling different firmware builds for different protocol requirements.
Its key advantages are unified hardware and controlled cost.

·Solution 2: MCU / SoC (with BLE) + LoRa2021

For applications requiring both short-range connectivity (e.g., mobile provisioning) and long-range communication, this architecture is more suitable.
A BLE-enabled MCU or SoC handles near-field interaction, while LoRa2021 manages long-range and multi-band communication.
This combination is commonly used in Amazon Sidewalk projects.

Our 8-Step Delivery Checklist: Reducing Multi-Protocol Project Risk

Developing a multi-protocol platform is a complex system engineering effort. Based on experience, we recommend the following eight checkpoints:

·Requirement definition: Clearly specify protocols, regions, bands, data rates, and power budgets before project kickoff.

·Antenna & RF: Leverage LoRa2021’s dual-antenna design and plan antenna selection and PCB layout for Sub-GHz and 2.4G/S-band.

·Protocol licensing: Confirm third-party stack availability, licensing costs, and cloud integration requirements early.

·Firmware architecture: Design layered firmware (driver, PHY abstraction, protocol stack, application) to avoid fragmented codebases.

·Production testing: Define a minimal but sufficient test set covering different PHYs, data rates, and power levels.

·Regulatory certification: Plan certification paths for different countries and regions early.

·Supply chain management: Use LoRa2021’s platform capability to minimize final product SKUs.

·Documentation & deliverables: Prepare clear specifications, band configuration guides, and firmware version documentation.

We Are G-NiceRF: Your Wireless Communication Partner

G-NiceRF specializes in the development and delivery of wireless communication modules and system solutions.Our products have been deployed in multiple large-scale field applications, including broadcast events, public safety communications, and energy infrastructure.

From large-scale complex scenario deployments in Hunan TV’s Run for Time (2015), to providing robotic communication support for the CCTV Spring Festival Gala for three consecutive years (2016–2018), and later ensuring on-site communication reliability for the 2019 Wuhan Military World Games and the 2021 CPC Centennial Celebration.

As of 2026, our technology has been deployed in volume within full-duplex audio modules used by the State Grid of China.
These projects imposed stringent requirements on wireless stability, interference immunity, and system consistency—forming the practical foundation of our module design and mass-production expertise.

Beyond standard wireless modules, we also offer antenna matching, ODM/OEM customization, network design, and OTA upgrade support, helping customers transition wireless designs smoothly from prototype to mass production.

II. 2026 Multi-Protocol Wireless Module FAQ

Q1: Why choose the G-NiceRF LoRa2021 module instead of using the LR2021 chip directly?
A: In multi-protocol projects, chip-level designs typically require in-house RF layout, impedance matching, ESD protection, and production consistency validation—tasks that demand substantial RF expertise and tuning cycles.
The LoRa2021 module integrates and validates these RF-critical elements, reducing RF design risk and allowing teams to focus on protocol stack integration and application development, especially in multi-band and multi-PHY projects.

Q2: Which wireless protocols can LoRa2021 support in 2026?
A: LoRa2021 provides PHY-layer capabilities, including multiple modulation schemes and frequency bands.
With appropriate third-party protocol stacks, it can support LoRaWAN, Amazon Sidewalk (Sub-GHz portion), Meshtastic, Wireless M-Bus (W-MBUS), Wi-SUN FSK, and Z-Wave.
Actual protocol support depends on stack availability, licensing terms, and system software architecture.

Q3: Is the LoRa2021 module alone sufficient for Amazon Sidewalk projects?
A: Generally no. Amazon Sidewalk consists of two wireless components: Sub-GHz LoRa / FSK for long-range communication and BLE for short-range connectivity.
LoRa2021 supports the Sub-GHz PHY requirements, but a complete Sidewalk device typically requires an additional BLE-enabled MCU or SoC.

Q4: What additional support does G-NiceRF provide beyond the LoRa2021 module?
A: In addition to standard modules, G-NiceRF offers antenna selection and matching guidance, ODM/OEM customization, network design solutions, and OTA upgrade support—helping customers complete system integration and delivery from prototype through mass production.
