A Practical Guide to Custom ESP32 Digital Walkie-Talkies (Part 1): In-depth Analysis of the DMR858M Module

1. Introduction: The DMR858M as an Integrated DMR Subsystem

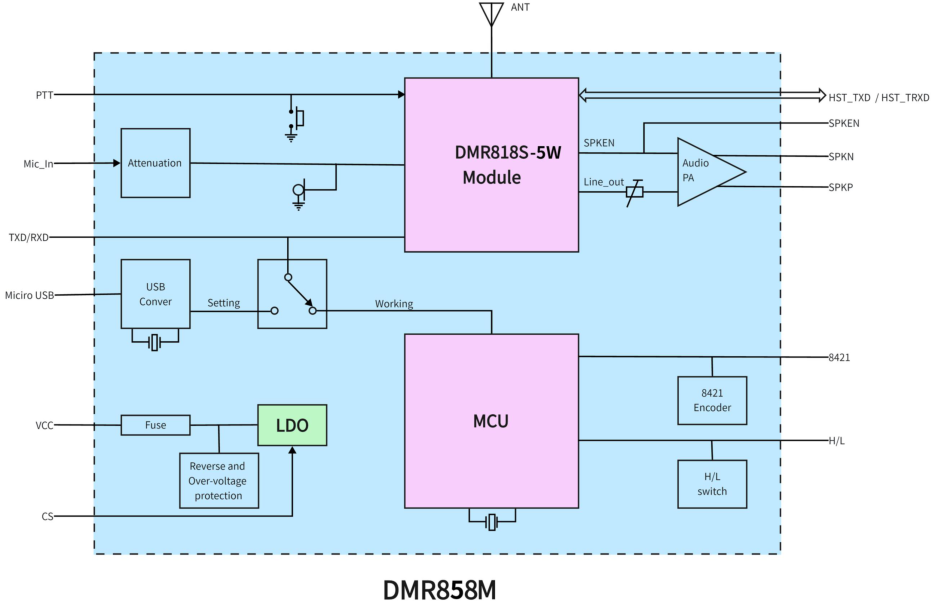

In the field of embedded systems development, integrating radio frequency (RF) functionality into a product often involves complex hardware design and tedious protocol stack implementation. The DMR858M module significantly simplifies this process by providing a highly integrated Digital Mobile Radio (DMR) subsystem with up to 5W of transmit power. It is not just an RF transceiver but a complete solution, internally integrating a microcontroller (MCU), a digital walkie-talkie chip, an RF power amplifier, and an audio amplifier. This design allows developers to control a full-featured walkie-talkie core—supporting the DMR Tier II standard, compatible with traditional analog modes, and equipped with SMS and voice encryption—through a simple serial interface.

Compared to solutions built from scratch in some open-source projects, this integrated approach offers distinct advantages. Many open-source walkie-talkie projects require developers to handle the SDR (Software-Defined Radio) front-end, power amplifier, audio codecs, and complex signal processing tasks themselves. The DMR858M encapsulates these complexities within the module, greatly accelerating the development cycle and reducing project risks.

Key Advantage: 5W Transmit Power and Long-Range Communication

For many walkie-talkie applications, communication range is the core metric of performance. The most significant advantage of the DMR858M module is its ability to deliver up to 5W of transmit power, making it stand out among similar products. Under ideal conditions, 5W of power is sufficient to support a communication distance of up to 7-8 kilometers, meeting the needs of various professional scenarios such as ports, forests, large warehouses, or outdoor activities.

High power output directly translates to stronger signal penetration and wider coverage, ensuring a reliable communication link even in complex environments. For developers, this means that products designed based on the DMR858M can meet or exceed the performance standards of many commercial handheld walkie-talkies without investing significant resources in complex RF power amplifier design and debugging.

Another Core Advantage: Onboard AMBE++ Vocoder

In addition to its powerful transmit capabilities, another core value of the DMR858M module is its integrated Motorola AMBE++ vocoder. For digital voice communication, the vocoder is a key technology for compressing and decompressing voice signals, but it has also been a major obstacle for the open-source community.

Digital voice communication standards like DMR rely on specific vocoders. The AMBE series of vocoders, developed by Digital Voice Systems, Inc. (DVSI), is protected by patents. This presents both technical and legal challenges for the open-source community. On one hand, for an open-source project to be interoperable with commercial DMR devices, it must use an AMBE-compatible codec algorithm. However, using these patented algorithms without authorization carries legal risks. Some projects attempt to reverse-engineer partial functionality (like mbelib), but this remains in a legal gray area.

On the other hand, the community has also developed fully open-source alternatives like Codec2. Although Codec2 is technically viable and has been adopted in some amateur radio projects (such as the M17 project), it is not compatible with the AMBE vocoder defined in the DMR standard. This means that devices using Codec2 cannot make voice calls with the vast majority of commercial DMR walkie-talkies on the market, which severely limits their practicality.

The DMR858M module perfectly circumvents this problem by providing a licensed, hardware-based AMBE++ vocoder. Developers do not need to worry about the complex implementation of the vocoder algorithm or potential patent licensing issues; they can simply invoke its functions through simple serial commands. This is not just a technical convenience but also an effective management of project risk. By abstracting the complex and sensitive vocoder part, the DMR858M allows developers to focus on application-level innovation, thereby significantly lowering the barrier to building DMR-compatible devices.

Key Specifications and Their Engineering Significance

To quickly assess whether the DMR858M meets project requirements, the following table summarizes its key technical specifications and explains the significance of these parameters in practical engineering applications.

Table 1: DMR858M Key Specifications Summary
